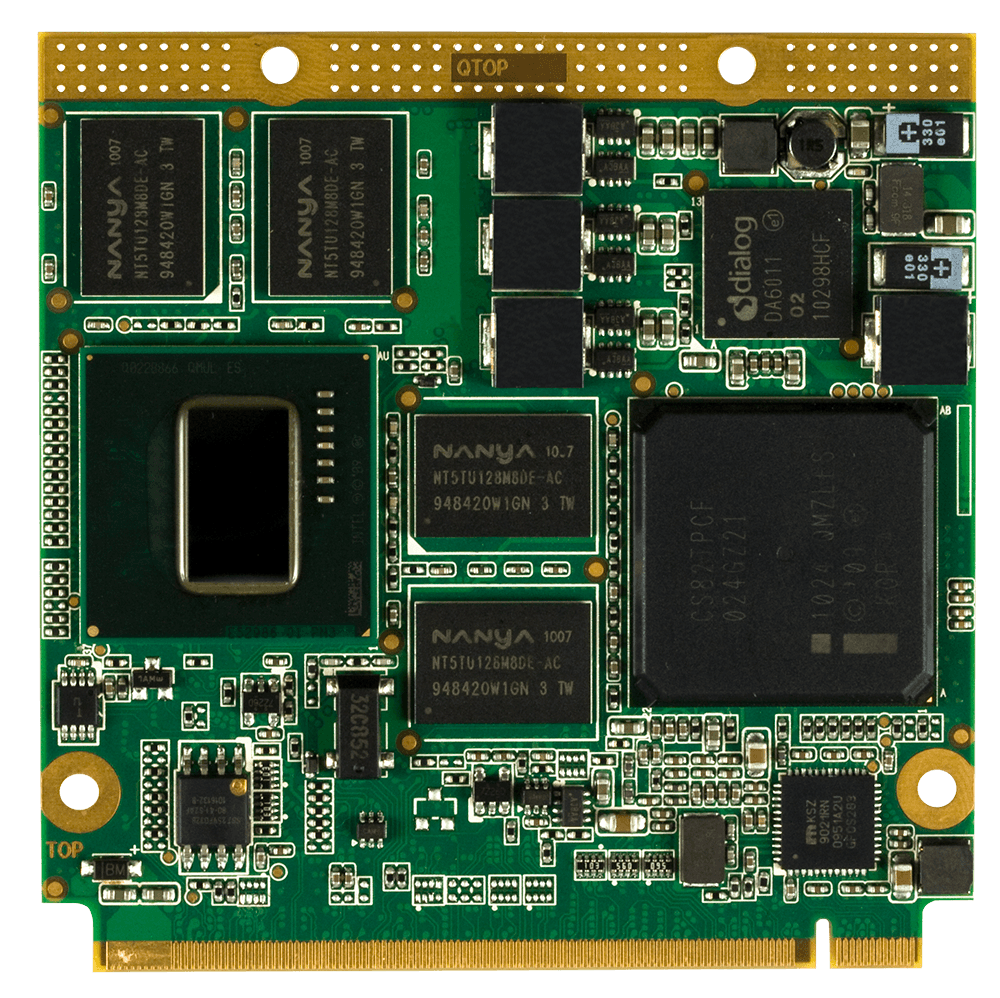

conga-QA6 (EOL)

Ultra mobile module offering improved graphics performance and extended temperature range

  • Low Power Qseven Module with Enhanced Graphics
  • Intel® Atom™ E600 processor 600MHz - 1.6GHz
  • Optional -40..85°C versions
  • Optional onboard SATA SSD up to 32 GByte
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

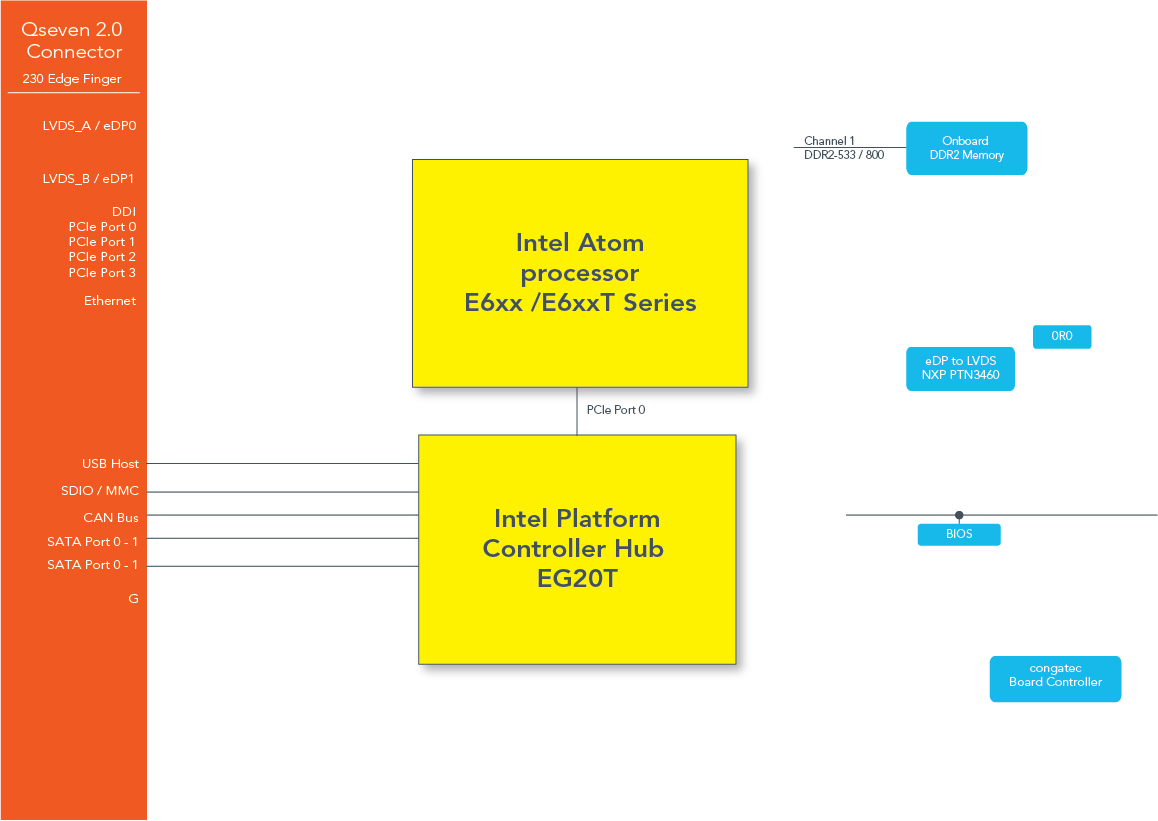

Specification

Formfactor
Qseven
CPU
Intel® Atom™ E680T (1 x 1.6 GHz, 512 kB L2 cache, 4.5W)
Intel® Atom™ E660T (1 x 1.3 GHz, 512 kB L2 cache, 3.6W)
Intel® Atom™ E640T (1 x 1.0 GHz, 512 kB L2 cache, 3.6W)
Intel® Atom™ E620T (1 x 0.6 GHz, 512 kB L2 cache)
Intel® Atom™ E680 (1 x 1.6 GHz, 512 kB L2 cache, 4.5W)
Intel® Atom™ E660 (1 x 1.3 GHz, 512 kB L2 cache, 3.6W)
Intel® Atom™ E640 (1 x 1.0 GHz, 512 kB L2 cache, 3.6W)
DRAM
max. 2 GByte DDR2 533/800 MT/s
Ethernet
Qualcomm Atheros AR8035
I/O Interfaces
2 x SATA
3 x PCI Express™
8 x USB 2.0
1 x SDIO
CAN Bus
LPC bus
I²C bus
Graphics
Intel® Graphics Core with 2D and 3D
Intel® Graphics Core with 2D and 3D hardware Accelerator and dual independet display support.
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features
AMI Aptio UEFI
4 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Power Management
ACPI 3.0
ACPI 3.0 compliant, Smart Battery Management
Operating Systems
Microsoft® Windows® 7
Microsoft® Windows® XP
Windows Embedded Compact 7
Microsoft® Windows® embedded Standard
Microsoft® Windows® CE 6.0
Linux
Temperature
Extended
Commercial : Operating: 0 to +60°C Storage: -20 to +70°C Industrial: Operating: -40 to +85°C Storage: -40 to +85°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
1 x LVDS 1x24
1 x SDVO
Size
70 x 70 mm (2,75" x 2,75")

Documents

Software

[ DOS ]      [ Linux ]      [ Windows 7 ]      [ Windows CE ]      [ Windows XP ]      [ Windows XP embedded ]

DOS

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x32-1.03.022.tar.gz
12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
IEMGD_DUAL_LINUX_2443.zip
06.06.2012 / 18.31 MB
Preconfigured Intel Embedded Media and Graphics Driver supporting simultaneous video output on SDVO-DVI and LVDS.The LVDS output is configured for a 1024x768, 1x24bit panel.

Windows 7

Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
EG20T_Win7_Wes7_Package_150.zip
19.11.2014 / 2.39 MB
Intel Platform Controller Hub EG20T Drivers for Windows 7 and Windows Embedded Standard 7. Version 1.5.0
IEMGD_DUAL_Win7_2048.zip
12.01.2012 / 11.01 MB
Preconfigured Intel Embedded Media and Graphics Driver supporting simultaneous video output on SDVO-DVI and LVDS.The LVDS output is configured for a 1024x768, 1x24bit panel.
infinst_autol_E6xx.zip
12.01.2012 / 2.39 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 9.1.2.1013.

Windows CE

cgce6.zip
15.03.2013 / 9.81 MB
Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.
cgce6pche1qkitl.zip
04.10.2012 / 175.17 KB
Windows Ce 6.0 KITL Driver for QA6/CA6/CAx/QAF boards.
cgce7.zip
23.01.2013 / 7.75 MB
Board Support Package Rev. 2.6.5 for congatec CPU modules. Contains Windows Embedded Compact 7 driver files for video, sound and network.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosCe.zip
03.04.2017 / 53.16 KB
CGOS API Rev. 1.03.xxx for Windows CE 6.0, Windows Embedded Compact 7 and Windows Embedded Compact 2013.
conga_DIG_WEC7.pdf
01.02.2013 / 103.88 KB
Windows CE 7.0 Driver Installation Guide Rev. 1.0 for congatec CPU modules
conga_DIG_WinCE6.pdf
10.08.2012 / 85.22 KB
Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules

Windows XP

AHCI_FD_Inst_WinXP.zip
13.07.2012 / 26.44 KB
Intel(R) Platform Controller Hub EG20T Driver for Windows XP* and Windows Embedded POS Ready Version 2.4.1
Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CTOP_ViaVT6421_RAID_Driver.zip
04.07.2012 / 1.50 MB
Via RAID Driver for WinXP supporting conga-CA module IDE/SATA Interface provided by vt6421 Chip.
CTOP_ViaVT6421_XP_Floppy.zip
04.07.2012 / 395.09 KB
Via Floppy Disk Driver for WinXP installation on conga-CA modules using IDE Interface provided by vt6421 Chip.
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
EG20T_WinXP_WePOS_Package_270.zip
19.11.2014 / 1.41 MB
Intel Platform Controller Hub EG20T Drivers for Windows XP and Windows Embedded POS. Version 2.7.0
IEMGD_DUAL_WinXP_2443.zip
06.06.2012 / 7.31 MB
Preconfigured Intel Embedded Media and Graphics Driver supporting simultaneous video output on SDVO-DVI and LVDS.The LVDS output is configured for a 1024x768, 1x24bit panel.
infinst_autol_E6xx.zip
12.01.2012 / 2.39 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 9.1.2.1013.

Windows XP embedded

AHCI_FD_Inst_WinXP.zip
13.07.2012 / 26.44 KB
Intel(R) Platform Controller Hub EG20T Driver for Windows XP* and Windows Embedded POS Ready Version 2.4.1
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgxpe.zip
14.05.2012 / 48.75 MB
Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API.
conga_DIG_WinXPE.pdf
14.05.2012 / 102.41 KB
Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

Product Variants

conga-QA6/E620T-1G (P/N 015037)

Qseven module with Intel® Atom™ E620T processor 600MHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. No SSD. Industrial grade temperature range from -40°C to 85°C.

conga-QA6/E640-1G (P/N 015031)

Qseven module with Intel® Atom™ E640 processor 1.0GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20.

conga-QA6/E640-1G SSD4-MLC (P/N 015047)

Qseven module with Intel® Atom™ E640 processor 1.0GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. Onboard 4 GByte MLC SATA flash drive.

conga-QA6/E640T-1G (P/N 015036)

Qseven module with Intel® Atom™ E640T processor 1.0GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. No SSD. Industrial grade temperature range from -40°C to 85°C.

conga-QA6/E640T-1G SSD2 (P/N 015039)

Qseven module with Intel® Atom™ E640T processor 1.0GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. Industrial grade temperature range from -40°C to 85°C. Onboard 2GByte SLC SATA Flash drive.

conga-QA6/E660-1G (P/N 015030)

Qseven module with Intel® Atom™ E660 processor 1.3GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20.

conga-QA6/E660T-1G (P/N 015035)

Qseven module with Intel® Atom™ E660T processor 1.3GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. No SSD. Industrial grade temperature range from -40°C to 85°C.

conga-QA6/E680-1G SSD8-MLC (P/N 015046)

Qseven module with Intel® Atom™ E680 processor with 1.6GHz, 512kB L2 cache and 1GB DDR2 onboard memory. Featuring Intel® EG20T Platform Controller Hub and 8GB onboard MLC SATA Solid State Disk.

conga-QA6/E680-2G (P/N 015042)

Qseven module with Intel® Atom™ E680 processor 1.6GHz, 512kByteL2 cache and 2GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20.

conga-QA6/E680T-1G (P/N 015038)

Qseven module with Intel® Atom™ E680T processor 1.6GHz, 512kByteL2 cache and 1GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. No SSD. Industrial grade temperature range from -40°C to 85°C.

conga-QA6/E680T-2G (P/N 015041)

Qseven module with Intel® Atom™ E680T processor 1.6GHz, 512kByteL2 cache and 2GByte DDR2 onboard memory. Based on Intel® Platform Controller Hub EG20. No SSD. Industrial grade temperature range from -40°C to 85°C.

Ecosystem Details

Cooling solutions

conga-QA6/HSP-B (P/N 015060)

Standard heatspreader for Qseven module conga-QA6 with Intel Atom processor E6xx series. All stand-offs are with 2.7mm bore hole.

conga-QA6/HSP-T (P/N 015061)

Standard heatspreader for Qseven module conga-QA6 with Intel Atom processor E6xx series. All stand-offs are M2.5mm threaded.

conga-QA6/CSP-B (P/N 015062)

Passive cooling solution for Qseven module conga-QA6 with Intel Atom processor E6xx series. All stand-offs are with 2.7mm bore hole.
