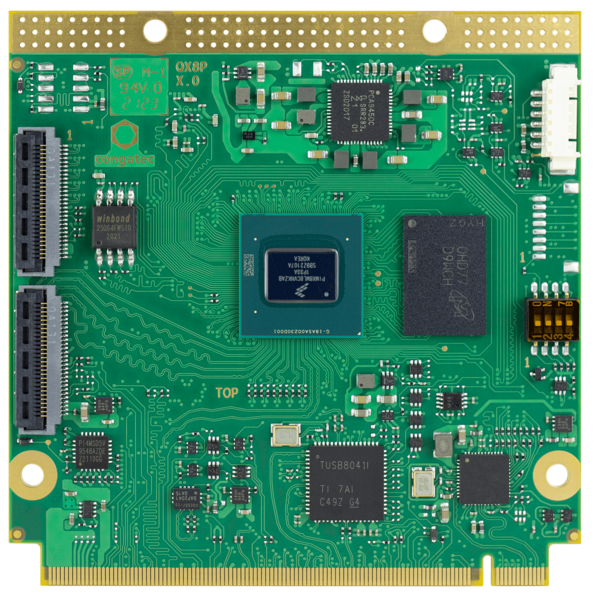

conga-QMX8-Plus

Qseven module based on NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU

  • NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU
  • Enhanced AI, Machine Learning and Vision capabilities featuring NPU and integrated camera ISP’s
  • Ultra low power architecture with 2-5W
  • Extended longevity up to 15 years
  • Temperature range up to -40°C .. +85°C
Request quote

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
      There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
      If you don't find the configuration you require contact your congatec Sales representative for further assistance.

      Specification

      Formfactor
      Qseven
      CPU
      NXP i.MX 8M Plus (consumer) (4x ARM® Cortex®-A53 @1.8GHz +1x ARM® Cortex®-M7 + NPU)
      NXP i.MX 8M Plus (industrial) (4x ARM® Cortex®-A53 @1.6GHz +1x ARM® Cortex®-M7 + NPU)
      DRAM
      Up to 6 GByte onboard LPDDR4 memory | 4000 MT/s | inline ECC
      Ethernet
      1 x Gbit Ethernet with IEEE 1588 and TSN Support
      I/O Interfaces
      1 x dual-role USB 3.0
      3 x USB 2.0
      1 x SDIO 3.0
      1 x onboard µSD card socket
      1 x PCIe 3.0
      2 x I²C bus
      1 x SPI
      1 x UART with Handshake
      1 x CAN FD
      12 x GPIOs
      Mass storage
      eMMC 5.1 up to 128 GByte | SPI NOR Flash up to 64MByte
      Graphics
      Integrated in SoC | GC7000UL 3D graphics with 2 high performance vec4 shaders | GC520L 2D graphics VPU up to 1080p60 H.265/H.264 decoding and encoding | OpenGL ES 3.1 | Vulcan | OpenCL 1.2 FP | OpenVG 1.1 2 independent displays
      Security
      Cryptographic Acceleration and Assurance Module (CAAM) | Resource Domain Controller | ARM® TrustZone® High Assurance Boot support | SHE, Encryption Engine AES-128, AES-256, 3DES, RC4, RSA4096, TRNG SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 40
      Operating Systems
      Linux
      Yocto
      Android
      Temperature
      Operating Temperature Range: 0 to +60°C commercial grade | -40 to +85°C industrial grade
      Storage Temperature Range: -40 to +85°C
      Humidity
      Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
      Video Interfaces
      1 x dual channel 24-bit LVDS | 1x HDMI 2.0a | 1x MIPI-DSI 4-lane shared with second LVDS channel
      2 x MIPI-CSI 4-lane onboard connectors | 2x integrated Image Signal Processor (ISP) for cameras with up to 12 MP resolution
      Size
      70 x 70 mm (2,75" x 2,75")

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.

      Data Sheet

      conga-QMX8-Plus.pdf
      29.03.2022

      Manual

      User's Guide for conga-QMX8 Plus
      22.11.2022
      conga-QMX8-Plus Sample Distribution Set Quick Start Guide
      10.09.2021

      Accessories

      More about conga-QEVAL/Qseven 2.0

      conga-QEVAL/Qseven 2.0

      To achieve a quick start with Qseven congatec offers an evaluation carrier board, which routes all the Qseven® signals to standard interface connectors.

      More about conga-DP/HDMI 4k Adapter

      conga-DP/HDMI 4k Adapter

      DP++ to HDMI evaluation adapter for development purpose

      Part Number

      016600
      conga-QMX8-Plus/QC-NPU-4G eMMC16

      Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.8GHz +1x ARM® Cortex®-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C.

      016601
      conga-QMX8-Plus/QC-NPU-2G eMMC16

      Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.8GHz +1x ARM® Cortex®-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C.

      016620
      conga-QMX8-Plus/i-QC-NPU-4G eMMC16

      Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.6GHz +1x ARM® Cortex®-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C.

      016621
      conga-QMX8-Plus/i-QC-NPU-2G eMMC16

      Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.6GHz +1x ARM® Cortex®-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C.

      016650
      conga-QMX8-Plus/HSP-T

      Standard heatspreader for Qseven module conga-QMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are 2.5mm thread.

      016651
      conga-QMX8-Plus/HSP-B

      Standard heatspreader for Qseven module conga-QMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are with 2.7mm bore hole.

      48000023
      RS232 adapter cable for conga-ARM modules

      RS232 adapter cable for congatec ARM modules console debug application.

      44500041
      Basler dart camera daA3840-30mc

      Basler dart BCON for MIPI camera module daA3840-30mc, 8Mpx, 30fps, 4 CSI2-Lanes, S-Mount.

      10000399
      FFC Basler dart BCON for MIPI, 200mm

      FFC 28 pin cable for Basler BCON dart cameras, 0,5mm pitch. compatible with 28 pin Hirose ZIF connector (PN: FH41-28S-0.5SH(05)

      10000429
      Evetar Lens M118B0418IR F1.8 f4mm 1/1.8" -Lens

      Evetar Lens M118B0418IR F1.8 f4mm 1/1.8" - Lens for Basler dart camera module daA3840-30mc
