conga-MCB/Qseven SDVO (P/N 020730)
Mini Carrier Board for Qseven with smart battery manager interface for mobile applications and SDVO display interface support for Intel® mobile platforms.
Your item has been added to the inquiry
conga-MCB|Qseven (EOL)
Mini Carrier Board for Qseven
Selected product variant
Selected ecosystem parts
Carrierboards
conga-MCB|Qseven (EOL)
Mini Carrier Board for Qseven
- Mini Carrier Board for Qseven
- Complete Set of IOs
- Size 95x140 mm²
Specification
The conga-MCB|Qseven is a full featured, miniaturized carrier board for Qseven modules.
- Small size: 95x140 mm
- Qseven® module socket
- SDIO socket
- Mini PCI Express socket
- LVDS
- DVI output through HDMI connector
- 6x USB
- Ethernet
- 2 SATA & SATA power
- 19V DC power input with battery management signals
Documents
All documents found on this page are updated without notification. Always check this page for the latest version.
- Data Sheet
- MCB Qseven 20.10.2026
- Manual
- User's Guide conga-MCB/Qseven 15.06.2015 Short description of the congatec Qseven® mini carrier board
- Image
- conga-QMCB per rep 15.06.2015
- conga-QMCB per back 15.06.2015

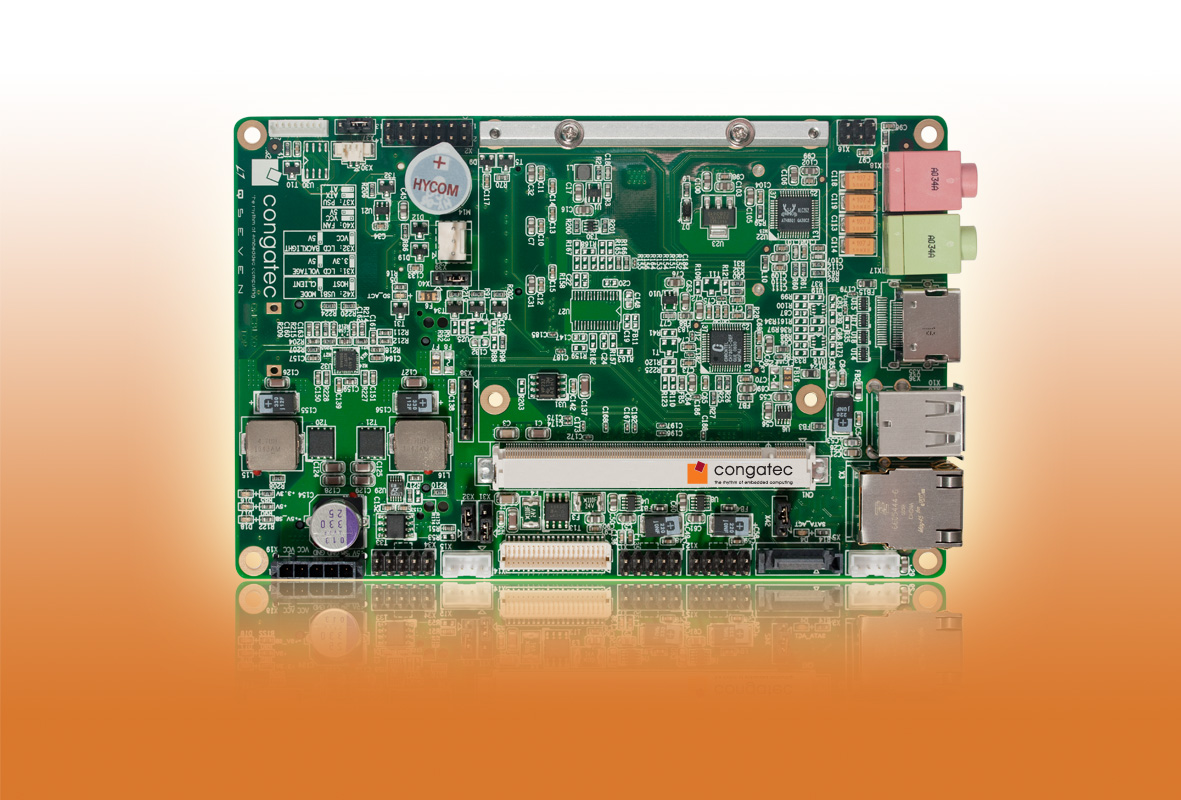

- conga-QMCB press 15.06.2015
- conga-QMCB per l 15.06.2015
- conga-QMCB per r 15.06.2015
