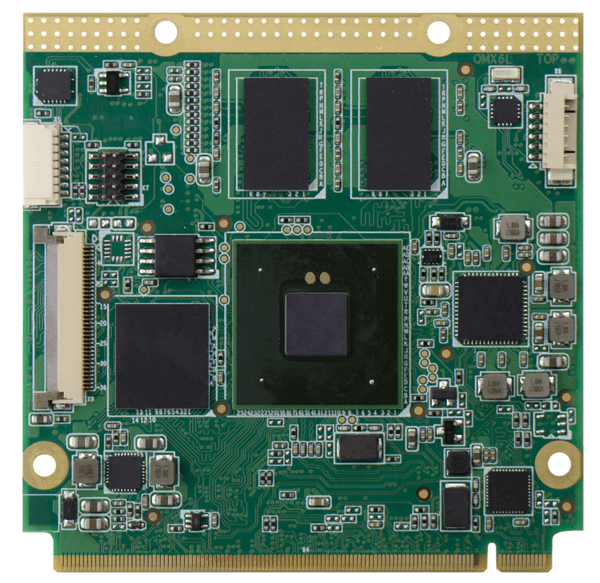

  • conga-QMX6 Image 1
  • conga-QMX6 Image 2
  • conga-QMX6 Image 3

conga-QMX6

Qseven quad core ARM Module

  • Based on NXP i.MX6 ARM Cortex A9 processors
  • Extended temperature range (optional)
  • Low power dissipation

Product Filter:

    Add Filter:

    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.

    Specification

    Formfactor
    Qseven
    CPU
    NXP i.MX6 Solo ARM Cortex A9 (1 x 1.0 GHz, 512kB L2 cache, 3W)
    NXP i.MX6 Dual ARM Cortex A9 (2 x 1.0 GHz, 1MB L2 cache, 3W)
    NXP i.MX6 Quad ARM Cortex A9 (4 x 1.0 GHz, 1MB L2 cache, 3W)
    NXP i.MX6 Dual Lite ARM Cortex A9 (2 x 1.0 GHz, 512kB L2 cache, 3W)
    DRAM
    Up to 4 GByte onboard DDR3L memory | 1066 MT/s
    Ethernet
    Gigabit Ethernet
    I/O Interfaces
    4 x USB 2.0
    1 x SATA
    1 x SDIO
    1 x I²C bus
    1 x CAN Bus
    1 x PCIe 2.0
    1 x USB OTG client
    1 x SPI
    Graphics
    Integrated in NXP i.MX6 Series Video (VPU) | 2D Graphics (GPU2D) and 3D Graphics (GPU3D) | 3D graphics with 4 shaders up to 200MT/s dual stream 1080p/720p decoder/encoder. OpenGL | OpenCL and OpenVG 1.1
    Operating Systems
    Android
    Windows Embedded Compact 7
    Linux
    BSPs with OS drivers and tools
    Temperature

    Operating: 0 to +60°C commercial grade | -40 t o +85°C industrial grade / Storage: -40 to +85°C
    Humidity
    Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
    Video Interfaces
    1 x DDI
    LVDS 2x24
    Size
    70 x 70 mm (2,75" x 2,75")

    Documents

    All documents found on this page are updated without notification. Always check this page for the latest version.

    Software

    README for setting up Android 7.1.1
    (Nougat) on conga-QMX6 and conga-UMX6
    README for setting up Android 8.0.0
    (Oreo) on conga-QMX6 and conga-UMX6
    Sample image for conga-QMX6 and conga-UMX6 based on
    Android 7.1.1 (Nougat)
    Sample image for conga-QMX6 and conga-UMX6 based on
    Android 8.0.0 (Oreo)
    Application note for downloading and installing the NXP manufacturing tool and the manufcaturing profiles from the congatec git server.
    FslMfgToolReadme
    10.11.2016 / 529.00 B
    Note to inform the change of providing the FslMfgTool
    In order to access the conga-QMX6 source code repositories, please visit:
    http://git.congatec.com/public
    Source BSP:
    This is not a congatec product and is offered by our partner Witekio instead.
    For more information about this product visit:
    https://witekio.com/cpu/conga-qmx6/
    Hotfix A for the WEC2013 Binary BSP v.1.0.1
    Hotfix B for the WEC2013 Binary BSP v.1.0.1
    Hotfix A for the WEC7 Binary BSP v.1.2.1
    Hotfix B for the WEC7 Binary BSP v.1.2.1
    QMX6_WEC7_BINARY_BSP_V112.zip
    04.02.2015 / 22.16 MB
    WEC7 Binary BSP, Documentation and SDK v.1.2.1
    Sample image for conga-QMX6 and conga-UMX6 based on
    NXP Yocto 2.2 (Morty) and kernel version 4.9.11
    (core-image-minimal)
    Sample image for conga-QMX6 and conga-UMX6 based on
    NXP Yocto 2.2 (Morty) and kernel version 4.9.11
    (fsl-image-machine-test)
    Sample image for conga-QMX6 based on
    Yocto 2.5 (Sumo, NXP release) and kernel version 4.14.98
    (core-image-minimal)
    Sample image for conga-QMX6 based on
    Yocto 2.5 (Sumo, NXP release) and kernel version 4.14.98
    (fsl-image-machine-test)
    Sample image for conga-QMX6 based on
    Yocto 3.0 (Zeus, NXP release) and kernel version 5.4.3
    (core-image-minimal)
    Sample image for conga-QMX6 based on
    Yocto 3.0 (Zeus, NXP release) and kernel version 5.4.3
    (fsl-image-machine-test)
    Sample image for conga-QMX6 and conga-UMX6 based on
    Yocto 2.5 (Sumo) and kernel version 4.9.88
    (core-image-minimal)
    Sample image for conga-QMX6 and conga-UMX6 based on
    Yocto 2.5 (Sumo) and kernel version 4.9.88
    (fsl-image-machine-test)
    README for setting up Yocto 2.2(Morty) on conga-QMX6 and conga-UMX6 based on NXP yocto release
    README for setting up Yocto 2.5(Sumo) on conga-QMX6 based on NXP release
    README for setting up Yocto 3.0 (Zeus) on conga-QMX6 based on NXP release
    README for setting up Yocto 2.5(Sumo) on conga-QMX6 and conga-UMX6

    Accessories

    More about conga-FPA2 (EOL)

    conga-FPA2 (EOL)

    Universal Flat Panel Adapter Board

    More about conga-QKIT/ARM

    conga-QKIT/ARM

    This complete kit provides the ability to start evaluating Qseven® ARM modules immediately

    More about conga-LDVI

    conga-LDVI

    DVI Converter Module for LVDS

    More about conga-MCB/Qseven-ARM

    conga-MCB/Qseven-ARM

    The conga-MCB/ARM is a full featured carrier board for Qseven ARM modules.

    More about conga-QEVAL/Qseven 2.0

    conga-QEVAL/Qseven 2.0

    To achieve a quick start with Qseven congatec offers an evaluation carrier board, which routes all the Qseven® signals to standard interface connectors.

    Part Number

    016300
    conga-QMX6/SC-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Solo processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    016301
    conga-QMX6/DCL-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Dual Lite processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    016302
    conga-QMX6/DC-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Dual processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    016303
    conga-QMX6/QC-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Quad processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    016304
    conga-QMX6/QC-2G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Quad processor, 1MB L2 cache, 2GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    016310
    conga-QMX6/iSC-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Solo processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C.

    016311
    conga-QMX6/iDCL-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual Lite processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C.

    016312
    conga-QMX6/iDC-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C

    016313
    conga-QMX6/iQC-1G eMMC32

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Quad processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C.

    016160
    QMX6/HSP1-T

    Standard heatspreader with 1mm gap pad for Qseven module conga-QMX6 for processors with LIDDED FCBGA package.

    016161
    QMX6/HSP2-T

    Standard heatspreader with 2mm gap pad for Qseven module conga-QMX6 for processors with plastic MAP BGA package.

    016162
    QMX6/HSP3-T

    Standard heatspreader with heat stack solution for Qseven module conga-QMX6 for processors with open silicon FCBGA package.

    011127
    conga-Qseven/MFG-Serial-Adapter

    MFG-header adapter on the QEV2 baseboard for RS-232 console-communication with UMX6 / QMX6.

    This adapter provides the ability to access the console in/output of the conga-QMX6 and mainly the conga-UMX6 product family (due to the fact that there isn't any console-connector on the conga-UMX6 module) via the MFG-header on the congatec part number 007005 conga-QEVAL/Qseven 2.0 ARM evaluation carrier board.

    conga-QMX6/DC-1G eMMC32
    P/N 016302

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Dual processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    conga-QMX6/DCL-1G eMMC32
    P/N 016301

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Dual Lite processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    conga-QMX6/QC-1G eMMC32
    P/N 016303

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Quad processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    conga-QMX6/QC-2G eMMC32
    P/N 016304

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Quad processor, 1MB L2 cache, 2GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    conga-QMX6/SC-1G eMMC32
    P/N 016300

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 1GHz Solo processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Commercial temperature range 0°C to 60°C.

    conga-QMX6/iDC-1G eMMC32
    P/N 016312

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C

    conga-QMX6/iDCL-1G eMMC32
    P/N 016311

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Dual Lite processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C.

    conga-QMX6/iQC-1G eMMC32
    P/N 016313

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Quad processor, 1MB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C.

    conga-QMX6/iSC-1G eMMC32
    P/N 016310

    Qseven module with ultra low power NXP i.MX6 ARM Cortex-A9 800MHz Solo processor, 512kB L2 cache, 1GB onboard DDR3L memory and 32GB onboard eMMC. Industrial temperature range -40°C to 85°C.
