COM-HPC®

Computer-On-Module for High Performance Computing

Why a new standard?



  • Support for fastest I/O i.e. PCIe Gen5, USB4 25G Ethernet
  • More I/O Interfaces i.e. 64x PCIe, 8x 25G Ethernet
  • More DRAM, up to 1 TByte (8x full size DIMM)

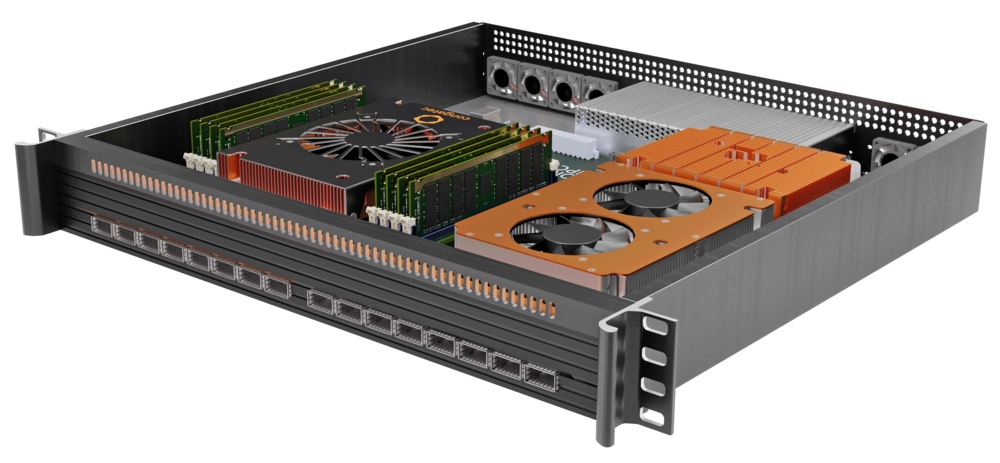

  • Server CPU performance, up to 300 Watt power consumption for a Server-On-Module

COM-HPC target



  • PCIe 5.0 (32 Gb/s) with 64 lanes
  • 100 Gb Ethernet
  • USB4 / Thunderbolt up to 40 Gb/s
  • DisplayPort 2.0 up to 80 Gb/s
  • Light weight System Management

COM-HPC will not replace COM Express.
It extends the Computer-On-Module concept to a full featured Server-On-Module.

More about conga-HPC/sILH

conga-HPC/sILH

COM-HPC Server Size E module based on Intel® Xeon® D processor series (code name "Ice Lake")

Details
More about conga-HPC/sILL

conga-HPC/sILL

COM-HPC Server Size D module based on Intel® Xeon® D processor series (code name "Ice Lake")

Details
More about conga-HPC/cALS

conga-HPC/cALS

COM-HPC Client Size C high performance module based on 12th Gen Intel® Core™ processor series (code name "Alder Lake")

Details
More about conga-HPC/cALP

conga-HPC/cALP

COM-HPC Client Size A high performance module based on 12th Gen Intel® Core™ processor series (code name "Alder Lake")

Details
More about conga-HPC/cTLH

conga-HPC/cTLH

COM-HPC Client Size B high performance module based on 11th Gen Intel® Core™ processor series (code name "Tiger Lake-H")

Details
More about conga-HPC/cTLU​

conga-HPC/cTLU​

COM-HPC Client Size A high performance module based on 11th Gen Intel® Core™ processor series (code name "Tiger Lake")

Details



COM-HPC Types and Sizes

COM-HPC/Server

  • Up to 65 PCI Express Gen 5 Lanes
  • Up to 8x 25 Gb Ethernet
  • Up to 2x USB 4
  • Headless
  • Sizes
         ►Size D: 160x160 mm
         ►Size E: 160x200 mm

COM-HPC/Client

  • Up to 49 PCI Express Gen5 Lanes
  • Up to 2x 25 Gb Ethernet
  • Up to 4x USB 4
  • Up to 4x Video Interfaces
  • Sizes
         ►Size A: 95x120 mm
         ►Size B: 120x120 mm
         ►Size C: 120x160 mm



COM-HPC Sizes




COM-HPC Types Overview




Supporting companies

Sponsors:
Adlink, Kontron, congatec





25 Members
Acromag, Adlink, Advantech, AMI, Amphenol, congatec, Elma Electronic, Emerson Machine Automation Solutions, Ept, Eurotech, Fastwel, GE Automation, HEITEC, Intel, Kontron, MEN, MSC Technologies, N.A.T., nVent, Samtec, Seco, TE Connectivity, Trenz Electronic, University Bielefeld, VersaLogic Corp.

Official Positions:
► Chairman: Christian Eder, congatec
► Editor:       Stefan Milnor, Kontron
► Secretary:  Dylan Lang, Samtec


Schedules

PICMG workgroup officially started Oct 23, 2018
► Pre release of Mechanics and Pinout Oct 2019
► Main Hardware Specification PICMG release Jan/2021
► EEEP Specification Q1/2021
► System Management Specification Q1/2021
► Design Guide Mid 2021




COM-HPC Connector

COM-HPC Interconnect Targets

  • Signal Integrity
         ►PCIe Gen4/Gen5 Compliant
         ►10G/25G Ethernet Compliant
  • High pin count
  • 5 & 10mm stack height
  • Up to 300W at 11.4 - 12.6V
  • Multi vendor availability



COM-HPC Preview Specification

The complete specification is available for purchase at https://www.picmg.org/product-category/com-hpc/



COM-HPC® Carrier Design Guide

This document provides information for designing project specific Carrier Boards for systems using COM-HPC Modules. This document is a design guide and not a specification document. It should be used by together with the COM-HPC Base Specification, with other industry specifications, with silicon and component vendor’s documentation and with your COM-HPC Module vendor’s product documentation.

Download

COM-HPC Preview Specification

A preview version of the PICMG COM-HPC hardware specification is available for free



Download




COM-HPC Webinars

This COM-HPC webinar puts engineers in the fast lane to leveraging the latest technology for hosting powerful AI applications together with mission critical real-time tasks on one single platform.

This webinar will give you an overview of the technology, applications, requirements and capabilities of this new PICMG standard.





COM-HPC video




Do you want to learn more about COM-HPC?

Download our whitepapers!

COM-HPC

COM-HPC™ is the new and coming PICMG standard for high-performance Computer-on-Modules. The pinout and therefore also the functionality were recently officially approved. Elektronik is revealing further- details.

Download Whitepaper

COM-HPC: What developers and users need to know

The embedded computing industry is about to launch COM-HPC as the next-generation standard for modular system designs. Since COM-HPC is complex and sometimes
misunderstood, there is a need for clear information.

Download Whitepaper

COM HPC Server – the new Server-on-Module standard

What are the most important markets and applications for the new high-end Server-on-Modules and what are the limits?



Download Whitepaper

COM-HPC carrier board designs

COM-HPC is the upcoming new standard for modular high-end edge servers. It provides significantly faster and almost twice as many interfaces as COM Express. As a result, carrier board design requirements are increasing exponentially. How can developers prepare for the new challenges?

Download Whitepaper
