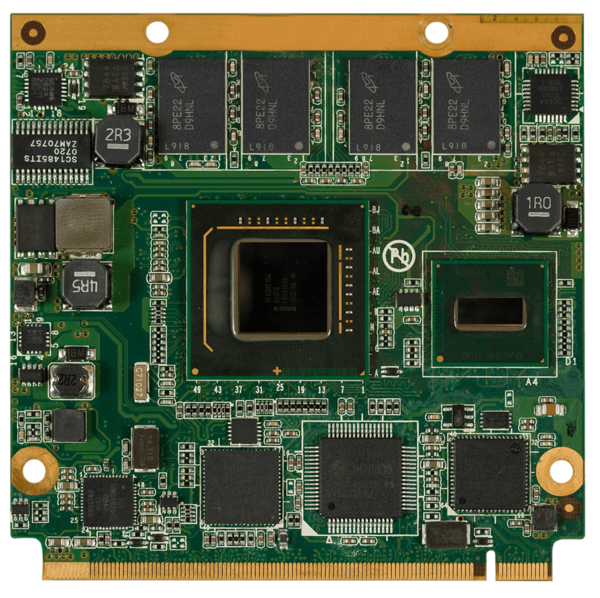

  • conga-QA (EOL) Image 1
  • conga-QA (EOL) Image 2

conga-QA (EOL)

Intel Z500 プロセサーテクノロジベースの低消費電力Qsevenモジュール

  • 低消費電力Qsevenモジュール
  • Intel® Atom™ Z500 プロセッサー1.1 - 1.6GHz
  • オプションで8 GBオンボードIDE SSDまで対応
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

Specification

Formfactor
Qseven
CPU
Intel® Atom™ Z530 (1.6 GHz, 512)
Intel® Atom™ Z510 (1.1 GHz, 512)
DRAM
max. 1 GByte DDR2 400/533 MT/s
Ethernet
Gigabit Ethernet Realtek RTL8111
I/O Interfaces
1 x SATA
1 x SDIO
1 x I²C bus
8 x USB 2.0
1 x PCI Express™
1 x LPC bus
1 x SSD 4GB
Graphics
Intel® GMA 500
up to 256 MByte frame buffer supporting Direct X 9.0E and Open GL 2.0
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features
AMIBIOS8®
OEM Logo
LCD Control
OEM CMOS Defaults
Display Auto Detection
Backlight Control
Flash Update
Power Management
ACPI 3.0
ACPI 3.0 compliant, Smart Battery Management
Operating Systems
Microsoft® Windows® 7
Windows Embedded Compact 7
Microsoft® Windows® XP
Microsoft® Windows® embedded Standard
Microsoft® Windows® CE 6.0
Linux
Temperature
Standard
Operating: 0 to +60°CStorage: -20 to +80°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
1 x LVDS 1x24
1 x SDVO
Size
70 x 70 mm (2,75" x 2,75")

Documents

All documents found on this page are updated without notification. Always check this page forthe latestversion.

Manual

User's Guide CGOS API
15.06.2015
User's Guide congatec System Utility
15.06.2015
User´s guide conga-QA
15.06.2015


conga-QA per r
15.06.2015
conga-QA rear
15.06.2015
conga-QA press
15.06.2015
conga-QA per l
15.06.2015
conga-QA rep
15.06.2015

Document

List of AMI postcodes
15.06.2015

Application Note

AN05 BIOS Update And Write Protection
15.06.2015
AN06 BIOS Recovery
15.06.2015
AN7 External BIOS Update
14.09.2023
AN8 Create OEM Default Map
02.03.2021
AN09 RTC Battery Lifetime
05.10.2022
AN10 BIOS Setup Configuration
15.06.2015
AN11 Create And Add Bootlogo
15.06.2015
AN12 Modify EPI File
15.06.2015
AN13 Load BIOS Setup Defaults
15.06.2015
AN18 USB Client Port
15.06.2015
AN21 Add OEM ACPI SLIC Table
17.01.2017
AN22 Install Windows Without USB ROM Drive
15.06.2015
AN2 Remote Control
15.06.2015
AN03 Watchdog
15.06.2015

Data Sheet

conga-QA
15.06.2015

Software

[ DOS ]      [ Linux ]      [ QNX ]      [ Windows 7 ]      [ Windows CE ]      [ Windows Embedded Standard 7 ]      [ Windows Vista ]      [ Windows XP ]      [ Windows XP embedded ]

DOS

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x32-1.03.022.tar.gz
12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
r8168-8.000.00.tar.bz2
02.07.2012 / 66.43 KB
The Realtek Ethernet Driver for RTL8111 ethernet chips (rev. r8168-8.031.00).

QNX

bsp-cgqx.zip
31.05.2010 / 3.12 MB
QNX board support package for congatec CPU modules based on Intel Poulsbo Chipset.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgosqx.tar.gz
10.08.2012 / 53.92 KB
Public CGOS API Rev. 1.03.020 for QNX 6.x
conga_DIG_QNX_Poulsbo.pdf
31.05.2010 / 74.45 KB
QNX Driver Installation Guide for congatec CPU modules based on Intel Poulsbo Chipset.

Windows 7

Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
infinst_autol_us15.exe
24.09.2010 / 2.71 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 8.8.0.1014.
RTKWin7_7026.zip
24.09.2010 / 540.02 KB
Realtek Ethernet Driver for RTL8111 controller chip for Windows 7 32/64bit Rev. 7.026.
US15W_USB_Client_Drivers_Win7.zip
24.09.2010 / 304.69 KB
USB Client Driver for Poulsbo
NOTE: manual installation only using Have Disk method.
win7_gma500.zip
09.07.2010 / 29.38 MB
Intel Graphics Media Accelerator Driver for Windows 7 32Bit Rev. 5.0.0.2026.

Windows CE

cgce6.zip
15.03.2013 / 9.81 MB
Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.
cgce7.zip
23.01.2013 / 7.75 MB
Board Support Package Rev. 2.6.5 for congatec CPU modules. Contains Windows Embedded Compact 7 driver files for video, sound and network.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosCe.zip
03.04.2017 / 53.16 KB
CGOS API Rev. 1.03.xxx for Windows CE 6.0, Windows Embedded Compact 7 and Windows Embedded Compact 2013.
conga_DIG_WEC7.pdf
01.02.2013 / 103.88 KB
Windows CE 7.0 Driver Installation Guide Rev. 1.0 for congatec CPU modules
conga_DIG_WinCE6.pdf
10.08.2012 / 85.22 KB
Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules

Windows Embedded Standard 7

CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes7s1.zip
20.06.2011 / 16.53 KB
Board Support Package Update for congatec CPU modules. Update for WES7 SP1. Requires cgwes7.zip
cgwes7x86.zip
17.04.2014 / 123.12 MB
Board Support Package for congatec CPU modules Rev. 1.3. Contains Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.
conga_DIG_WES7.pdf
05.11.2012 / 98.71 KB
Windows Embedded Standard 7Installation Guide Rev. 1.3 for congatec CPU modules

Windows Vista

infinst_autol_us15.exe
24.09.2010 / 2.71 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 8.8.0.1014.
US15W_USB_Client_Drivers_Vista.zip
24.09.2010 / 2.96 MB
USB Client Driver for Poulsbo Chipset.
winvista_1410.zip
15.01.2009 / 20.08 MB
Intel Graphics Media Accelerator Driver for Windows Vista 32 Rev. 7.14.10.1095

Windows XP

Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
iegd10win32.zip
11.10.2010 / 7.53 MB
Intel Embedded Grahics Driver Ver. 10.3.1.1550 for Windows.
infinst_autol_us15.exe
24.09.2010 / 2.71 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 8.8.0.1014.
RTKWinXP_5820.zip
04.02.2014 / 817.49 KB
Realtek Ethernet Driver for RTL8111 controller chip for Windows XP 32bit Rev. 5.820.
US15W_USB_Client_Drivers_XP.zip
24.09.2010 / 4.70 MB
USB Client Driver for Poulsbo Chipset.
winxp_gma500.zip
24.09.2010 / 29.75 MB
Intel Graphics Media Accelerator Driver for Windows XP 32bit Rev. 3.​3.​0.32.

Windows XP embedded

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgxpe.zip
14.05.2012 / 48.75 MB
Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API.
conga_DIG_WinXPE.pdf
14.05.2012 / 102.41 KB
Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules
