conga-QA (EOL)

Low power Qseven module based on Intel Z500 Processor technology

Selected product variant

Selected ecosystem parts

Cooling Solutions

Value adding ecosystem offerings

Cooling Solutions

conga-QA-HSP-B
conga-QA-HSP-T
conga-QA-CSP-B

Request quote Add more articles

conga-QA (EOL)

Low power Qseven module based on Intel Z500 Processor technology

Low Power Qseven Module
Intel® Atom™ Z500 processor 1.1 - 1.6GHz
Optional onboard IDE SSD up to 8 GByte

Technical Details
Show product variants

Specification

Formfactor: Qseven
CPU: Intel® Atom™ Z530 – 1.6 GHz, 512

Intel® Atom™ Z510 – 1.1 GHz, 512
DRAM: max. 1 GByte DDR2 400/533 MT/s
Ethernet: Gigabit Ethernet Realtek RTL8111
I/O Interfaces: 1 x SATA

1 x SDIO

1 x I²C bus

8 x USB 2.0

1 x PCI Express™

1 x LPC bus

1 x SSD 4GB
Graphics: Intel® GMA 500
up to 256 MByte frame buffer supporting Direct X 9.0E and Open GL 2.0
congatec Board Controller: Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features: AMIBIOS8®

OEM Logo

LCD Control

OEM CMOS Defaults

Display Auto Detection

Backlight Control

Flash Update
Power Management: ACPI 3.0
ACPI 3.0 compliant, Smart Battery Management
Operating Systems: Microsoft® Windows® 7

Windows Embedded Compact 7

Microsoft® Windows® XP

Microsoft® Windows® embedded Standard

Microsoft® Windows® CE 6.0

Linux
Temperature: Standard
Operating: 0 to +60°C Storage: -20 to +80°C
Humidity: Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces: 1 x LVDS 1x24

1 x SDVO
Size: 70 x 70 mm (2,75" x 2,75")

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet: conga-QA 20.10.2026
Manual: User´s guide conga-QA 15.06.2015; User's Guide CGOS API 15.06.2015 Certain hardware features found on congatec AG modules are only accessible through the use of a specialized API developed by congatec AG called CGOS API (congatec operating system application program interface). The CGOS library interface provides access to these features in a hardware independent manner when using common 32-bit operating systems. The interface works under any version of Win32, as well as other operating systems. Driver support is provided for the following: Microsoft® Windows® NT Microsoft® Windows® CE Microsoft® Windows® 98 SE Microsoft® Windows® 2000 Microsoft® Windows® XP Microsoft® Windows® XP embedded Linux QNX; List of AMI postcodes 15.06.2015; User's Guide congatec System Utility 15.06.2015 The intention of the congatec System Utility is to provide a common tool for all congatec COM (Computer on Module) products, which allows you to perform various standard and congatec specific system or BIOS configuration and modification tasks. The utility consists of six main function modules: 1. BIOS Update Module Offers functions to update the system BIOS of a congatec board. 2. Firmware Update Module Offers functions to update the firmware of the congatec board controller. 3. Panel Configuration Module Offers functions to support or ease local flat panel configuration. 4. BIOS Module Modification Module Offers functions to customize a standard congatec system BIOS by adding OEM defined BIOS modules such as boot logos, CMOS default or backup maps and OEM code or data modules. 5. BIOS/Board Information Module Offers functions to easily gather congatec specific BIOS and hardware information 6. BIOS Setup Configuration Module Offers functions to modify the standard BIOS setup menu (only supported for AMIBIOS based products).

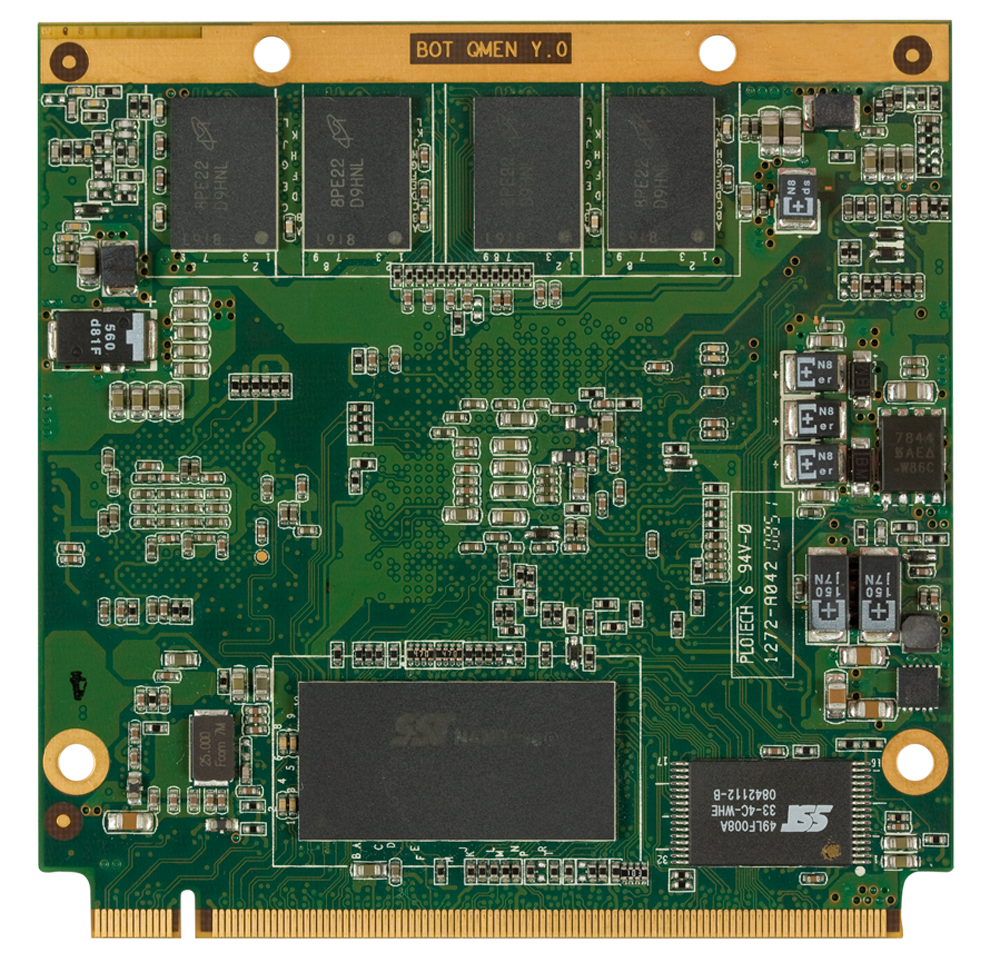

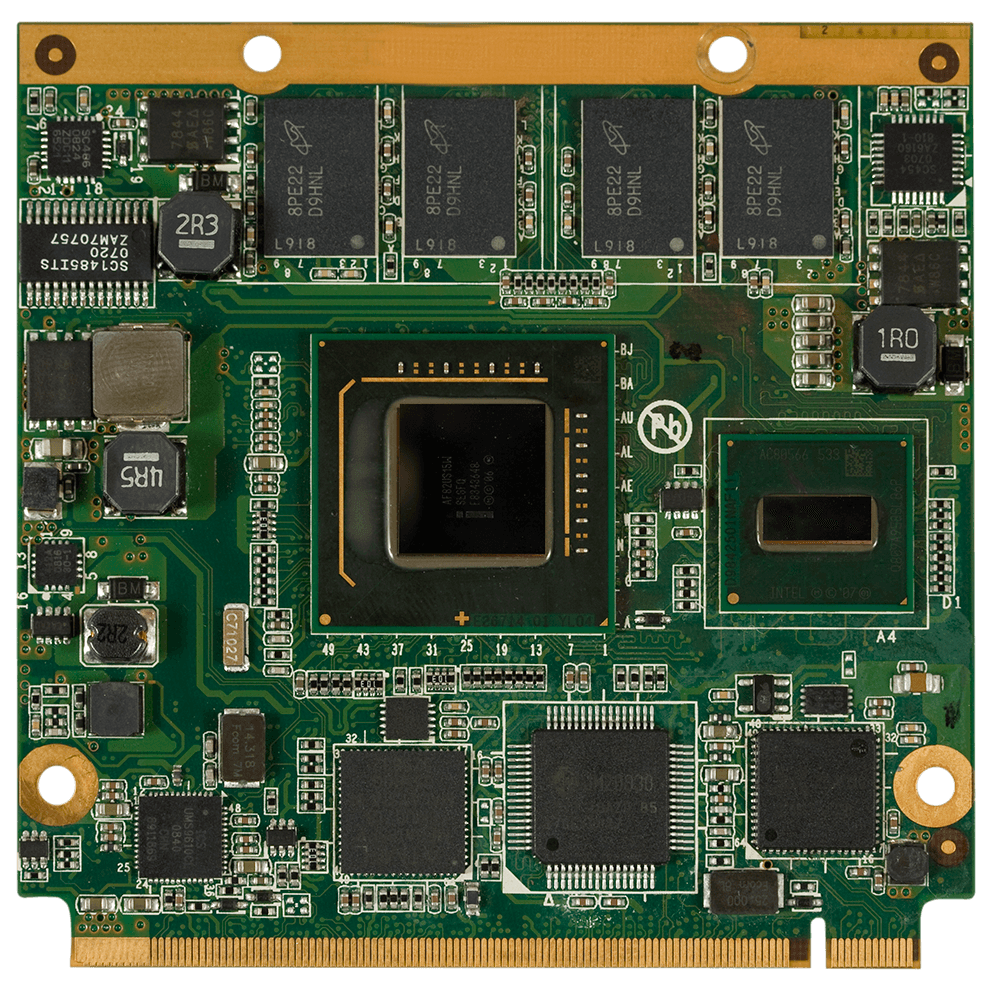

Image: conga-QA per r 15.06.2015; conga-QA rear 15.06.2015; conga-QA press 15.06.2015; conga-QA per l 15.06.2015; conga-QA rep 15.06.2015
Application Note: AN05 BIOS Update And Write Protection 15.06.2015 This Application Note explains the benefits and describes the security feature called 'BIOS Update and Write Protection' incorporated in the congatec Embedded BIOS. This Application Note also describes how this feature can be used with the congatec System Utility Tool (CGUTIL).; AN06 BIOS Recovery 18.08.2025 This application note describes how to recover the congatec Embedded BIOS on congatec CPU modules.; AN7 External BIOS Update 30.10.2024 This AN describes how to update the congatec Embedded BIOS from an external FWH or SPI flash device; AN8 Create OEM Default Map 30.10.2024 CGUTIL: This application note describes how to create and add OEM CMOS default maps with the congatec System Utility tool.; AN09 RTC Battery Lifetime 04.12.2024 This application note is a short example of how to calculate the maximum battery service time when a specified RTC circuit battery type must be used. Additionally, it also describes how to determine the required RTC circuit battery capacity when a specified battery service time is required.; AN10 BIOS Setup Configuration 15.06.2015 CGUTIL: This Application Note is intended to explain how the congatec Embedded BIOS Setup program can be customized and adapted to the requirements of a particular application. The customization of the BIOS Setup program can be done using the congatec System Utility tool.; AN11 Create And Add Bootlogo 30.10.2024 CGUTIL: This application note describes how to create and add a OEM Bootlogo to the congatec embedded BIOS using the congatec System Utility tool.; AN12 Modify EPI File 15.06.2015 CGUTIL: This Application Note is intended to explain how EPI (Embedded Panel Interface) display configuration files can be created or modified with the congatec System Utility tool.; AN13 Load BIOS Setup Defaults 15.06.2015 This Application Note is intended to explain how the embedded BIOS of the congatec CPU modules can be forced to load the BIOS defaults settings (manufacturer settings)when the BIOS setup was changed in a way that the module is not able to boot anymore.; AN18 USB Client Port 15.06.2015 conga-CA,conga-CAx and conga-QA guide how to configure the USB client port on congatec modules; AN21 Add OEM ACPI SLIC Table 17.01.2017 This Application Note provides information and an example about how to create and add an OEM ACPI SLIC table module into the BIOS of either a XTX, COM Express or Qseven CPU module.; AN22 Install Windows Without USB ROM Drive 15.06.2015 This Application Note provides information about the installation of Windows XP or Windows 7 when a USB powered CDROM does not work.; AN2 Remote Control 15.06.2015 This application note describes how the Remote Access is supported by the congatec Embedded BIOS (based on AMIBIOS 8) and can be used to control and configure systems on where there is no monitor, LCD or keyboard connected.; AN03 Watchdog 15.06.2015 This application note describes the Watchdog feature found on congatec AG modules. It explains the full feature set, however some items may not be applicable for systems which do not support all Watchdog features.

DOS: CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual
Linux: CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual; cgoslx-x32-1.03.022.tar.gz 12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x); CgosPy_1_3.zip 23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.; r8168-8.000.00.tar.bz2 02.07.2012 / 66.43 KB
The Realtek Ethernet Driver for RTL8111 ethernet chips (rev. r8168-8.031.00).
QNX: bsp-cgqx.zip 31.05.2010 / 3.12 MB
QNX board support package for congatec CPU modules based on Intel Poulsbo Chipset.; CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual; cgosqx.tar.gz 10.08.2012 / 53.92 KB
Public CGOS API Rev. 1.03.020 for QNX 6.x; conga_DIG_QNX_Poulsbo.pdf 31.05.2010 / 74.45 KB
QNX Driver Installation Guide for congatec CPU modules based on Intel Poulsbo Chipset.
Windows 7: Cgos-x32-x64.zip 17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.; CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual; CgosClr.zip 22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.; CgosPy_1_3.zip 23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.; EapiCgos-x32-x64.zip 07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.; infinst_autol_us15.exe 24.09.2010 / 2.71 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 8.8.0.1014.; RTKWin7_7026.zip 24.09.2010 / 540.02 KB
Realtek Ethernet Driver for RTL8111 controller chip for Windows 7 32/64bit Rev. 7.026.; US15W_USB_Client_Drivers_Win7.zip 24.09.2010 / 304.69 KB
USB Client Driver for Poulsbo
NOTE: manual installation only using Have Disk method.; win7_gma500.zip 09.07.2010 / 29.38 MB
Intel Graphics Media Accelerator Driver for Windows 7 32Bit Rev. 5.0.0.2026.
Windows 7 Embedded: CgosPy_1_3.zip 23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.; cgwes7s1.zip 20.06.2011 / 16.53 KB
Board Support Package Update for congatec CPU modules. Update for WES7 SP1. Requires cgwes7.zip; cgwes7x86.zip 17.04.2014 / 123.12 MB
Board Support Package for congatec CPU modules Rev. 1.3. Contains Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.; conga_DIG_WES7.pdf 05.11.2012 / 98.71 KB
Windows Embedded Standard 7 Installation Guide Rev. 1.3 for congatec CPU modules
Windows CE: cgce6.zip 15.03.2013 / 9.81 MB
Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.; cgce7.zip 23.01.2013 / 7.75 MB
Board Support Package Rev. 2.6.5 for congatec CPU modules. Contains Windows Embedded Compact 7 driver files for video, sound and network.; CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual; CgosCe.zip 03.04.2017 / 53.16 KB
CGOS API Rev. 1.03.xxx for Windows CE 6.0, Windows Embedded Compact 7 and Windows Embedded Compact 2013.; conga_DIG_WEC7.pdf 01.02.2013 / 103.88 KB
Windows CE 7.0 Driver Installation Guide Rev. 1.0 for congatec CPU modules; conga_DIG_WinCE6.pdf 10.08.2012 / 85.22 KB
Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules
Windows Vista: infinst_autol_us15.exe 24.09.2010 / 2.71 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 8.8.0.1014.; US15W_USB_Client_Drivers_Vista.zip 24.09.2010 / 2.96 MB
USB Client Driver for Poulsbo Chipset.; winvista_1410.zip 15.01.2009 / 20.08 MB
Intel Graphics Media Accelerator Driver for Windows Vista 32 Rev. 7.14.10.1095
Windows XP: Cgos-x32-x64.zip 17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.; CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual; CgosClr.zip 22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.; EapiCgos-x32-x64.zip 07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.; iegd10win32.zip 11.10.2010 / 7.53 MB
Intel Embedded Grahics Driver Ver. 10.3.1.1550 for Windows.; infinst_autol_us15.exe 24.09.2010 / 2.71 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 8.8.0.1014.; RTKWinXP_5820.zip 04.02.2014 / 817.49 KB
Realtek Ethernet Driver for RTL8111 controller chip for Windows XP 32bit Rev. 5.820.; US15W_USB_Client_Drivers_XP.zip 24.09.2010 / 4.70 MB
USB Client Driver for Poulsbo Chipset.; winxp_gma500.zip 24.09.2010 / 29.75 MB
Intel Graphics Media Accelerator Driver for Windows XP 32bit Rev. 3.3.0.32.
Windows XP embedded: CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
CGOS API programmers manual; cgxpe.zip 14.05.2012 / 48.75 MB
Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files for video, SATA, sound, network and CGOS API.; conga_DIG_WinXPE.pdf 14.05.2012 / 102.41 KB
Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

Product Variants

conga-QA/Z530-1G SSD8/SATA (P/N 015006)

Qseven module with Intel Atom Z530 and Intel System controller Hub US15W Processor 1.6GHz, 512kByteL2-Cache, 533MHz FSB. 1.0GByte DDR2 memory, onboard 8.0GByte commercial SSD (MLC) and SATA.

conga-QA/Z510-1G (P/N 015001)

Qseven module with Intel Atom Z510 and Intel System controller Hub US15W Processor 1.1GHz, 512kByteL2-Cache, 400MHz FSB. 1.0GByte DDR2 memory, onboard 2.0GByte commercial SSD (MLC) and SATA.

conga-QA/Z510-1G SSD2 (P/N 015021)

Qseven module with Intel Atom Z510 and Intel System controller Hub US15W Processor 1.1GHz, 512kByteL2-Cache, 400MHz FSB. 1.0GByte DDR2 memory and onboard 2.0GByte commercial (MLC) SSD. No SATA.

conga-QA/Z510-1G SATA (P/N 015011)

Qseven module with Intel Atom Z510 and Intel System controller Hub US15W Processor 1.1GHz, 512kByteL2-Cache, 400MHz FSB. 1.0GByte DDR2 memory and SATA. No SSD-Flash onboard.

conga-QA/Z530-1G (P/N 015002)

Qseven module with Intel Atom Z530 and Intel System controller Hub US15W Processor 1.6GHz, 512kByteL2-Cache, 533MHz FSB. 1.0GByte DDR2 memory, onboard 2.0GByte commercial SSD (MLC) and SATA.

conga-QA/Z530-1G SSD2 (P/N 015022)

Qseven module with Intel Atom Z530 and Intel System controller Hub US15W Processor 1.6GHz, 512kByteL2-Cache, 533MHz FSB. 1.0GByte DDR2 memory and onboard 2.0GByte commercial (MLC) SSD. No SATA.

conga-QA/Z530-1G SATA (P/N 015012)

Qseven module with Intel Atom Z530 and Intel System controller Hub US15W Processor 1.6GHz, 512kByteL2-Cache, 533MHz FSB. 1.0GByte DDR2 memory and SATA. No SSD-Flash onboard.

conga-QA/Z530-1G SSD4/SATA (P/N 015005)

Qseven module with Intel Atom Z530 and Intel System controller Hub US15W Processor 1.6GHz, 512kByteL2-Cache, 533MHz FSB. 1.0GByte DDR2 memory, onboard 4.0GByte commercial SSD (MLC) and SATA.

conga-QA/Z510-1G SSD4 (P/N 015023)

Qseven module with Intel Atom Z510 processor with 1.1GHz, 512kB L2 cache, 400MHz FSB, 1GB DDR2 memory and 4GB onboard commercial MLC SSD. SATA onboard.
