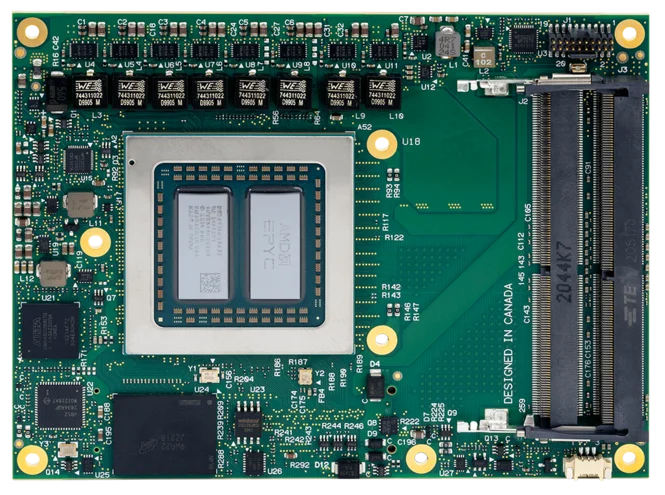

conga-bEP7 (EOL) Preview image
  • conga-bEP7 (EOL) Image 1
  • conga-bEP7 (EOL) Image 2

Your item has been added to the inquiry

conga-bEP7 (EOL) Image

conga-bEP7 (EOL)

COM Express® Basic Type 7（AMD EPYC™ Embedded 3000 SoC プロセッサー搭載）

Selected module variant

    Selected ecosystem parts

    Cooling Solutions

      Carrierboards

        Value adding ecosystem offerings


        Cooling Solutions

        Carrierboards

        見積りを依頼 + Add more articles

        conga-bEP7 (EOL)

        旧JUMPtec型番：COMe-bEP7
        AMD EPYC™ Embedded 3000 SoC プロセッサー搭載 COM Express Basic Type 7

        COMについて学ぶ  - 解説書をダウンロード

        • AMD EPYC™ 3000シリーズを搭載し、ヘッドレスでサーバーグレード
        • 最大16個の CPUコアまで拡張可能なハイパフォーマンス
        • 最大4個の SODIMMソケットにより、最大128 GBのメモリーをサポート
        • ４つの 10 Gb Ethernetポート。 商用温度範囲または拡張温度範囲に対応

        Specification

        Formfactor
        COM Express Basic
        CPU
        AMD EPYC™ Embedded 3000 Model 3451 (16 x 2.1 GHz, 32MB L3 cache, 100W)
        AMD EPYC™ Embedded 3000 Model 3351 (12 x 1.90 GHz, 32MB L3 cache, 80W)
        AMD EPYC™ Embedded 3000 Model 3251 (8 x 2.5 GHz, 16MB L3 cache, 55W)
        AMD EPYC™ Embedded 3000 Model 3255 (8 x 2.5 GHz, 16MB L3 cache, 55W)
        DRAM
        2x DDR4 SODIMM for up to 64 GByte non-ECC/ECC memory
        Ethernet
        Internet i210
        I/O Interfaces
        SM-Bus
        RTC
        LPC
        SPI Flash
        2 x serial interface (RX/TX only)
        24 x PCIe Gen3
        4 x USB 3.1 Gen1
        4 x USB 2.0
        Mass storage
        2xSATA 6Gb/s
        embedded BIOS Features
        AMI UEFI
        Security
        TPM
        Power Management
        OS ACPI PM support for Critical Shutdown
        Operating Systems
        Ubuntu Linux
        Microsoft® Windows Server 2016
        Temperature
        Commercial Grade Version: 0 °C to 60 °C
        Industrial Grade Version: -40 °C to 85 °C
        Humidity
        93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
        Features
        Staged Watchdog
        optional JTAG debug interface
        Size
        95 x 125 mm (3.74" x 4.92")

        Documents

        All documents found on this page are updated without notification. Always check this page for the latest version.

        Data Sheet

        Data Sheet for conga-bEP7
        15.12.2025

        Manual

        User's Guide for conga-bEP7
        28.01.2026

        Whitepaper

        The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

        Product Variants

        conga-bEP7/E3251 (P/N 68010-0000-51-2)

        COM Express® Basic Type 7 with AMD EPYC™ Embedded 3000 SoC Processors

        conga-bEP7/E2 E3255 (P/N 68011-0000-55-2)

        COM Express® Basic Type 7 with AMD EPYC™ Embedded 3000 SoC Processors

        conga-bEP7/E3351 (P/N 68010-0000-51-3)

        COM Express® Basic Type 7 with AMD EPYC™ Embedded 3000 SoC Processors

        conga-bEP7/E3451 (P/N 68010-0000-51-4)

        COM Express® Basic Type 7 with AMD EPYC™ Embedded 3000 SoC Processors

        conga-bEP7/3351 with 4 SODIMM sockets (P/N 68010-0000-61-3)

        COM Express® Basic Type 7 with AMD EPYC™ Embedded 3000 SoC Processors

        conga-bEP7/E3451 with 4 SODIMM sockets (P/N 68010-0000-61-4)

        COM Express® Basic Type 7 with AMD EPYC™ Embedded 3000 SoC Processors

        Ecosystem Details

        Cooling Solutions

        HSP COMe-bEP7 THROUGH (P/N 68010-0000-99-1)
        HSP COMe-bEP7 THREADED (P/N 68010-0000-99-0)

        Carrierboards

        COM Express® Eval Carrier Type 7 (P/N 68300-0000-00-0)
        COM Express® Eval Carrier2 T7 (P/N 68301-0001-00-8)

        COMe Eval Carrier T7 G2-8, 8 mm stack height, COM.0 R3.1, support of PCIe Gen4

        COM Express® Eval Carrier2 T7 (P/N 68301-0000-00-8)

        COMe Eval Carrier T7 G2-8, 8 mm stack height, COM.0 R3.0, support of PCIe Gen3
