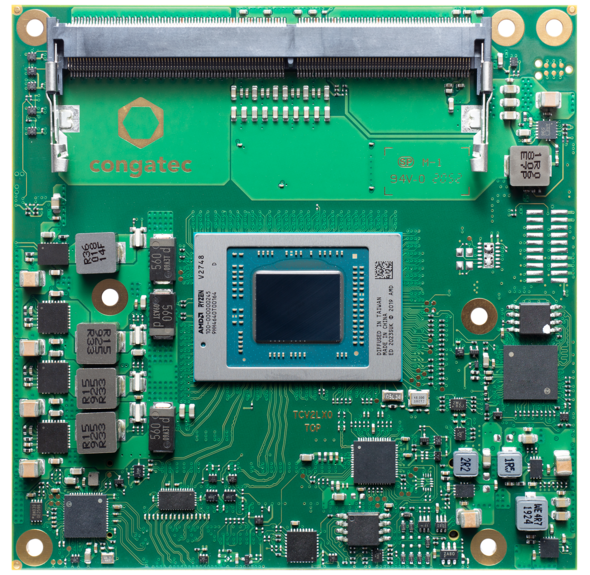

conga-TCV2

COM Express Type 6 Compact module based on AMD Embedded Ryzen V2000 embedded processor series

Selected module variant

    Selected ecosystem parts

    Cooling Solutions

      Memory

        Carrierboards

          Module services

            Value adding ecosystem offerings


            Cooling Solutions

            Memory

            Carrierboards

            Module services

            Request quote + Add more articles

            conga-TCV2

            COM Express Type 6 Compact module based on AMD Embedded Ryzen V2000 embedded processor series

            aReady
            • High-performance Zen 2 CPU & VEGA GPU
            • TDP Range 10-54W
            • Supporting 4 simultaneous 4K displays
            • Up to 64GByte dual channel DDR4 3200MT/s
            • AMD Secure Processor with AMD Memory Guard
            • Virtualization ready with Hypervisor
            Congatec Logo
            Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

            Value adding ecosystem offerings

            Cooling Solutions

            Memory

            Carrierboards

            Module services

            Specification

            Formfactor
            COM Express Compact
            CPU
            AMD Ryzen Embedded V2516 (6 x 2.1 GHz, 3MB L2 cache, 10W)
            AMD Ryzen Embedded V2546 (6 x 3 GHz, 3MB L2 cache, 35W)
            AMD Ryzen Embedded V2718 (8 x 1.7 GHz, 4MB L2 cache, 10W)
            AMD Ryzen Embedded V2748 (8 x 2.9 GHz, 4MB L2 cache, 35W)
            DRAM
            Up to 2 SO-DIMM sockets for DDR4 memory modules up to 32 GByte each (64 GByte total) with 3200 MT/s and ECC support
            Ethernet
            1 x Gigabit Ethernet via Intel® i226
            I/O Interfaces
            5 x PCIe Gen3 (8 lanes)
            PEG support x8
            4 x USB 3.1 Gen2
            8/4x USB 2.0
            2 x SATA III (6Gb/s)
            2 x UART
            8 x GPIOs
            LPC bus
            Graphics
            Integrated Radeon™ graphics engine with up to 7 Compute Units | Supporting 4 independent display units (4x 4K) | DirectX 12 support | VCN2.2 (H.264/AVC HW 8b | H.265/HEVC HW 8/10b | VP9 HW 8/10b) | DP 1.4
            embedded BIOS Features
            AMI Aptio® UEFI firmware
            16 Mbyte serial SPI with congatec Embedded BIOS feature
            OEM Logo
            OEM CMOS Defaults
            LCD Control
            Display Auto Detection
            Backlight Control
            Flash Update
            Security
            Trusted Platform Module (TPM 2.0) | AMD Secure Processor | AMD Memory Guard
            Power Management
            ACPI 5.0 with battery support
            Operating Systems
            Microsoft® Windows® 10
            Microsoft® Windows 10 IoT Enterprise
            Ubuntu Linux LTS
            Hypervisor
            RTS Real-Time Hypervisor
            Temperature
            Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +80°C
            Humidity
            Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
            Video Interfaces
            3 x DP/DP++
            1 x LVDS up to FullHD 1920x1200@60Hz
            eDP (optional)
            Size
            95 x 95 mm (3,74" x 3,74")

            Documents

            All documents found on this page are updated without notification. Always check this page for the latest version.

            Data Sheet

            Data Sheet for conga-TCV2
            30.10.2024

            Manual

            User's Guide for conga-TCV2
            11.11.2024

            Software

            [ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]

            EFI

            cgutlcmd_efi_1.7.0.1.zip
            01.08.2024 / 2.12 MB
            congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

            Linux

            CGOSAPIm14.pdf
            04.04.2017 / 1.07 MB
            CGOS API programmers manual
            cgoslx-x64-1.03.032.tar.xz
            09.05.2022 / 52.03 KB
            CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
            cgoslx-x64-1.03.032_vmalloc.tar.xz
            09.05.2022 / 52.74 KB
            CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
            CgosPy_1_3.zip
            23.07.2024 / 655.40 KB
            CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
            CGOS_DIRECT_Lx_R3.1.0.zip
            11.06.2025 / 192.45 KB
            CGOS direct driver for Linux.
            cgutillx.tar
            04.07.2023 / 3.93 MB
            congatec System Utility Rev. 1.6.2
            Use for BIOS update or customization and panel configuration. Linux source version.
            Important note: Only compatible with cgos 1.03.032 and older!
            CGUTILm16.pdf
            02.07.2020 / 2.67 MB
            congatec System Utility Users Guide
            cgutlcmd_linux_1.7.0.1.zip
            01.08.2024 / 2.32 MB
            congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
            cgutlgui-qt-1.6.3.zip
            28.05.2025 / 54.18 MB
            Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
            Important note: Only compatible with cgos 1.03.032 and older!
            cgutlgui-qt-1.7.1.1.zip
            28.05.2025 / 54.45 MB
            Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.1.1. Supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
            Important note: Only compatible with cgos direct 3.0.3 and newer!

            Windows 10

            231218a-398989C.zip
            22.05.2024 / 1.13 GB
            AMD Catalyst Display Driver Rev. 31.0 21908.1
            AMD_Software_5.12.20.505.zip
            22.05.2024 / 64.11 MB
            AMD Chipset drivers v.5.12.20.505
            CgMlfTools_2019_10_24.zip
            25.03.2024 / 16.68 MB
            The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
            CgMlfViewer_v100_bin.zip
            25.10.2019 / 7.99 MB
            The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
            Cgos-x64-Windows10.zip
            05.09.2021 / 225.62 KB
            CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
            CGOSAPIm14.pdf
            04.04.2017 / 1.07 MB
            CGOS API programmers manual
            CgosClr.zip
            22.02.2016 / 40.98 KB
            CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
            CgosPy_1_3.zip
            23.07.2024 / 655.40 KB
            CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
            Cgos_direct_Win10_Win11_3.0.3.zip
            12.02.2025 / 49.25 MB
            CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
            CGUTILm16.pdf
            02.07.2020 / 2.67 MB
            congatec System Utility Users Guide
            cgutlcmd_win_1.7.0.1.zip
            01.08.2024 / 18.41 MB
            congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
            cgutlgui-qt-1.6.3.zip
            28.05.2025 / 54.18 MB
            Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
            Important note: Only compatible with cgos 1.03.032 and older!
            cgutlgui-qt-1.7.1.1.zip
            28.05.2025 / 54.45 MB
            Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.1.1. Supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
            Important note: Only compatible with cgos direct 3.0.3 and newer!
            Wired_driver_29.1_x64.zip
            30.08.2024 / 24.68 MB
            Intel(R) Network Connections Software Version 29.1 for Intel i210/i219/i225/i226/E823-L for Windows 10 and Windows Server 2019

            Windows 10 IoT

            231218a-398989C.zip
            22.05.2024 / 1.13 GB
            AMD Catalyst Display Driver Rev. 31.0 21908.1
            AMD_Software_5.12.20.505.zip
            22.05.2024 / 64.11 MB
            AMD Chipset drivers v.5.12.20.505
            CgosPy_1_3.zip
            23.07.2024 / 655.40 KB
            CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
            cgutlcmd_win_1.7.0.1.zip
            01.08.2024 / 18.41 MB
            congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
            Wired_driver_29.1_x64.zip
            30.08.2024 / 24.68 MB
            Intel(R) Network Connections Software Version 29.1 for Intel i210/i219/i225/i226/E823-L for Windows 10 and Windows Server 2019

            Windows 11

            231218a-398989C.zip
            22.05.2024 / 1.13 GB
            AMD Catalyst Display Driver Rev. 31.0 21908.1
            AMD_Software_5.12.20.505.zip
            22.05.2024 / 64.11 MB
            AMD Chipset drivers v.5.12.20.505
            CgMlfTools_2019_10_24.zip
            25.03.2024 / 16.68 MB
            The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
            CgMlfViewer_v100_bin.zip
            25.10.2019 / 7.99 MB
            The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
            CgosClr.zip
            22.02.2016 / 40.98 KB
            CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
            CgosPy_1_3.zip
            23.07.2024 / 655.40 KB
            CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
            Cgos_direct_Win10_Win11_3.0.3.zip
            12.02.2025 / 49.25 MB
            CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
            CGUTILm16.pdf
            02.07.2020 / 2.67 MB
            congatec System Utility Users Guide
            cgutlgui-qt-1.6.3.zip
            28.05.2025 / 54.18 MB
            Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
            Important note: Only compatible with cgos 1.03.032 and older!
            cgutlgui-qt-1.7.1.1.zip
            28.05.2025 / 54.45 MB
            Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.1.1. Supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
            Important note: Only compatible with cgos direct 3.0.3 and newer!

            Product Variants

            Product Filter:

              Add Filter:

               -
               -
               -
               -
               -
               -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-TCV2/V2748 (P/N 050500)

              COM Express Type 6 Compact module based on AMD Ryzen™ Embedded V2748 8-core processor with 2.9GHz up to 4.25GHz boost freq., 4MB L2 cache, Radeon™ Vega Graphics with 7 CU and dual channel DDR4 3200 MT/s memory interface with ECC support. Commercial temperature range 0 to +60°C.

              conga-TCV2/V2546 (P/N 050501)

              COM Express Type 6 Compact module based on AMD Ryzen™ Embedded V2546 6-core processor with 3.0GHz up to 3.95GHz boost freq., 3MB L2 cache, Radeon™ Vega Graphics with 6 CU and dual channel DDR4 3200 MT/s memory interface with ECC support. Commercial temperature range 0 to +60°C.

              conga-TCV2/V2718 (P/N 050502)

              COM Express Type 6 Compact module based on AMD Ryzen™ Embedded V2718 8-core processor with 1.7GHz up to 4.15GHz boost freq., 4MB L2 cache, Radeon™ Vega Graphics with 7 CU and dual channel DDR4 3200 MT/s memory interface with ECC support. Commercial temperature range 0 to +60°C.

              conga-TCV2/V2516 (P/N 050503)

              COM Express Type 6 Compact module based on AMD Ryzen™ Embedded V2516 6-core processor with 2.1GHz up to 3.95GHz boost freq., 3MB L2 cache, Radeon™ Vega Graphics with 6 CU and dual channel DDR4 3200 MT/s memory interface with ECC support. Commercial temperature range 0 to +60°C.

              Ecosystem Details

              Cooling Solutions

              conga-TCV2/CSA-HP-B (P/N 050550)

              Standard active cooling solution for high performance COM Express module conga-TCV2 with integrated heat pipes, 25.5mm overall heat sink height and integrated 12V fan. All standoffs are with
              2.7mm bore hole.

              conga-TCV2/CSA-HP-T (P/N 050551)

              Standard active cooling solution for high performance COM Express module conga-TCV2 with integrated heat pipes, 25.5mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm thread.

              conga-TCV2/CSP-HP-B (P/N 050552)

              Standard passive cooling solution for high performance COM Express module conga-TCV2 with integrated heat pipes, 24.3mm overall heat sink height. All standoffs are with 2.7mm bore hole.

              conga-TCV2/CSP-HP-T (P/N 050553)

              Standard passive cooling solution for high performance COM Express module conga-TCV2 with integrated heat pipes, 24.3mm overall heat sink height. All standoffs are M2.5mm thread.

              conga-TCV2/HSP-HP-B (P/N 050554)

              Standard heatspreader for high performance COM Express module conga-TCV2 with integrated heat pipes, 11mm overall heat sink height. All standoffs are with 2.7mm bore hole.

              conga-TCV2/HSP-HP-T (P/N 050555)

              Standard heatspreader for high performance COM Express module conga-TCV2 with integrated heat pipes, 11mm overall heat sink height. All standoffs are M2.5mm thread.

              Memory

              DDR4-SODIMM-3200 (4GB) (P/N 068793)

              DDR4 SODIMM memory module with 3200 MT/s and 4GB RAM

              DDR4-SODIMM-3200 (8GB) (P/N 068794)

              DDR4 SODIMM memory module with 3200 MT/s and 8GB RAM

              DDR4-SODIMM-3200 (16GB) (P/N 068798)

              DDR4 SODIMM memory module with 3200 MT/s and 16GB RAM

              DDR4-SODIMM-3200 ECC (4GB) (P/N 068736)

              DDR4 ECC SODIMM memory module with 3200 MT/s and 4GB RAM

              DDR4-SODIMM-3200 ECC (8GB) (P/N 068737)

              DDR4 ECC SODIMM memory module with 3200 MT/s and 8GB RAM

              DDR4-SODIMM-3200 ECC (16GB) (P/N 068738)

              DDR4 ECC SODIMM memory module with 3200 MT/s and 16GB RAM

              Carrierboards

              conga-TEVAL2 (P/N 065810)

              Evaluation carrier board for COM Express Type6 Rev. 3.0 modules.

              Module services

              Design-In Training (P/N 27000001)

              Design-Training to develop carrier boards for Computer on Modules

              Conformal Coating COM Express Basic and Compact (P/N )

              HumiSeal® 1A33 coating for COM Express Basic and Compact modules; MIL-I-46058C qualified, IPC-CC-830 and
              RoHS Directive 2002/95/EC compliant and recognized under UL File Number E105698.

              Ext. temperature screening (-40°C to +85°C) (P/N )

              congatec Wide Temperature Range Screening
              Standard screening profile with 12h temperature screening and cold soak test
              Including functional test and several boot-ups (before & after screening)

              Ext. temperature screening (-25°C to +80°C) (P/N )

              congatec Wide Temperature Range Screening
              Standard screening profile with 12h temperature screening and cold soak test
              Including functional test and several boot-ups (before & after screening)
