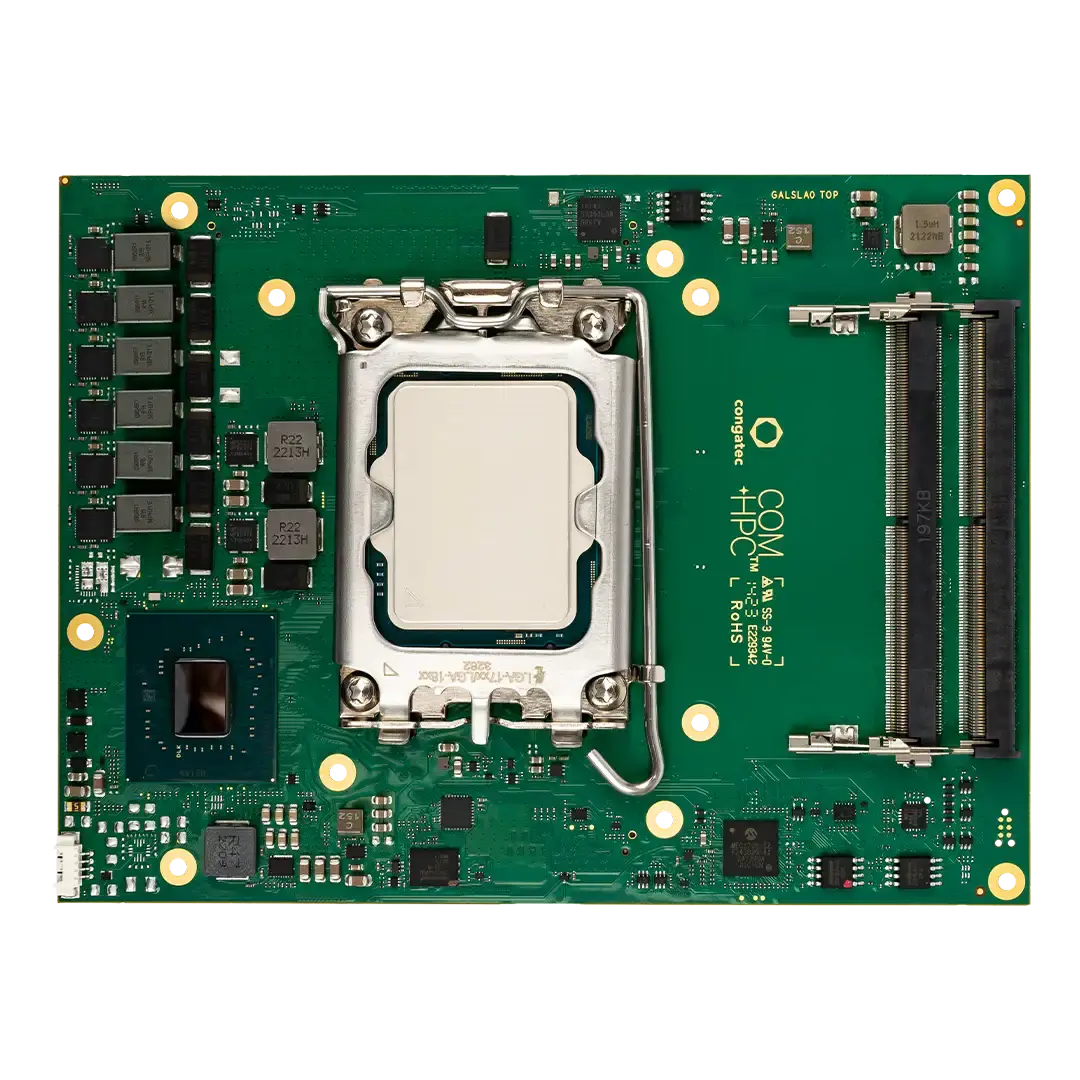

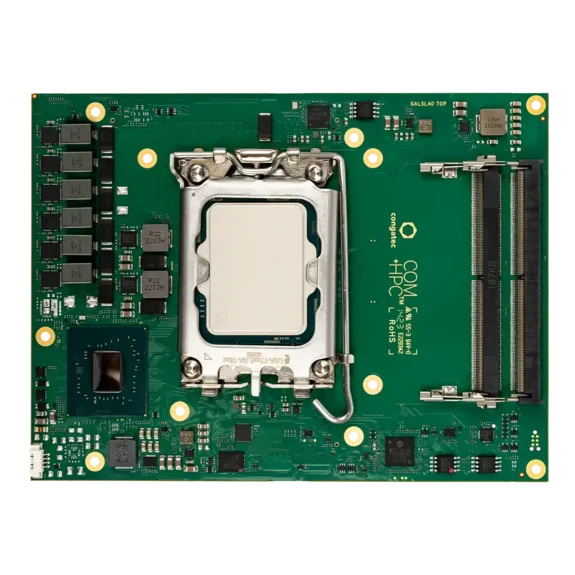

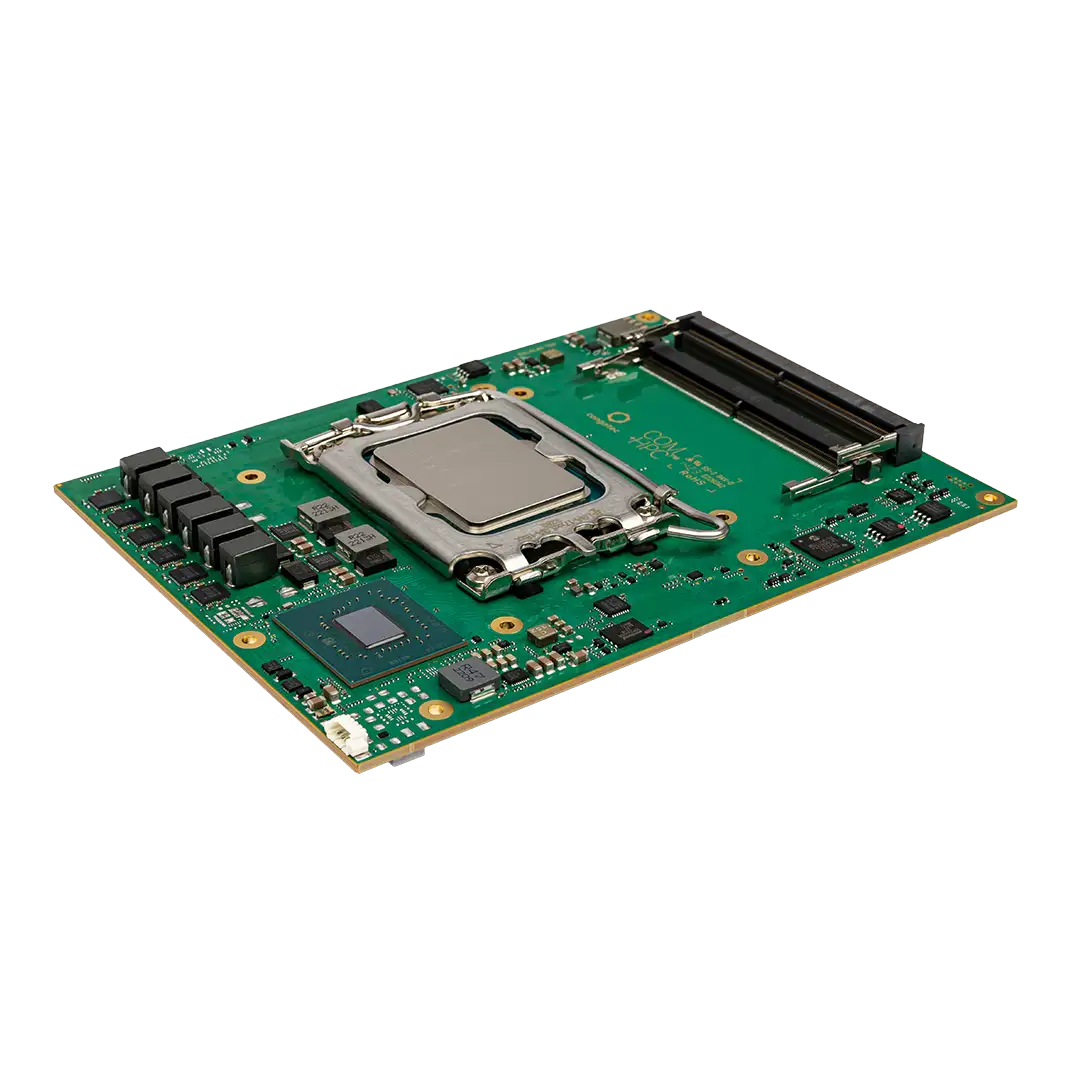

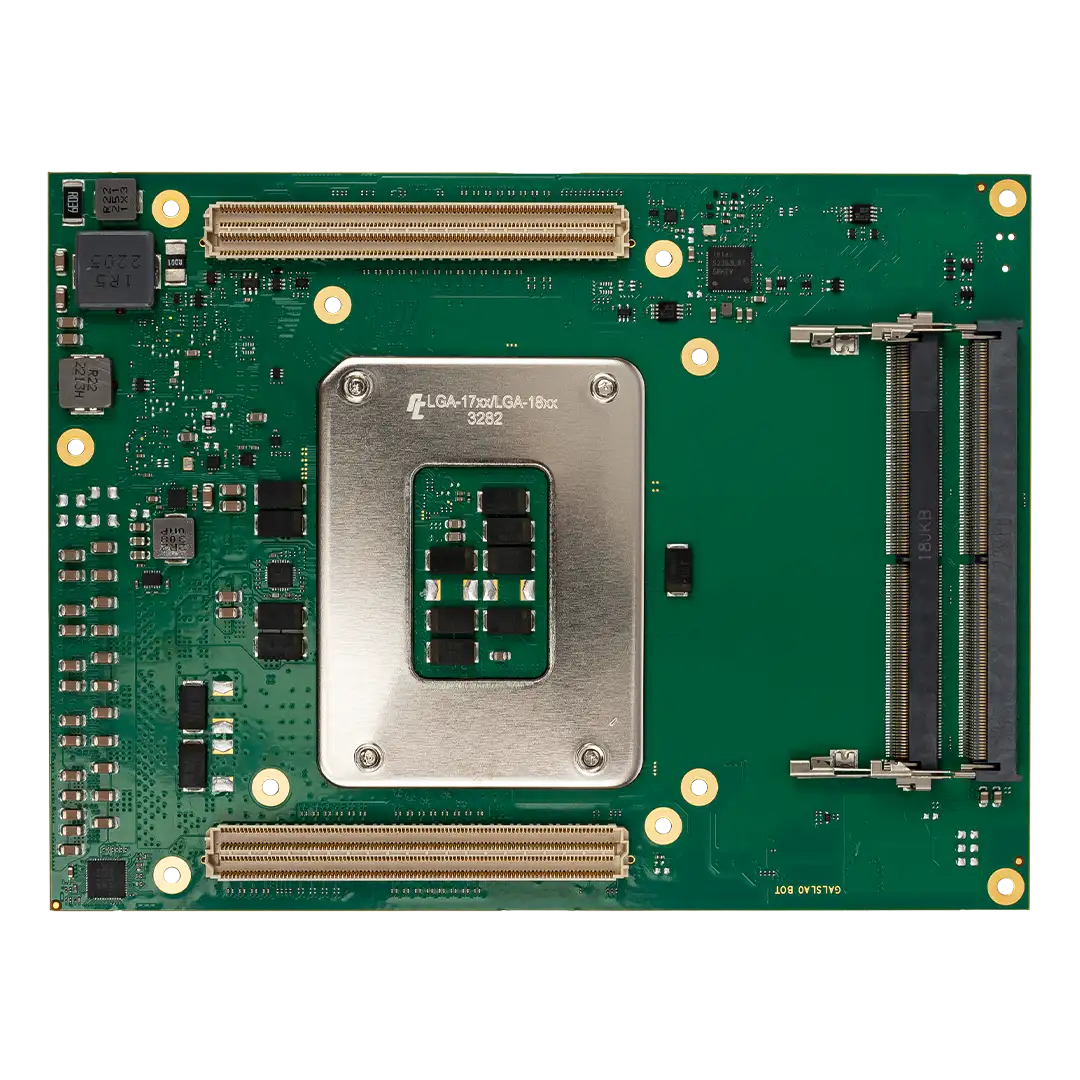

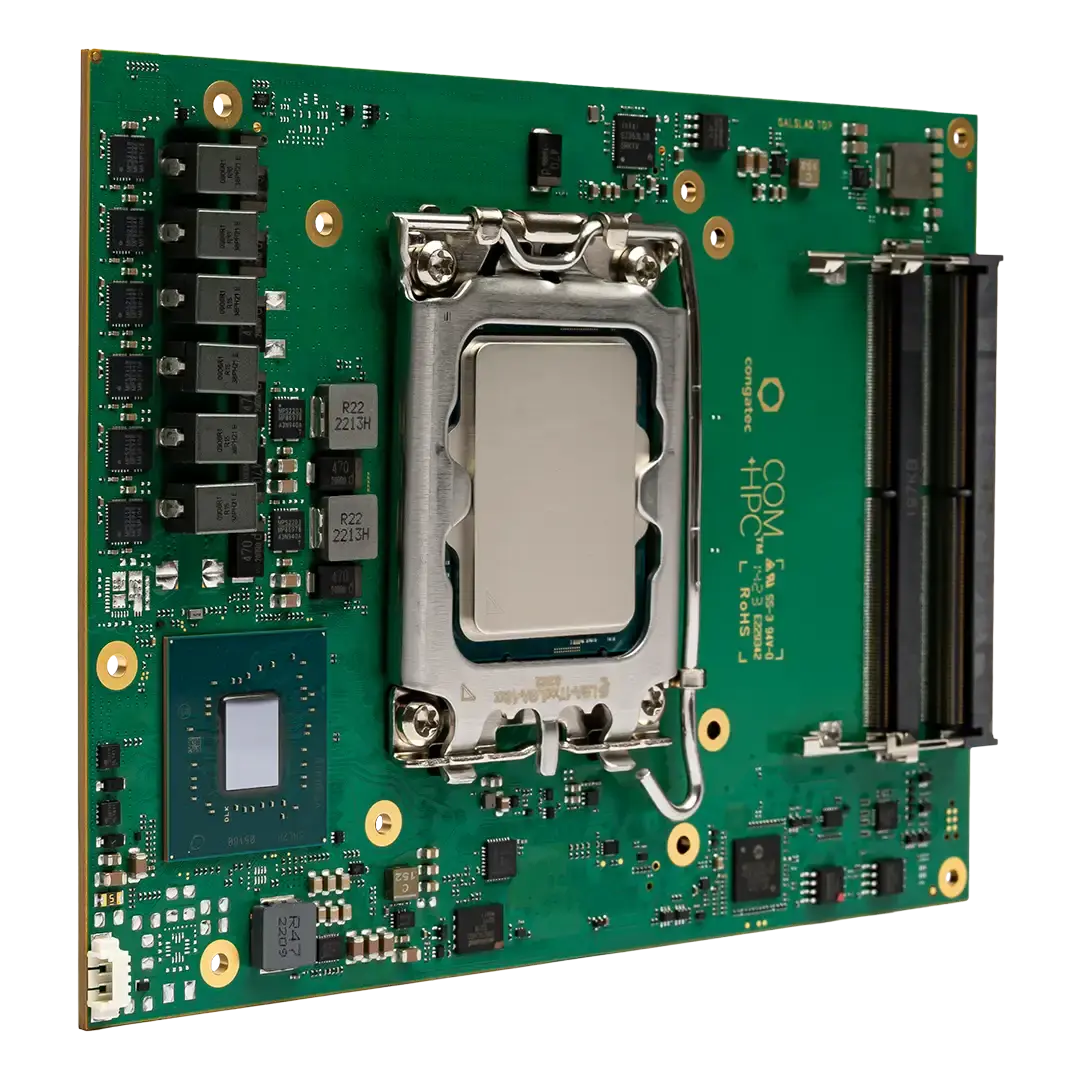

conga-HPC/cRLS

第13世代 インテル® Core™ プロセッサ シリーズ（コードネーム「Raptor Lake-S」）を搭載した COM-HPC Client Size C ハイパフォーマンス モジュール

  • パフォーマンスコアと効率コアを組み合わせた インテル® ハイブリッド設計
  • Xe アーキテクチャの インテル® UHD グラフィックス 730/770
  • PCI Express Gen 4/5 | USB 3.2 Gen 2x2
  • インテル® ディープラーニングによる AI アクセラレーション
  • 組込み用途向けの SKU
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

Carrierboards

Memory

Module services

Specification

Formfactor
COM-HPC
CPU
Intel® Core™ i3-13100E (4 P-cores 3.3GHz up to 4.4GHz, 12MB cache, 65W)
Intel® Core™ i5-13400E (6 P-cores 2.4GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.3GHz, 20MB cache, 65W)
Intel® Core™ i7-13700E (8 P-cores 1.9GHz up to 5.1GHz, 8 E-cores 1.3GHz up to 3.9GHz, 30MB cache, 65W)
Intel® Core™ i9-13900E (8 P-cores 1.8GHz up to 5.2GHz, 16 E-cores 1.3GHz up to 4.0GHz, 36MB cache, 65W)
DRAM
4 SO-DIMM sockets for DDR5 memory modules up to 32 GByte each | up to 4.000 MT/s | max. 128 GByte RAM system capacity
Ethernet
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
I/O Interfaces
1x16 PCIe Gen 5 (PEG port)
3x4 PCIe Gen 4
3x4 PCIe Gen 3
1x2 PCIe Gen3
4 x USB 3.2 Gen2x2
8 x USB 2.0
2 x SATA
2 x UART
12 x GPIOs
Graphics
Intel® UHD Graphics 730/770 driven by Xe Architecture | up to 32 EU
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
embedded BIOS Features
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 6.0 with battery support
Operating Systems
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
RTS Hypervisor
Temperature
Operating: 0°C to 60°C
Storage: -20°C to 80°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
3x DDI | eDP
Size
120 x 160 mm

Documents

All documents found on this page are updated without notification. Always check this page forthe latestversion.

Data Sheet

conga-HPC-cRLS.pdf
28.11.2023

Manual

User's Guide for conga-HPC/cRLS
02.05.2023

Software

[ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x).For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutillx.tar
01.12.2021 / 3.91 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.Linux source version.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration.Linux source version.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.

Windows 10

CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based applicationmeant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutil_v161.zip
01.12.2021 / 10.81 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Chipset-10.1.19198.8339-Public-MUP.zip
24.03.2023 / 4.45 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
gna-03.00.00.1457-Win11-adl-pv-10-20H2-11-21H2-11-22H2-20220622.zip
24.03.2023 / 54.33 KB
Intel GNA Scoring Accelerator 03.00.00.1457
HIDEventFilterDriver-2.2.1.386_RS5_19H1_20H1_21H2_Certified.zip
09.12.2021 / 1.72 MB
Intel(R) HID Event Filter Driver Version 2.2.1.386
Intel_CSME_ADL-S_16.1.25.2020v2_B0_Consumer.zip
24.03.2023 / 890.51 MB
Intel Management Engine Consumer driver 16.1.25.2020v2_B0
Intel_CSME_ADL-S_16.1.25.2020v2_B0_Corporate.zip
24.03.2023 / 1.06 GB
Intel Management Engine driver Corporate 16.1.25.2020v2_B0
Intel_DTT_9.0.11000.27915.zip
24.03.2023 / 78.44 MB
Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
Intel_SST_ADL_v10.29.00.7919.zip
24.03.2023 / 292.05 MB
Intel smart sound driver version 10.29.00.7919
ISH_Kit_5.4.2.4582v3.zip
24.03.2023 / 92.24 MB
Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
Release_27.8.zip
24.03.2023 / 795.24 MB
Intel Ethernet Driver Version 27.8
RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
24.03.2023 / 109.22 MB
Rapid Storage Technology Driver:Version 19.5.0.1037.2
SerialIO_30.100.2221.20v2_RPL_ADL-PCH_22H2.zip
24.03.2023 / 2.65 MB
Intel Serial IO Drivers 30.100.2221.20v2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 MB
Thunderbolt Driver Rev87.2
win64_31.0.101.3302.zip
24.03.2023 / 825.75 MB
Intel HD Graphics Driver Rev. 31.0.101.3302

Windows 10 IoT

CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutil_v161.zip
01.12.2021 / 10.81 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.

Product Variants

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
    conga-HPC/cRLS-i3-13100E (P/N 049803)

    COM-HPC Client module based on Intel® Core™ i3-13100E LGA 1700 processor with 4 P-cores 3.3GHz up to 4.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset Q670E | Intel® code name: Raptor Lake-S

    conga-HPC/cRLS-i5-13400E (P/N 049802)

    COM-HPC Client module based on Intel® Core™ i5-13400E LGA 1700 processor with 6 P-cores 2.4GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.3GHz Turbo | 20MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S

    conga-HPC/cRLS-i7-13700E (P/N 049801)

    COM-HPC Client module based on Intel® Core™ i7-13700E LGA 1700 processor with 8 P-cores 1.9GHz up to 5.1GHz Turbo and 8 E-cores 1.3GHz up to 3.9GHz Turbo | 30MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S

    conga-HPC/cRLS-i9-13900E (P/N 049800)

    COM-HPC Client module based on Intel® Core™ i9-13900E LGA 1700 processor with 8 P-cores 1.8GHz up to 5.2GHz Turbo and 16 E-cores 1.3GHz up to 4.0GHz Turbo | 36MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S

    Ecosystem Details

    Cooling solutions

    conga-HPC/cRLS-CSA-HP-B (P/N 049650)

    Standard active cooling solution for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 30mm overall height and two integrated 12V fans. All standoffs are with 2.7mm bore hole.

    conga-HPC/cRLS-CSA-HP-T (P/N 049651)

    Standard active cooling solution for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 30mm height and two integrated 12V fans.. All standoffs are M2.5mm threaded.

    conga-HPC/cRLS-HSP-HP-B (P/N 049652)

    Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole.

    conga-HPC/cRLS-HSP-HP-T (P/N 049653)

    Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded.

    conga-HPC/cRLS-HPA (P/N 049654)

    Standard heatpipe adapter for COM-HPC module conga-HPC/cRLS.

    Carrierboards

    conga-HPC/uATX-Client (P/N 065620)

    COM-HPC Client µATX carrier board suitable for congatec COM-HPC modules with Size A,B and C.

    conga-HPC/EVAL-Client (P/N 065600)

    Evaluation Carrier Board for COM-HPC Client type Modules.

    Memory

    DDR5 SODIMM 4800 (8GB) (P/N 068901)

    DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM 4800 (16GB) (P/N 068902)

    DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM-4800 (32GB) (P/N 068903)

    DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM-4800 ECC (8GB) (P/N 068911)

    DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM with ECC, commercial temp 0°C to +60°C

    DDR5-SODIMM-4800 ECC (16GB) (P/N 068912)

    DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM with ECC, commercial temp 0°C to +60°C

    DDR5-SODIMM-4800 ECC (32GB) (P/N 068913)

    DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM with ECC, commercial temp 0°C to +60°C

    Module services

    Design-In Training (P/N 022214)

    Design-Training to develop carrier boards for Computer on Modules

    Ext. temperature screening (-40°C to +85°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Ext. temperature screening (-25°C to +80°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)
