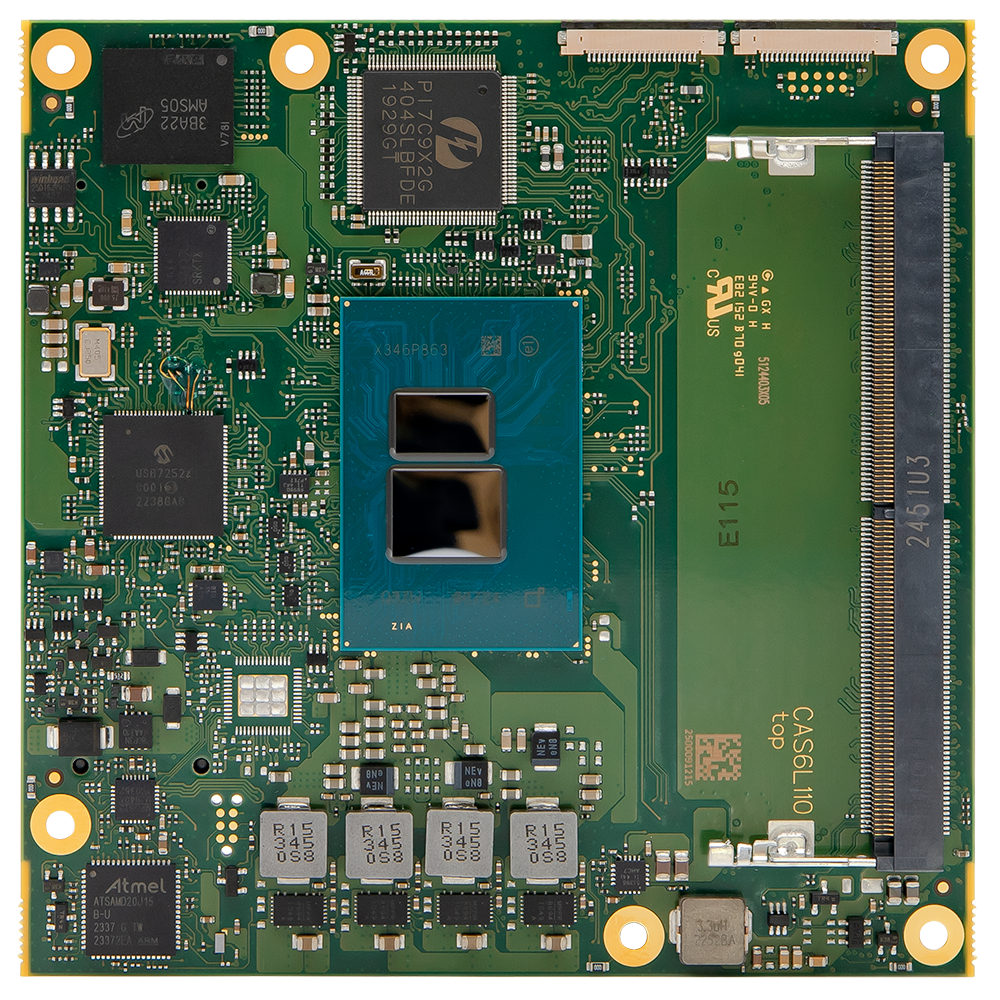

  • conga-cAS6 Image 1

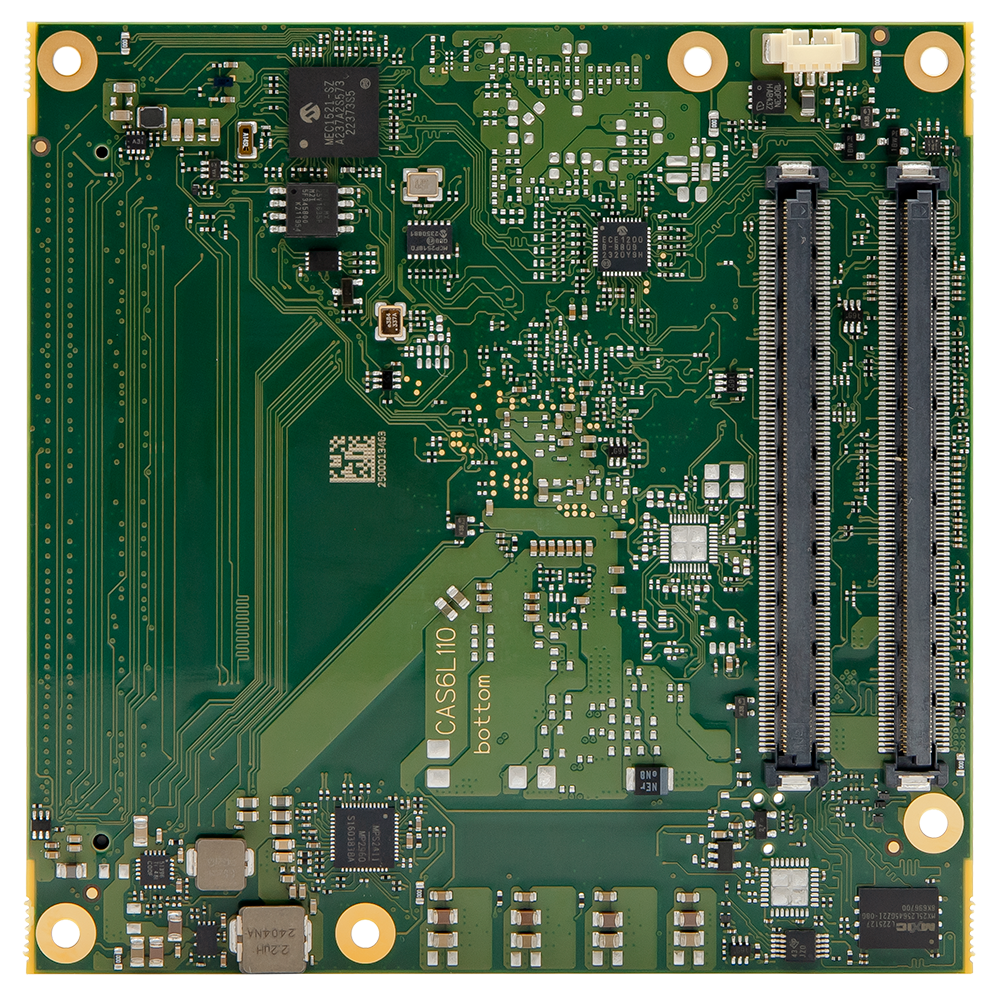

  • conga-cAS6 Image 2

Your item has been added to the inquiry

conga-cAS6 Image

conga-cAS6

COM Express® compact Type 6 with Intel Atom® x7000E / x7000RE

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Memory

          Value adding ecosystem offerings


          Carrierboards

          Cooling Solutions

          Memory

          見積りを依頼 + Add more articles

          conga-cAS6

          formerly JUMPtec COMe-cAS6
          COM Express® compact Type 6 with Intel Atom® x7000E / x7000RE

          Learn all about COMs - download the guide
          • Low-Power – Performance/Watt optimized form factor solution
          • Up to 16 GByte DDR5 4800 MT/s - In-Band ECC
          • Up to 4x Graphics interfaces
          • Up to 6x PCIe lanes, up to 4x USB 3.2/2.0, 6x USB 2.0
          • Up to 2.5 Gb Ethernet with TSN support
          • Industrial grade temperature
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Carrierboards

          Cooling Solutions

          Memory

          Specification

          Formfactor
          COM Express Compact
          CPU
          Intel Atom® x7213RE (2 x 1.0 GHz, 6 MB cache, 6W)
          Intel Atom® x7211RE (2 x 1.0 GHz, 6 MB cache, 6W)
          Intel Atom® x7433RE (4 x 1.5 GHz, 6MB cache, 9W)
          Intel Atom® x7835RE (8 x 1.3 GHz, 6MB cache, 12W)
          DRAM
          Up to 16 GByte DDR5 4800 MT/s via 1x SODIMM socket (In-Band ECC)
          Ethernet
          Up to 2.5Gb Ethernet with TSN support
          I/O Interfaces
          4 x PCIe Gen3
          2 x 1 (PCIe Gen2) - onboard i226 connected via PCIe Gen2 lane
          2 x USB 3.2 Gen2 (includes USB 2.0)
          6 x USB 2.0
          2 x serial interface (RX/TX only)
          SPI
          LPC
          SMB
          Fast I²C
          RTC
          Mass storage
          2xSATA 6Gb/s
          Graphics
          SOC: Intel® HD Gfx Gen 12: LVDS/eDP, 2x DP
          embedded BIOS Features
          AMI Aptio V
          Power Management
          ACPI 5.0
          Operating Systems
          Microsoft® Windows 11
          Microsoft® Windows® 10
          LTSC
          Linux
          Temperature
          0 °C to +60 °C operating, -30 °C to +85 °C non-operating
          industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
          Humidity
          93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
          Video Interfaces
          3 x DP++
          LVDS: Dual Channel 18/24bit
          Features
          Staged Watchdog
          Size
          95 x 95 mm (3,74" x 3,74")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Data Sheet for conga-cAS6
          15.12.2025

          Whitepaper

          The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

          Product Variants

          Product Filter:

            Add Filter:

             -
             -
             -
             -
             -
             -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-cAS6/x7211RE (P/N 36039-0000-R1-2)

              COM Express® Compact Type 6 module with Intel Atom® x7211RE processor, industrial temperature range -40°C to +85°C.

              conga-cAS6/x7213RE (P/N 36039-0000-R2-2)

              COM Express® Compact Type 6 module with Intel Atom® x7213RE processor, industrial temperature range -40°C to +85°C.

              conga-cAS6/x7433RE (P/N 36039-0000-R2-4)

              COM Express® Compact Type 6 module with Intel Atom® x7433RE processor, industrial temperature range -40°C to +85°C.

              conga-cAS6/x7835RE (P/N 36039-0000-R2-8)

              COM Express® Compact Type 6 module with Intel Atom® x7835RE processor, industrial temperature range -40°C to +85°C.

              Ecosystem Details

              Carrierboards

              COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

              COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

              Cooling Solutions

              HSP COMe-cAS6 (E2) THREAD (P/N 36039-0000-99-0)

              Heatspreader for COMe-cAS6 commercial and E2, threaded mounting holes

              HSP COMe-cAS6 (E2) THROUGH (P/N 36039-0000-99-1)

              Heatspreader for COMe-cAS6 commercial and E2, through holes

              COME ACTIVE UNI COOLER2 (W/O HSP) (P/N 36099-0000-99-4)

              COM Express® Universal Active Cooler for Heatspreader Mounting (95 x 95 x 14.3) - 90° turnable

              COME PASSIVE UNI COOLER2 (W/O HSP) (P/N 36099-0000-99-5)

              COM Express® Universal Passive Cooler for Heatspreader Mounting (95 x 95 x 14.3) - 90° turnable

              Memory

              conga-cAS6/DDR5-4800 (16GB) (P/N 97040-1648-CAS6)

              DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-cAS6/DDR5-4800 (8GB) (P/N 97040-0848-CAS6)

              DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-cAS6/DDR5-4800 (16GB) i-temp (P/N 97041-1648-CAS6)

              DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-cAS6/DDR5-4800 (8GB) i-temp (P/N 97041-0848-CAS6)

              DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, industrial temp -40°C to +85°C
