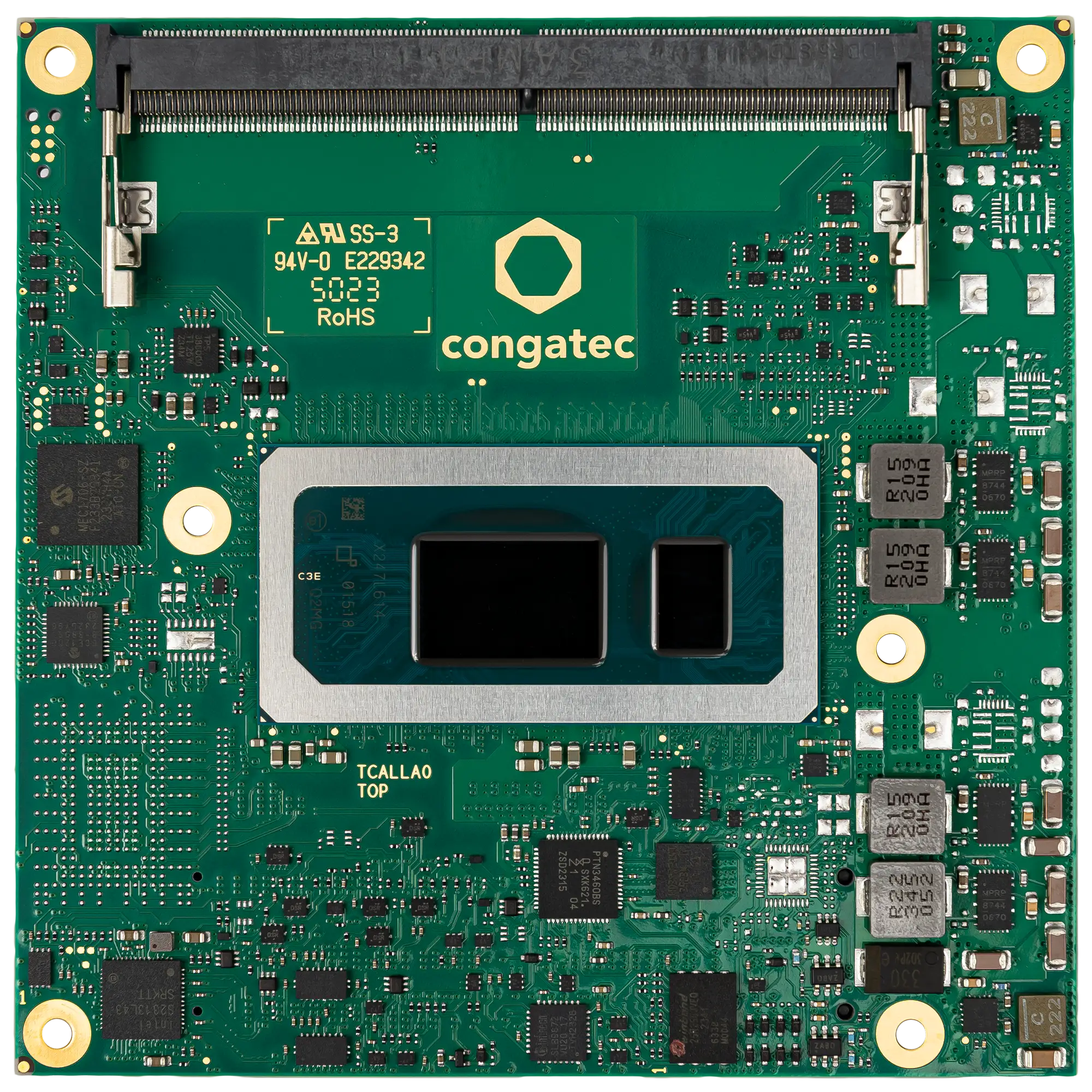

conga-TC675 Preview image
  • conga-TC675 Image 1
  • conga-TC675 Image 2
  • conga-TC675 Image 3

Your item has been added to the inquiry

conga-TC675 Image

conga-TC675

COM Express Type 6 Compact module based on 13th Gen Intel® Core™ embedded mobile processors (code name "Raptor Lake")

Selected module variant

    Selected ecosystem parts

    Virtualization

      Operating Systems

        Cooling Solutions

          Memory

            Carrierboards

              Module services

                Value adding ecosystem offerings


                Virtualization

                Operating Systems

                Cooling Solutions

                Memory

                Carrierboards

                Module services

                Request quote + Add more articles

                conga-TC675

                COM Express Type 6 Compact module based on 13th Gen Intel® Core™ embedded mobile processors (code name "Raptor Lake")

                aReady
                • Intel® hybrid design combines Performance-cores with Efficient–cores
                • Up to Intel® Iris® Xe Graphics architecture with up to 96 EUs
                • PCI Express Gen 4 | up to USB 4
                • Options for Industrial Temperature Range -40°C to +85°C
                • Virtualization ready with Hypervisor
                Congatec Logo
                Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

                Value adding ecosystem offerings

                Virtualization

                Operating Systems

                Cooling Solutions

                Memory

                Carrierboards

                Module services

                Specification

                Formfactor
                COM Express Compact
                CPU
                Intel® Core™ i7-13800HE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
                Intel® Core™ i7-1370PE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
                Intel® Core™ i7-1365UE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
                Intel® Core™ i5-13600HE (4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)
                Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
                Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
                Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
                Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
                Intel® Core™ i5-1345URE (2 P-cores 1.4GHz up to 4.6GHz, 8 E-cores 1.1GHz up to 3.4GHz, 12MB cache, 15W)
                Intel® Core™ i3-13300HRE (4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, 45W)
                Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
                Intel® Core™ i3-1315URE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
                Intel® Core™ i5-1335UE (2 P-cores 1.3GHz up to 4.5GHz, 8 E-cores 1.1GHz up to 3.3GHz, 12MB cache, 15W)
                Intel® Core™ i5-1340PE (4 P-cores 1.8GHz up to 4.5GHz, 8 E-cores 1.3GHz up to 3.3GHz, 12MB cache, 28W)
                Intel® Core™ i3-1320PE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
                Intel® Core™ i3-1315UE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
                Intel® Core™ i3-13300HE (4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, )
                Intel® U300E (1 P-core 1.1GHz up to 4.3GHz, 4 E-cores 0.9GHz up to 3.2GHz, 8MB cache, 15W )
                DRAM
                2 SO-DIMM sockets for DDR5 memory modules up to 48 GB RAM each (max. 96 GB RAM system capacity) |up to 5200 MT/s
                Ethernet
                2.5 GbE with TSN support via Intel® i226 Ethernet controller series
                I/O Interfaces
                Up to 8 PCIe Gen4 PEG (H-Series) or up to 4 PCIe Gen4 PEG (P-and U-Series)
                up to 8 PCIe Gen3
                up to 2x USB4 (shared with DDI)
                4 x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0
                up to 2x SATA
                up to 2x UART
                CAN (opt.)
                GPIOs
                GPSPI
                LPC bus
                SM-Bus
                I²C bus
                Mass storage
                NVMe x4 SSD (optional)
                Graphics
                Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture (depends on PN) | up to 96 EUs
                congatec Board Controller
                Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
                embedded BIOS Features
                AMI Aptio UEFI
                32 Mbyte serial SPI with congatec Embedded BIOS feature
                OEM Logo
                OEM CMOS Defaults
                LCD Control
                Display Auto Detection
                Backlight Control
                Flash Update
                Security
                Trusted Platform Module (TPM 2.0)
                Power Management
                ACPI 6.0 with battery support
                Operating Systems
                Microsoft® Windows 11
                Microsoft® Windows 11 IoT Enterprise
                Microsoft® Windows® 10
                Microsoft® Windows 10 IoT Enterprise
                Linux
                Yocto
                Hypervisor
                RTS Real-Time Hypervisor
                Temperature
                Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
                Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C
                Humidity
                Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
                Video Interfaces
                Up to 3x DDI (2x shared with USB4) | LVDS or eDP| VGA (optional)
                Size
                95 x 95 mm (3,74" x 3,74")

                Documents

                All documents found on this page are updated without notification. Always check this page for the latest version.

                Data Sheet

                Data Sheet for conga-TC675
                12.12.2024

                Manual

                User's Guide for conga-TC675
                10.12.2024

                Software

                [ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]

                EFI

                cgutlcmd_efi_1.7.0.1.zip
                01.08.2024 / 2.12 Mo
                congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

                Linux

                CGOSAPIm14.pdf
                04.04.2017 / 1.07 Mo
                CGOS API programmers manual
                cgoslx-x64-1.03.032.tar.xz
                09.05.2022 / 52.03 Ko
                CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
                cgoslx-x64-1.03.032_vmalloc.tar.xz
                09.05.2022 / 52.74 Ko
                CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
                CgosPy_1_3.zip
                23.07.2024 / 655.40 Ko
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                CGOS_DIRECT_Lx_R3.1.0.zip
                11.06.2025 / 192.45 Ko
                CGOS direct driver for Linux.
                cgutillx.tar
                04.07.2023 / 3.93 Mo
                congatec System Utility Rev. 1.6.2
                Use for BIOS update or customization and panel configuration. Linux source version.
                Important note: Only compatible with cgos 1.03.032 and older!
                cgutlcmd_linux_1.7.0.1.zip
                01.08.2024 / 2.32 Mo
                congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
                cgutlgui-qt-1.6.3.zip
                28.05.2025 / 54.18 Mo
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos 1.03.032 and older!
                cgutlgui-qt-1.7.1.1.zip
                28.05.2025 / 54.45 Mo
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.1.1. Supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos direct 3.0.3 and newer!

                Windows 10

                CgMlfTools_2019_10_24.zip
                25.03.2024 / 16.68 Mo
                The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
                CgMlfViewer_v100_bin.zip
                25.10.2019 / 7.99 Mo
                The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
                Cgos-x64-Windows10.zip
                05.09.2021 / 225.62 Ko
                CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
                CGOSAPIm14.pdf
                04.04.2017 / 1.07 Mo
                CGOS API programmers manual
                CgosClr.zip
                22.02.2016 / 40.98 Ko
                CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
                CgosPy_1_3.zip
                23.07.2024 / 655.40 Ko
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                Cgos_direct_Win10_Win11_3.0.3.zip
                12.02.2025 / 49.25 Mo
                CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
                cgutlcmd_win_1.7.0.1.zip
                01.08.2024 / 18.41 Mo
                congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
                cgutlgui-qt-1.6.3.zip
                28.05.2025 / 54.18 Mo
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos 1.03.032 and older!
                cgutlgui-qt-1.7.1.1.zip
                28.05.2025 / 54.45 Mo
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.1.1. Supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos direct 3.0.3 and newer!
                Chipset-10.1.19198.8339-Public-MUP.zip
                24.03.2023 / 4.45 Mo
                Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
                gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
                29.02.2024 / 56.02 Ko
                Intel GNA Scoring Accelerator 03.00.00.1457
                HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
                19.11.2024 / 1.68 Mo
                Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
                Intel_CSME_SW_2321.4.31.0_Consumer.zip
                29.02.2024 / 1.08 Go
                Intel Management Engine Consumer driver 2321.4.31.0
                Intel_CSME_SW_2321.4.31.0_Corporate.zip
                29.02.2024 / 979.24 Mo
                Intel Management Engine driver Corporate 2321.4.31.0
                Intel_DTT_9.0.11000.27915.zip
                24.03.2023 / 78.44 Mo
                Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
                Intel_SST_ADL_v10.29.00.7919.zip
                24.03.2023 / 292.05 Mo
                Intel smart sound driver version 10.29.00.7919
                ISH_Kit_5.4.2.4582v3.zip
                24.03.2023 / 92.24 Mo
                Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
                Release_28.2.zip
                29.02.2024 / 776.58 Mo
                Intel Ethernet Driver Version 28.2
                RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
                24.03.2023 / 109.22 Mo
                Rapid Storage Technology Driver: Version 19.5.0.1037.2
                SerialIO_30.100.2221.20v2_RPL_ADL-PCH_22H2.zip
                24.03.2023 / 2.65 Mo
                Intel Serial IO Drivers 30.100.2221.20v2
                TBT_DCH_SW_Rev87_2.zip
                24.03.2023 / 242.26 Mo
                Thunderbolt Driver Rev87.2

                Windows 10 IoT

                CgosPy_1_3.zip
                23.07.2024 / 655.40 Ko
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                cgutlcmd_win_1.7.0.1.zip
                01.08.2024 / 18.41 Mo
                congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

                Windows 11

                CgMlfTools_2019_10_24.zip
                25.03.2024 / 16.68 Mo
                The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
                CgMlfViewer_v100_bin.zip
                25.10.2019 / 7.99 Mo
                The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
                CgosClr.zip
                22.02.2016 / 40.98 Ko
                CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
                CgosPy_1_3.zip
                23.07.2024 / 655.40 Ko
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                Cgos_direct_Win10_Win11_3.0.3.zip
                12.02.2025 / 49.25 Mo
                CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
                cgutlgui-qt-1.6.3.zip
                28.05.2025 / 54.18 Mo
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos 1.03.032 and older!
                cgutlgui-qt-1.7.1.1.zip
                28.05.2025 / 54.45 Mo
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.1.1. Supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos direct 3.0.3 and newer!
                gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
                29.02.2024 / 56.02 Ko
                Intel GNA Scoring Accelerator 03.00.00.1457
                HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
                19.11.2024 / 1.68 Mo
                Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
                Intel_CSME_SW_2321.4.31.0_Consumer.zip
                29.02.2024 / 1.08 Go
                Intel Management Engine Consumer driver 2321.4.31.0
                Intel_CSME_SW_2321.4.31.0_Corporate.zip
                29.02.2024 / 979.24 Mo
                Intel Management Engine driver Corporate 2321.4.31.0
                Release_28.2.zip
                29.02.2024 / 776.58 Mo
                Intel Ethernet Driver Version 28.2
                RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
                24.03.2023 / 109.22 Mo
                Rapid Storage Technology Driver: Version 19.5.0.1037.2
                TBT_DCH_SW_Rev87_2.zip
                24.03.2023 / 242.26 Mo
                Thunderbolt Driver Rev87.2

                Product Variants

                Product Filter:

                  Add Filter:

                   -
                   -
                   -
                   -
                   -
                   -
                  There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
                  If you don't find the configuration you require contact your congatec Sales representative for further assistance.
                  conga-TC675/i7-13800HE (P/N 045300)

                  COM Express Type 6 Compact module based on Intel® Core™ i7-13800HE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)

                  conga-TC675/i7-1370PE (P/N 045301)

                  COM Express Type 6 Compact module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)

                  conga-TC675/i7-1365UE (P/N 045302)

                  COM Express Type 6 Compact module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)

                  conga-TC675/i5-13600HE (P/N 045303)

                  COM Express Type 6 Compact module based on Intel® Core™ i5-13600HE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz Turbo | 18MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)

                  conga-TC675/i5-1340PE (P/N 045304)

                  COM Express Type 6 Compact module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)

                  conga-TC675/i5-1335UE (P/N 045305)

                  COM Express Type 6 Compact module based on Intel® Core™ i5-1335UE processor with 2 P-cores 1.3GHz up to 4.5GHz Turbo and 8 E-cores 1.1GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)

                  conga-TC675/i3-13300HE (P/N 045306)

                  COM Express Type 6 Compact module based on Intel® Core™ i3-13300HE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)

                  conga-TC675/i3-1320PE (P/N 045307)

                  COM Express Type 6 Compact module based on Intel® Core™ i3-1320PE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)

                  conga-TC675/i3-1315UE (P/N 045308)

                  COM Express Type 6 Compact module based on Intel® Core™ i3-1315UE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)

                  conga-TC675/U300E (P/N 045309)

                  COM Express Type 6 Compact module based on Intel® U300E processor with 1 Pcore 1.1GHz up to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)

                  conga-TC675/i7-13800HRE (P/N 045310)

                  COM Express Type 6 Compact module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X eGraphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series)

                  conga-TC675/i7-1370PRE (P/N 045311)

                  COM Express Type 6 Compact module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

                  conga-TC675/i7-1365URE (P/N 045312)

                  COM Express Type 6 Compact module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

                  conga-TC675/i5-1350PRE (P/N 045314)

                  COM Express Type 6 Compact module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

                  conga-TC675/i5-1345URE (P/N 045315)

                  COM Express Type 6 Compact module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® X e Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

                  conga-TC675/i3-13300HRE (P/N 045316)

                  COM Express Type 6 Compact module based on Intel® Core™ i3-13300HRE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series)

                  conga-TC675/i3-1320PRE (P/N 045317)

                  COM Express Type 6 Compact module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

                  conga-TC675/i3-1315URE (P/N 045318)

                  COM Express Type 6 Compact module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

                  Ecosystem Details

                  Virtualization

                  Hypervisor (P/N 300501)

                  Operating Systems

                  ctrlX OS (P/N 300020 )
                  Ubuntu Pro (P/N N/A)

                  Cooling Solutions

                  conga-TC675/HSP-HP-T (P/N 049755)

                  Standard heatspreader for high performance COM Express module conga-TC675 with integrated heat pipes, 11mm height. All standoffs are M2.5mm threaded.

                  conga-TC675/HSP-HP-B (P/N 049754 )

                  Standard heatspreader for high performance COM Express module conga-TC675 with integrated heat pipes, 11mm height. All standoffs are with 2.7mm bore hole.

                  conga-TC675/CSP-HP-T (P/N 049753)

                  Standard passive cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 24.7mm height. All standoffs are M2.5mm threaded.

                  conga-TC675/CSP-HP-B (P/N 049752)

                  Standard passive cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 24.7mm height. All standoffs are with 2.7mm bore hole.

                  conga-TC675/CSA-HP-T (P/N 049751)

                  Standard active cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are M2.5mm threaded.

                  conga-TC675/CSA-HP-B (P/N 049750)

                  Standard active cooling solution for high performance COM Express module conga-TC675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole.

                  Memory

                  DDR5-SODIMM-5600 (8GB) (P/N 068930)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 8GB RAM, commercial temp 0°C to +60°C

                  DDR5-SODIMM-5600 (16GB) (P/N 068931)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 16GB RAM, commercial temp 0°C to +60°C

                  DDR5-SODIMM-5600 (32GB) (P/N 068932)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 32GB RAM, commercial temp 0°C to +60°C

                  DDR5-SODIMM-5600 (48GB) (P/N 068933)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 48GB RAM, commercial temp 0°C to +60°C

                  DDR5-SODIMM-5600 (8GB) / i-temp (P/N 068935)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 8GB RAM, industrial temp -40°C to +85°C

                  DDR5-SODIMM-5600 (16GB) / i-temp (P/N 068936)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 16GB RAM, industrial temp -40°C to +85°C

                  DDR5-SODIMM-5600 (32GB) / i-temp (P/N 068937)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 32GB RAM, industrial temp -40°C to +85°C

                  DDR5-SODIMM-5600 (48GB) / i-temp (P/N 068938)

                  DDR5 SODIMM memory module with up to 5600 MT/s and 48GB RAM, industrial temp -40°C to +85°C

                  Carrierboards

                  conga-TEVAL2 (P/N 065810)

                  Evaluation carrier board for COM Express Type6 Rev. 3.0 modules.

                  conga-TEVAL3/COMe3.1 (P/N 065820)

                  congatec COM Express Type 6 evaluation carrier compliant to COM Express 3.1 specification. Industrial temperature range. From -40°C to 85°C

                  conga-TEVAL3/COMe 3.0 (P/N 065821)

                  congatec COM Express Type 6 evaluation carrier compliant to COM Express 3.0 specification. Industrial temperature range -40°C to 85°C.

                  Module services

                  Design-In Training (P/N 27000001)

                  Design-Training to develop carrier boards for Computer on Modules

                  Conformal Coating COM Express Basic and Compact (P/N )

                  HumiSeal® 1A33 coating for COM Express Basic and Compact modules; MIL-I-46058C qualified, IPC-CC-830 and
                  RoHS Directive 2002/95/EC compliant and recognized under UL File Number E105698.

                  Ext. temperature screening (-40°C to +85°C) (P/N )

                  congatec Wide Temperature Range Screening
                  Standard screening profile with 12h temperature screening and cold soak test
                  Including functional test and several boot-ups (before & after screening)

                  Ext. temperature screening (-25°C to +80°C) (P/N )

                  congatec Wide Temperature Range Screening
                  Standard screening profile with 12h temperature screening and cold soak test
                  Including functional test and several boot-ups (before & after screening)

                  Accessories

                  More about conga-TEVAL/COMe 3.0

                  conga-TEVAL/COMe 3.0

                  Evaluation Carrier Board for COM Express® Type 6 Modules Rev. 3.0
