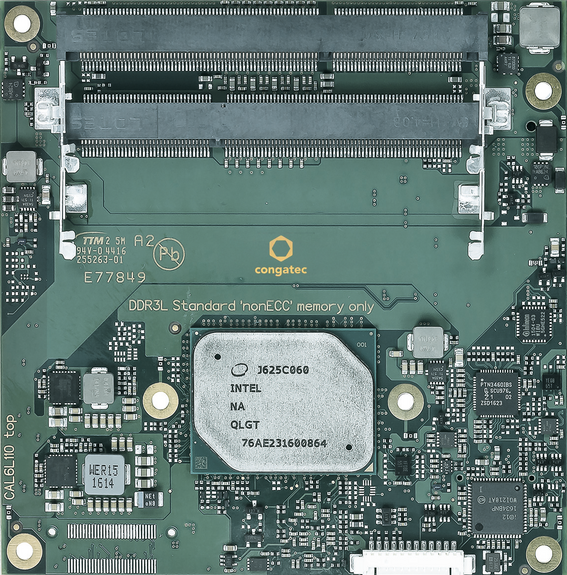

conga-cAL6 Preview image
  • conga-cAL6 Image 1

Your item has been added to the inquiry

conga-cAL6 Image

conga-cAL6

COM Express® compact Type 6 with Intel Atom® E3900

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Value adding ecosystem offerings


        Carrierboards

        Cooling Solutions

        Request quote + Add more articles

        conga-cAL6

        formerly JUMPtec COMe-cAL6
        COM Express® compact Type 6 with Intel Atom® E3900

        Learn all about COMs - download the guide
        • Intel Atom® E3900
        • Low-power - performance/watt optimized form factor solution
        • Up to 8 GByte DDR3L 1600/1866 Memory (2x SODIMM socket)
        • 4x USB 3.0/2.0, 4x USB 2.0, 2x SATA, eMMC Flash
        • Industrial grade temperature
        Congatec Logo
        Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

        Value adding ecosystem offerings

        Carrierboards

        Cooling Solutions

        Specification

        Formfactor
        COM Express Compact
        CPU
        Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W)
        Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W)
        Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W)
        Intel® Celeron® N3350 (2 x 1.1 GHz, 2 MB L2 cache, 6W)
        Intel® Pentium® N4200 (4 x 1.1 GHz, 2 MB L2 cache, 6W)
        DRAM
        2x SODIMM for DDR3L-1866 (non ECC) up to 8 GByte
        Ethernet
        10/100/1000 MBit Ethernet
        I/O Interfaces
        3 x PCIe x1
        2 x USB 3.0 (incl. USB 2.0)
        4 x USB 2.0
        2 x serial interface (RX/TX only)
        SPI
        LPC
        SMB
        Fast I²C
        RTC
        Mass storage
        2xSATA 6Gb/s
        Graphics
        Intel HD Gfx Gen9: 1x LVDS/eDP (3840 x 2160 @ 60 Hz) 2x DP (++) on DDI1/DDI2 up to 4K
        embedded BIOS Features
        AMI Aptio V
        Power Management
        ACPI 5.0
        Operating Systems
        Microsoft® Windows 10 IoT Enterprise
        Microsoft® Windows 10 Enterprise
        Linux
        Wind River VxWorks 7
        Temperature
        0 °C to +60 °C operating, -30 °C to +85 °C non-operating
        industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
        Humidity
        93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
        Video Interfaces
        2 x DP++
        LVDS: Dual Channel up to 48-bit or eDP on request
        DDI
        Features
        Staged Watchdog
        Size
        95 x 95 mm (3,74" x 3,74")

        Documents

        All documents found on this page are updated without notification. Always check this page for the latest version.

        Data Sheet

        conga-cAL6.pdf
        13.05.2026

        Manual

        User's Guide for conga-cAL6
        06.05.2026

        Whitepaper

        The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

        Product Variants

        Product Filter:

          Add Filter:

           -
           -
           -
           -
           -
           -
            There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
            If you don't find the configuration you require contact your congatec Sales representative for further assistance.
            conga-cAL6/N3350E (P/N 36023-0000-11-2)

            COM Express® Compact Type 6 module with Intel Celeron N3350E processor, temperature range 0°C to 60°C.

            conga-cAL6/N4200E (P/N 36023-0000-11-4)

            COM Express® Compact Type 6 module with Intel Pentium N4200E processor, temperature range 0°C to 60°C.

            conga-cAL6/E3930 (P/N 36024-0000-13-5)

            COM Express® Compact Type 6 module with Intel Atom® E3930 processor, temperature range - 40°C to 85°C.

            conga-cAL6/E3940 (P/N 36024-0000-16-5)

            COM Express® Compact Type 6 module with Intel Atom® E3940 processor, temperature range - 40°C to 85°C.

            conga-cAL6/E3950 (P/N 36024-0000-16-7)

            COM Express® Compact Type 6 module with Intel Celeron E3950 processor, temperature range - 40°C to 85°C.

            conga-cAL6/E3950 (P/N 36024-0032-16-7)

            COM Express® Compact Type 6 module with Intel Celeron E3950 processor, temperature range - 40°C to 85°C.

            Ecosystem Details

            Carrierboards

            COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

            COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

            Cooling Solutions

            COME ACTIVE UNI COOLER (W/O HSP) (P/N 36099-0000-99-0)

            COM Express® Universal Active Cooler for Heatspreader Mounting (87x78x14.3 mm) (for CPU’s <20 W)

            COME PASSIVE UNI COOLER (W/O HSP) (P/N 36099-0000-99-1)

            COM Express® Universal Passive Cooler for Heatspreader Mounting (87x78x14.3 mm)

            COME PASSIVE UNI COOLER2 SLIM (W/O HSP) (P/N 36099-0000-99-3)

            COM Express® Universal Passive Cooler low profile for Heatspreader Mounting (95x95x10 mm) 90° fin direction mounting option

            HSP COMe-cAL6 (E2) THREAD (P/N 36024-0000-99-0)

            Heatspreader for COMe-cAL6 commercial and E2, threaded mounting holes

            HSP COMe-cAL6 (E2) THROUGH (P/N 36024-0000-99-1)

            Heatspreader for COMe-cAL6 commercial and E2, through holes
