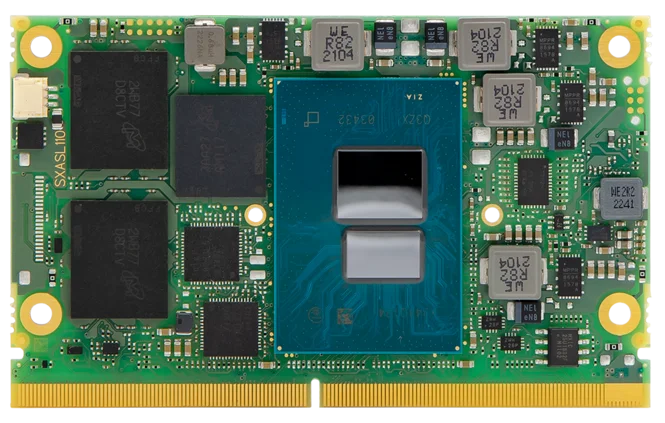

conga-sXAS Vorschaubild

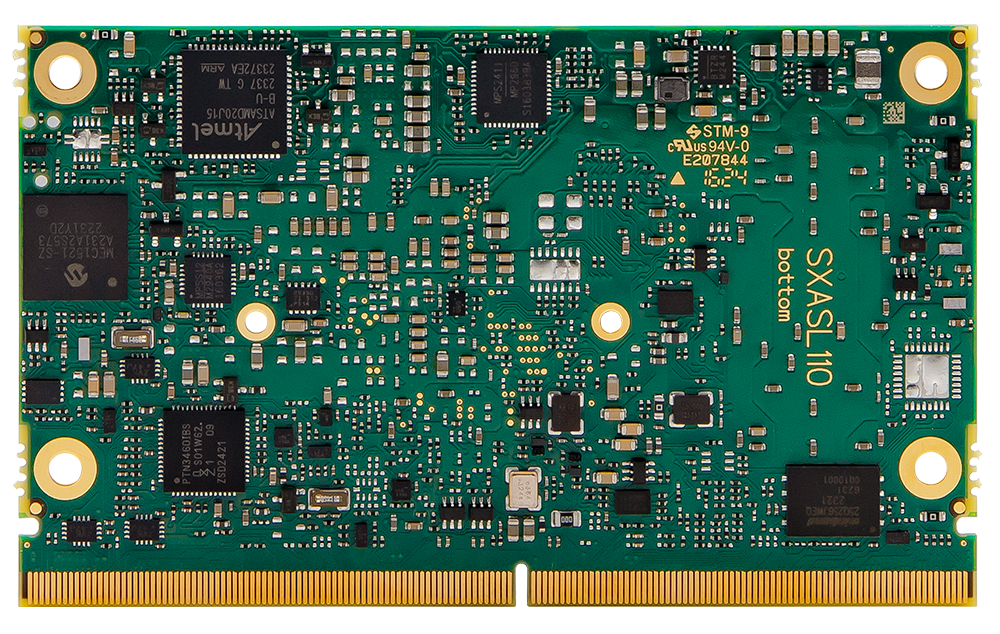

  • conga-sXAS Bild 1

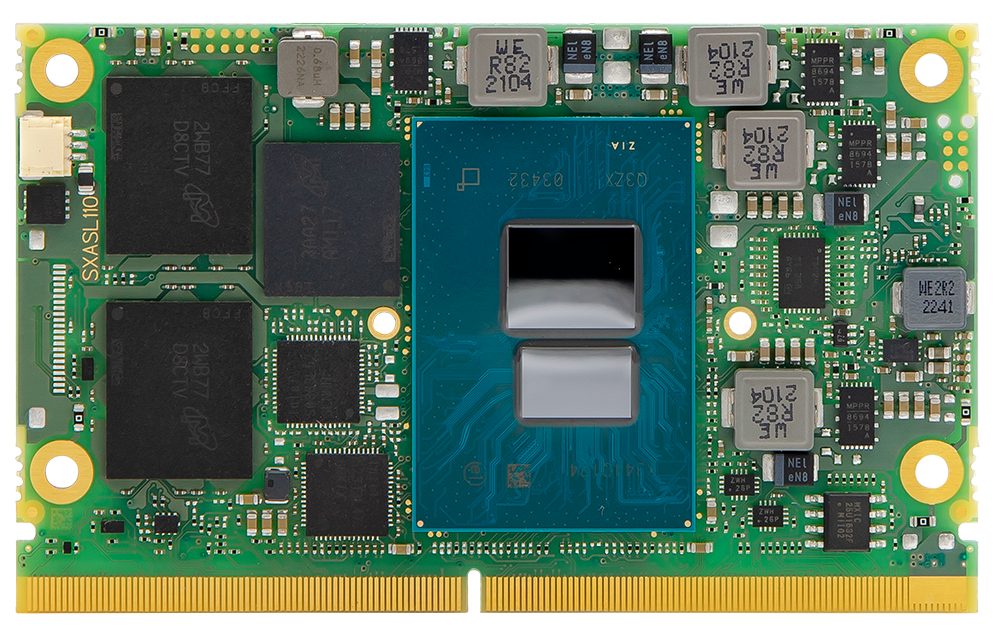

  • conga-sXAS Bild 2

Zur Anfrage hinzugefügt

conga-sXAS Bild

conga-sXAS

SMARC 2.1 module based on Intel Atom® x7000E, x7000RE Series

Ausgewählte Modulvariante

    Ausgewählte Ecosystem Parts

    Carrierboards

      Cooling Solutions

        Zusätzliche Ecosystem Parts


        Carrierboards

        Cooling Solutions

        conga-sXAS

        SMARC 2.1 module based on Intel Atom® x7000E, x7000RE Series



        Learn all about COMs - download the guide

        • Up to 16 GByte LPDDR5 memory down with inband ECC support
        • Dual LVDS, HDMI, DP++
        • 1x USB 3.2, 6x USB 2.0, eMMC onboard
        • Industrial grade temperature
        Congatec Logo
        Wollen Sie noch weitere Produkte aus unserem Ecosystem (zB. Carrierboards oder Arbeitsspeicher) zu Ihrer Anfrage hinzufügen?

        Zusätzliche Ecosystem Parts

        Carrierboards

        Cooling Solutions

        Spezifikation

        Formfactor
        SMARC
        CPU
        Intel Atom® x7213RE (2 x 1.0 GHz, 6 MB cache, 6W)
        Intel Atom® x7211RE (2 x 1.0 GHz, 6 MB cache, 6W)
        Intel Atom® x7433RE (4 x 1.5 GHz, 6MB cache, 9W)
        Intel Atom® x7835RE (8 x 1.3 GHz, 6MB cache, 12W)
        DRAM
        Up to 16 GByte LPDDR5 memory down
        with inband ECC support
        Ethernet
        Up to 2.5GbE
        I/O Interfaces
        up to 4x PCIe x1
        1 x USB 3.2
        6 x USB 2.0
        4x UART ( 2x RX/TX only)
        HD Audio
        I²C
        2 x SPI
        14 x GPIO
        Mass storage
        1x SATA 6Gb/s
        Graphics
        CONTROLLER Gen 12 IGFX
        embedded BIOS Features
        AMI UEFI
        Security
        Trusted Platform Module (TPM 2.0)
        Power Management
        Power Supply:5V only! No Widerange
        Operating Systems
        Microsoft® Windows 10 IoT Enterprise
        Microsoft® Windows 11
        Linux
        Temperature
        Operation -40°C to 85°C | Storage -40°C to 85°C
        Humidity
        93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
        Video Interfaces
        1x HDMI (on request DP++)
        DP++
        1 x Dual LVDS (on request eDP)
        Size
        82 x 50 mm (3,23” x 1,97”)

        Dokumente

        Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert. Prüfen Sie diese Seite immer auf die neueste Version.

        Data Sheet

        Whitepaper

        The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

        Produktvarianten

        Produktfilter:

          Filter hinzufügen:

          Es gibt eine Vielzahl an möglichen Produktkonfigurationen und Optionen.
          Sollte Ihre gewünschte Konfiguration in unserem Filter nicht erscheinen, kontaktieren Sie bitte unseren Vertrieb für weiterführende Hilfe.
          conga-sXAS E2 x7835RE 8G/32G (P/N 51018-0832-R2-8)

          SMARC with Intel Atom®x67835RE, 8 core, 1.3GHz, 8GB LPDDR5 memory down, 32GB eMMC TLC, industrial temperature

          conga-sXAS E2 x7433RE 4G/32G (P/N 51018-0432-R2-4)

          SMARC with Intel Atom® x7433RE, 4 core, 1.5GHz, 4GB LPDDR5 memory down, 32GB eMMC TLC, industrial temperature

          conga-sXAS E2 x7213RE 4G/32G (P/N 51018-0432-R2-2)

          SMARC with Intel Atom® x7213RE, 2 core, 2.0GHz, 4GB LPDDR5 memory down, 32GB eMMC TLC, industrial temperature

          conga-sXAS E2 x7211RE 4G/32G (P/N 51018-0432-R1-2)

          SMARC with Intel Atom® x7211RE, 2 core, 1.0GHz, 4GB LPDDR5 memory down, 32GB eMMC TLC, industrial temperature

          Ecosystem Details

          Carrierboards

          SMARC Evaluation Carrier 2.1 (P/N 51301-0000-00-0)

          SMARC Evaluation Carrier for SMARC modules according to the SMARC 2.1 standard (without SMARC module)

          Cooling Solutions

          HSP SMARC-sXAS (P/N 51018-0000-99-1)

          Heatspreader for SMARC-sXAS
