      conga-aCOM/cRLP

      Application-Ready COM-HPC Client Size A high performance module based on 13th Gen Intel® Core™ processor

      Learn all about COMs - download the guide

      • Based on conga-HPC/cRLP-i5-1340PE

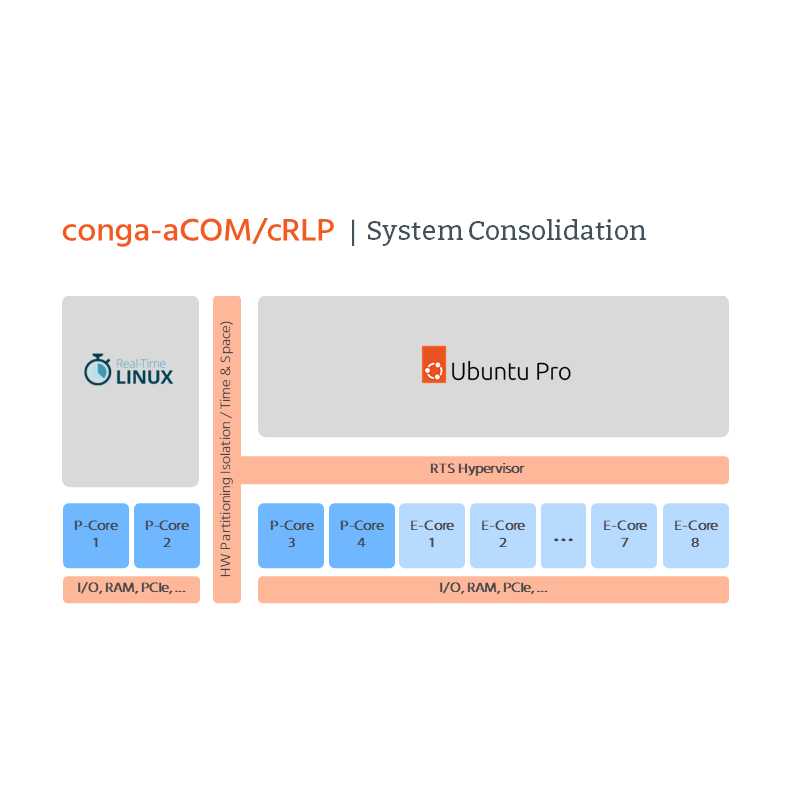

      • High-Performance configuration with 2 pre-configured virtual machines
      • Real-Time Linux OS on 2 Cores
      • Ubuntu Pro running on 10 Cores
      • Incl. active cooling solution with heatpipes
      • Datasheet
      Congatec Logo
      Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

      Value adding ecosystem offerings

      Carrierboards

      Specification

      Formfactor
      A-COM
      CPU
      Intel® Core™ i5-1340PE – 4 P-cores 1.8GHz up to 4.5GHz, 8 E-cores 1.3GHz up to 3.3GHz, 12MB cache, 28W
      DRAM
      16 GB DDR5 4800 MT/s DRAM
      Ethernet
      2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
      I/O Interfaces
      8 x PCIe Gen5 (only available on variants based on RPL-P H series)
      2 x4 PCIe Gen4
      up to 8 PCIe Gen3
      2 x USB4
      2 x USB 3.2 Gen2x1
      8 x USB 2.0
      up to 2x SATA
      2 x UART
      2 x MIPI-CSI
      12 x GPIOs
      eSPI
      SM-Bus
      I²C bus
      GSPI
      Mass storage
      128 GB NVMe SSD connected via PCIe (soldered)
      Graphics
      Intel® Iris® Xe Graphics architecture | Supports up to 4 independent displays
      congatec Board Controller
      Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
      embedded BIOS Features
      AMI Aptio UEFI
      32 MByte serial SPI firmware flash
      OEM Logo
      OEM CMOS Defaults
      LCD Control
      Display Auto Detection
      Backlight Control
      Flash Update
      Security
      Trusted Platform Module (TPM 2.0)
      Power Management
      Modern standby
      Preinstalled OS
      Ubuntu Pro
      Ubuntu 22.04 LTS, Canonical "Ubuntu Pro" subscription including 10 years security coverage
      Real-Time Linux
      RTS Real-Time Linux reference installation with Kernel 6.1 (Realtime-Preempt, longterm)
      Hypervisor
      conga-zones Hypervisor, pre-configured
      Temperature
      0°C to 60°C
      Humidity
      10% to 90% r. H. non cond.
      Video Interfaces
      3x DDI | eDP
      Size
      95 x 120 mm

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.

      Data Sheet
      Data Sheet for conga-aCOM/cRLP 20.10.2026
      Whitepaper
      The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

      Software

      EFI
      cgutlcmd_efi_1.7.3.0.zip 08.12.2025 / 516.52 KB
      congatec System Utility Rev. 1.7.3.0. for EFI shell. Use for BIOS update or customization and panel configuration.
      Linux
      CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
      CGOS API programmers manual
      cgoslx-x64-1.03.032.tar.xz 09.05.2022 / 52.03 KB
      CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
      cgoslx-x64-1.03.032_vmalloc.tar.xz 09.05.2022 / 52.74 KB
      CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
      CgosPy_1_3.zip 23.07.2024 / 655.40 KB
      CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
      CGOS_DIRECT_Lx_R3.2.0.zip 29.07.2026 / 206.49 KB
      CGOS direct driver for Linux.
      cgutillx.tar 04.07.2023 / 3.93 MB
      congatec System Utility Rev. 1.6.2
      Use for BIOS update or customization and panel configuration. Linux source version.
      Important note: Only compatible with cgos 1.03.032 and older!
      cgutlcmd_linux_1.7.3.0.zip 08.12.2025 / 322.62 KB
      congatec System Utility Rev. 1.7.3.0. for Linux. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct version minimum 3.1.0!
      cgutlgui-qt-1.6.3.zip 28.05.2025 / 54.18 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
      Important note: Only compatible with cgos 1.03.032 and older!
      cgutlgui_qt_1.7.3.1.zip 20.05.2026 / 57.44 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.3.1. supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality. Important note: Only compatible with cgos direct 3.1.0 and newer!
      Windows 10
      30.100.2417.30-ADL.zip 07.10.2026 / 2.61 MB
      Intel Serial IO Drivers 30.100.2417.30
      CgMlfTools_2019_10_24.zip 25.03.2024 / 16.68 MB
      The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
      CgMlfViewer_v100_bin.zip 25.10.2019 / 7.99 MB
      The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
      Cgos-x64-Windows10.zip 05.09.2021 / 225.62 KB
      CGOS legacy driver 1.03.021 for 64bit Windows 10 only.
      CGOSAPIm14.pdf 04.04.2017 / 1.07 MB
      CGOS API programmers manual
      CgosClr.zip 22.02.2016 / 40.98 KB
      CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
      CgosPy_1_3.zip 23.07.2024 / 655.40 KB
      CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
      CGOS_direct_Win10_Win11_3.2.0.zip 29.07.2026 / 16.54 MB
      CGOS direct driver for Windows 10 and Windows 11.
      cgutlcmd_win_1.7.3.0.zip 08.12.2025 / 16.33 MB
      congatec System Utility Rev. 1.7.3.0. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct version minimum 3.1.0!
      cgutlgui-qt-1.6.3.zip 28.05.2025 / 54.18 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
      Important note: Only compatible with cgos 1.03.032 and older!
      cgutlgui_qt_1.7.3.1.zip 20.05.2026 / 57.44 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.3.1. supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality. Important note: Only compatible with cgos direct 3.1.0 and newer!
      Chipset-10.1.19198.8339-Public-MUP.zip 24.03.2023 / 4.45 MB
      Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
      gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip 29.02.2024 / 56.02 KB
      Intel GNA Scoring Accelerator 03.00.00.1457
      HIDEventFilterDriver-2.2.2.12.zip 08.01.2026 / 115.50 KB
      Intel(R) HID Event Filter Driver Version 2.2.2.12
      Intel_CSME_SW_2321.4.31.0_Consumer.zip 29.02.2024 / 1.08 GB
      Intel Management Engine Consumer driver 2321.4.31.0
      Intel_CSME_SW_2321.4.31.0_Corporate.zip 29.02.2024 / 979.24 MB
      Intel Management Engine driver Corporate 2321.4.31.0
      Intel_DTT_9.0.11000.27915.zip 24.03.2023 / 78.44 MB
      Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
      Intel_SST_ADL_v10.29.00.7919.zip 24.03.2023 / 292.05 MB
      Intel smart sound driver version 10.29.00.7919
      ISH_Kit_5.4.2.4582v3.zip 24.03.2023 / 92.24 MB
      Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
      Release_28.2.zip 29.02.2024 / 776.58 MB
      Intel Ethernet Driver Version 28.2
      RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip 24.03.2023 / 109.22 MB
      Rapid Storage Technology Driver: Version 19.5.0.1037.2
      TBT_DCH_SW_Rev93.zip 28.10.2025 / 247.71 MB
      Thunderbolt Driver Rev93
      Windows 10 IoT
      CgosPy_1_3.zip 23.07.2024 / 655.40 KB
      CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
      cgutlcmd_win_1.7.3.0.zip 08.12.2025 / 16.33 MB
      congatec System Utility Rev. 1.7.3.0. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct version minimum 3.1.0!
      Windows 11
      30.100.2417.30-ADL.zip 07.10.2026 / 2.61 MB
      Intel Serial IO Drivers 30.100.2417.30
      CgMlfTools_2019_10_24.zip 25.03.2024 / 16.68 MB
      The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
      CgMlfViewer_v100_bin.zip 25.10.2019 / 7.99 MB
      The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
      CgosClr.zip 22.02.2016 / 40.98 KB
      CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
      CgosPy_1_3.zip 23.07.2024 / 655.40 KB
      CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
      CGOS_direct_Win10_Win11_3.2.0.zip 29.07.2026 / 16.54 MB
      CGOS direct driver for Windows 10 and Windows 11.
      cgutlcmd_win_1.7.3.0.zip 08.12.2025 / 16.33 MB
      congatec System Utility Rev. 1.7.3.0. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct version minimum 3.1.0!
      cgutlgui-qt-1.6.3.zip 28.05.2025 / 54.18 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
      Important note: Only compatible with cgos 1.03.032 and older!
      cgutlgui_qt_1.7.3.1.zip 20.05.2026 / 57.44 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.3.1. supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality. Important note: Only compatible with cgos direct 3.1.0 and newer!
      Chipset-10.1.19198.8339-Public-MUP.zip 24.03.2023 / 4.45 MB
      Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
      gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip 29.02.2024 / 56.02 KB
      Intel GNA Scoring Accelerator 03.00.00.1457
      HIDEventFilterDriver-2.2.2.12.zip 08.01.2026 / 115.50 KB
      Intel(R) HID Event Filter Driver Version 2.2.2.12
      Intel_CSME_SW_2321.4.31.0_Consumer.zip 29.02.2024 / 1.08 GB
      Intel Management Engine Consumer driver 2321.4.31.0
      Intel_CSME_SW_2321.4.31.0_Corporate.zip 29.02.2024 / 979.24 MB
      Intel Management Engine driver Corporate 2321.4.31.0
      Intel_DTT_9.0.11000.27915.zip 24.03.2023 / 78.44 MB
      Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
      Intel_SST_ADL_v10.29.00.7919.zip 24.03.2023 / 292.05 MB
      Intel smart sound driver version 10.29.00.7919
      ISH_Kit_5.4.2.4582v3.zip 24.03.2023 / 92.24 MB
      Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
      Release_28.2.zip 29.02.2024 / 776.58 MB
      Intel Ethernet Driver Version 28.2
      RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip 24.03.2023 / 109.22 MB
      Rapid Storage Technology Driver: Version 19.5.0.1037.2
      TBT_DCH_SW_Rev93.zip 28.10.2025 / 247.71 MB
      Thunderbolt Driver Rev93
      Windows 11 Iot
      CgMlfTools_2019_10_24.zip 25.03.2024 / 16.68 MB
      The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
      CgMlfViewer_v100_bin.zip 25.10.2019 / 7.99 MB
      The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
      CgosClr.zip 22.02.2016 / 40.98 KB
      CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
      CgosPy_1_3.zip 23.07.2024 / 655.40 KB
      CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
      CGOS_direct_Win10_Win11_3.2.0.zip 29.07.2026 / 16.54 MB
      CGOS direct driver for Windows 10 and Windows 11.
      cgutlcmd_win_1.7.3.0.zip 08.12.2025 / 16.33 MB
      congatec System Utility Rev. 1.7.3.0. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct version minimum 3.1.0!
      cgutlgui-qt-1.6.3.zip 28.05.2025 / 54.18 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.6.3. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
      Important note: Only compatible with cgos 1.03.032 and older!
      cgutlgui_qt_1.7.3.1.zip 20.05.2026 / 57.44 MB
      Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.7.3.1. supports BIOS Capsule and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality. Important note: Only compatible with cgos direct 3.1.0 and newer!
      gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip 29.02.2024 / 56.02 KB
      Intel GNA Scoring Accelerator 03.00.00.1457
      HIDEventFilterDriver-2.2.2.12.zip 08.01.2026 / 115.50 KB
      Intel(R) HID Event Filter Driver Version 2.2.2.12
      Intel_CSME_SW_2321.4.31.0_Consumer.zip 29.02.2024 / 1.08 GB
      Intel Management Engine Consumer driver 2321.4.31.0
      Intel_CSME_SW_2321.4.31.0_Corporate.zip 29.02.2024 / 979.24 MB
      Intel Management Engine driver Corporate 2321.4.31.0
      Intel_DTT_9.0.11000.27915.zip 24.03.2023 / 78.44 MB
      Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
      Intel_SST_ADL_v10.29.00.7919.zip 24.03.2023 / 292.05 MB
      Intel smart sound driver version 10.29.00.7919
      ISH_Kit_5.4.2.4582v3.zip 24.03.2023 / 92.24 MB
      Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
      Release_28.2.zip 29.02.2024 / 776.58 MB
      Intel Ethernet Driver Version 28.2
      RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip 24.03.2023 / 109.22 MB
      Rapid Storage Technology Driver: Version 19.5.0.1037.2
      TBT_DCH_SW_Rev93.zip 28.10.2025 / 247.71 MB
      Thunderbolt Driver Rev93

      Product Variants

      partnumber(s) found

      conga-aCOM/cRLP (P/N 320000)

      aReady.COM including COM-HPC Size A module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 16GB Dual channel DDR5 4800 MT/s | 128 GB NVMe SSD | Active cooling solution​

      Pre-installed Software: RTS Hypervisor (including evaluation license) | Real-Time Linux | Ubuntu Pro Desktop​

      Ecosystem Details

      Carrierboards

      conga-HPC/EVAL-Client (P/N 065600)

      Evaluation Carrier Board for COM-HPC Client type Modules.

      Accessories

      More about conga-HPC/EVAL-Client

      conga-HPC/EVAL-Client

      Evaluation Carrier Board for COM-HPC Client Type Modules

      세부정보
      More about conga-HPC/uATX-Client

      conga-HPC/uATX-Client

      Application Carrier Board for COM-HPC Client Type Modules (Sizes A, B, C)

      세부정보

      What is aReady.COM?

      aReady.COM is congatec’s pre-validated and pre-configured platform that combines modular hardware and software building blocks to accelerate embedded development. It includes Computer-on-Modules, virtualization by Hypervisor, and pre-installed, licensed OS like ctrlX OS or Ubuntu Pro. Whether for edge computing or IIoT, aReady.COM simplifies integration, enhances security, and shortens time to market.


      Learn more
