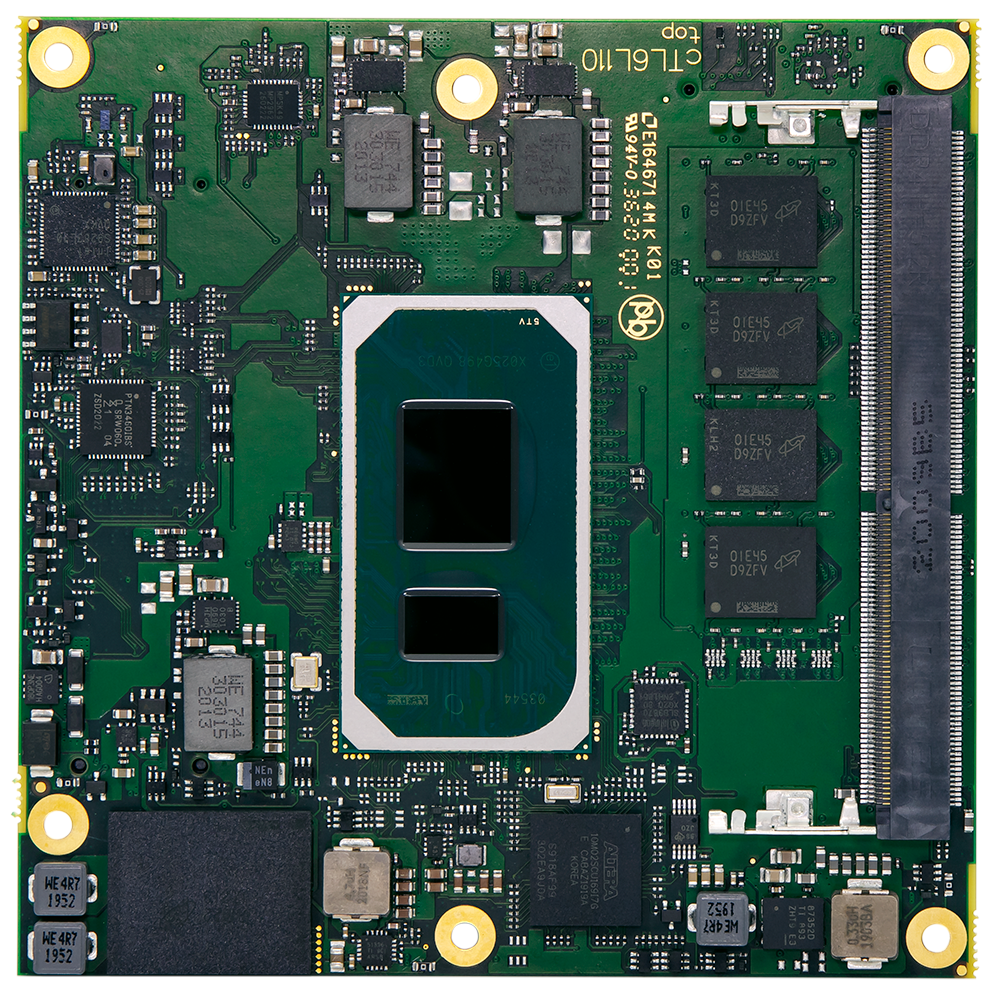

          conga-cTL6

          旧JUMPtec型番：COMe-cTL6
          第11世代 インテル® Core™ / Celeron® プロセッサー 搭載 COM Express® Compact Type 6 モジュール

          COMについて学ぶ - 解説書をダウンロード

          • 第11世代 インテル® Core™ / Celeron® プロセッサー
          • 最大48 GBの DDR4メモリー（16 GB DDR4は直付け）
          • 最高2.5 Gbイーサネット（TSN対応）
          • オプションのオンボード NVMe SSD
          • 産業用グレードバージョン
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Carrierboards

          Cooling Solutions

          Memory

          Specification

          Formfactor
          COM Express Compact
          CPU
          Intel® Core™ i7-1185G7E (4 x 1.8 GHz, 12 MB cache, 15W)
          Intel® Core™ i5-1145G7E (4 x 1.5 GHz, 8 MB cache, 15W)
          Intel® Core™ i3-1115G4E (2 x 2.2 GHz, 6 MB cache, 15W)
          Intel® Celeron® 6305E (2 x 1.8 GHz, 4MB cache, 15W)
          Intel® Core™ i7-1185GRE (4 x 1.8 GHz, 12 MB cache, 15W)
          Intel® Core™ i5-1145GRE (4 x 1.5 GHz, 8 MB cache, 15W)
          Intel® Core™ i3-1115GRE (2 x 2.2 GHz, 6 MB cache, 15W)
          DRAM
          1x DDR4 SO-DIMM up to 32 GByte, 2nd channel DDR4 memory down up to 16 GByte
          Ethernet
          Up to 2.5 Gb Ethernet with TSN support (depending on SKU)
          I/O Interfaces
          5x PCIe 3.0 (On request: 6x without Ethernet, up to 8x without Ethernet & SATA)
          1x4 PCIe 4.0 on PEG Lanes #0-3
          4 x USB 3.1 (incl. USB 2.0)
          4 x USB 2.0
          2 x serial interface (RX/TX only)
          SPI
          LPC
          SMB
          Fast I²C
          RTC
          Mass storage
          2xSATA 6Gb/s
          Graphics
          Intel® Iris® Xe Graphics on i7/i5 processors / Intel® UHD Graphics on i3 processors
          embedded BIOS Features
          AMI Aptio V
          Security
          Trusted Platform Module (TPM 2.0)
          Power Management
          ACPI 6.0
          Operating Systems
          Windows®10
          Linux
          VxWorks (project based)
          Temperature
          Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
          Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
          Humidity
          93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
          Video Interfaces
          3 x DP++
          LVDS: Dual Channel 18/24bit
          Features
          Staged Watchdog
          Size
          95 x 95 mm (3,74" x 3,74")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Data Sheet for conga-cTL6
          15.12.2025

          Manual

          User's Guide for conga-cTL6
          29.01.2026

          Whitepaper

          The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

          Product Variants

          Product Filter:

            Add Filter:

             -
             -
             -
             -
             -
             -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-cTL6/i7-1185G7E (P/N 36030-1600-18-7)

              COM Express® Compact Type 6 module with Intel® Core™ i7-1185G7E processor, 2nd Channel 16GB DDR4 memory down, commercial temperature range 0°C to 60°C.

              conga-cTL6/i7-1185G7E (P/N 36030-1610-18-7)

              COM Express® Compact Type 6 module with Intel® Core™ i7-1185G7E processor, 2nd Channel 16GB DDR4 memory down, 1TB Flash, commercial temperature range 0°C to 60°C.

              conga-cTL6/i7-1185G7E (P/N 36030-0000-18-7)

              COM Express® Compact Type 6 module with Intel® Core™ i7-1185G7E processor, commercial temperature range 0°C to 60°C.

              conga-cTL6/i5-1145G7E (P/N 36030-8000-15-5)

              COM Express® Compact Type 6 module with Intel® Core™ i5-1145G7E processor, 2nd Channel 8GB DDR4 memory down, commercial temperature range 0°C to 60°C.

              conga-cTL6/i5-1145G7E (P/N 36030-0000-15-5)

              COM Express® Compact Type 6 module with Intel® Core™ i5-1145G7E processor, commercial temperature range 0°C to 60°C.

              conga-cTL6/i3-1115G4E (P/N 36030-0000-22-3)

              COM Express® Compact Type 6 module with Intel® Core™ i3-1115G4E processor, commercial temperature range 0°C to 60°C.

              conga-cTL6/6305E (P/N 36030-0000-18-2)

              COM Express® Compact Type 6 module with Intel® Celeron® 6305E processor, commercial temperature range 0°C to 60°C.

              conga-cTL6/i7-1185GRE (P/N 36031-1600-18-7)

              COM Express® Compact Type 6 module with Intel® Core™ i7-1185GRE processor, 2nd Channel 16GB DDR4 memory down, industrial temperature range -40°C to +85°C.

              conga-cTL6/i5-1145GRE (P/N 36031-8000-15-5)

              COM Express® Compact Type 6 module with Intel® Core™ i5-1145GRE processor, 8GB DDR4 memory down, industrial temperature range -40°C to +85°C.

              conga-cTL6/i3-1115GRE (P/N 36031-0000-22-3)

              COM Express® Compact Type 6 module with Intel® Core™ i3-1115GRE processor, industrial temperature range -40°C to +85°C.

              Ecosystem Details

              Carrierboards

              COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

              COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

              COMe REF.CARRIER–I T6 TMI (P/N 38115-0000-00-x)

              COM Express® Reference Carrier Type 6 for industrial temperature

              Cooling Solutions

              HSP COMe-cTL6 CU-CORE THROUGH (P/N 36030-0000-99-1)

              Heatspreader for COMe-cTL6, Cu-core, through mounting holes

              HSP COMe-cTL6 CU-CORE THREADED (P/N 36030-0000-99-0)

              Heatspreader for COMe-cTL6, Cu-core, threaded mounting holes

              COME ACTIVE UNI COOLER2 (W/O HSP) (P/N 36099-0000-99-4)

              COM Express® Universal Active Cooler for Heatspreader Mounting (95 x 95 x 14.3) - 90° turnable

              COME PASSIVE UNI COOLER2 (W/O HSP) (P/N 36099-0000-99-5)

              COM Express® Universal Passive Cooler for Heatspreader Mounting (95 x 95 x 14.3) - 90° turnable

              Memory

              conga-cTL6/DDR4-3200 (32GB) (P/N 97020-3232-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 32GB RAM, commercial temp 0°C to +60°C

              conga-cTL6/DDR4-3200 (16GB) (P/N 97020-1632-CTL6)

              DDR4 SODIMM memory module with up to 2666 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-cTL6/DDR4-3200 (8GB) (P/N 97020-0832-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-cTL6/DDR4-3200 (4GB) (P/N 97020-0432-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, commercial temp 0°C to +60°C

              conga-cTL6/DDR4-3200 (32GB) i-temp (P/N 97021-3232-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 32GB RAM, industrial temp -40°C to +85°C

              conga-cTL6/DDR4-3200 (16GB) i-temp (P/N 97021-1632-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-cTL6/DDR4-3200 (8GB) i-temp (P/N 97021-0832-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, industrial temp -40°C to +85°C

              conga-cTL6/DDR4-3200 (4GB) i-temp (P/N 97021-0432-CTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, industrial temp -40°C to +85°C
