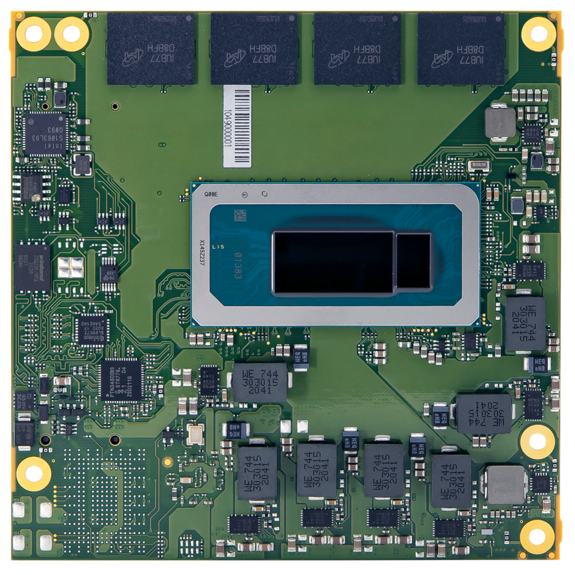

conga-cRP6 Preview image

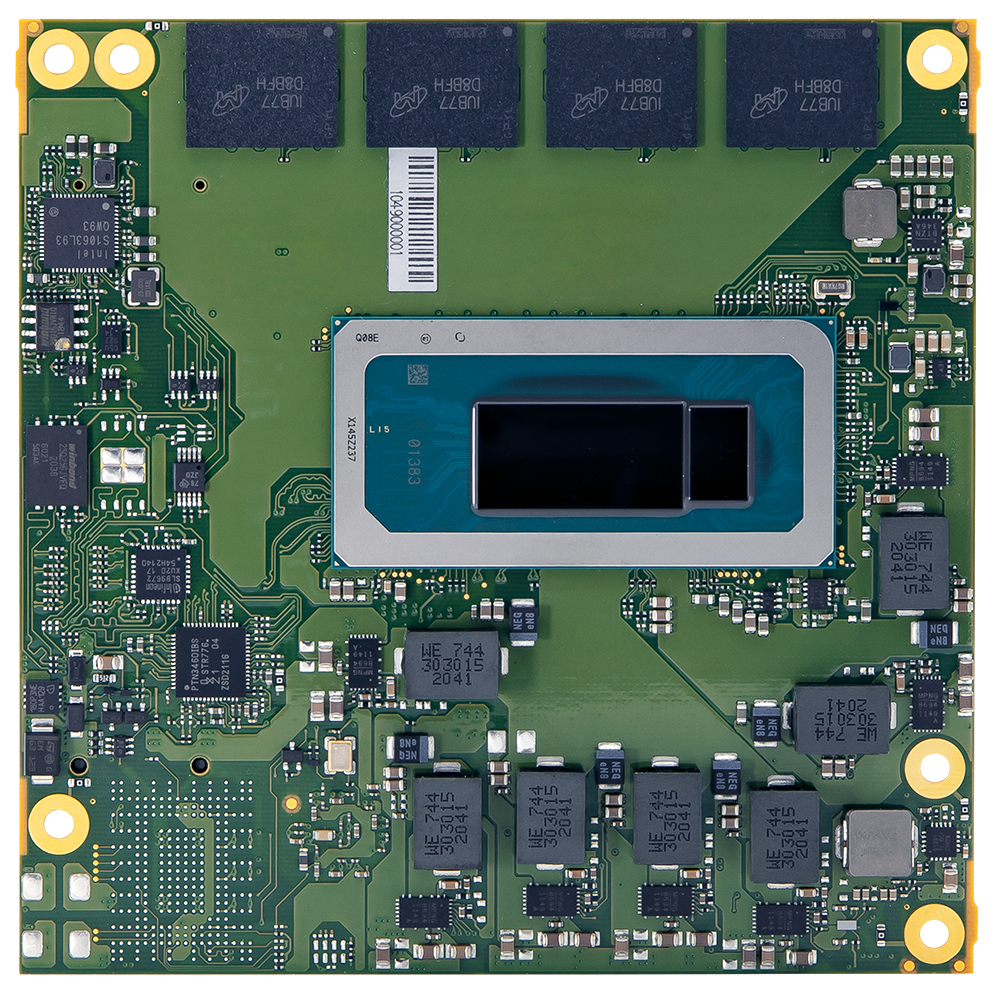

  • conga-cRP6 Image 1

Your item has been added to the inquiry

conga-cRP6 Image

conga-cRP6

COM Express® Compact Type 6 with 13th Generation Intel® Core™ Processors

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Value adding ecosystem offerings


        Carrierboards

        Cooling Solutions

        conga-cRP6

        formerly JUMPtec COMe-cRP6

        COM Express® Compact Type 6 with 13th Generation Intel® Core™ Processors

        Learn all about COMs - download the guide

        • Up to 64 GByte LPDDR5 memory down
        • Up to 2.5 Gb Ethernet with TSN support
        • Optional NVMe SSD onboard
        • Industrial grade versions
        Congatec Logo
        Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

        Value adding ecosystem offerings

        Carrierboards

        Cooling Solutions

        Specification

        Formfactor
        COM Express Compact
        CPU
        Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
        Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
        Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
        Intel® Core™ i5-13600HRE (4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)
        Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
        Intel® Core™ i5-1345URE (2 P-cores 1.4GHz up to 4.6GHz, 8 E-cores 1.1GHz up to 3.4GHz, 12MB cache, 15W)
        Intel® Core™ i3-13300HRE (4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, 45W)
        Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
        Intel® Core™ i3-1315URE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
        DRAM
        Dual-Channel LPDDR5 memory down up to 64 GByte
        Ethernet
        Up to 2.5Gb Ethernet with TSN support
        I/O Interfaces
        5x PCIe 3.0 (On request: 6x without Ethernet, up to 8x without Ethernet & SATA)
        2x 4 PCIe 4.0 on PEG Lanes #0-7 1x 8 PCIe 4.0 on PEG Lanes #8-15 (H-series only)
        USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0
        serial interface (RX/TX only)
        SPI
        LPC
        SMB
        Fast I²C
        RTC
        Mass storage
        2xSATA 6Gb/s
        Graphics
        Intel® Iris® Xe Graphics on i7/i5 processors / Intel® UHD Graphics on i3 processors
        embedded BIOS Features
        AMI Aptio V
        Security
        Trusted Platform Module (TPM 2.0)
        Power Management
        ACPI 6.0
        Operating Systems
        Windows®10
        Linux
        VxWorks (project based)
        Temperature
        Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
        Humidity
        93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
        Video Interfaces
        3 x DP++
        LVDS: Dual Channel 18/24bit
        Features
        Staged Watchdog
        Size
        95 x 95 mm (3,74" x 3,74")

        Documents

        All documents found on this page are updated without notification. Always check this page for the latest version.

        Data Sheet

        Whitepaper

        The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

        Product Variants

        Product Filter:

          Add Filter:

          There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
          If you don't find the configuration you require contact your congatec Sales representative for further assistance.
          conga-cRP6/i7-13800HRE (P/N 36037-6400-25-7)

          COM Express® Compact Type 6 module with Intel® Core™ i7-13800HRE processor, 64GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i7-13800HRE (P/N 36037-3200-25-7)

          COM Express® Compact Type 6 module with Intel® Core™ i7-13800HRE processor, 32GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i5-13600HRE (P/N 36037-3200-27-5)

          COM Express® Compact Type 6 module with Intel® Core™ i5-13600HRE processor, 32GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i5-13600HRE (P/N 36037-1600-27-5)

          COM Express® Compact Type 6 module with Intel® Core™ i5-13600HRE processor, 16GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i3-13300HRE (P/N 36037-1600-21-3)

          COM Express® Compact Type 6 module with Intel® Core™ i3-13300HRE processor, 16GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i7-1370PRE (P/N 36037-3200-19-7)

          COM Express® Compact Type 6 module with Intel® Core™ i7-1370PRE processor, 32GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i5-1350PRE (P/N 36037-1600-18-5)

          COM Express® Compact Type 6 module with Intel® Core™ i5-1350PRE processor, 16GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i3-1320PRE (P/N 36037-1600-17-3)

          COM Express® Compact Type 6 module with Intel® Core™ i3-1320PRE processor, 16GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i7-1365URE (P/N 36037-1600-17-7)

          COM Express® Compact Type 6 module with Intel® Core™ i7-1365URE processor, 16GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i5-1345URE (P/N 36037-1600-14-5)

          COM Express® Compact Type 6 module with Intel® Core™ i5-1345URE processor, 16GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          conga-cRP6/i3-1315URE (P/N 36037-8000-12-3)

          COM Express® Compact Type 6 module with Intel® Core™ i3-1315URE processor, 8GB Dual-Channel LPDDR5 memory down, industrial temperature range -40°C to +85°C.

          Ecosystem Details

          Carrierboards

          COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

          COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

          Cooling Solutions

          HSP COME-CAP6 CU-CORE THREADED (P/N 36035-0000-99-0)

          Heatspreader for COMe-cAP6, Cu-core, threaded mounting holes

          HSP COME-CAP6 CU-CORE THROUGH (P/N 36035-0000-99-1)

          Heatspreader for COMe-cAP6, Cu-core, through mounting holes

          COME ACTIVE UNI COOLER2 (W/O HSP) (P/N 36099-0000-99-4)

          COM Express® Universal Active Cooler for Heatspreader Mounting (95 x 95 x 14.3) - 90° turnable

          COME PASSIVE UNI COOLER2 (W/O HSP) (P/N 36099-0000-99-5)

          COM Express® Universal Passive Cooler for Heatspreader Mounting (95 x 95 x 14.3) - 90° turnable
