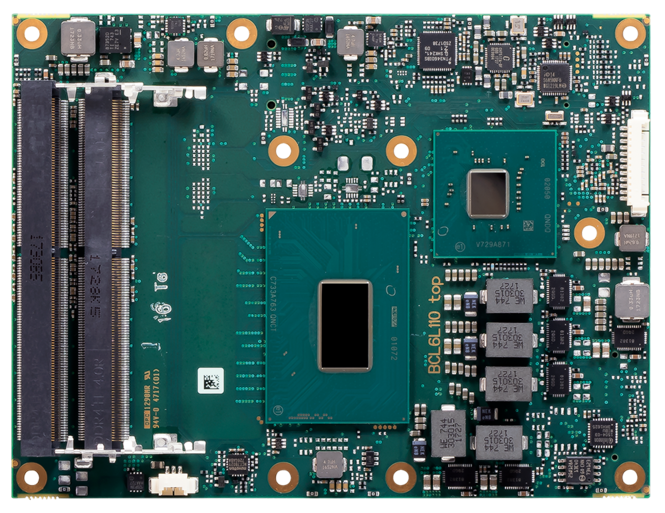

conga-bCL6 Preview image

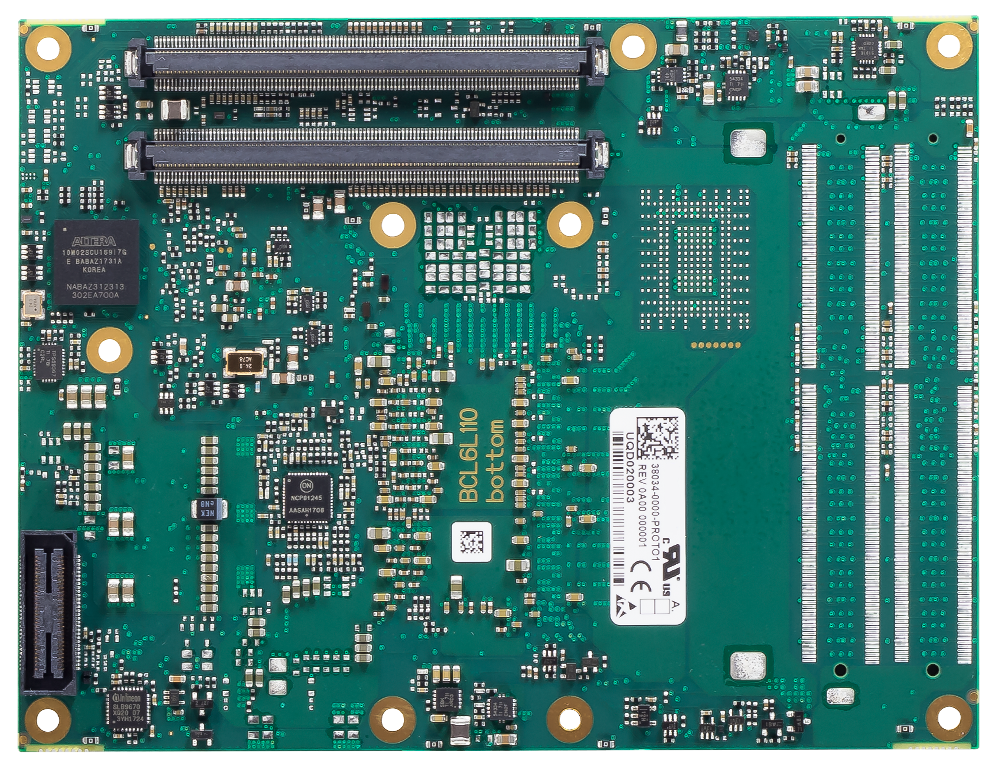

  • conga-bCL6 Image 1

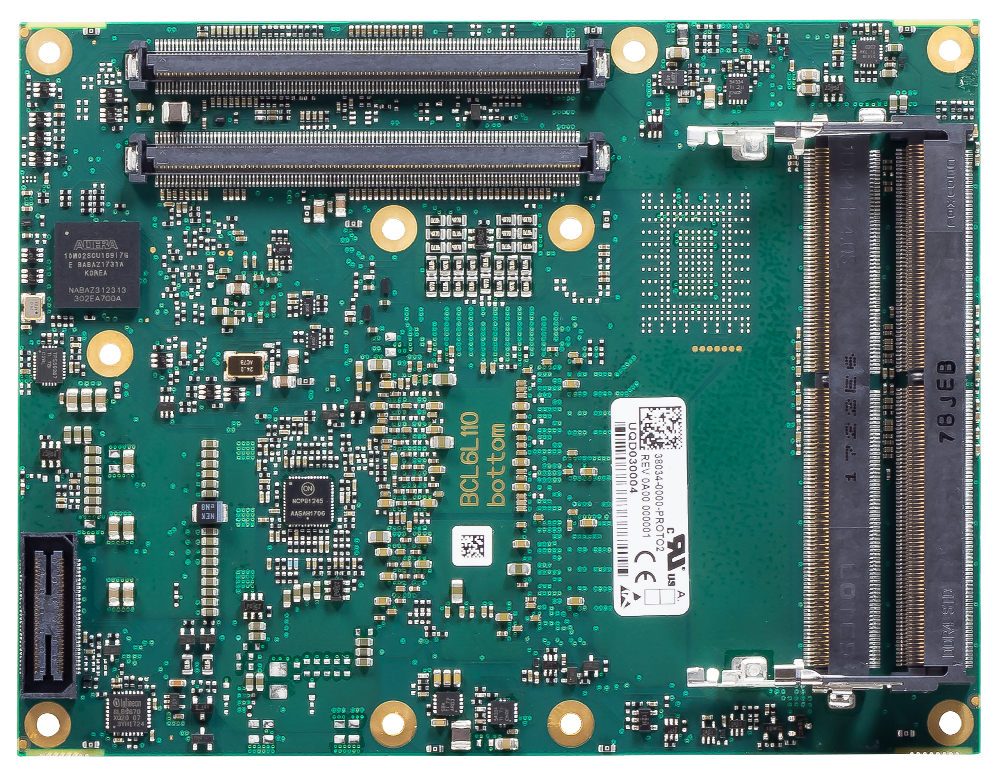

  • conga-bCL6 Image 2

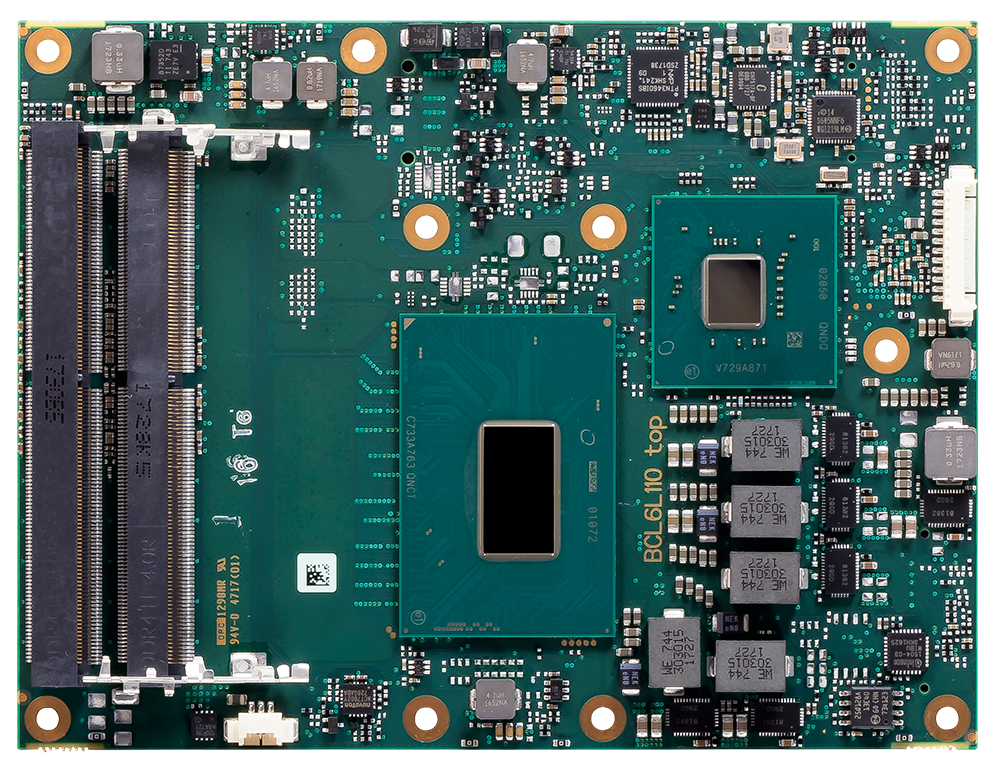

  • conga-bCL6 Image 3

Your item has been added to the inquiry

conga-bCL6 Image

conga-bCL6

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Memory

          Value adding ecosystem offerings


          Carrierboards

          Cooling Solutions

          Memory

          見積りを依頼 + Add more articles

          conga-bCL6

          • Intel® 8th/9th Generation Core™ series / Xeon® E family with CM246/QM370 PCH
          • Up to 128 GByte DDR4 non-ECC/ECC memory
          • Optional NVMe SSD onboard
          • Industrial grade versions
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Carrierboards

          Cooling Solutions

          Memory

          Specification

          Formfactor
          COM Express Basic
          CPU
          Intel® Xeon® E-2176M (6 x 2.7 GHz, 12MB cache, 45W)
          Intel® Xeon® E-2276ME (6 x 2.8 GHz, 12MB cache, 45W)
          Intel® Xeon® E-2254ME (4 x 2.6 GHz, 8MB cache, 45W)
          Intel® Xeon® E-2276ML (6 x 2.0 GHz, 12MB cache, 25W)
          Intel® Xeon® E-2254ML (4 x 1.7 GHz, 8MB cache, 25W)
          Intel® Core™ i7-8850H (6 x 2.6 GHz, 9MB cache, 45W)
          Intel® Core™ i7-9850HE (6 x 2.7 GHz, 9MB cache, 45W)
          Intel® Core™ i7-9850HL (6 x 1.9 GHz, 9MB cache, 25W)
          Intel® Core™ i5-8400H (4 x 2.5 GHz, 8MB cache, 45W)
          Intel® Core™ i3-8100H (4 x 3.0 GHz, 6MB cache, 45W)
          Intel® Core™ i3-9100HL (4 x 1.6 GHz, 6MB cache, 25W)
          Intel® Celeron® G4930E (2 x 2.4 GHz, 2MB cache, 35W)
          Intel® Celeron® G4932E (2 x 1.9 GHz, 2MB cache, 25W)
          DRAM
          Up to 4x DDR4-2666 SO-DIMM with up to 128 GByte (non-ECC/ECC) (3rd/4th socket on request)
          Ethernet
          10/100/1000 MBit Ethernet
          I/O Interfaces
          8x PCIe x1, 1x PEG x16
          4 x USB 3.1 (incl. USB 2.0)
          4 x USB 2.0
          2 x serial interface (RX/TX only)
          SPI
          LPC
          SMB
          Fast I²C
          RTC
          Mass storage
          4x SATA 6Gb/s
          Graphics
          Intel® UHD Graphics P630 for Xeon® processor
          Intel® UHD Graphics 630 for Core™ processors Intel® UHD Graphics 610 for Celeron® processors
          embedded BIOS Features
          AMI Aptio V
          Security
          Trusted Platform Module (TPM 2.0)
          Power Management
          ACPI 6.0
          Operating Systems
          Windows®10
          Linux
          VxWorks (project based)
          Temperature
          Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
          Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
          Humidity
          93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
          Video Interfaces
          3 x DP++
          LVDS: Dual Channel 18/24bit
          VGA (optional)
          Features
          Staged Watchdog
          Size
          95 x 125 mm (3.74" x 4.92")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Data Sheet for conga-bCL6
          15.12.2025

          Whitepaper

          The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

          Product Variants

          Product Filter:

            Add Filter:

             -
             -
             -
             -
             -
             -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-bCL6/E-2176M (P/N 38034-0000-27-6)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2176M processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/i7-8850H (P/N 38034-0000-26-7)

              COM Express® Basic Type 6 module with Intel® CoreTM i7-8850H processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/i5-8400H (P/N 38034-0000-25-5)

              COM Express® Basic Type 6 module with Intel® CoreTM i5-8400H processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/i3-8100H (P/N 38034-0000-30-3)

              COM Express® Basic Type 6 module with Intel® CoreTM i3-8100H processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/E-2276ME (P/N 38034-0000-28-6)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2276ME processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/E-2276ML (P/N 38034-0000-20-6)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2276ML processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/E-2254ME (P/N 38034-0000-26-4)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2254ME processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/E-2254ML (P/N 38034-0000-17-4)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2254ML processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/i7-9850HE (P/N 38034-0000-27-7)

              COM Express® Basic Type 6 module with Intel® CoreTM i7-9850HE processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/i7-9850HL (P/N 38034-0000-19-7)

              COM Express® Basic Type 6 module with Intel® CoreTM i7-9850HL processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/i3-9100HL (P/N 38034-0000-16-3)

              COM Express® Basic Type 6 module with Intel® CoreTM i3-9100HL processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/G4930E (P/N 38034-0000-24-2)

              COM Express® Basic Type 6 module with Intel® Celeron® G4930E processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/G4932E (P/N 38034-0000-19-2)

              COM Express® Basic Type 6 module with Intel® Celeron® G4932E processor, commercial temperature range 0°C - 60°C.

              conga-bCL6/E-2176M (P/N 38035-0000-27-6)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2176M processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/i7-8850H (P/N 38035-0000-26-7)

              COM Express® Basic Type 6 module with Intel® CoreTM i7-8850H processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/i5-8400H (P/N 38035-0000-25-5)

              COM Express® Basic Type 6 module with Intel® CoreTM i5-8400H processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/i3-8100H (P/N 38035-0000-30-3)

              COM Express® Basic Type 6 module with Intel® CoreTM i3-8100H processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/E-2276ME (P/N 38035-0000-28-6)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2276ME processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/E-2276ML (P/N 38035-0000-20-6)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2276ML processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/E-2254ME (P/N 38035-0000-26-4)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2254ME processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/E-2254ML (P/N 38035-0000-17-4)

              COM Express® Basic Type 6 module with Intel® Xeon® E-2254ML processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/i7-9850HE (P/N 38035-0000-27-7)

              COM Express® Basic Type 6 module with Intel® CoreTM i7-9850HE processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/i7-9850HL (P/N 38035-0000-19-7)

              COM Express® Basic Type 6 module with Intel® CoreTM i7-9850HL processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/i3-9100HL (P/N 38035-0000-16-3)

              COM Express® Basic Type 6 module with Intel® CoreTM i3-9100HL processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/G4932E (P/N 38035-0000-19-2)

              COM Express® Basic Type 6 module with Intel® Celeron® G4932E processor, industrial temperature range -40°C to +85°C.

              conga-bCL6/G4930E (P/N 38035-0000-24-2)

              COM Express® Basic Type 6 module with Intel® Celeron® G4930E processor, industrial temperature range -40°C to +85°C.

              Ecosystem Details

              Carrierboards

              COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

              COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

              COMe REF.CARRIER–I T6 TMI (P/N 38115-0000-00-x)

              COM Express® Reference Carrier Type 6 for industrial temperature

              Cooling Solutions

              HSP COMe-bSL6/bKL6/bCL6 CU-CORE THREADED (P/N 38030-0000-99-0)

              Heatspreader for COMe-bSL6/COMe-bKL6/COMe-bCL6, Cu-core, threaded mounting holes

              HSP COMe-bSL6/bKL6/bCL6 CU-CORE THROUGH (P/N 38030-0000-99-1)

              Heatspreader for COMe-bSL6/COMe-bKL6/COMe-bCL6, Cu-core, through mounting holes

              HSK COMe-BASIC ACTIVE (W/O HSP) (P/N 38025-0000-99-0C05)

              Active Cooler for COMe-bxL6/bDV7 to be mounted on HSP

              HSK COMe-BASIC PASSIVE (W/O HSP) (P/N 38025-0000-99-0C06)

              Passive Cooler for COMe-bxL6/bDV7 to be mounted on HSP

              Memory

              conga-bCL6/DDR4-2666 (32GB) (P/N 97017-3200-27-0)

              DDR4 SODIMM memory module with up to 2666 MT/s and 32GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (16GB) (P/N 97017-1600-27-0)

              DDR4 SODIMM memory module with up to 2666 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (8GB) (P/N 97017-8192-27-0)

              DDR4 SODIMM memory module with up to 2666 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (4GB) (P/N 97017-4096-27-0)

              DDR4 SODIMM memory module with up to 2666 MT/s and 4GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (32GB) i-temp (P/N 97017-3200-27-2)

              DDR4 SODIMM memory module with up to 2666 MT/s and 32GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (16GB) i-temp (P/N 97017-1600-27-2)

              DDR4 SODIMM memory module with up to 2666 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (8GB) i-temp (P/N 97017-8192-27-2)

              DDR4 SODIMM memory module with up to 2666 MT/s and 8GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (4GB) i-temp (P/N 97017-4096-27-2)

              DDR4 SODIMM memory module with up to 2666 MT/s and 4GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (32GB) ECC (P/N 97018-3200-27-0)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 32GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (16GB) ECC (P/N 97018-1600-27-0)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (8GB) ECC (P/N 97018-8192-27-0)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (4GB) ECC (P/N 97018-4096-27-0)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 4GB RAM, commercial temp 0°C to +60°C

              conga-bCL6/DDR4-2666 (32GB) ECC i-temp (P/N 97018-3200-27-2)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 32GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (16GB) ECC i-temp (P/N 97018-1600-27-2)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (8GB) ECC i-temp (P/N 97018-8192-27-2)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 8GB RAM, industrial temp -40°C to +85°C

              conga-bCL6/DDR4-2666 (4GB) ECC i-temp (P/N 97018-4096-27-2)

              DDR4 SODIMM ECC memory module with up to 2666 MT/s and 4GB RAM, industrial temp -40°C to +85°C
