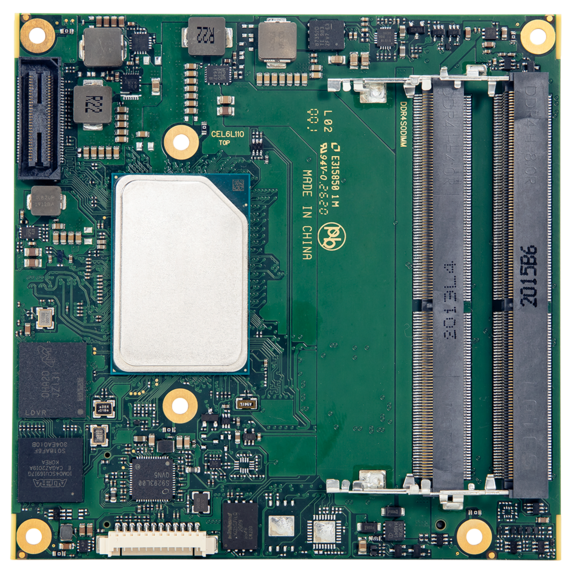

conga-cEL6 Preview image

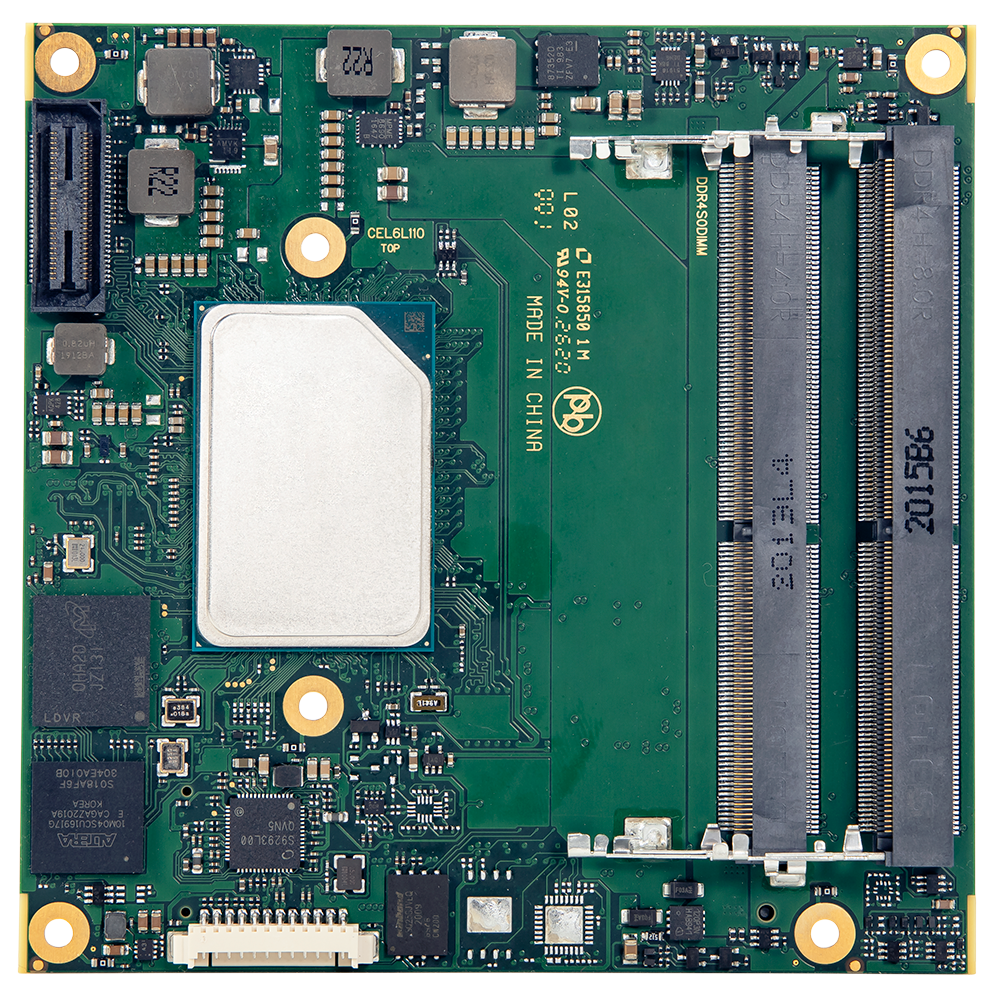

  • conga-cEL6 Image 1

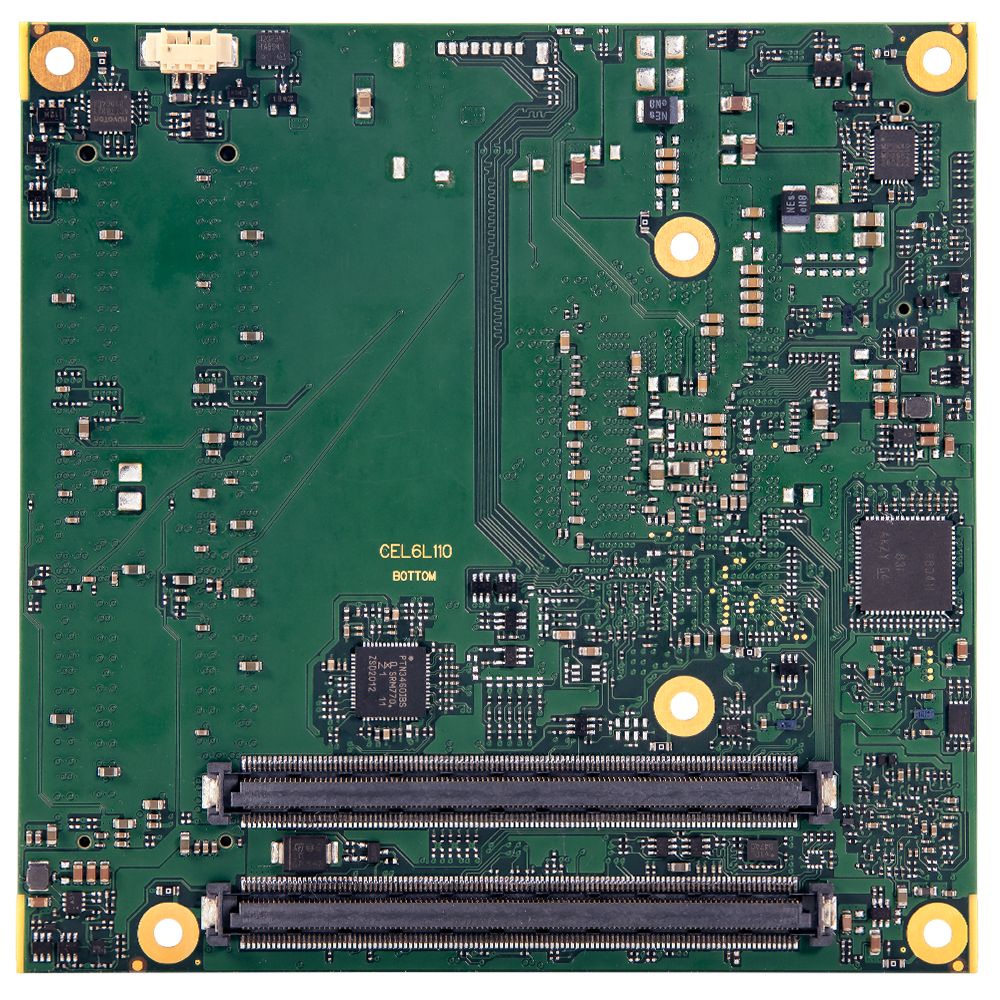

  • conga-cEL6 Image 2

Your item has been added to the inquiry

conga-cEL6 Image

conga-cEL6

COM Express® Compact Type 6（Intel Atom® x6000E、Pentium®、Celeron® シリーズ搭載）

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Memory

          Value adding ecosystem offerings


          Carrierboards

          Cooling Solutions

          Memory

          見積りを依頼 + Add more articles

          conga-cEL6

          旧JUMPtec型番：COMe-cEL6
          Intel Atom® x6000E、Pentium®、Celeron® シリーズ搭載 COM Express® Compact Type 6

          COMについて学ぶ - 解説書をダウンロード

          • Intel Atom® x6000E、Pentium®、Celeron® シリーズ
          • 低消費電力 – ワットあたりのパフォーマンスを最適化したフォームファクター ソリューション
          • 最大32 GBの DDR4-3200メモリー（SODIMMソケット×2、インバンドECC対応）
          • トリプル ディスプレイ対応
          • 6x PCIe 3.0レーン、最大4x USB 3.1/2.0、4x USB 2.0、2x SATA、eMMCフラッシュ
          • TSN対応1GbE（オプションで2.5GbE）
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Carrierboards

          Cooling Solutions

          Memory

          Specification

          Formfactor
          COM Express Compact
          CPU
          Intel® Celeron® N6211 (2 x 1.2 GHz, 1.5 MB Cache, 6.5W)
          Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
          Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
          Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
          Intel® Atom® x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W)
          DRAM
          Up to 32 GByte DDR4-3200 via 2x SODIMM sockets (In-Band ECC)
          Ethernet
          1GBit Ethernet (2.5GBit on request with GPY215)
          I/O Interfaces
          6 x PCIe Gen3
          2 x USB 3.1 (incl. USB 2.0)
          6 x USB 2.0
          2 x serial interface (RX/TX only), optional CAN
          SPI
          LPC
          SMB
          Fast I²C
          RTC
          Mass storage
          2xSATA 6Gb/s
          Graphics
          SOC: Intel® HD Gfx Gen11: 1x LVDS/eDP (3840 x 2160 @ 60 Hz) 2x DP (++) on DDI1/DDI2 up to 4K
          embedded BIOS Features
          AMI Aptio V
          Security
          Trusted Platform Module (TPM 2.0)
          Power Management
          ACPI 6.0
          Operating Systems
          Windows®10
          Linux
          VxWorks (project based)
          Temperature
          0 °C to +60 °C operating, -30 °C to +85 °C non-operating
          industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
          Humidity
          93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
          Video Interfaces
          2 x DP++
          LVDS: Dual Channel up to 48-bit or eDP on request
          Features
          Staged Watchdog
          Size
          95 x 95 mm (3,74" x 3,74")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Data Sheet for conga-cEL6
          15.12.2025

          Manual

          User's Guide for conga-CEL6
          29.01.2026

          Whitepaper

          The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

          Product Variants

          Product Filter:

            Add Filter:

             -
             -
             -
             -
             -
             -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-cEL6/N6211 (P/N 36033-0000-N1-2)

              COM Express® Compact Type 6 module with Intel® Celeron® N6211 processor, commercial temperature range 0°C to 60°C.

              conga-cEL6/J6426 (P/N 36033-0000-J2-4)

              COM Express® Compact Type 6 module with Intel® Pentium® J6426 processor, commercial temperature range 0°C to 60°C.

              conga-cEL6/x6212RE (P/N 36034-0000-R1-2)

              COM Express® Compact Type 6 module with Intel Atom® x6212RE processor, commercial temperature range 0°C to 60°C.

              conga-cEL6/x6414RE (P/N 36034-0000-R1-4)

              COM Express® Compact Type 6 module with Intel Atom® x6414RE processor, industrial temperature range -40°C to +85°C.

              conga-cEL6/x6425RE (P/N 36034-0000-R2-4)

              COM Express® Compact Type 6 module with Intel Atom® x6425RE processor, industrial temperature range -40°C to +85°C.

              Ecosystem Details

              Carrierboards

              COMe Eval Carrier 2 T6 (P/N 38116-0000-00-0)

              COM Express® Eval Carrier 2 Type 6

              Cooling Solutions

              HSP COMe-cEL6 (E2) THREADED (P/N 36034-0000-99-0)

              Heatspreader for COMe-cEL6 commercial and E2, threaded mounting holes

              HSP COMe-cEL6 (E2) THROUGH (P/N 36034-0000-99-1)

              Heatspreader for COMe-cEL6 commercial and E2, through holes

              COME ACTIVE UNI COOLER (W/O HSP) (P/N 36099-0000-99-0)

              COM Express® Universal Active Cooler for Heatspreader Mounting (87x78x14.3 mm) (for CPU’s <20 W)

              COME PASSIVE UNI COOLER (W/O HSP) (P/N 36099-0000-99-1)

              COM Express® Universal Passive Cooler for Heatspreader Mounting (87x78x14.3 mm)

              COME PASSIVE UNI COOLER2 SLIM (W/O HSP) (P/N 36099-0000-99-3)

              COM Express® Universal Passive Cooler low profile for Heatspreader Mounting (95x95x10 mm) 90° fin direction mounting option

              Memory

              conga-cEL6/DDR4-3200 (16GB) (P/N 97020-1632-CEL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-cEL6/DDR4-3200 (8GB) (P/N 97020-0832-CEL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-cEL6/DDR4-3200 (4GB) (P/N 97020-0432-CEL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, commercial temp 0°C to +60°C

              conga-cEL6/DDR4-3200 (16GB) i-temp (P/N 97021-1632-CEL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-cEL6/DDR4-3200 (8GB) i-temp (P/N 97021-0832-CEL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, industrial temp -40°C to +85°C

              conga-cEL6/DDR4-3200 (4GB) i-temp (P/N 97021-0432-CEL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, industrial temp -40°C to +85°C
