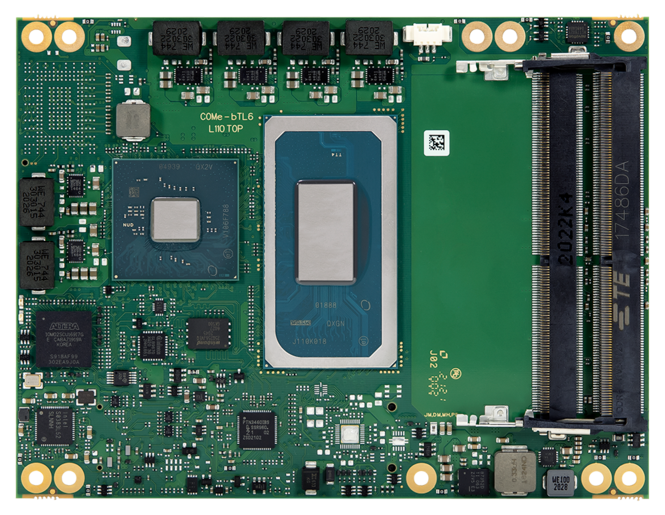

conga-bTL6 Preview image

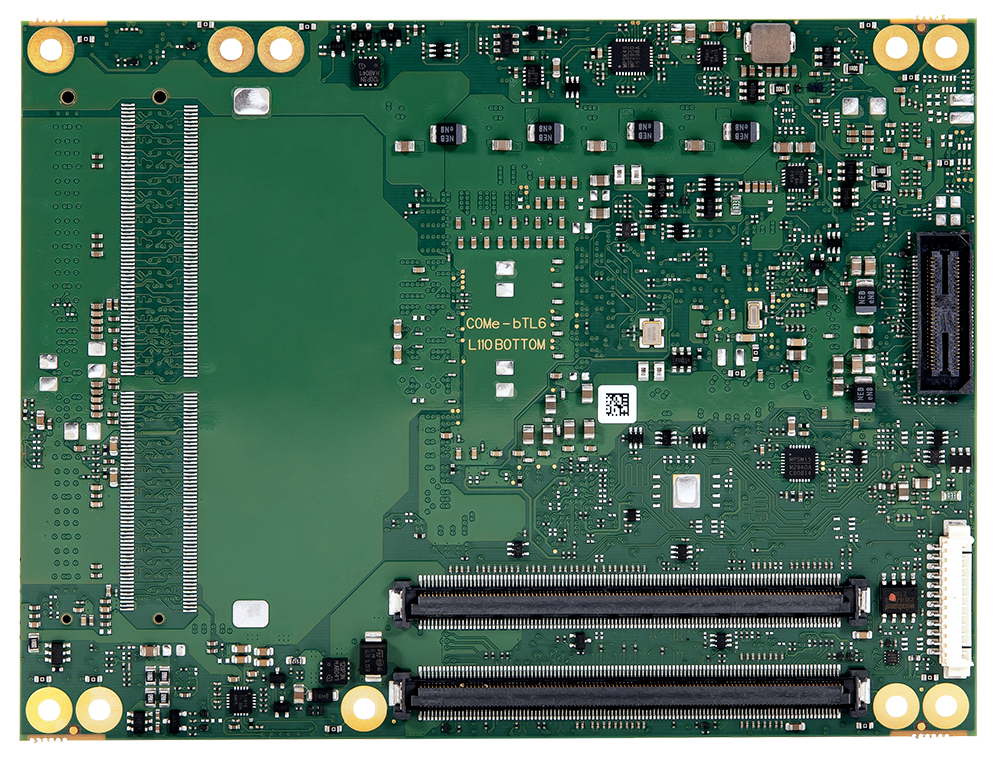

  • conga-bTL6 Image 1

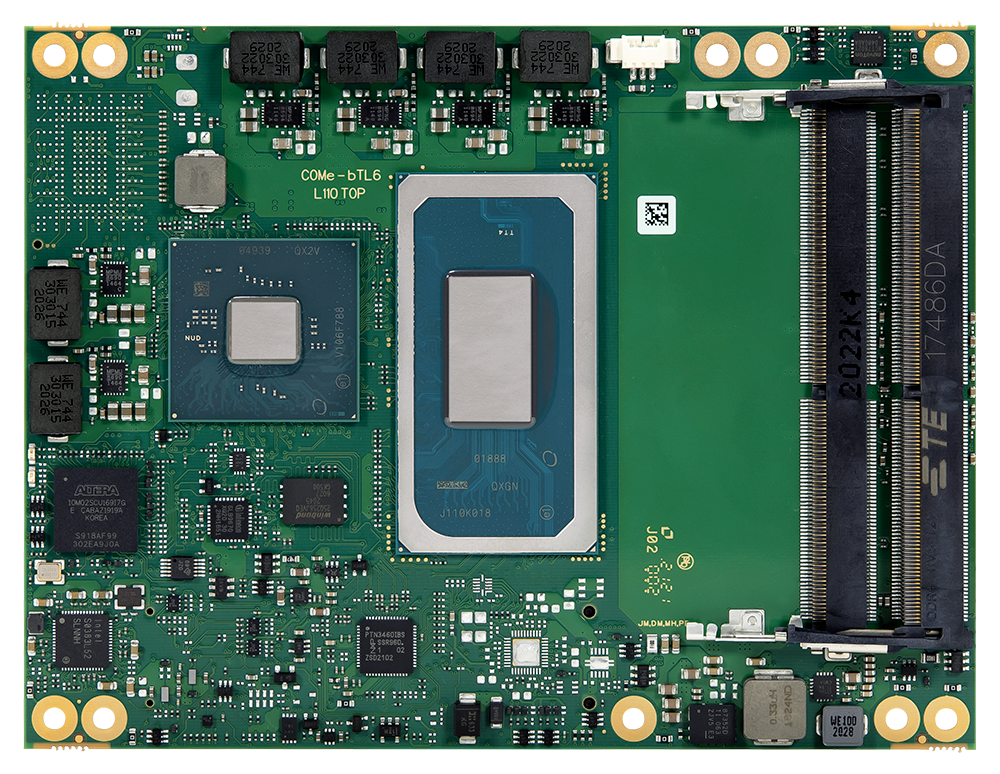

  • conga-bTL6 Image 2

Your item has been added to the inquiry

conga-bTL6 Image

conga-bTL6

COM Express® Basic Type 6（第11世代インテル® Core™ / Xeon® プロセッサー搭載）

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Memory

          Value adding ecosystem offerings


          Carrierboards

          Cooling Solutions

          Memory

          見積りを依頼 + Add more articles

          conga-bTL6

          旧JUMPtec型番：COMe-bTL6
          第11世代 インテル® Core™ / Xeon® プロセッサー 搭載 COM Express® Basic Type 6 モジュール

          COMについて学ぶ - 解説書をダウンロード
          • 第11世代 インテル® Core™ / Xeon® プロセッサー
          • 最大128 GBの DDR4メモリー
          • 最高2.5 Gbイーサネット（TSN対応）
          • オプションのオンボード NVMe SSD
          • 産業用グレードバージョン
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Carrierboards

          Cooling Solutions

          Memory

          Specification

          Formfactor
          COM Express Basic
          CPU
          Intel® Xeon® W-11155MLE (4 x 1.8 GHz, 8 MB cache, 25W)
          Intel® Xeon® W-11555MLE (6 x 1.9 GHz, 12 MB cache, 25W)
          Intel® Xeon® W-11865MLE (8 x 1.5 GHz, 24 MB cache, 25W)
          Intel® Xeon® W-11155MRE (4 x 2.4 GHz, 8 MB cache, 45W)
          Intel® Xeon® W-11555MRE (6 x 2.6 GHz, 12 MB cache, 45W)
          Intel® Xeon® W-11865MRE (8 x 2.6 GHz, 24 MB cache, 45W)
          Intel® Celeron® 6600HE (2 x 2.6 GHz, 8 MB cache, 35W)
          Intel® Core™ i3-11100HE (4 x 2.4 GHz, 8 MB cache, 45W)
          Intel® Core™ i5-11500HE (6 x 2.6 GHz, 12 MB cache, 45W)
          Intel® Core™ i7-11850HE (8 x 2.6 GHz, 24 MB cache, 45W)
          DRAM
          Up to 4x DDR4-3200 SO-DIMM with up to 128 GByte (non-ECC/ECC) (3rd/4th socket on request)
          Ethernet
          Up to 2.5 Gb Ethernet with TSN support (depending on SKU)
          I/O Interfaces
          8 x PCIe x1
          1 x PEG x16
          4 x USB 3.1 (incl. USB 2.0)
          4 x USB 2.0
          2 x serial interface (RX/TX only)
          VGA (option.)
          GSPI
          LPC
          SMB
          Fast I²C
          RTC
          Mass storage
          4x SATA 6Gb/s
          Graphics
          Intel® UHD Graphics
          embedded BIOS Features
          AMI Aptio V
          Security
          Trusted Platform Module (TPM 2.0)
          Power Management
          ACPI 6.0
          Operating Systems
          Windows®10
          Linux
          VxWorks (project based)
          Temperature
          Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
          Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
          Humidity
          93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
          Video Interfaces
          3 x DP++
          LVDS: Dual Channel 18/24bit
          Features
          Staged Watchdog
          Size
          95 x 125 mm (3.74" x 4.92")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Data Sheet for conga-bTL6
          15.12.2025

          Manual

          User's Guide for conga-bTL6
          29.01.2026

          Whitepaper

          The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

          Product Variants

          Product Filter:

            Add Filter:

             -
             -
             -
             -
             -
             -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-bTL6/W-11865MLE (P/N 38038-0000-45-8)

              COM Express® Basic Type 6 module with Intel® Xeon® W-11865MLE processor, commercial temperature range 0°C - 60°C.

              conga-bTL6/W-11555MLE (P/N 38038-0000-44-6)

              COM Express® Basic Type 6 module with Intel® Xeon® W-11555MLE processor, commercial temperature range 0°C - 60°C.

              conga-bTL6/W-11155MLE (P/N 38038-0000-31-4)

              COM Express® Basic Type 6 module with Intel® Xeon® W-11155MLE processor, commercial temperature range 0°C - 60°C.

              conga-bTL6/i7-11850HE (P/N 38038-0000-47-7)

              COM Express® Basic Type 6 module with Intel® Core™ i7-11850HE processor, commercial temperature range 0°C - 60°C.

              conga-bTL6/i5-11500HE (P/N 38038-0000-46-5)

              COM Express® Basic Type 6 module with Intel® Core™ i5-11500HE processor, commercial temperature range 0°C - 60°C.

              conga-bTL6/i3-11100HE (P/N 38038-0000-44-3)

              COM Express® Basic Type 6 module with Intel® Core™ i3-11100HE processor, commercial temperature range 0°C - 60°C. (PCH: QM580E)

              conga-bTL6/i3-11100HE (P/N 38038-0000-44-4)

              COM Express® Basic Type 6 module with Intel® Core™ i3-11100HE processor, commercial temperature range 0°C - 60°C. (PCH: RM590E)

              conga-bTL6/6600HE (P/N 38038-0000-26-2)

              COM Express® Basic Type 6 module with Intel® Celeron® 6600HE processor, commercial temperature range 0°C - 60°C.

              conga-bTL6/W-11865MRE (P/N 38039-0000-47-8)

              COM Express® Basic Type 6 module with Intel® Xeon® W-11865MRE processor, industrial temperature range -40°C - 85°C.

              conga-bTL6/W-11555MRE (P/N 38039-0000-46-6)

              COM Express® Basic Type 6 module with Intel® Xeon® W-11555MRE processor, industrial temperature range -40°C - 85°C.

              conga-bTL6/W-11155MRE (P/N 38039-0000-44-4)

              COM Express® Basic Type 6 module with Intel® Xeon® W-11155MRE processor, industrial temperature range -40°C - 85°C.

              Ecosystem Details

              Carrierboards

              COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

              COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

              Cooling Solutions

              HSP COME-BTL6 CU-CORE THREADED (P/N 38038-0000-99-0)

              Heatspreader for COMe-bTL6, Cu-core, threaded mounting holes

              HSP COME-BTL6 CU-CORE THROUGH (P/N 38038-0000-99-1)

              Heatspreader for COMe-bTL6, Cu-core, through mounting holes

              Memory

              conga-bTL6/DDR4-3200 (32GB) (P/N 97020-3232-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 32GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (16GB) (P/N 97020-1632-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (8GB) (P/N 97020-0832-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (4GB) (P/N 97020-0432-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (32GB) i-temp (P/N 97021-3232-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 32GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (16GB) i-temp (P/N 97021-1632-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (8GB) i-temp (P/N 97021-0832-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (4GB) i-temp (P/N 97021-0432-BTL6)

              DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (32GB) ECC (P/N 97030-3232-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 32GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (16GB) ECC (P/N 97030-1632-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 16GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (8GB) ECC (P/N 97030-0832-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 8GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (4GB) ECC (P/N 97030-0432-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 4GB RAM, commercial temp 0°C to +60°C

              conga-bTL6/DDR4-3200 (32GB) ECC i-temp (P/N 97031-3232-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 32GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (16GB) ECC i-temp (P/N 97031-1632-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 16GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (8GB) ECC i-temp (P/N 97031-0832-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 8GB RAM, industrial temp -40°C to +85°C

              conga-bTL6/DDR4-3200 (4GB) ECC i-temp (P/N 97031-0432-BTL6)

              DDR4 SODIMM ECC memory module with up to 3200 MT/s and 4GB RAM, industrial temp -40°C to +85°C
