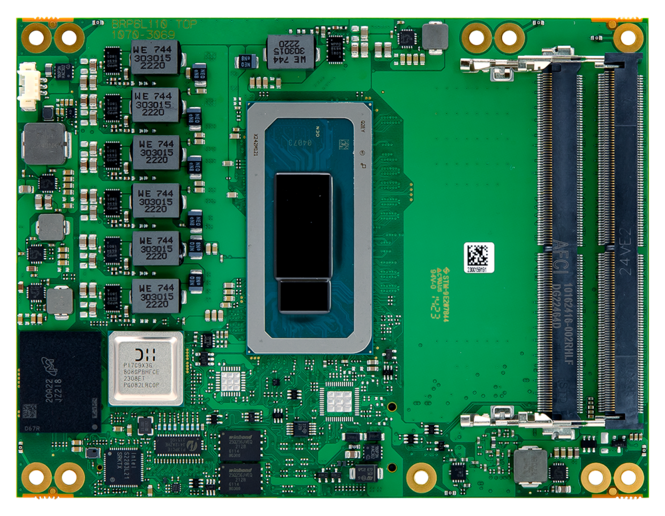

conga-bRP6 Preview image

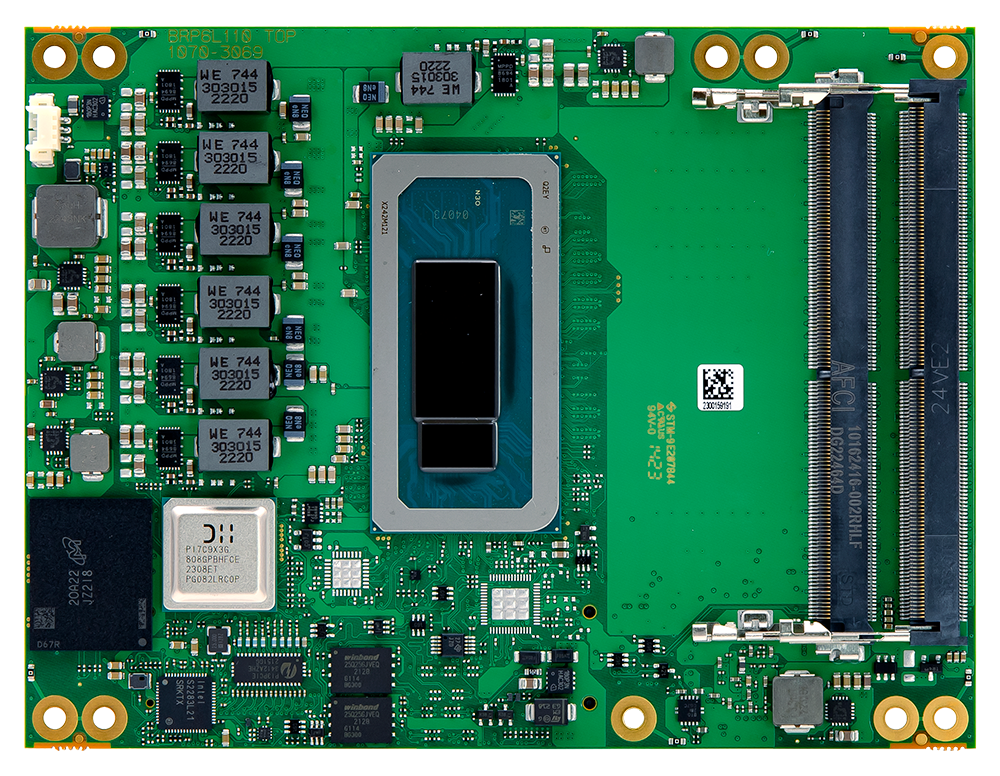

  • conga-bRP6 Image 1

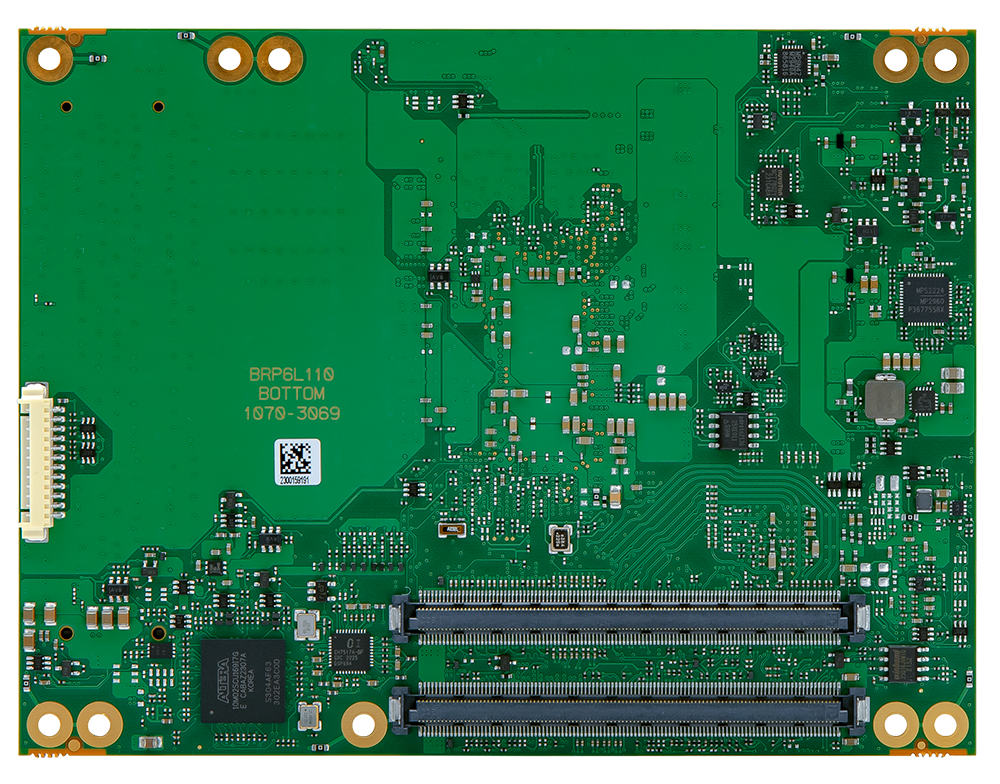

  • conga-bRP6 Image 2

Your item has been added to the inquiry

conga-bRP6 Image

conga-bRP6

COM Express® Basic Type 6 with 13th Generation Intel® Core™ Processors

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Cooling Solutions

        Memory

          Value adding ecosystem offerings


          Carrierboards

          Cooling Solutions

          Memory

          conga-bRP6

          formerly JUMPtec COMe-bRP6

          COM Express® Basic Type 6 with 13th Generation Intel® Core™ Processors

          Learn all about COMs - download the guide
          • Up to 64 GByte DDR5 memory
          • Up to 2.5 Gb Ethernet with TSN support
          • Optional NVMe SSD onboard
          • Industrial grade versions
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Carrierboards

          Cooling Solutions

          Memory

          Specification

          Formfactor
          COM Express Basic
          CPU
          Intel® Core™ i7-13800HE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
          Intel® Core™ i7-1370PE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
          Intel® Core™ i5-13600HE (4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)
          Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
          Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
          Intel® Core™ i5-13600HRE (4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)
          Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
          Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
          Intel® Core™ i3-13300HRE (4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, 45W)
          Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
          Intel® Core™ i3-1320PE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
          Intel® Core™ i3-13300HE (4 P-cores 2.1GHz up to 4.6GHz, 4 E-cores 1.5GHz up to 3.4GHz, 12MB cache, )
          DRAM
          2x DDR5 SO-DIMM with up to 32 GByte per channel (non-ECC)
          Ethernet
          Up to 2.5 Gb Ethernet with TSN support (ind. SKUs only)
          I/O Interfaces
          5x PCIe 3.0 (On request: 6x without Ethernet, up to 8x without Ethernet & SATA or alternatively 8x with additional PCIe Switch)
          2x 4 PCIe 4.0 on PEG Lanes #0-7, 1x 8 PCIe 4.0 on PEG Lanes #8-15 (H-series only)
          4 x USB 3.2 Gen2 (includes USB 2.0)
          4 x USB 2.0
          2 x serial interface (RX/TX only)
          SPI
          LPC
          SMB
          Fast I²C
          RTC
          Mass storage
          2xSATA 6Gb/s
          Graphics
          Intel® Iris® Xe Graphics on i7/i5 processors / Intel® UHD Graphics on i3 processors
          embedded BIOS Features
          AMI Aptio V
          Security
          Trusted Platform Module (TPM 2.0)
          Power Management
          ACPI 6.0
          Operating Systems
          Windows®10
          Linux
          VxWorks (project based)
          Temperature
          Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
          Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
          Humidity
          93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
          Features
          Staged Watchdog
          Size
          95 x 125 mm (3.74" x 4.92")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Whitepaper

          The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

          Product Variants

          Product Filter:

            Add Filter:

            There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
            If you don't find the configuration you require contact your congatec Sales representative for further assistance.
            conga-bRP6/i7-13800HE (P/N 38040-0000-25-7)

            COM Express® Basic Type 6 module with Intel® Core™ i7-13800HE processor, commercial temperature range 0°C - 60°C.

            conga-bRP6/i5-13600HE (P/N 38040-0000-27-5)

            COM Express® Basic Type 6 module with Intel® Core™ i5-13600HE processor, commercial temperature range 0°C - 60°C.

            conga-bRP6/i5-1350PE (P/N 38040-0000-18-5)

            COM Express® Basic Type 6 module with Intel® Core™ i5-1350PE processor, commercial temperature range 0°C - 60°C.

            conga-bRP6/i3-1320PRE (P/N 38041-0000-17-3)

            COM Express® Basic Type 6 module with Intel® Core™ i3-1320PRE processor, industrial temperature range -40°C - 85°C.

            conga-bRP6/i5-1350PRE (P/N 38041-0000-18-5)

            COM Express® Basic Type 6 module with Intel® Core™ i5-1350PRE processor, industrial temperature range -40°C - 85°C.

            conga-bRP6/i7-1370PRE (P/N 38041-0000-19-7)

            COM Express® Basic Type 6 module with Intel® Core™ i7-1370PRE processor, industrial temperature range -40°C - 85°C.

            conga-bRP6/i3-13300HRE (P/N 38041-0000-21-3)

            COM Express® Basic Type 6 module with Intel® Core™ i3-13300HRE processor, industrial temperature range -40°C - 85°C.

            conga-bRP6/i5-13600HRE (P/N 38041-0000-27-5)

            COM Express® Basic Type 6 module with Intel® Core™ i5-13600HRE processor, industrial temperature range -40°C - 85°C.

            conga-bRP6/i7-13800HRE (P/N 38041-0000-25-7)

            COM Express® Basic Type 6 module with Intel® Core™ i7-13800HRE processor, industrial temperature range -40°C - 85°C.

            conga-bRP6/i3-1320PE (P/N 38040-0000-17-3)

            COM Express® Basic Type 6 module with Intel® Core™ i3-1320PE processor, commercial temperature range 0°C - 60°C.

            conga-bRP6/i3-13300HE (P/N 38040-0000-21-3)

            COM Express® Basic Type 6 module with Intel® Core™ i3-13300HE processor, commercial temperature range 0°C - 60°C.

            conga-bRP6/i7-1370PE (P/N 38040-0000-19-7)

            COM Express® Basic Type 6 module with Intel® Core™ i7-1370PE processor, commercial temperature range 0°C - 60°C.

            Ecosystem Details

            Carrierboards

            COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

            COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector

            Cooling Solutions

            HSP COME-BRP6 CU-CORE THREADED (P/N 38040-0000-99-0)

            Heatspreader for COM-bRP6, Cu-core, threaded mounting holes

            HSP COME-BRP6 CU-CORE THROUGH (P/N 38040-0000-99-1)

            Heatspreader for COM-bRP6, Cu-core, through mounting holes

            HSK COME-BASIC ACTIVE (W/O HSP) (P/N 38025-0000-99-0C05)

            Active Cooler for COMe-bRP6/bxL6/bV26/bDV7/bID7 to be mounted on HSP

            HSK COME-BASIC PASSIVE (W/O HSP) (P/N 38025-0000-99-0C06)

            Passive Cooler for COMe-bRP6/bxL6/bV26/bDV7/bID7 to be mounted on HSP

            Memory

            conga-bRP6/DDR5-4800 (32GB) (P/N 97040-3248-BRP6)

            DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, commercial temp 0°C to +60°C

            conga-bRP6/DDR5-4800 (16GB) (P/N 97040-1648-BRP6)

            DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, commercial temp 0°C to +60°C

            conga-bRP6/DDR5-4800 (8GB) (P/N 97040-0848-BRP6)

            DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, commercial temp 0°C to +60°C

            conga-bRP6/DDR5-4800 (32GB) i-temp (P/N 97041-3248-BRP6)

            DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, industrial temp -40°C to +85°C

            conga-bRP6/DDR5-4800 (16GB) i-temp (P/N 97041-1648-BRP6)

            DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, industrial temp -40°C to +85°C

            conga-bRP6/DDR5-4800 (8GB) i-temp (P/N 97041-0848-BRP6)

            DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, industrial temp -40°C to +85°C
