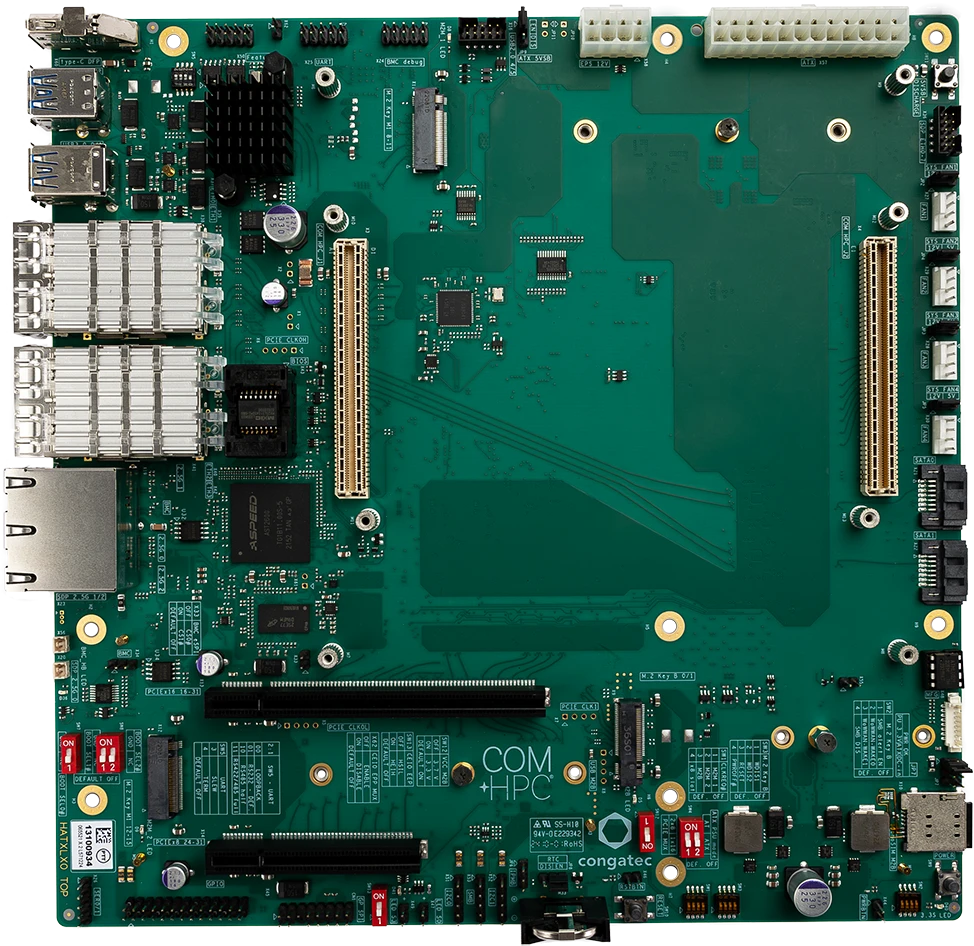

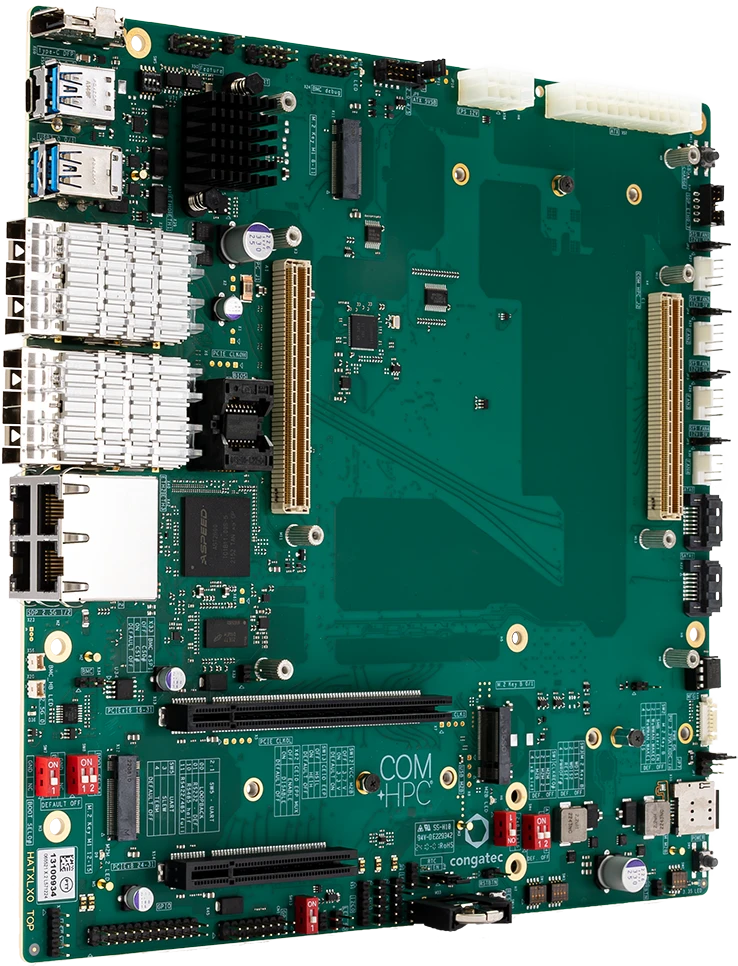

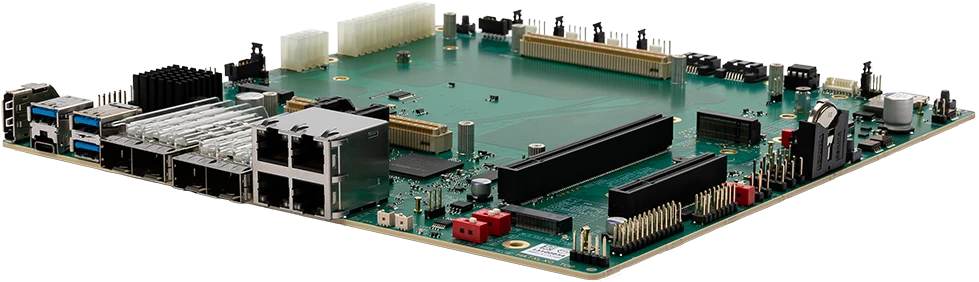

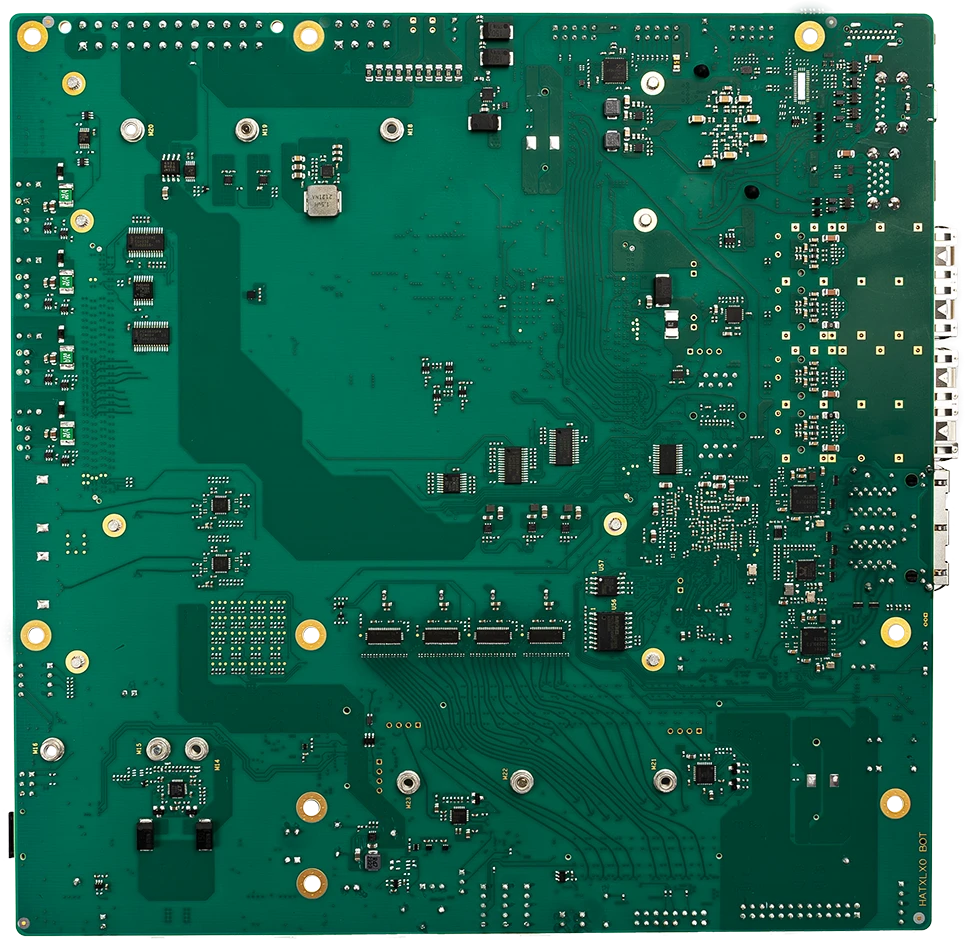

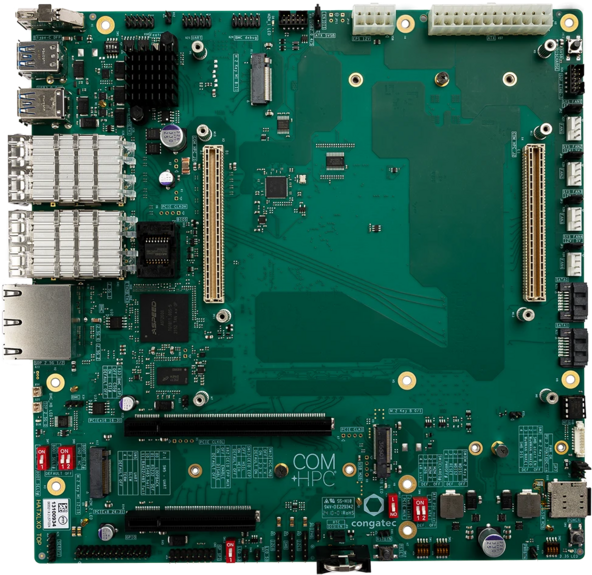

conga-HPC/uATX-Server

Formfactor
Standard Micro-ATX

Board Variant
Application Carrier Board for COM-HPC Server Type Modules (Size D)

Internal Connectors and Features

• 1x PCIe Gen4 x16
• 1x PCIe Gen4 x8 (capable of housing x16 cards)
• 1x M.2 Key B 2242/3042/3052/2280 (USB3.1 Gen1, PCIe, nano SIM) 2x M.2 Key M 2242/2280/22110 (PCIe x4 each)
• 1x RS232/RS485 (BMC, header)
• 2x SATA III
• 1x General Purpose I2C header | 12x GPIO header
• 4x 4-pin Fan connectors
• 1x RTC CMOS battery holder
• 1x SPI boot flash socket
• 1x Power button + header | 1x Reset button + header
• 1x ATX power connector 24-pin
• 1x EPS CPU power connector 8-pin
• 1x Power LED + header

External Connectors

• 4x SFP28/SFP+ cages for various transceiver technologies 1x 1GbE IPMI (BMC)
• 3x 2.5GbE RJ45 with IEEE1588 support
• 1x DP
• 3x USB 3.1 Gen1  (Type A)
• 1x USB 3.1 Gen1 (Type C)

Board Management Controller

• Aspeed AST2600

Power Management
ACPI 6.0

Temperature Range
Commercial: Operating Temperature: 0 to +60°C   |   Storage Temperature:  -20 to +70°C
Industrial:     Operating Temperature: -40 to 85°C   |   Storage Temperature: -40 to +85°C

Humidity
Operating:  10% … 85% r. H. non cond.   |    Storage: 5% … 85% r. H. non cond.

Size
244 x 244 mm²

Carrierboards

conga-HPC/uATX-Server (P/N 065520)

COM-HPC Server µATX carrier board

conga-HPC/i-uATX-Server (P/N 065521)

Industrial temperature COM-HPC Server µATX carrier board

conga-HPC/uATX-Server I/O Shield (P/N 065529)

I/O shield accessory for COM-HPC Server µATX carrier board
