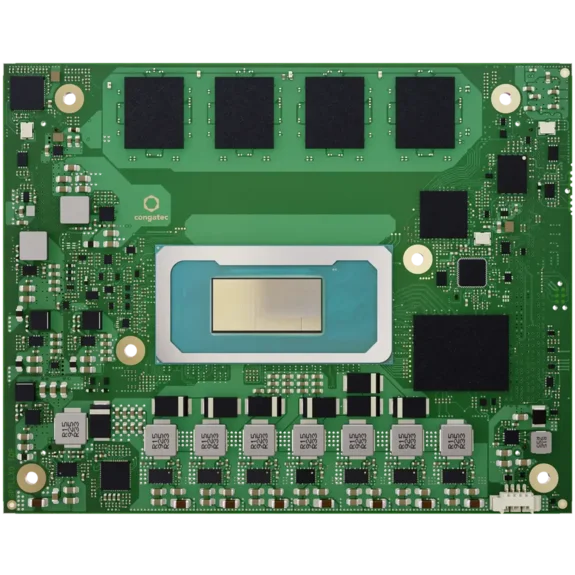

conga-HPC/cPTL Preview image

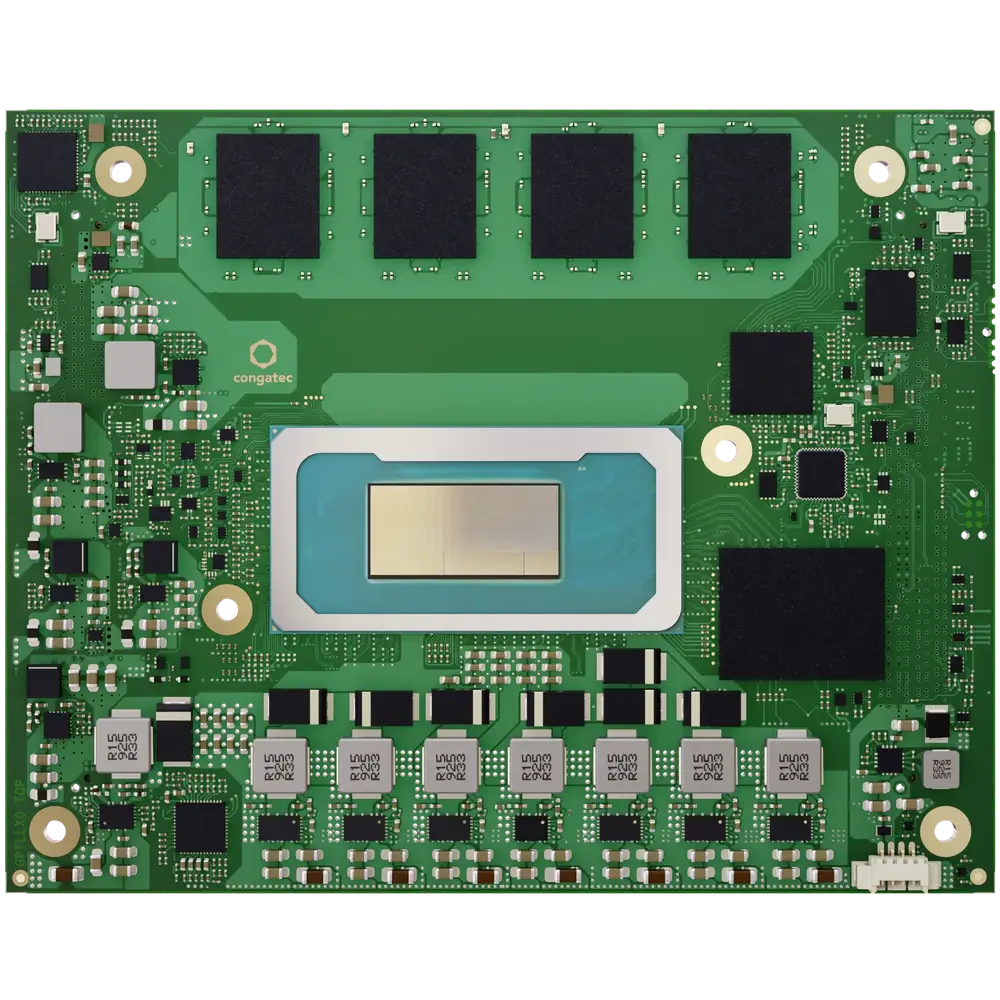

  • conga-HPC/cPTL Image 1

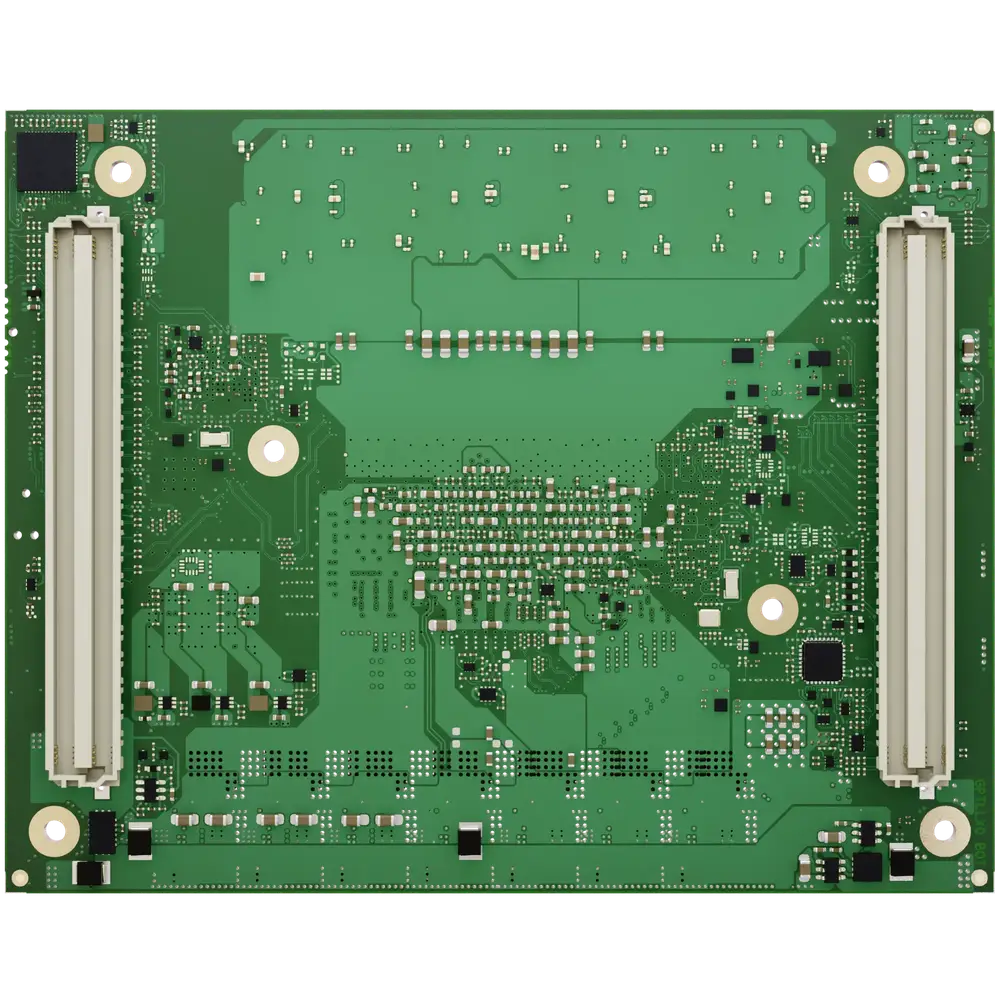

  • conga-HPC/cPTL Image 2
  • conga-HPC/cPTL Image 3

Your item has been added to the inquiry

conga-HPC/cPTL Image

conga-HPC/cPTL

COM-HPC Client Size A high performance module based on Intel® Core™ Ultra Processors Series 3 (Panther Lake-H)

Selected module variant

    Selected ecosystem parts

    Operating Systems

      Virtualization

        IOT Software

          Cooling Solutions

            Carrierboards

              Module services

                Value adding ecosystem offerings


                Operating Systems

                Virtualization

                IOT Software

                Cooling Solutions

                Carrierboards

                Module services

                Request quote + Add more articles

                conga-HPC/cPTL

                COM-HPC Client Size A high performance module based on Intel® Core™ Ultra Processors Series 3 (Panther Lake-H)

                Learn all about COMs - download the guide

                • Intel® performance hybrid design with up to 16 cores
                • LPCAMM2 socket for LPDDR5 memory
                • Integrated NPU for dedicated AI acceleration
                • Up to PCI Express Gen5
                Congatec Logo
                Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

                Value adding ecosystem offerings

                Operating Systems

                Virtualization

                IOT Software

                Cooling Solutions

                Carrierboards

                Module services

                Specification

                Formfactor
                COM-HPC
                CPU
                Intel® Core™ Ultra X9 388H (16 x 5.1 GHz, 18MB cache, 25W)
                Intel® Core™ Ultra 5 325 (8 x 4.5 GHz, 12MB cache, 25W)
                Intel® Core™ Ultra 5 336H (12 x 4.6 GHz, 18MB cache, 25W)
                Intel® Core™ Ultra 7 356H (16 x 4.7 GHz, 18MB cache, 25W)
                Intel® Core™ Ultra 7 366H (16 x 4.8 GHz, 18MB cache, 25W)
                Intel® Core™ Ultra 9 386H (16 x 4.9 GHz, 18MB cache, 25W)
                DRAM
                LPCAMM2 socket for LPDDR5x memories up to 32GB RAM (optional up to 96GB RAM) | up to 7466 MT/s | inband-ECC on selected product variants
                Ethernet
                2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series (TSN only on selected PNs)
                I/O Interfaces
                x8 PCIe Gen5 (only available on selected PNs)
                2 x x2 PCIe Gen5
                up to 8x PCIe Gen4
                up to 2x USB4
                2 x USB 3.2 Gen2
                8 x USB 2.0
                up to 2x SATA
                2 x UART
                12 x GPIO
                eSPI
                SM-Bus
                I²C
                GPSPI
                Mass storage
                Optional NVMe x1 SSD
                Graphics
                Intel® Arc Graphics with up to 12 Xe cores or Intel Graphics with up to 4 Xe cores | Intel® Xe Matrix Extensions
                NPU/AI Acceleration
                Integrated NPU accelerator with up to 50 TOPS
                congatec Board Controller
                Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
                embedded BIOS Features
                AMI Aptio® UEFI firmware
                32 Mbyte serial SPI with congatec Embedded BIOS feature
                OEM Logo
                OEM CMOS Defaults
                LCD Control
                Display Auto Detection
                Backlight Control
                Flash Update
                Security
                Trusted Platform Module (TPM 2.0)
                Power Management
                ACPI 6.0 with battery support
                Operating Systems
                Microsoft® Windows 11
                Microsoft® Windows 11 IoT Enterprise
                Linux
                Yocto
                Hypervisor
                RTS Real-Time Hypervisor
                Temperature
                Commercial Variants: Operation 0°C to 60°C | Storage -20°C to 80°C
                Humidity
                Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
                Video Interfaces
                Up to 3x DDI
                eDP
                Size
                95 x 120 mm

                Documents

                All documents found on this page are updated without notification. Always check this page for the latest version.

                Data Sheet

                Data Sheet for conga-cPTL
                18.12.2025

                Whitepaper

                The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

                Product Variants

                Product Filter:

                  Add Filter:

                   -
                   -
                   -
                   -
                   -
                   -
                    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
                    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
                    conga-HPC/cPTL-X9-388H-32G NVMe128 (P/N 055000)

                    COM-HPC Size A module based on Intel® Core™ Ultra X9 388H processor with 4 P-cores, 8 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel® Arc™ B390 Graphics with 12Xe Cores | 32GB LPDDR5x on LPCAMM2 memory module | 128GB onboard NVMe | Intel code name Panther Lake-H

                    conga-HPC/cPTL-9-386H-32G NVMe128 (P/N 055001)

                    COM-HPC Size A module based on Intel® Core™ Ultra 9 386H processor with 4 P-cores, 8 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 32GB LPDDR5x on LPCAMM2 memory module | 128GB onboard NVMe | Intel code name Panther Lake-H

                    conga-HPC/cPTL-7-366H-16G NVMe128 (P/N 055002)

                    COM-HPC Size A module based on Intel® Core™ Ultra 7 366H processor with 4 P-cores, 8 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x on LPCAMM2 memory module | 128GB onboard NVMe | Intel code name Panther Lake-H

                    conga-HPC/cPTL-7-356H-16G NVMe128 (P/N 055003)

                    COM-HPC Size A module based on Intel® Core™ Ultra 7 356H processor with 4 P-cores, 8 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x on LPCAMM2 memory module | 128GB onboard NVMe | Intel code name Panther Lake-H

                    conga-HPC/cPTL-5-336H-16G NVMe128 (P/N 055004)

                    COM-HPC Size A module based on Intel® Core™ Ultra 5 336H processor with 4 P-cores, 4 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x on LPCAMM2 memory module | 128GB onboard NVMe | Intel code name Panther Lake-H

                    conga-HPC/cPTL-5-325-16G NVMe128 (P/N 055005)

                    COM-HPC Size A module based on Intel® Core™ Ultra 5 325 processor with 4 P-cores and 4 LPE Cores | Integrated NPU | 12 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x on LPCAMM2 memory module | 128GB onboard NVMe | Intel code name Panther Lake-H

                    Ecosystem Details

                    Operating Systems

                    ctrlX OS (P/N 300020 )
                    Ubuntu Pro (P/N N/A)

                    Virtualization

                    Hypervisor (P/N 300501)

                    IOT Software

                    Application Manager (P/N 300201)
                    COM Manager (P/N 300200)
                    Fleet Manager (P/N 300202)
                    Cloud Connector (P/N 300203)

                    Cooling Solutions

                    conga-HPC/cPTL-CSA-HP-B (P/N 055050)

                    Standard active cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole.

                    conga-HPC/cPTL-CSA-HP-T (P/N 055051)

                    Standard active cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are M2.5mm threaded.

                    conga-HPC/cPTL-CSP-HP-B (P/N 055052)

                    Standard passive cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 28.2mm height. All standoffs are with 2.7mm bore hole.

                    conga-HPC/cPTL-CSP-HP-T (P/N 055053)

                    Standard passive cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 28.2mm height. All standoffs are M2.5mm threaded.

                    conga-HPC/cPTL-HSP-HP-B (P/N 055054)

                    Standard heatspreader for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole.

                    conga-HPC/cPTL-HSP-HP-T (P/N 055055)

                    Standard heatspreader for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded.

                    Carrierboards

                    conga-HPC/EVAL-Client (P/N 065600)

                    Evaluation Carrier Board for COM-HPC Client type Modules.

                    conga-HPC/uATX-Client (P/N 065620)

                    COM-HPC Client µATX Application Carrier Board suitable for congatec COM-HPC modules with Size A,B and C.

                    Module services

                    Design-In Training (P/N 27000001)

                    Design-Training to develop carrier boards for Computer on Modules
