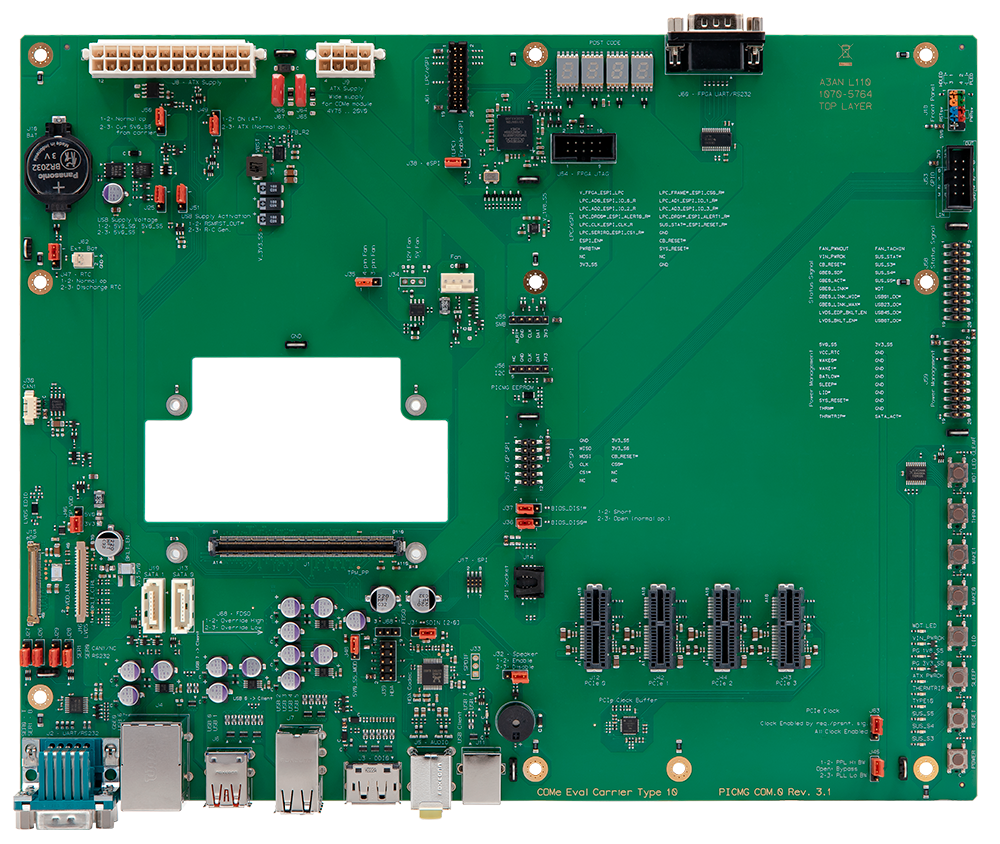

conga-Eval Carrier3 T10

Specification

COMPLIANCE
COM Express® Rev. 3.1, Pin-out Type 10

DIMENSIONS
305 mm x 244 mm (ATX)

PCI EXPRESS
4x PCI Express x1, onboard connector

SATA
2x SATA, onboard connector

GRAPHICS
1x DisplayPort, front panel
1x LVDS ( alternatively 1x eDP), onboard connector

ETHERNET
1x RJ45, front panel

USB
2x USB 3.1/2.0, front panel

SERIAL
6x USB 2.0 (alternatively 1x USB Client of USB 2.0 #0 or #7), front panel

AUDIO
HD Audio Audio Jack 2 ports, front panel

FAN
4 pin header connector for 4 pol Fan (via jumper selection for 3 pol Fan)

BIOS
SPI Flash Socket WSON8

VARIOUS
Header connector for various status signals Various header connector for I2C, SMBus, GSPI, GPIO, HDS, LPC/eSPI RTC battery holder 4 digit Port 80/81 POST code display with POST code control Status LEDs for SUS_S3, SUS_S4, SUS_S5, THERMTRIP, TYPE10 Buttons for PWRBTN, SYS_RESET, LID, SLEEP, WAKE0, WAKE1, THRM

POWER SUPPLY
ATX, 24 + 8 pin connector
