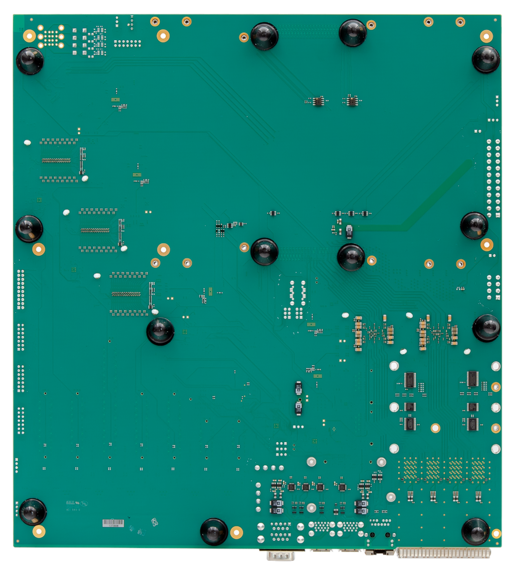

conga-Eval Carrier Server Preview image

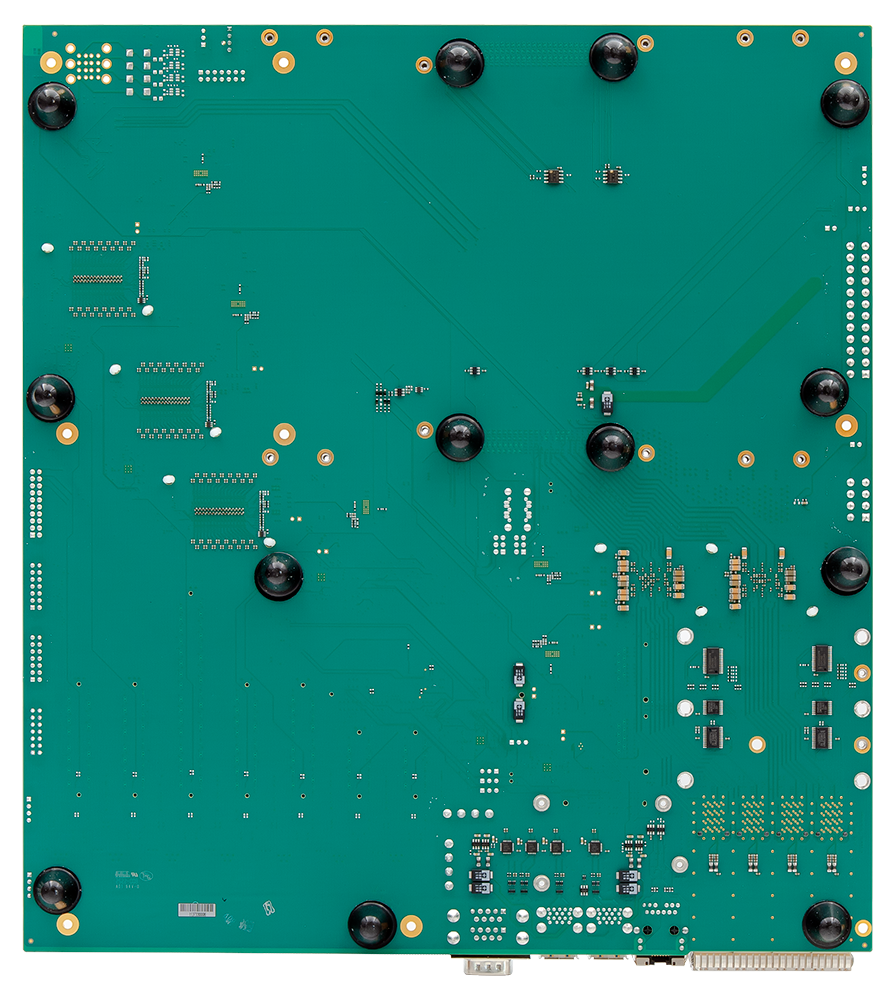

  • conga-Eval Carrier Server Image 1

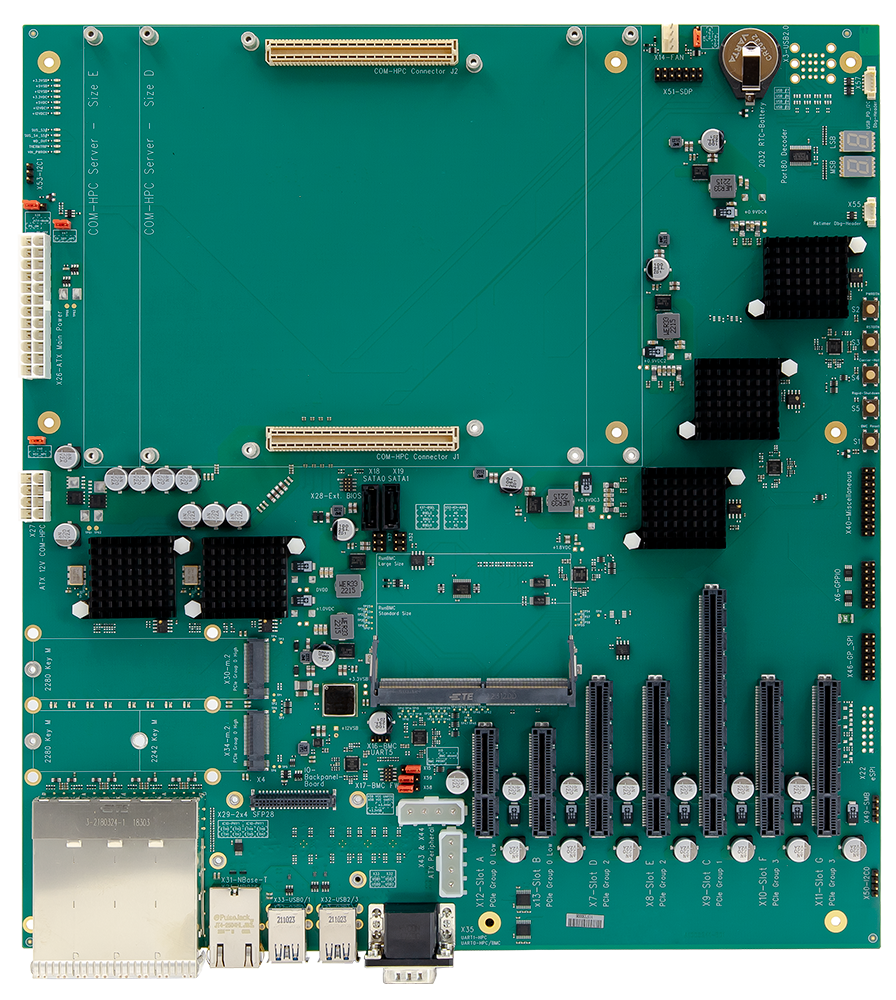

  • conga-Eval Carrier Server Image 2

Your item has been added to the inquiry

conga-Eval Carrier Server Image

conga-Eval Carrier Server

COMh Eval Carrier Server

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Value adding ecosystem offerings


      Carrierboards

      Request quote + Add more articles

      conga-Eval Carrier Server

      COMh Eval Carrier Server


      Learn all about COMs - download the guide

      • Support of overall 65x PCIe lanes via various PCIe card connectors
      • Support of overall 8x 10/25G Ethernet ports:
      • 8x 10/25G Ethernet via integrated re-timer support to SFP28 cages
      • 1x 10/1GBase-T interface
      • 4x USB 3.1/0 Interface
      • 2x SATA standard interfaces
      Congatec Logo
      Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

      Value adding ecosystem offerings

      Carrierboards

      Specification

      Formfactor
      COM-HPC
      Ethernet
      1x RJ45 – max. 10G-BASE-T
      8x SFP28 cages via 2x Intel C827-IM
      I/O Interfaces
      1x PCIe Gen4 x16 slot (PCIe Lane Group 1)
      4x PCIe Gen4 x8 to 4x PCIe card slots (PCIe Lane Group 2 and 3) 2x PCIe Gen4 x4 to 2x PCIe card slots (PCIe Lane Group 0 Low) 2x PCIe Gen3 x4 to 2x m.2 2242/2280 slots (PCIe Lane Group 0 High)
      4 x USB 3.2 Gen2
      2 x DSUB9 - COM ports (RX/TX)
      2 x SATA
      1 x I²C
      1 x eSPI
      1 x SM-Bus
      1 x GPIO
      1 x FAN
      1 x Feature Connector
      Power Management
      ATX power supply 24 + 8 pin
      Size
      305 mm x 330 mm (E-ATX)
