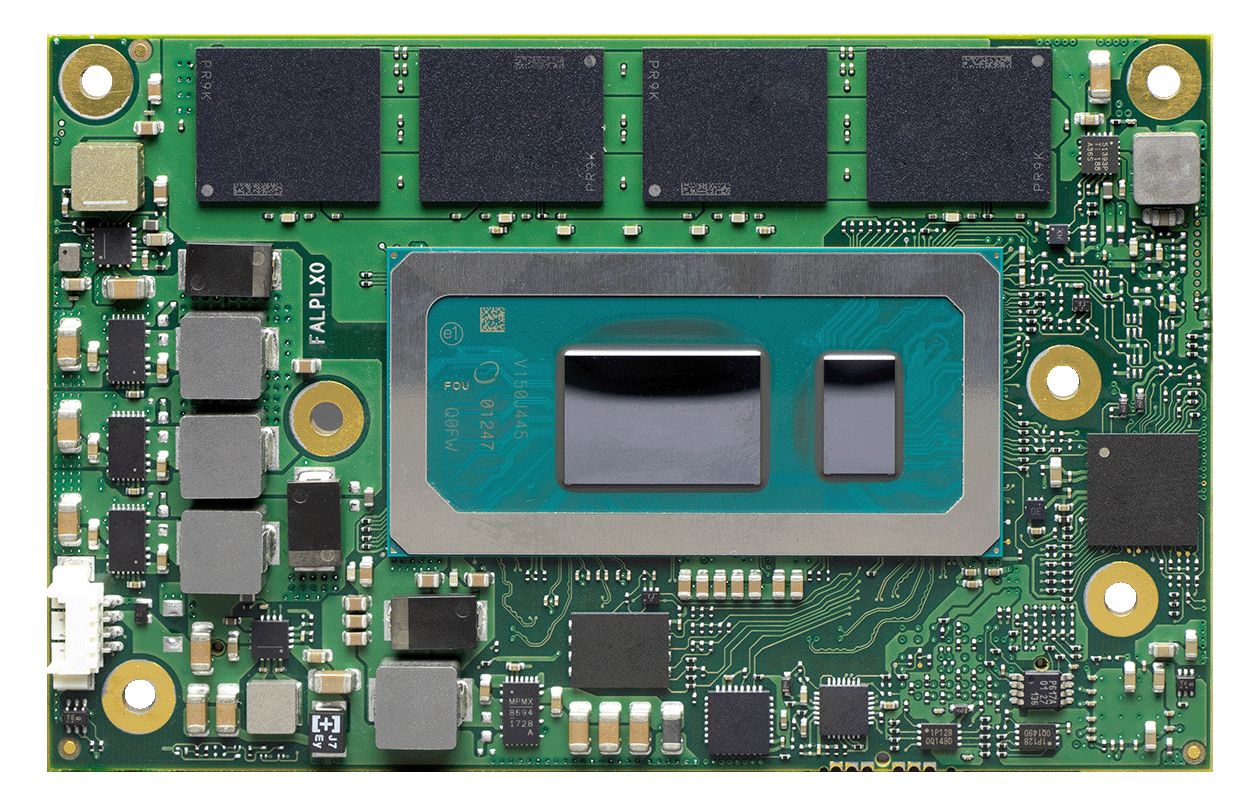

conga-HPC/mRLP Computer on Module top
  • conga-HPC/mRLP Computer on Module top
  • conga-HPC/mRLP Computer on Module bottom
  • conga-HPC/mRLP Computer on Module dynamic
  • conga-HPC/mRLP Computer on Module flat
  • conga-HPC/mRLP Computer on Module front
  • conga-HPC/mRLP Computer on Module side

Your item has been added to the inquiry

conga-HPC/mRLP Computer on Module top

conga-HPC/mRLP

COM-HPC Mini Size high performance module based on 13th Gen Intel® Core™ processor series (code name "Raptor Lake-P")

Selected module variant

Value adding ecosystem offerings


Cooling solutions

Module services

Carrierboards

conga-HPC/mRLP

COM-HPC Mini Size high performance module based on 13th Gen Intel® Core™ processor series (code name "Raptor Lake-P")

Virtualization Ready
  • Preliminary data
  • Intel® hybrid design combines Performance- cores with Efficient–cores
  • Options with Integrated high performance Iris Xe graphics architecture with up to 96 EU
  • PCI Express Gen 4
  • Options for Industrial Temperature Range -40°C to +85°C
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

Module services

Carrierboards

Specification

Formfactor
COM-HPC
CPU
Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
Intel® Core™ i5-1345URE (2 P-cores 1.4GHz up to 4.6GHz, 8 E-cores 1.1GHz up to 3.4GHz, 12MB cache, 15W)
Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
Intel® Core™ i3-1315URE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
Intel® U300E (1 P-core 1.1GHz up to 4.3GHz, 4 E-cores 0.9GHz up to 3.2GHz, 8MB cache, 15W )
DRAM
Up to 64 GB LPDDR5x max. 6000 MT/s SDRAM | soldered down | dual channel | IBECC on industrial SKUs (IBECC not supported on product variant 045603)
Ethernet
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
I/O Interfaces
2x 4 PCIe Gen4
Up to 8x PCIe Gen3
USB4.0 (USB4.0 would be disabled if second DP/DP++ was enabled by separate BIOS)
Up to 4x USB 3.2 Gen2x1
Up to 8x USB 2.0
Up to 2x SATA III
SPI
2 x UART
12 x GPIOs
Mass storage
NVMe SSD with 128GB (optional up to 1 TB capacity)
Graphics
Integrated Iris® Xe graphics architecture with up to 96 EUs or Intel® UHD Graphics with 48 EUs
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
embedded BIOS Features
AMI Aptio® 2.X (UEFI) firmware
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 6.0 with battery support
Operating Systems
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
Hypervisor
RTS Real-Time Hypervisor
Temperature
Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C
Humidity
Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
Video Interfaces
DP/DP++ (adding second DP/DP++ would require separate BIOS which disables USB4.0)
eDP
Size
95 x 70 mm²

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet

Software

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.1.zip
06.09.2024 / 184.47 KB
CGOS direct driver for Linux.
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.

Windows 10

CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
Intel GNA Scoring Accelerator 03.00.00.1457
Intel(R) HID Event Filter Driver Version 2.2.1.386
Intel Management Engine Consumer driver 2321.4.31.0
Intel Management Engine driver Corporate 2321.4.31.0
Intel_DTT_9.0.11000.27915.zip
24.03.2023 / 78.44 MB
Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
Intel smart sound driver version 10.29.00.7919
ISH_Kit_5.4.2.4582v3.zip
24.03.2023 / 92.24 MB
Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
Release_28.2.zip
29.02.2024 / 776.58 MB
Intel Ethernet Driver Version 28.2
Rapid Storage Technology Driver: Version 19.5.0.1037.2
Intel Serial IO Drivers 30.100.2221.20v2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 MB
Thunderbolt Driver Rev87.2

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration.

Windows 11

CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Intel GNA Scoring Accelerator 03.00.00.1457
Intel(R) HID Event Filter Driver Version 2.2.1.386
Intel Management Engine Consumer driver 2321.4.31.0
Intel Management Engine driver Corporate 2321.4.31.0
Release_28.2.zip
29.02.2024 / 776.58 MB
Intel Ethernet Driver Version 28.2
Rapid Storage Technology Driver: Version 19.5.0.1037.2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 MB
Thunderbolt Driver Rev87.2

Product Variants

Product Filter:

    Add Filter:

    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
    conga-HPC/mRLP-i7-1365URE-32G NVMe128 (P/N 045600)

    COM-HPC Mini module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | 32GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

    conga-HPC/mRLP-i5-1345URE-16G NVMe128 (P/N 045601)

    COM-HPC Mini module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

    conga-HPC/mRLP-i3-1315URE-16G NVMe128 (P/N 045602)

    COM-HPC Mini module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

    conga-HPC/mRLP-U300E-16G NVMe128 (P/N 045603)

    COM-HPC Mini module based on Intel® processor U300E with 1 P-core 1.1GHz up to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Intel® code name Raptor Lake-P (U-Series)

    conga-HPC/mRLP-i7-1370PRE-32G NVMe128 (P/N 045604)

    COM-HPC Mini module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | 32GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

    conga-HPC/mRLP-i5-1350PRE-16G NVMe128 (P/N 045605)

    COM-HPC Mini module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

    conga-HPC/mRLP-i3-1320PRE-16G NVMe128 (P/N 045606)

    COM-HPC Mini module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache |  Intel® UHD Graphics with 48EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

    Ecosystem Details

    Cooling solutions

    conga-HPC/mRLP-CSA-B (P/N 049250)

    Standard active cooling solution for COM-HPC module conga-HPC/mRLP with 24.5mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole.

    conga-HPC/mRLP-CSA-T (P/N 049251)

    Standard active cooling solution for COM-HPC module conga-HPC/mRLP with 24.5mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm threaded.

    conga-HPC/mRLP-CSP-B (P/N 049252)

    Standard passive cooling solution for COM-HPC module conga-HPC/mRLP with 23.7mm overall heat sink height. All standoffs are with 2.7mm bore hole.

    conga-HPC/mRLP-CSP-T (P/N 049253)

    Standard passive cooling solution for COM-HPC module conga-HPC/mRLP with 23.7mm overall heat sink height. All standoffs are M2.5mm threaded.

    conga-HPC/mRLP-HSP-B (P/N 049254)

    Standard heatspreaderfor COM-HPC module conga-HPC/mRLP. All standoffs are with 2.7mm bore hole.

    conga-HPC/mRLP-HSP-T (P/N 049255)

    Standard heatspreaderfor COM-HPC module conga-HPC/mRLP. All standoffs are M2.5mm threaded.

    Module services

    Design-In Training (P/N 27000001)

    Design-Training to develop carrier boards for Computer on Modules

    Ext. temperature screening (-40°C to +85°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Ext. temperature screening (-25°C to +80°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Carrierboards

    conga-HPC/3.5-Mini (P/N 065630)

    COM-HPC Client 3.5” carrier board suitable for congatec COM-HPC Mini modules
