conga-HPC/mRLP Computer on Module
  • conga-HPC/mRLP Computer on Module

conga-HPC/mRLP

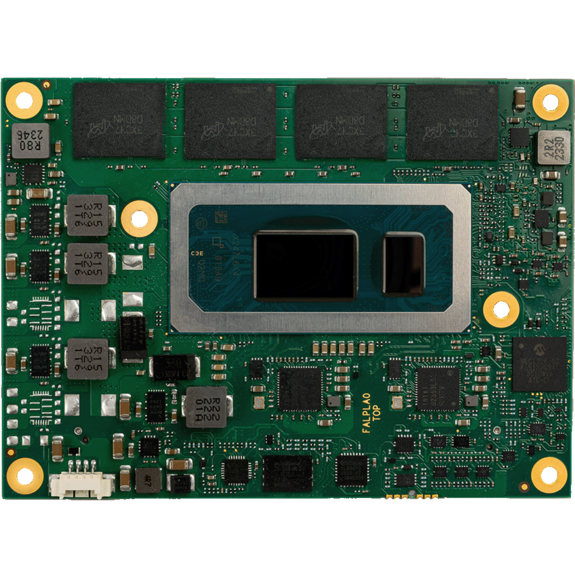

COM-HPC Mini Size high performance module based on 13th Gen Intel® Core™ processor series (code name "Raptor Lake-P")

  • Preliminary data
  • Embedded/Industrial use condition
  • Extended temperature options available
  • PCI Express Gen 4
  • Options with Integrated high performance Iris Xe graphics architecture with up to 96 EU
  • AI/DL Instruction Sets including VNNI
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

Module services

Specification

Formfactor
COM-HPC
CPU
Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
Intel® Core™ i5-1345URE (2 P-cores 1.4GHz up to 4.6GHz, 8 E-cores 1.1GHz up to 3.4GHz, 12MB cache, 15W)
Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
Intel® Core™ i3-1315URE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
Intel® U300E (1 P-core 1.1GHz up to 4.3GHz, 4 E-cores 0.9GHz up to 3.2GHz, 8MB cache, 15W )
DRAM
Up to 64 GB LPDDR5x max. 6400MT/s SDRAM | soldered down | dual channel | IBECC on industrial SKUs
Ethernet
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
I/O Interfaces
2x 4 PCIe Gen4
Up to 8x PCIe Gen3
Up to 1x USB 4.0
Up to 4x USB 3.2 Gen2x1
Up to 8x USB 2.0
Up to 2x SATA III
SPI
2 x UART
12 x GPIOs
2 x MIPI-CSI (SMT connectors on module)
Mass storage
NVMe SSD with up to 1 TB capacity (option)
Graphics
Integrated Iris® Xe graphics architecture with up to 96 EUs or Intel® UHD Graphics with 48 EUs
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
embedded BIOS Features
AMI Aptio® 2.X (UEFI) firmware
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
TPM 2.0 with AES bulk encryption
Power Management
Modern standby
Operating Systems
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
RTS Hypervisor
Temperature
Embedded: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +80°C
Industrial: Operating Temperature: -40 to +85°C | Storage Temperature: -40 to +85°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
Up to 2x DP/DP++ | 1x eDP
Size
95 x 70 mm²

Documents

All documents found on this page are updated without notification. Always check this page forthe latestversion.

Data Sheet

conga-HPC_mRLP.pdf
28.06.2023

Software

[ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x).For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutillx.tar
01.12.2021 / 3.91 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.Linux source version.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration.Linux source version.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.

Windows 10

CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based applicationmeant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Windows_10_1.00.0025.zip
27.06.2023 / 49.15 MB
CGOS direct driver for Windows 10.Please refer to readme.txt for supported functions and boards.
cgutil_v161.zip
01.12.2021 / 10.81 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Chipset-10.1.19198.8339-Public-MUP.zip
24.03.2023 / 4.45 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
gna-03.00.00.1457-Win11-adl-pv-10-20H2-11-21H2-11-22H2-20220622.zip
24.03.2023 / 54.33 KB
Intel GNA Scoring Accelerator 03.00.00.1457
HIDEventFilterDriver-2.2.1.386_RS5_19H1_20H1_21H2_Certified.zip
09.12.2021 / 1.72 MB
Intel(R) HID Event Filter Driver Version 2.2.1.386
Intel_CSME_ADL-P_16.1.25.2020v2_A0_Consumer.zip
24.03.2023 / 896.24 MB
Intel Management Engine Consumer driver 16.1.25.2020v2_B0
Intel_CSME_ADL-P_16.1.25.2020v2_A0_Corporate.zip
24.03.2023 / 1.08 GB
Intel Management Engine driver Corporate 16.1.25.2020v2_B0
Intel_DTT_9.0.11000.27915.zip
24.03.2023 / 78.44 MB
Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
Intel_SST_ADL_v10.29.00.7919.zip
24.03.2023 / 292.05 MB
Intel smart sound driver version 10.29.00.7919
ISH_Kit_5.4.2.4582v3.zip
24.03.2023 / 92.24 MB
Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
Release_27.8.zip
24.03.2023 / 795.24 MB
Intel Ethernet Driver Version 27.8
RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
24.03.2023 / 109.22 MB
Rapid Storage Technology Driver:Version 19.5.0.1037.2
SerialIO_30.100.2221.20v2_RPL_ADL-PCH_22H2.zip
24.03.2023 / 2.65 MB
Intel Serial IO Drivers 30.100.2221.20v2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 MB
Thunderbolt Driver Rev87.2
win64_31.0.101.3302.zip
24.03.2023 / 825.75 MB
Intel HD Graphics Driver Rev. 31.0.101.3302

Windows 10 IoT

CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutil_v161.zip
01.12.2021 / 10.81 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
