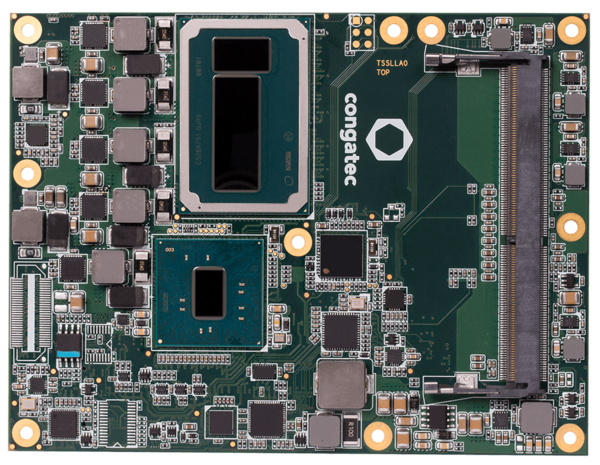

conga-TS170 Preview image
  • conga-TS170 Image 1
  • conga-TS170 Image 2

Your item has been added to the inquiry

conga-TS170 Image

conga-TS170

COM Express Type 6 Basic module based on 6th Generation Intel® Core™ processor family

Selected module variant

Value adding ecosystem offerings


Cooling solutions

Memory

Carrierboards

Module services

conga-TS170

COM Express Type 6 Basic module based on 6th Generation Intel® Core™ processor family

  • 6th Generation Intel® Core™ processor
  • Intel® Gen9 HD Graphics with HEVC (H.265) support
  • ECC memory support for Xeon and i3 version
  • Up to 32GByte dual channel DDR4 memory
  • XEON processors for data center applications
  • Product Video
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

Memory

Carrierboards

Module services

Specification

Formfactor
COM Express Basic
CPU
Intel® Xeon™ E3-1505M V5 (4 x 2.8 GHz, 8MB cache, 45W)
Intel® Xeon™ E3-1505L V5 (4 x 2.0 GHz, 8MB cache, 25W)
Intel® Xeon® E3-1578L V5 (4 x 2.0 GHz, 8MB cache, 45W)
Intel® Xeon® E3-1558LV5 (4 x 1.9 GHz, 8MB cache, 45W)
Intel® Xeon® E3-1515MV5 (4 x 2.8 GHz, 8MB cache, 45W)
Intel® Core™ i7-6820EQ (4 x 2.8 GHz, 8MB cache, 45W)
Intel® Core™ i7-6822EQ (4 x 2.0 GHz, 8MB cache, 25W)
Intel® Core™ i5-6440EQ (4 x 2.7 GHz, 6MB cache, 45W)
Intel® Core™ i5-6442EQ (4 x 1.9 GHz, 6MB cache, 25W)
Intel® Core™ i3-6100E (2 x 2.7 GHz, 3MB cache, 35W)
Intel® Core™ i3-6102E (2 x 1.9 GHz, 3MB cache, 25W)
Intel® Celeron® G3900E (2 x 2.4 GHz, 2MB cache, 35W)
Intel® Celeron® G3902E (2 x 1.6 GHz, 2MB cache, 25W)
DRAM
2 Sockets, SO-DIMM DDR4 up to 2133 MT/s and 32GByte dual channel
Ethernet
Intel® i219-LM GbE LAN Controller with AMT 11 support
I/O Interfaces
8 x PCI Express GEN 3.0 lanes
4 x SATA III (6Gb/s)
4 x USB 3.0
8 x USB 2.0
1 x PEG x16 Gen 3
LPC bus
I²C bus
2 x UART
Graphics
Intel® Gen9 HD Graphics Engine
with OpenCL 2.0, OpenGL 4.3 and DirectX12 (Windows 10) support | up to three independent displays: DisplayPort 1.2 | eDP 1.3 | VGA (optional)
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control
embedded BIOS Features
8/16 MByte serial SPI firmware flash
AMI AptioV® UEFI 2.x firmware
Security
The conga-TS170 can be optionally equipped with a discrete ”Trusted Platform Module” (TPM 1.2 / 2.0)
Power Management
ACPI 4.0 with battery support
Operating Systems
Microsoft® Windows® 10
Microsoft® Windows® 8.1
Microsoft® Windows® 7
Linux
Microsoft® Windows® embedded Standard
Temperature
Standard
Operating: 0 to +60°C Storage: -20 to +80°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Size
95 x 125 mm (3.74" x 4.92")

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Software

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

cgbcser.tar.gz
17.01.2018 / 2.65 KB
Driver for modules with on-module UART, realized using the congatec board controller. V1.1
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x32-1.03.022.tar.gz
12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.1.zip
06.09.2024 / 184.47 KB
CGOS direct driver for Linux.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.

Windows 10

CgbcSer.zip
13.09.2019 / 3.90 MB
Driver for on-module UART realized using the congatec board controller. Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
chipset_10.1.1.38_public.zip
28.02.2017 / 2.60 MB
Intel Chipset Software Installation Utility for installing the Windows INF files. Rev. 10.1.1.38
graphics_driverx64_4599.zip
23.05.2017 / 254.96 MB
Intel HD Graphics Driver for Windows 10 64 Bit on TS175
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel(R) Management Engine Firmware for Windows 10 - 64 Bit
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
rel_22.2_pv_oemgen_455626.zip
23.05.2017 / 323.75 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 22.2
Intel IO Drivers for Kabylake platform.

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration.
cgw10ltx64_r17.zip
23.05.2016 / 938.15 MB
Board Support Package for congatec CPU modules - Rev. 1.7. Contains 64bit Windows 10 IoT Enterprise LTSB driver files for video, SATA, sound, network.

Windows 7

CgbcSer.zip
13.09.2019 / 3.90 MB
Driver for on-module UART realized using the congatec board controller. Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.10.1.9
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel(R) USB 3.0 eXtensible Host Controller driver Rev. 4.0.3.49.
Intel(R) Management Engine Firmware for Windows 64 Bit for conga-TSSL.
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
rel_22.2_pv_oemgen_455626.zip
23.05.2017 / 323.75 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 22.2
win64_15.40.10.64.4300.zip
18.12.2015 / 176.94 MB
Intel HD Graphics Driver for Windows 7 and Windows 8 64Bit Rev. win64 15.40.10.64.4300

Windows 8

CgbcSer.zip
13.09.2019 / 3.90 MB
Driver for on-module UART realized using the congatec board controller. Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.10.1.9
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel(R) Management Engine Firmware for Windows 64 Bit for conga-TSSL.
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
rel_22.2_pv_oemgen_455626.zip
23.05.2017 / 323.75 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 22.2
Intel IO Drivers for Skylake platform.
win64_15.40.10.64.4300.zip
18.12.2015 / 176.94 MB
Intel HD Graphics Driver for Windows 7 and Windows 8 64Bit Rev. win64 15.40.10.64.4300

Windows 8 Embedded

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes8x64_r171.zip
19.08.2016 / 659.19 MB
Board Support Package for congatec CPU modules Rev. 1.7.1. Contains 64 Bit Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.
cgwes8_r171.zip
19.08.2016 / 372.86 MB
Board Support Package for congatec CPU modules Rev. 1.7.1. Contains 32 Bit Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.

Windows Embedded Standard 7

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes7x64_r17.zip
13.01.2016 / 906.88 MB
Board Support Package for congatec CPU modules Rev. 1.7. Contains 64bit Windows Embedded Standard 7 driver files for video, SATA, sound, network.
cgwes7_r17.zip
13.01.2016 / 548.62 MB
Board Support Package for congatec CPU modules Rev. 1.7. Contains 32 Bit Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.

Product Variants

Product Filter:

    Add Filter:

    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
    conga-TS170/E3-1578LV5 (P/N 045913)

    COM Express Type 6 Basic module with Skylake-H Intel® Xeon® E3-1578L V5 quad core processor with 2.0GHz up to 3.4GHz, 8MB L2 cache, GT4 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/E3-1558LV5 (P/N 045914)

    COM Express Type 6 Basic module with Skylake-H Intel Xeon® E3-1558L V5 quad core processor with 1.9GHz up to 3.3GHz, 8MB L2 cache, GT3e graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/E3-1515MV5 (P/N 045912)

    COM Express Type 6 Basic module with Skylake-H Intel® Xeon® E3-1515M V5 quad core processor with 2.8GHz up to 3.7GHz, 8MB L2 cache, GT4 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/E3-1505MV5 (P/N 045906)

    COM Express Type 6 Basic module with Intel® Xeon® E3-1505M V5 quad core processor with 2.8GHz up to 3.7GHz, 8MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/E3-1505LV5 (P/N 045907)

    COM Express Type 6 Basic module with Intel® Xeon® E3-1505L V5 quad core processor with 2.0GHz up to 2.8GHz, 8MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/i7-6820EQ (P/N 045900)

    COM Express Type 6 Basic module with Intel® Core™ i7-6820EQ quad core processor with 2.8GHz up to 3.5GHz, 8MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset QM170

    conga-TS170/i7-6822EQ (P/N 045901)

    COM Express Type 6 Basic module with Intel® Core™ i7-6822EQ quad core processor with 2.0GHz up to 2.8GHz, 8MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset QM170

    conga-TS170/i5-6440EQ (P/N 045902)

    COM Express Type 6 Basic module with Intel® Core™ i5-6440EQ quad core processor with 2.7GHz up to 3.4GHz, 6MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset QM170

    conga-TS170/i5-6442EQ (P/N 045903)

    COM Express Type 6 Basic module with Intel® Core™ i5-6442EQ quad core processor with 1.9GHz up to 2.7GHz, 6MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset QM170

    conga-TS170/i3-6100E ECC (P/N 045908)

    COM Express Type 6 Basic module with Intel® Core™ i3-6100E dual core processor with 2.7GHz, 3MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/i3-6102E ECC (P/N 045909)

    COM Express Type 6 Basic module with Intel® Core™ i3-6102EQ dual core processor with 1.9GHz, 3MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset CM236 with ECC memory support

    conga-TS170/i3-6100E (P/N 045904)

    COM Express Type 6 Basic module with Intel® Core™ i3-6100E dual core processor with 2.7GHz, 3MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset HM170

    conga-TS170/i3-6102E (P/N 045905)

    COM Express Type 6 Basic module with Intel® Core™ i3-6102EQ dual core processor with 1.9GHz, 3MB L2 cache, GT2 graphics and 2133MT/s dual channel DDR4 memory interface, Chipset HM170

    conga-TS170/G3900E (P/N 045910)

    COM Express Type 6 Basic module with Skylake-H Intel® Celeron® G3900E dual core processor with 2.4GHz, 2MB L2 cache, GT1 graphics and 2133MT/s dual channel DDR4 memory interface. Chipset HM170.

    conga-TS170/G3902E (P/N 045911)

    COM Express Type 6 Basic module with Skylake-H Intel® Celeron® G3902E dual core processor with 1.6GHz, 2MB L2 cache, GT1 graphics and 2133MT/s dual channel DDR4 memory interface. Chipset HM170.

    Ecosystem Details

    Cooling solutions

    conga-TS170/HSP-HP-B (P/N 045934)

    Standard heatspreader for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes. All standoffs are with 2.7mm bore hole.

    conga-TS170/HSP-HP-T (P/N 045935)

    Standard heatspreader for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes. All standoffs are M2.5mm thread.

    conga-TS170/CSP-HP-B (P/N 045932)

    Standard passive cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins and 20mm overall heat sink height. All standoffs are with 2.7mm bore hole.

    conga-TS170/CSP-HP-T (P/N 045933)

    Standard passive cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins and 20mm overall heat sink height. All standoffs are M2.5mm thread.

    conga-TS170/CSA-HP-B (P/N 045930)

    Standard active cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins, 20mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole.

    conga-TS170/CSA-HP-T (P/N 045931)

    Standard active cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins, 20mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm thread.

    Memory

    DDR4-SODIMM-2400 (4GB) (P/N 068790)

    DDR4 SODIMM memory module with 2400 MT/s and 4GB RAM

    DDR4-SODIMM-2400 (8GB) (P/N 068791)

    DDR4 SODIMM memory module with 2400 MT/s and 8GB RAM

    DDR4-SODIMM-2400 (16GB) (P/N 068792)

    DDR4 SODIMM memory module with 2400 MT/s and 16GB RAM

    DDR4-SODIMM-2400 ECC (4GB) (P/N 068795)

    4 GByte ECC DDR4 SODIMM memory module | 2400 MT/s (PC4-2400) | 260 pin | supply voltage 1,2V

    DDR4-SODIMM-2400 ECC (8GB) (P/N 068796)

    8 GByte ECC DDR4 SODIMM memory module | 2400 MT/s (PC4-2400) | 260 pin | supply voltage 1,2V

    DDR4-SODIMM-2400 ECC (16GB) (P/N 068797)

    16 GByte ECC DDR4 SODIMM memory module | 2400 MT/s (PC4-2400) | 260 pin | supply voltage 1,2V

    Carrierboards

    conga-TEVAL (P/N 065800)

    Evaluation Carrier Board for COM Express Type 6 Modules.

    Module services

    Design-In Training (P/N 27000001)

    Design-Training to develop carrier boards for Computer on Modules

    Conformal Coating COM Express Basic and Compact (P/N )

    HumiSeal® 1A33 coating for COM Express Basic and Compact modules; MIL-I-46058C qualified, IPC-CC-830 and
    RoHS Directive 2002/95/EC compliant and recognized under UL File Number E105698.

    Ext. temperature screening (-40°C to +85°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Ext. temperature screening (-25°C to +80°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Accessories

    More about conga-LDVI

    conga-LDVI

    DVI Converter Module for LVDS

    More about conga-TEVAL/COMe 2.1 (EOL)

    conga-TEVAL/COMe 2.1 (EOL)

    Evaluation Carrier Board for COM Express® Type 6 Modules Rev. 2.1
