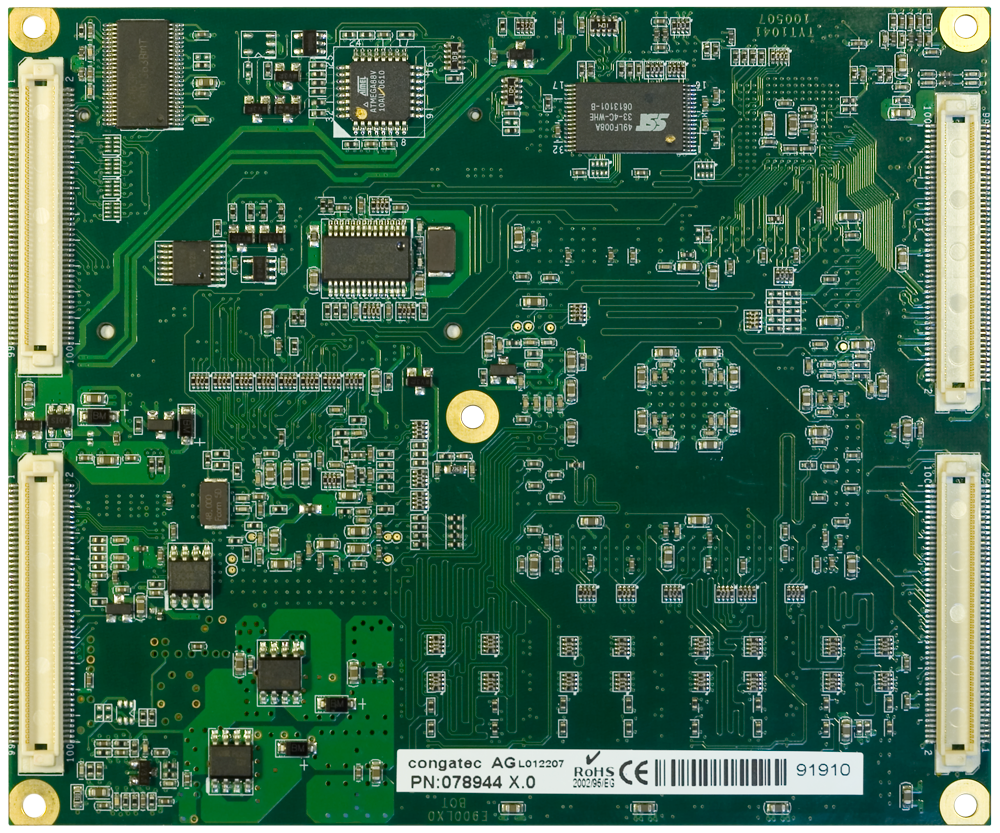

  • conga-ELXeco (EOL) Image 1

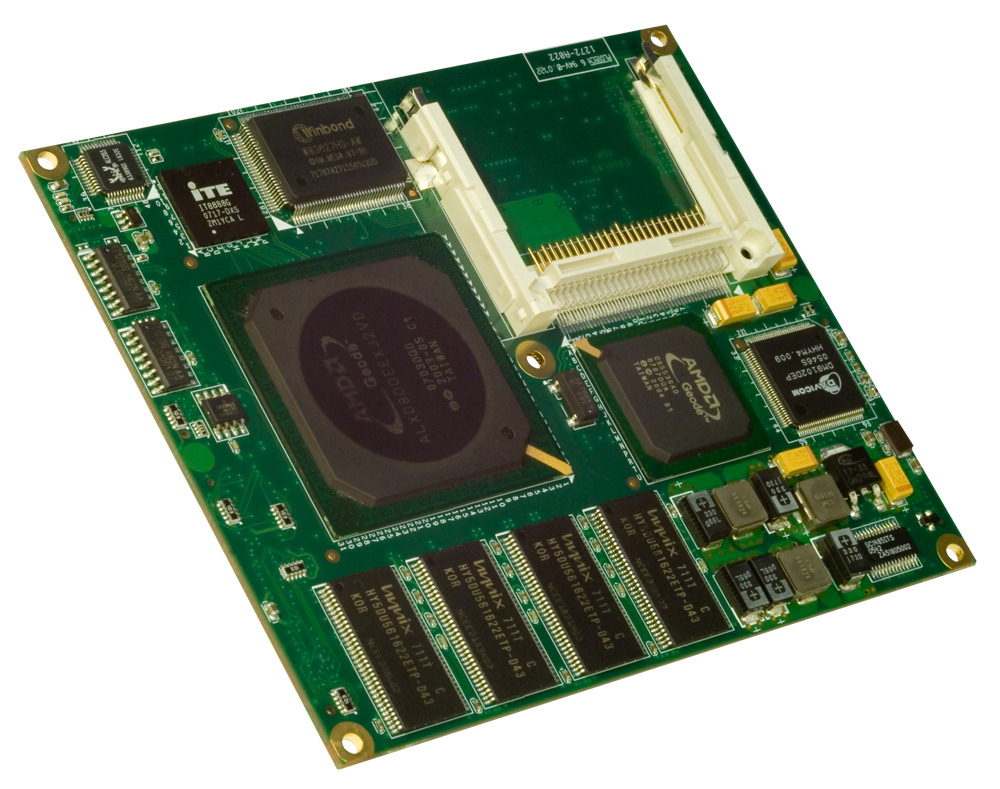

  • conga-ELXeco (EOL) Image 2

Your item has been added to the inquiry

conga-ELXeco (EOL) Image

conga-ELXeco (EOL)

AMD Geode LX 800, オンボード DRAM, PCI2ISA ブリッジ, エコ バージョンベースのETX® 組込 コンピューター モジュール

Selected module variant

    Selected ecosystem parts

    Cooling Solutions

      Value adding ecosystem offerings


      Cooling Solutions

      conga-ELXeco (EOL)

      AMD Geode LX 800, オンボード DRAM, PCI2ISA ブリッジ, エコ バージョンベースのETX® 組込 コンピューター モジュール

        • 低消費電力ETXモジュール
        • AMD® Geode™ LX800 プロセッサー 500MHz
        • オンボードDRAM
        • LPCからISAへのブリッジ

          Specification

          Formfactor
          ETX
          CPU
          AMD Geode™ LX 800 (1 x 0.5 GHz, 128 KB)
          DRAM
          onboard 256 MByte
          Ethernet
          IEEE 802.3u 100Base-Tx
          IEEE 802.3u 100Base-Tx , Fast Ethernet compatible
          I/O Interfaces
          1 x EIDE (UDMA-66/100)
          4 x USB 2.0
          1 x Compact Flash®
          PCI bus Rev. 2.3
          I²C bus
          LPT
          2 x COM Port TTl Level
          1 x IrDA Port
          Graphics
          Integrated in chipset
          UMA, up to 254 MByte graphic memory space
          congatec Board Controller
          Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
          embedded BIOS Features
          OEM Logo
          OEM CMOS Defaults
          LCD Control
          Backlight Control
          Flash Update
          Power Management
          APM 1.2
          Operating Systems
          Microsoft® Windows® XP
          Microsoft® Windows® CE 6.0
          Linux
          Microsoft® Windows® embedded Standard
          Temperature
          Standard
          Operating: 0 to +60°C Storage: -20 to +80°C
          Humidity
          Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
          Video Interfaces
          1 x LVDS 1x18
          1 x VGA
          Size
          95 x 114 mm (3,7" x 4,5")

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Application Note

          AN03 Watchdog This application note describes the Watchdog feature found on congatec AG modules. It explains the full feature set, however some items may not be applicable for systems which do not support all Watchdog features.
          15.06.2015
          AN04 EEV-EX01 This Application Note provides information about the restraints on the congatec ETX modules, when it is used in the ETX Evaluation Baseboard EEV-EX01 from Evalue Technology Inc., and how they can be eliminated.
          15.06.2015
          AN06 BIOS Recovery This application note describes how to recover the congatec Embedded BIOS on congatec CPU modules.
          18.08.2025
          AN8 Create OEM Default Map CGUTIL: This application note describes how to create and add OEM CMOS default maps with the congatec System Utility tool.
          30.10.2024
          AN09 RTC Battery Lifetime This application note is a short example of how to calculate the maximum battery service time when a specified RTC circuit battery type must be used. Additionally, it also describes how to determine the required RTC circuit battery capacity when a specified battery service time is required.
          04.12.2024
          AN11 Create And Add Bootlogo CGUTIL: This application note describes how to create and add a OEM Bootlogo to the congatec embedded BIOS using the congatec System Utility tool.
          30.10.2024
          AN12 Modify EPI File CGUTIL: This Application Note is intended to explain how EPI (Embedded Panel Interface) display configuration files can be created or modified with the congatec System Utility tool.
          15.06.2015
          AN13 Load BIOS Setup Defaults This Application Note is intended to explain how the embedded BIOS of the congatec CPU modules can be forced to load the BIOS defaults settings (manufacturer settings)when the BIOS setup was changed in a way that the module is not able to boot anymore.
          15.06.2015
          AN14 ETX XTX Mounting Solutions This Application Note is intended to explain how the embedded BIOS of the congatec CPU modules can be forced to load the BIOS defaults settings (manufacturer settings)when the BIOS setup was changed in a way that the module is not able to boot anymore.
          15.06.2015
          AN22 Install Windows Without USB ROM Drive This Application Note provides information about the installation of Windows XP or Windows 7 when a USB powered CDROM does not work.
          15.06.2015

          Manual

          User's Guide congatec System Utility The intention of the congatec System Utility is to provide a common tool for all congatec COM (Computer on Module) products, which allows you to perform various standard and congatec specific system or BIOS configuration and modification tasks. The utility consists of six main function modules: 1. BIOS Update Module Offers functions to update the system BIOS of a congatec board. 2. Firmware Update Module Offers functions to update the firmware of the congatec board controller. 3. Panel Configuration Module Offers functions to support or ease local flat panel configuration. 4. BIOS Module Modification Module Offers functions to customize a standard congatec system BIOS by adding OEM defined BIOS modules such as boot logos, CMOS default or backup maps and OEM code or data modules. 5. BIOS/Board Information Module Offers functions to easily gather congatec specific BIOS and hardware information 6. BIOS Setup Configuration Module Offers functions to modify the standard BIOS setup menu (only supported for AMIBIOS based products).
          15.06.2015
          User's Guide CGOS API Certain hardware features found on congatec AG modules are only accessible through the use of a specialized API developed by congatec AG called CGOS API (congatec operating system application program interface). The CGOS library interface provides access to these features in a hardware independent manner when using common 32-bit operating systems. The interface works under any version of Win32, as well as other operating systems. Driver support is provided for the following: Microsoft® Windows® NT Microsoft® Windows® CE Microsoft® Windows® 98 SE Microsoft® Windows® 2000 Microsoft® Windows® XP Microsoft® Windows® XP embedded Linux QNX
          15.06.2015

          Data Sheet

          15.06.2015

          Software

          DOS

          CGOSAPIm14.pdf
          04.04.2017 / 1.07 MB
          CGOS API programmers manual
          LX800_Bootlogo.zip
          07.12.2006 / 154.04 KB
          This installation guide is designed to help you create and install an OEM Boot Logo BIOS Module using the congatec System Utility tool on CPU modules equipped with AMD LX800 CPUs

          Linux

          CGOSAPIm14.pdf
          04.04.2017 / 1.07 MB
          CGOS API programmers manual
          cgoslx-x32-1.03.022.tar.gz
          12.09.2016 / 50.38 KB
          CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
          CgosPy_1_3.zip
          23.07.2024 / 655.40 KB
          CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
          cgutillx.tar
          04.07.2023 / 3.93 MB
          congatec System Utility Rev. 1.6.2
          Use for BIOS update or customization and panel configuration. Linux source version.
          Important note: Only compatible with cgos 1.03.032 and older!
          CGUTILm16.pdf
          02.07.2020 / 2.67 MB
          congatec System Utility Users Guide
          cgutlcmd_linux_1.7.0.1.zip
          01.08.2024 / 2.32 MB
          congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
          conga_DIG_Linux.pdf
          01.08.2006 / 88.16 KB
          Linux Driver Installation Guide for congatec CPU modules
          Linux-2.6.11-lx800.zip
          19.12.2005 / 890.25 KB
          Linux Board Support Package for conga-CLX and conga-XLX

          QNX

          CGOSAPIm14.pdf
          04.04.2017 / 1.07 MB
          CGOS API programmers manual
          cgosqx.tar.gz
          10.08.2012 / 53.92 KB
          Public CGOS API Rev. 1.03.020 for QNX 6.x

          Windows 2000

          Castle_AES_W2k_1.0.zip
          10.03.2006 / 750.00 B
          Dummy Win2k AES .inf File for AMD Geode(TM) LX800 to fix device manager dependencies.
          AMD Geode(TM) LX Processor/CS5535 Companion Device WindowsXP/2K WDM Audio Driver, Ver.2.01.04, May 17, 2005
          dm9pci_win32.zip
          12.07.2006 / 73.48 KB
          Davicom Chipset Ethernet Driver for DM9102
          AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) 2K Display Driver, Version 3.1.0.0, Feb 02, 2006

          Windows CE

          cgce.msi
          04.06.2007 / 2.19 MB
          Board Support Package Rev. 2.1 for congatec CPU modules. Contains WindowsCE 5.0 driver files for video, sound and network.
          cgce6.zip
          15.03.2013 / 9.81 MB
          Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.
          CGOSAPIm14.pdf
          04.04.2017 / 1.07 MB
          CGOS API programmers manual
          conga_DIG_WinCE.pdf
          04.06.2007 / 120.86 KB
          Windows CE 5.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules
          conga_DIG_WinCE6.pdf
          10.08.2012 / 85.22 KB
          Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules

          Windows Server 2016

          cgutlcmd_win_1.7.0.1.zip
          01.08.2024 / 18.41 MB
          congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

          Windows Server 2019

          cgutlcmd_win_1.7.0.1.zip
          01.08.2024 / 18.41 MB
          congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

          Windows XP

          AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) XP AES Driver, Version 2.00.03, May 17, 2005
          AMD Geode(TM) LX Processor/CS5535 Companion Device WindowsXP/2K WDM Audio Driver, Ver.2.01.04, May 17, 2005
          Cgos-x32-x64.zip
          17.08.2018 / 384.88 KB
          CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
          CGOSAPIm14.pdf
          04.04.2017 / 1.07 MB
          CGOS API programmers manual
          CgosClr.zip
          22.02.2016 / 40.98 KB
          CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
          conga_DIG_WinXP.pdf
          16.09.2008 / 131.91 KB
          Windows XP Driver Installation Guide for all congatec CPU modules
          EapiCgos-x32-x64.zip
          07.08.2013 / 71.75 KB
          EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
          LX800_Bootlogo.zip
          07.12.2006 / 154.04 KB
          This installation guide is designed to help you create and install an OEM Boot Logo BIOS Module using the congatec System Utility tool on CPU modules equipped with AMD LX800 CPUs
          AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) 2K Display Driver, Version 3.1.0.0, Feb 02, 2006

          Windows XP embedded

          CGOSAPIm14.pdf
          04.04.2017 / 1.07 MB
          CGOS API programmers manual
          cgxpe.zip
          14.05.2012 / 48.75 MB
          Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files for video, SATA, sound, network and CGOS API.
          conga_DIG_WinXPE.pdf
          14.05.2012 / 102.41 KB
          Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

          Product Variants

          conga-ELXeco-128-LVDS (P/N 078944)
          ETX module with AMD Geode LX 800 with onboard 128 MByte RAM and LVDS-graphics interface. 500MHz, 128kByteL2-Cache, Companion Chip CS5536AD, ISA-bus via PCItoISA-Bridge.
          conga-ELXeco-256-LVDS (P/N 085431)
          ETX module with AMD Geode LX 800 with onboard 256 MByte RAM and LVDS-graphics interface. 500MHz, 128kByteL2-Cache, Companion Chip CS5536AD, ISA-bus via PCItoISA-Bridge.
          conga-ELXeco-256-TTL (P/N 012247)
          ETX module with AMD Geode LX 800 with onboard 256 MByte RAM and TTL-graphics interface (Advantech mapping) 500MHz, 128kByteL2-Cache, Companion Chip CS5536AD, ISA-bus via PCItoISA-Bridge.
