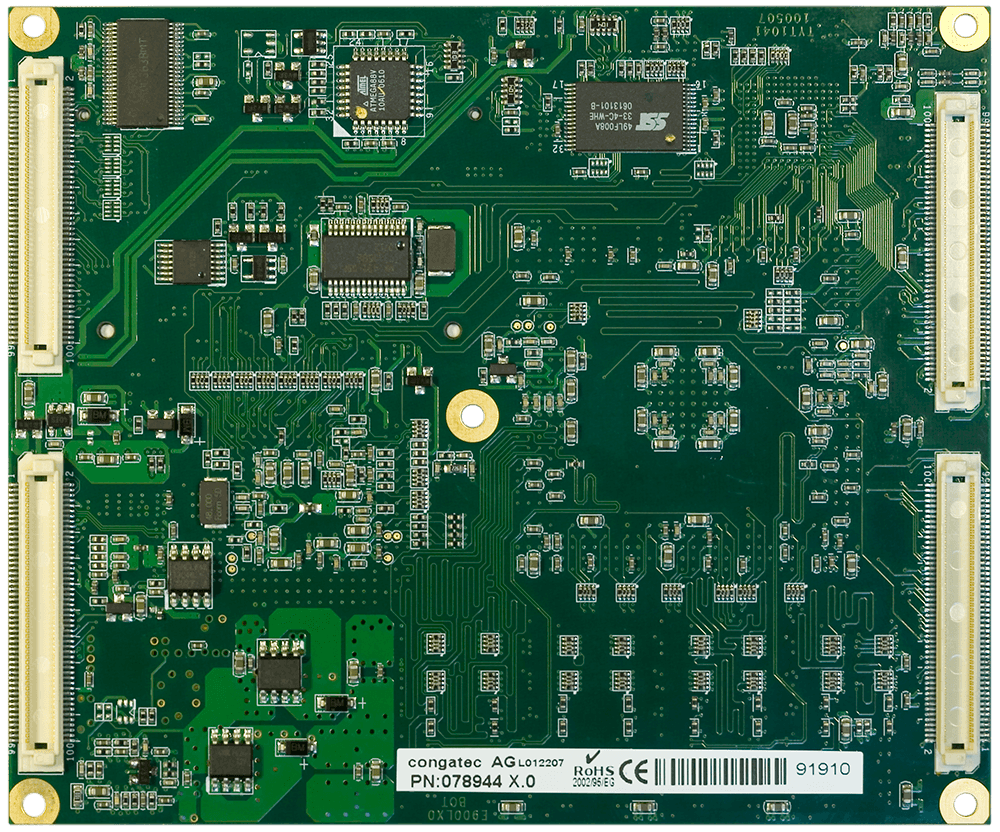

  • conga-ELXeco (End of Life) Image 1
  • conga-ELXeco (End of Life) Image 2

conga-ELXeco (End of Life)

ETX® Embedded Computer Modul based on AMD Geode LX 800, onboard DRAM, PCI2ISA Bridge, eco version

  • Low Power ETX Module
  • AMD® Geode™ LX800 processor 500MHz
  • On Board DRAM
  • PCI2ISA Bridge
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling solutions

Specification

Formfactor
ETX
CPU
AMD Geode™ LX 800 (1 x 0.5 GHz, 128 KB)
DRAM
onboard 256 MByte
Ethernet
IEEE 802.3u 100Base-Tx
IEEE 802.3u 100Base-Tx , Fast Ethernet compatible
I/O Interfaces
1 x EIDE (UDMA-66/100)
4 x USB 2.0
1 x Compact Flash®
PCI bus Rev. 2.3
I²C bus
LPT
2 x COM Port TTl Level
1 x IrDA Port
Graphics
Integrated in chipset
UMA, up to 254 MByte graphic memory space
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features
OEM Logo
OEM CMOS Defaults
LCD Control
Backlight Control
Flash Update
Power Management
APM 1.2
Operating Systems
Microsoft® Windows® XP
Microsoft® Windows® CE 6.0
Linux
Microsoft® Windows® embedded Standard
Temperature
Standard
Operating: 0 to +60°CStorage: -20 to +80°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
1 x LVDS 1x18
1 x VGA
Size
95 x 114 mm (3,7" x 4,5")

Documents

All documents found on this page are updated without notification. Always check this page forthe latestversion.

Data Sheet

conga-ELXeco
15.06.2015

Manual

User's Guide ELXeco
15.06.2015
User's Guide congatec System Utility
15.06.2015
User's Guide CGOS API
15.06.2015

Application Note

AN03 Watchdog
15.06.2015
AN04 EEV-EX01
15.06.2015
AN06 BIOS Recovery
15.06.2015
AN8 Create OEM Default Map
02.03.2021
AN09 RTC Battery Lifetime
05.10.2022
AN11 Create And Add Bootlogo
15.06.2015
AN12 Modify EPI File
15.06.2015
AN13 Load BIOS Setup Defaults
15.06.2015
AN14 ETX XTX Mounting Solutions
15.06.2015
AN22 Install Windows Without USB ROM Drive
15.06.2015

Software

[ DOS ]      [ Linux ]      [ QNX ]      [ Windows 2000 ]      [ Windows CE ]      [ Windows XP ]      [ Windows XP embedded ]

DOS

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
LX800_Bootlogo.zip
07.12.2006 / 154.04 KB
This installation guide is designed to help you create and install an OEM Boot Logo BIOS Module using the congatec System Utility tool on CPU modules equipped with AMD LX800 CPUs

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x32-1.03.022.tar.gz
12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutillx.tar
01.12.2021 / 3.91 MB
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.Linux source version.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration.Linux source version.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
conga_DIG_Linux.pdf
01.08.2006 / 88.16 KB
Linux Driver Installation Guide for congatec CPU modules
Linux-2.6.11-lx800.zip
19.12.2005 / 890.25 KB
Linux Board Support Package for conga-CLX and conga-XLX

QNX

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgosqx.tar.gz
10.08.2012 / 53.92 KB
Public CGOS API Rev. 1.03.020 for QNX 6.x

Windows 2000

Castle_AES_W2k_1.0.zip
10.03.2006 / 750.00 B
Dummy Win2k AES .inf File for AMD Geode(TM) LX800 to fix device manager dependencies.
Castle_XP_XPe_WDM_Audio_v2.01.04.zip
14.12.2005 / 229.66 KB
AMD Geode(TM) LX Processor/CS5535 Companion Device WindowsXP/2K WDM Audio Driver, Ver.2.01.04, May 17, 2005
dm9pci_win32.zip
12.07.2006 / 73.48 KB
Davicom Chipset Ethernet Driver for DM9102
Norwich_Win2k_Graphics_v3.01.00.zip
09.03.2006 / 100.21 KB
AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) 2K Display Driver, Version 3.1.0.0, Feb 02, 2006

Windows CE

cgce.msi
04.06.2007 / 2.19 MB
Board Support Package Rev. 2.1 for congatec CPU modules. Contains WindowsCE 5.0 driver files for video, sound and network.
cgce6.zip
15.03.2013 / 9.81 MB
Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
conga_DIG_WinCE.pdf
04.06.2007 / 120.86 KB
Windows CE 5.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules
conga_DIG_WinCE6.pdf
10.08.2012 / 85.22 KB
Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules

Windows XP

Castle_XP_WDM_AES_v2.00.03.zip
14.12.2005 / 21.62 KB
AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) XP AES Driver, Version 2.00.03, May 17, 2005
Castle_XP_XPe_WDM_Audio_v2.01.04.zip
14.12.2005 / 229.66 KB
AMD Geode(TM) LX Processor/CS5535 Companion Device WindowsXP/2K WDM Audio Driver, Ver.2.01.04, May 17, 2005
Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
conga_DIG_WinXP.pdf
16.09.2008 / 131.91 KB
Windows XP Driver Installation Guide for all congatec CPU modules
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
LX800_Bootlogo.zip
07.12.2006 / 154.04 KB
This installation guide is designed to help you create and install an OEM Boot Logo BIOS Module using the congatec System Utility tool on CPU modules equipped with AMD LX800 CPUs
Norwich_Win2k_Graphics_v3.01.00.zip
09.03.2006 / 100.21 KB
AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) 2K Display Driver, Version 3.1.0.0, Feb 02, 2006

Windows XP embedded

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgxpe.zip
14.05.2012 / 48.75 MB
Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API.
conga_DIG_WinXPE.pdf
14.05.2012 / 102.41 KB
Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

Product Variants

conga-ELXeco-128-LVDS (P/N 078944)
ETX module with AMD Geode LX 800 with onboard 128 MByte RAM and LVDS-graphics interface. 500MHz, 128kByteL2-Cache, Companion Chip CS5536AD, ISA-bus via PCItoISA-Bridge.
conga-ELXeco-256-LVDS (P/N 085431)
ETX module with AMD Geode LX 800 with onboard 256 MByte RAM and LVDS-graphics interface. 500MHz, 128kByteL2-Cache, Companion Chip CS5536AD, ISA-bus via PCItoISA-Bridge.
conga-ELXeco-256-TTL (P/N 012247)
ETX module with AMD Geode LX 800 with onboard 256 MByte RAM and TTL-graphics interface (Advantech mapping) 500MHz, 128kByteL2-Cache, Companion Chip CS5536AD, ISA-bus via PCItoISA-Bridge.
