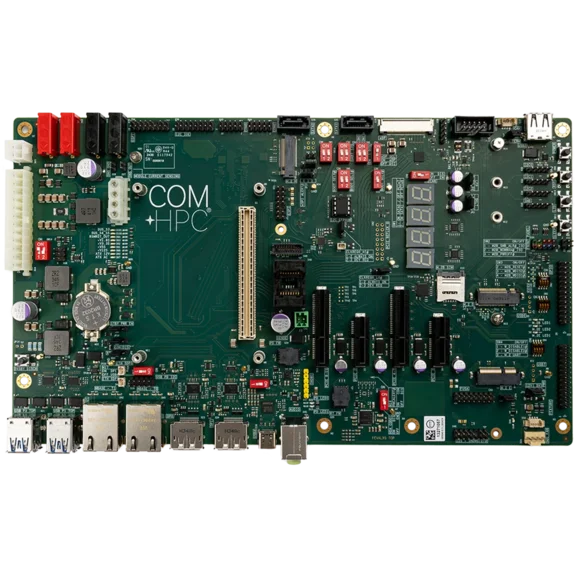

conga-HPC/EVAL-Mini Preview image

Your item has been added to the inquiry

conga-HPC/EVAL-Mini Image

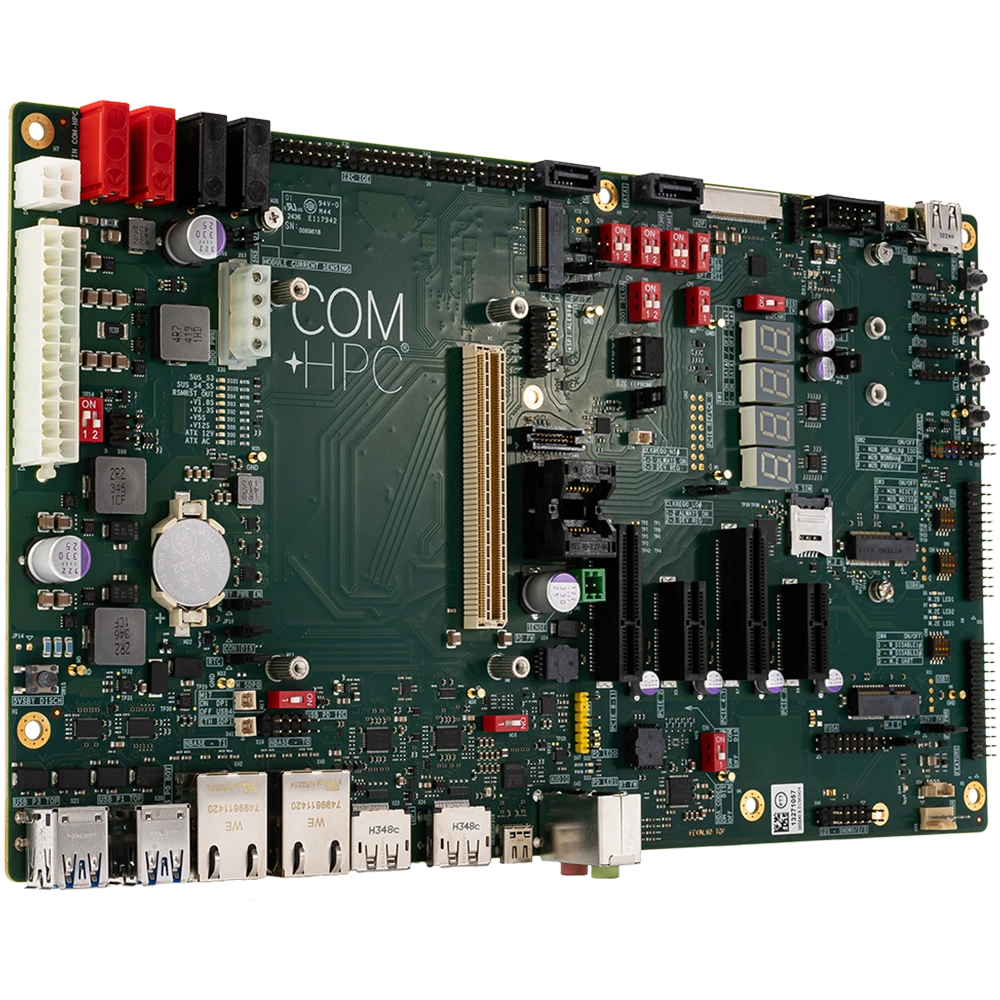

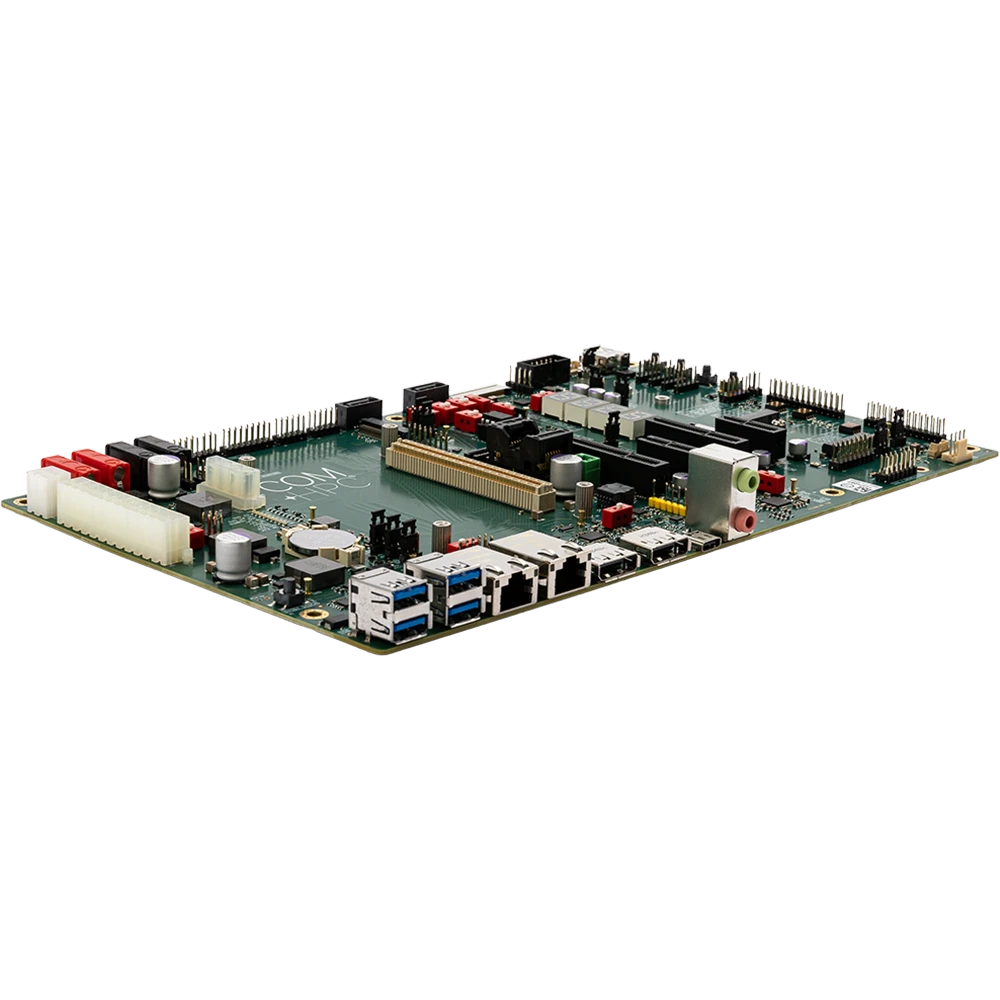

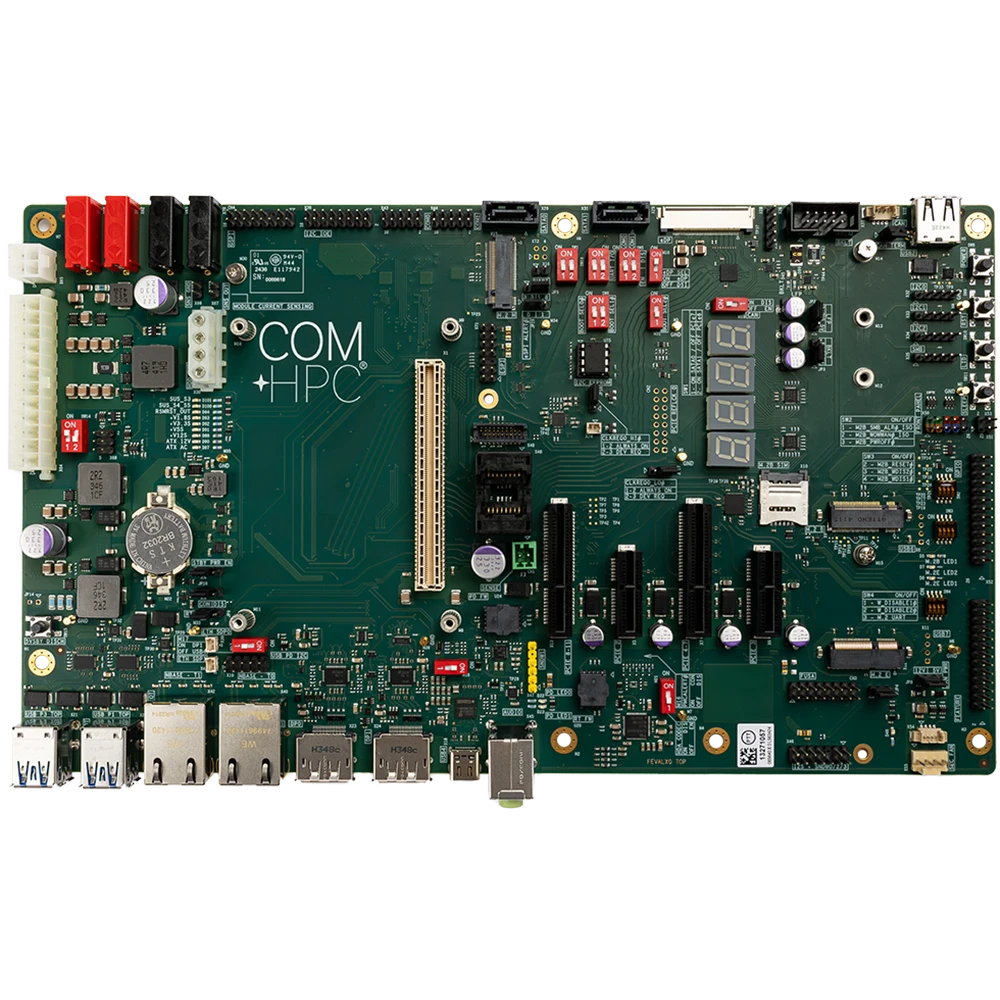

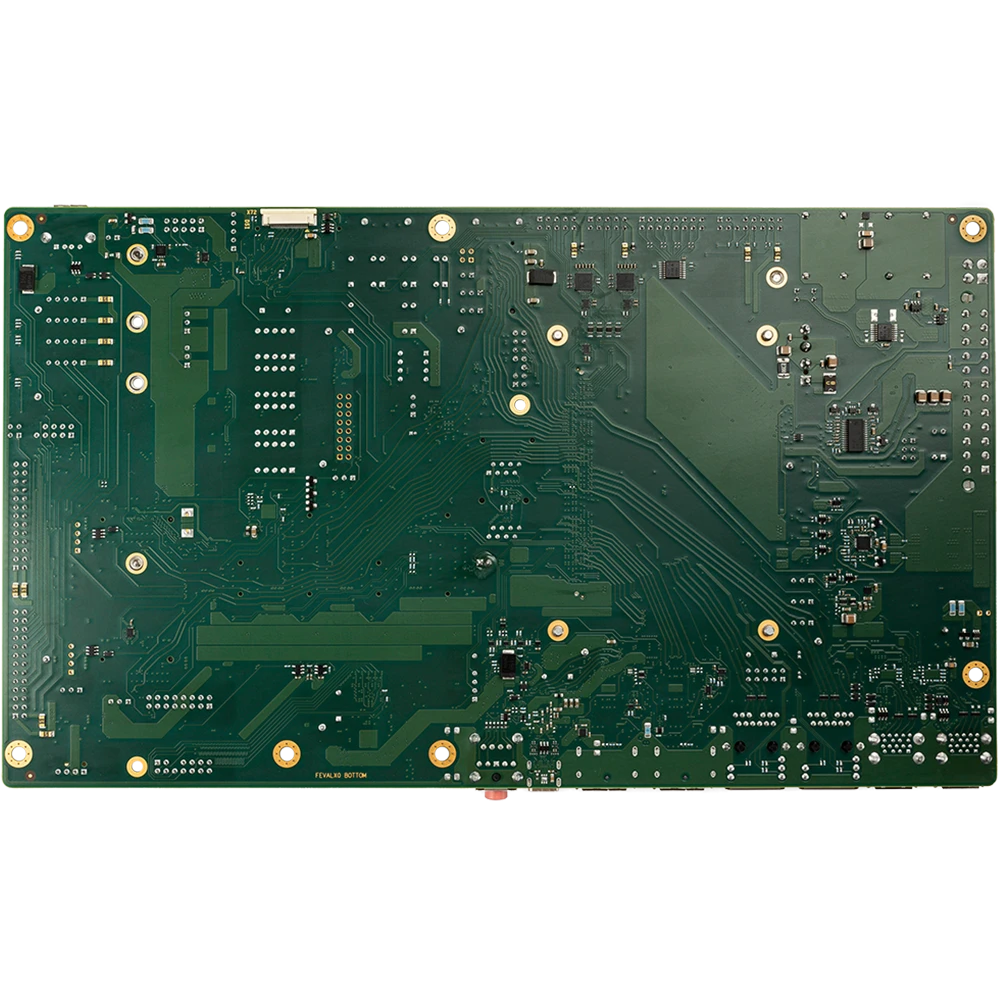

conga-HPC/EVAL-Mini

Evaluation Carrier Board for COM-HPC Mini Type Modules

Selected product variant

    Selected ecosystem parts

    Carrierboards

      Request quote Add more articles

      conga-HPC/EVAL-Mini

      Evaluation Carrier Board for COM-HPC Mini Type Modules

      • Evaluation Carrier for COM-HPC Mini Modules
      • Routing of the entire signals provided by COM HPC Module Base Specification to standard interface connectors

      Specification


      BOARD TYPEEvaluation Carrier Board for COM-HPC Mini Type Modules
      INTERNAL IOPCIe Gen4 x4 socket (shared with SATA 0/1)
      PCIe Gen4 x4 socket
      2x PCIe Gen4 x1 socket
      M.2 Key M 2280 PCIe Gen4 x4
      M.2 Key E 2230 (PCIe, USB 2)
      M.2 Key B 2242/3042, 2280 (PCIe, USB 2) with SIM card slot connected to UIM interface
      USB 2 Type-A
      2x SATA III (shared with PCIe 6/7)
      eDP/MIPI DSI
      SoundWire 0/2/3 shared with I2S on pin header or HDA CODEC
      SoundWire 1 on pin header
      Power button
      Reset button
      Sleep button
      LID button
      Feature Connector
      12x GPIO
      SMB
      3x I2C
      eSPI header
      General Purpose SPI header
      2x UART
      CAN header
      FUSA header
      System Fan PWM controlled
      SPI flash socket
      Postcode display
      RTC CMOS battery holder
      ATX standard power input 24pin / P4
      AT banana jacks 8-20V
      EXTERNAL IO2x 10GbE RJ45
      4x USB 3.2 Gen2 x1 10Gb/s double stacked
      USB 4 Type-C
      2x DP++ (one DP++ shared with USB4 Type-C)
      Audio HDA
      POWER SPECIFICATIONDC-In 8 - 20V
      OPERATING SYSTEMSMicrosoft® Windows 11
      Microsoft® Windows 11 IoT Enterprise
      Microsoft® Windows 10
      Microsoft® Windows 10 IoT Enterprise
      Linux
      Yocto
      TEMPERATURE RANGEOperation: -40°C to 85°C
      Storage: -40°C to 85°C
      HUMIDITYOperation: 10% to 85% r. H. non cond.
      Storage: 5% to 85% r. H. non cond.
      SIZEapprox. 294 x 172 mm

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.

      Manual
      User's Guide for conga-HPC/EVAL-Mini 22.01.2026
      Data Sheet
      Datasheet of conga-HPC/EVAL-Mini 19.10.2026
      Schematics
      Schematics for conga-HPC/EVAL-Mini 16.01.2026

      Ecosystem Details

      Carrierboards

      conga-HPC/EVAL-Mini (P/N 065640)

      Evaluation Carrier Board for COM-HPC Mini modules.
