COM Express Type 7

With the new revision 3.0 of the most successful Computer-on-Module standard a new pinout Type is added to extend the reach of COM Express to server Type applications.

COM Express is a Computer-on-Module standard defined by the PICMG consortium (www.picmg. org). The first version was release in 2005 with updates in 2010 and 2012. The upcoming revision 3.0 defines 4 different sizes and 3 pinouts.

The new Type 7 is not a replacement for the well-established Type 6 pinout. It trades all audio and video interfaces for four 10G Ethernet ports and a total of 32 PCI Express lanes in order to support enhanced micro servers and other server Type applications that only allow for low power consumption but require high computing performance and communication throughput.

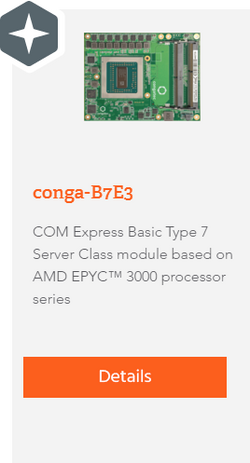

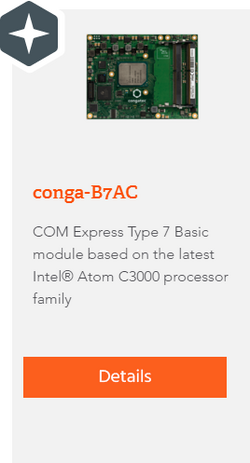

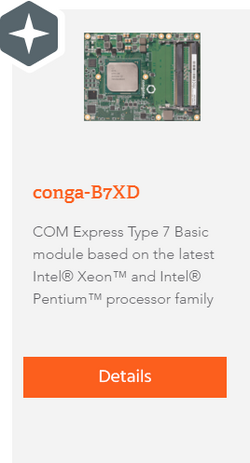

Have a look at our COM Express Type 7 Basic modules:



Type 7 COM Express modules can provide a maximum of features



  • 4x 10GBaseKR Ethernet with NC-SI
  • 32x PCI Express 3.0 Lanes
  • 8x GPIO shared with SDIO
  • 2x Serial shared with CAN
  • LPC bus shared with eSPI
  • SPI and I²C bus
  • 1x 1GB Ethernet
  • 2x SATA



Do you want to learn more about our COM Express Type 7 modules?

Download our Whitepapers!



Rugged 10 GbE infrastructure equipment

The new COM Express® Type 7 specification defines high-end Server-on-Modules that support multiple 10 GbE connections. The modules simplify and optimize the design of infrastructure equipment in rugged environments, in particular with regards to the specific size, weight and power restraints of these applications.



Download Whitepaper

Closing the loop on industrial manufacturing efficiency

As industrial manufacturers look to capitalize on the efficiency and insights of Industry 4.0 they must transition their electronics infrastructure to support intelligence at the edge of operational networks.



Download Whitepaper

COM Express Type 7 Whitepaper

COM Express is heading towards “Server-on-Module”



Download Whitepaper
