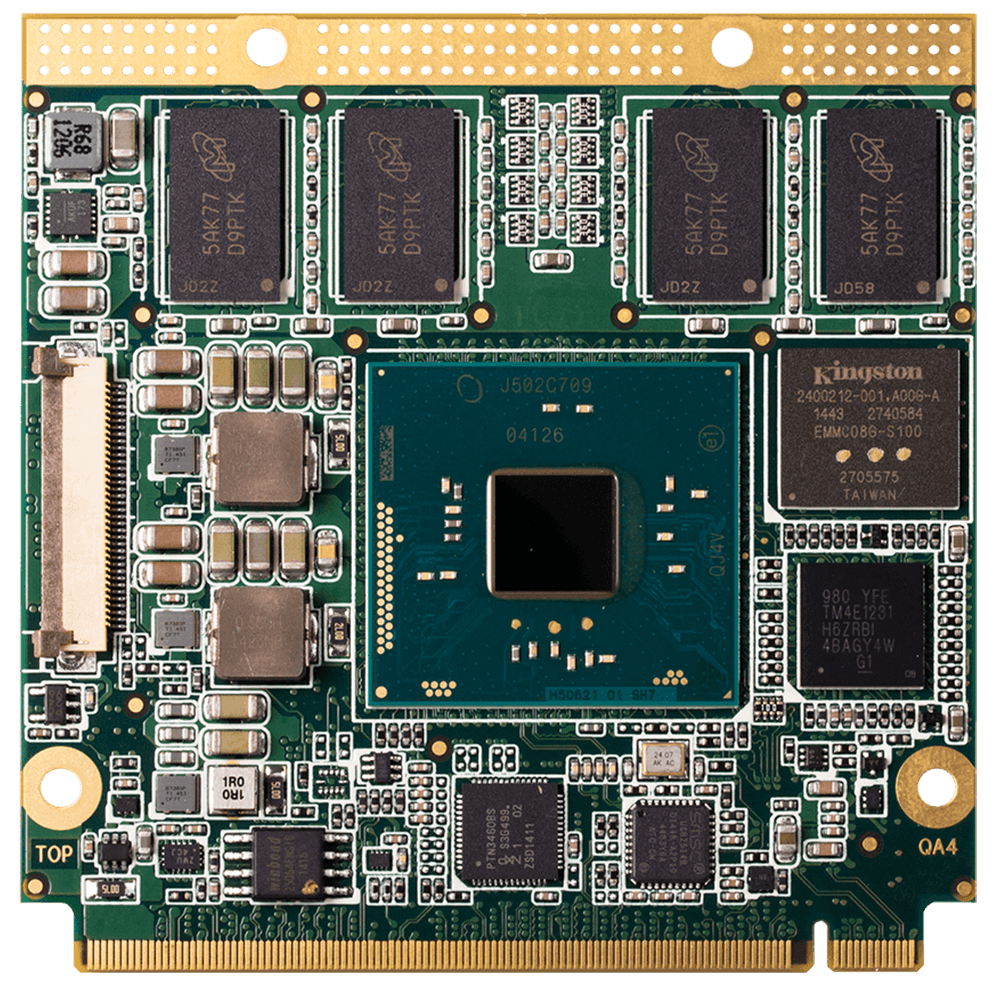

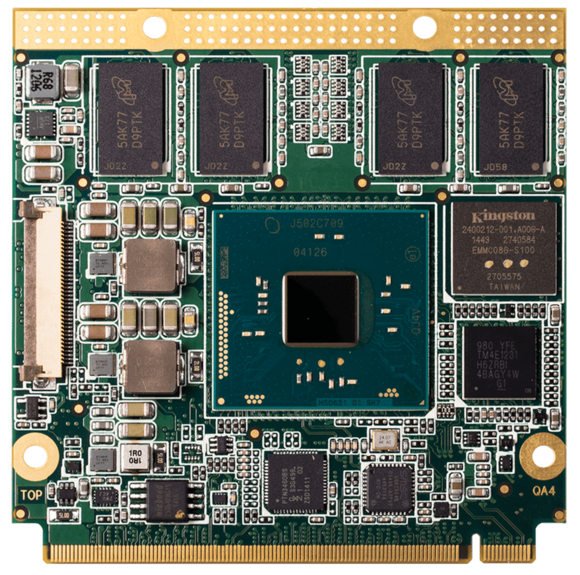

conga-QA4 (EOL)

Highest performance Qseven module with 4th Generation Intel® Atom™ / Celeron® processors

Selected module variant

Value adding ecosystem offerings


Cooling Solutions

conga-QA4 (EOL)

Highest performance Qseven module with 4th Generation Intel® Atom™ / Celeron® processors

  • First Intel® Pentium® QuadCore on Qseven
  • High performance Intel® Gen. 8 graphics
  • Up to 4k resolution (3840x2160px)
  • 3x independent display support optional
  • HW accelerating Video decoding with H.265/HEVC
  • Fast I/Os SATA3, USB 3.0 and PCIe 2.0

Specification

Formfactor
Qseven
CPU
Intel® Atom™ x5-E8000 (4 x 1.04 GHz, 2MB L2 cache, 5W)
Intel® Celeron® N3160 (4 x 1.6 GHz, 2MB L2 cache, 6W)
Intel® Celeron® N3060 (2 x 1.6 GHz, 2MB L2 cache, 6W)
Intel® Celeron® N3010 (2 x 1.04 GHz, 2MB L2 cache, 4W)
Intel® Pentium® N3710 (4 x 1.6 GHz, 2MB L2 cache, 6W)
DRAM
up to 8GB onboard DDR3L with 1600 MT/s
Ethernet
Intel® I211 Gigabit Ethernet controller
I/O Interfaces
2 x SATA3
1 x SDIO
3 x PCI Express 2.0
I²C bus
LPC bus
1 x SPI
Graphics
Intel® HD Graphics Gen 8
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features
AMI Aptio® 2.X (UEFI) firmware
8 MByte serial SPI firmware flash
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Power Management
ACPI 5 .0 compliant, Smart Battery Management
Operating Systems
Microsoft® Windows® 10
Microsoft® Windows® 7
Microsoft Windows 8 embedded
Windows Embedded Compact 7
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
DP++ up to 3840x2160px
support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz
Size
70 x 70 mm (2,75" x 2,75")

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet

30.10.2024

Software

DOS

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x32-1.03.022.tar.gz
12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.1.zip
06.09.2024 / 184.47 KB
CGOS direct driver for Linux.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration. Linux source version.
Important note: Only compatible with cgos 1.03.032 and older!
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Windows 10

bswmipicamerabuild540.zip
17.09.2015 / 42.30 MB
Intel Braswell Windows 8.1 and Windows 10 Camera Driver Rev 840
CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset_10.1.1.14_Public.zip
27.04.2016 / 2.70 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.1.14
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
PROWin32_20.7.exe
27.04.2016 / 25.42 MB
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 20.7
PROWinx64_21.1.exe
13.02.2017 / 77.57 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 21.1
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
Intel IO Drivers for Braswell platform. (NOTE: This package does not offer a COM Port interface)
Intel Trusted Execution Engine 32/64 Bit v.2.0.4.3098
win32_15.40.29.4509.zip
28.09.2016 / 112.33 MB
Intel HD Graphics Driver for Windows 7/8/10 32Bit Rev. 15.40.29.4509
Win32_IAIOSD.zip
26.11.2018 / 66.47 KB
INF file for installing the Intel Processor SD Host Controller on 32 Bit Windows
win64_15.40.29.64.4509.zip
28.09.2016 / 203.15 MB
Intel HD Graphics Driver for Windows 7/8/10 64Bit Rev. 15.40.29.64.4509.
win64_IAIOSD.zip
26.11.2018 / 78.13 KB
INF file for installing the Intel Processor SD Host Controller on 64 Bit Windows

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
cgw10ltx64_r17.zip
23.05.2016 / 938.15 MB
Board Support Package for congatec CPU modules - Rev. 1.7. Contains 64bit Windows 10 IoT Enterprise LTSB driver files for video, SATA, sound, network.

Windows 10 IoT Core

cgw10core_r10.zip
20.11.2018 / 196.88 MB
Board Support Package for congatec CPU modules - Rev. 1.0. Contains 64bit Windows 10 IoT Core driver files for video, SATA, sound, network.

Windows 7

Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Chipset_10.1.1.14_Public.zip
27.04.2016 / 2.70 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.1.14
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel 32/64 Bit IO Drivers for Brasswell platform Rev. MR1
Intel(R) USB 3.0 eXtensible Host Controller Driver Rev. 4.0.4.51
PROWin32_20.7.exe
27.04.2016 / 25.42 MB
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 20.7
PROWinx64_21.1.exe
13.02.2017 / 77.57 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 21.1
QA4_USB_Win7.zip
21.09.2015 / 3.15 MB
This ZIP file includes files and instructions to install Windows 7 on a Congatec Braswell module.
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
SD_eMMC_Patch.zip
27.07.2015 / 307.61 KB
Windows hotfix to be applied before I/O driver installation to fix the known SD / eMMC data corruption issue.
Intel Trusted Execution Engine 32/64 Bit v.2.0.4.3098
win32_15.40.29.4509.zip
28.09.2016 / 112.33 MB
Intel HD Graphics Driver for Windows 7/8/10 32Bit Rev. 15.40.29.4509
Win32_IAIOSD.zip
26.11.2018 / 66.47 KB
INF file for installing the Intel Processor SD Host Controller on 32 Bit Windows
win64_15.40.29.64.4509.zip
28.09.2016 / 203.15 MB
Intel HD Graphics Driver for Windows 7/8/10 64Bit Rev. 15.40.29.64.4509.
win64_IAIOSD.zip
26.11.2018 / 78.13 KB
INF file for installing the Intel Processor SD Host Controller on 64 Bit Windows

Windows 8

bswmipicamerabuild540.zip
17.09.2015 / 42.30 MB
Intel Braswell Windows 8.1 and Windows 10 Camera Driver Rev 840
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Chipset_10.1.1.14_Public.zip
27.04.2016 / 2.70 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.1.14
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
PROWin32_20.7.exe
27.04.2016 / 25.42 MB
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 20.7
PROWinx64_21.1.exe
13.02.2017 / 77.57 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 21.1
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
Intel IO Drivers for Braswell platform.
Intel Trusted Execution Engine 32/64 Bit v.2.0.4.3098
win32_15.40.29.4509.zip
28.09.2016 / 112.33 MB
Intel HD Graphics Driver for Windows 7/8/10 32Bit Rev. 15.40.29.4509
Win32_IAIOSD.zip
26.11.2018 / 66.47 KB
INF file for installing the Intel Processor SD Host Controller on 32 Bit Windows
win64_15.40.29.64.4509.zip
28.09.2016 / 203.15 MB
Intel HD Graphics Driver for Windows 7/8/10 64Bit Rev. 15.40.29.64.4509.
win64_IAIOSD.zip
26.11.2018 / 78.13 KB
INF file for installing the Intel Processor SD Host Controller on 64 Bit Windows

Windows 8 Embedded

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes8x64_r171.zip
19.08.2016 / 659.19 MB
Board Support Package for congatec CPU modules Rev. 1.7.1. Contains 64 Bit Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.
cgwes8_r171.zip
19.08.2016 / 372.86 MB
Board Support Package for congatec CPU modules Rev. 1.7.1. Contains 32 Bit Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.

Windows Embedded Standard 7

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes7x64_r17.zip
13.01.2016 / 906.88 MB
Board Support Package for congatec CPU modules Rev. 1.7. Contains 64bit Windows Embedded Standard 7 driver files for video, SATA, sound, network.
cgwes7_r17.zip
13.01.2016 / 548.62 MB
Board Support Package for congatec CPU modules Rev. 1.7. Contains 32 Bit Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.

yocto

Yocto 2.3 (pyro) sample image for congatec Braswell based boards
(core-image-minimal) yocto-2-3_release.170825
core-image-minimal-congatec-tca4-64-release.170825.hddimg.sha256
core-image-minimal-congatec-tca4-64.180814.hddimg.sha256
Yocto 2.5.1 (sumo) sample image for congatec Braswell based boards
(core-image-minimal) yocto-2-5-1_release.180814
Yocto 2.3 (pyro) sample image for congatec Braswell based boards
(core-image-sato) yocto-2-3_release.170825
core-image-sato-congatec-tca4-64-release.170825.hddimg.sha256
core-image-sato-congatec-tca4-64.180814.hddimg.sha256
Yocto 2.5.1 (sumo) sample image for congatec Braswell based boards
(core-image-sato) yocto-2-5-1_release.180814
image_deployment.7z
09.06.2017 / 4.80 KB
Instructions and tool for x86 Yocto demo image deployment.
README_Yocto-2-3-bsp.txt
17.11.2017 / 15.33 KB
Documentation for the congatec Yocto 2.3 (pyro) BSP for x86 platforms.
README_Yocto-2-5-1-bsp.txt
25.03.2019 / 15.49 KB
Documentation for the congatec Yocto 2.5.1 (sumo) BSP for x86 platforms.
README_Yocto-2-6-1-bsp.txt
25.03.2019 / 15.84 KB
Documentation for the congatec Yocto 2.6.1 (thud) BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-2-7-1-bsp.txt
05.07.2019 / 18.45 KB
Documentation for the congatec Yocto 2.7.1 (warrior) BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-0-1-bsp.txt
03.03.2020 / 17.92 KB
Documentation for the congatec Yocto 3.0.1 (zeus) BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-1-1-bsp.txt
04.01.2021 / 16.98 KB
Documentation for the congatec Yocto 3.1.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-2-1-bsp.txt
24.06.2021 / 17.99 KB
Documentation for the congatec Yocto 3.2.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-3-1-bsp.txt
20.10.2021 / 18.10 KB
Documentation for the congatec Yocto 3.3.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-4-1-bsp.txt
01.06.2022 / 19.52 KB
Documentation for the congatec Yocto 3.4.1 BSP for x86 platforms. For sample images please contact congatec support.

Product Variants

conga-QA4/N3710-4G eMMC16 (P/N 015210)

Qseven module with Intel® Pentium® N3710 quad core processor, 1.60GHz,  4GB 1600MT/s DDR3L onboard dual channel memory, 16GB eMMC onboard fllash, 5 USB 2.0 Ports and 1 USB 3.0 Port.

conga-QA4/N3160-2G eMMC16 (P/N 015211)

Qseven module with Intel® Celeron® N3160 quad core processor, 1.60GHz,  2GB 1600MT/s DDR3L onboard dual channel memory, 16GB eMMC onboard flash, 5 USB 2.0 Ports and 1 USB 3.0 Port.

conga-QA4/N3060-2G eMMC8 (P/N 015212)

Qseven module with Intel® Celeron® N3060 dual core processor, 1.60GHz,  2GB 1600MT/s DDR3L onboard dual channel memory, 8GB eMMC onboard flash and 8 USB 2.0 Ports.

conga-QA4/N3010-2G eMMC8 (P/N 015213)

Qseven module with Intel® Celeron® N3010 dual core processor, 1.04GHz,  2GB 1600MT/s DDR3L onboard single channel memory, 8GB eMMC onboard flash and 8 USB 2.0 Ports.

conga-QA4/E8000-2G eMMC8 (P/N 015214)

Qseven module with Intel® Atom™ X5-E8000 quad core processor, 1.04GHz,  2GB 1600MT/s DDR3L onboard single channel memory, 8GB eMMC onboard flash and 8 USB 2.0 Ports.

conga-QA4/N3710-4G eMMC16 eDP (P/N 015215)

Qseven module with Intel Pentium N3710 quad core processor with 1.60GHz core frequency up to 2.56GHz burst, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Support eDP interface for displays.

Ecosystem Details

Cooling Solutions

conga-QA3/HSP-T (P/N 015190)

Standard heatspreader for Qseven module conga-QA3 and conga-QA4. Standoff with 2.5mm thread.

conga-QA3/HSP-B (P/N 015191)

Standard heatspreader for Qseven module conga-QA3 and conga-QA4. All standoffs are with 2.7mm bore hole.

conga-QA3/CSP-T (P/N 015192)

Passive cooling solution for Qseven module conga-QA3 and conga-QA4. All standoffs are M2.5mm thread.

conga-QA3/CSP-B (P/N 015193)

Passive cooling solution for Qseven module conga-QA3 and conga-QA4. All standoffs are with 2.7mm bore hole.

Accessories

More about conga-QEVAL/Qseven 2.0

conga-QEVAL/Qseven 2.0

To achieve a quick start with Qseven congatec offers an evaluation carrier board, which routes all the Qseven® signals to standard interface connectors.
