conga-TS87/2000E (P/N 046810)
COM Express Type 6 Basic module with Intel® Celeron™ 2000E dual core processor with 2.2GHz, 2MB L3 cache and 1600MT/s dual channel DDR3L memory interface.

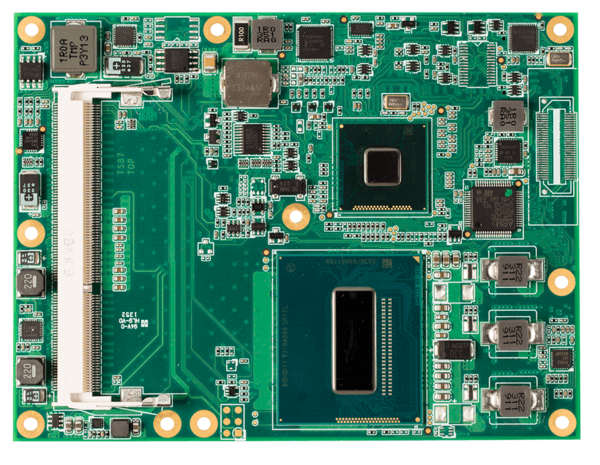

conga-TS87
COM Express® Type6 module based on 4th Generation Intel® Core™ processor-based platform
- 4th Generation Intel® Core™ processor-based platform
- 3x DisplayPort 1.2, up to 4k resolution
- Intel® AVX 2.0 Vector extension for improved floating point computing
- Up to 13% higher computing performance*
- Up to 32% higher 3D graphics performance*
* Compared to previous generation
Specification
Formfactor
COM Express Basic
CPU
Intel® Core™ i7-4700EQ (4 x 2.4 GHz, 6MB cache, 47W)
Intel® Core™ i5-4400E (2 x 2.7 GHz, 3MB cache, 37W)
Intel® Core™ i5-4402E (2 x 1.6 GHz, 3MB cache, 25W)
Intel® Core™ i3-4100E (2 x 2.4 GHz, 3MB cache, 37W)
Intel® Core™ i3-4102E (2 x 1.6 GHz, 3MB cache, 25W)
Intel® Celeron® 2000E (2 x 2.2 GHz, 2MB cache, 37W)
Intel® Celeron® 2002E (2 x 1.5 GHz, 2MB cache, 25W)
DRAM
SO-DIMM DDR3L@1.35V up to 1600MT/s and 16GByte
Ethernet
Intel® I218-LM GbE LAN Controller with AMT 9.0 support
I/O Interfaces
7 x PCI Express™
4 x SATA
2 x Express Card®
4 x USB 3.0
8 x USB 2.0
LPC bus
I²C bus
1 x PEG
Graphics
Intel® HD Graphics
with OpenCL 1.2, OpenGL 4.0 and DirectX11.1 support; up to three independent displays: DDI, DVI, DP, VGA
with OpenCL 1.2, OpenGL 4.0 and DirectX11.1 support; up to three independent displays: DDI, DVI, DP, VGA
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
Security
All congatec COM Express Basic boards can be optionally eqipped with a discrete "Trusted Platform Module" (TPM).
It is capable of calculating efficient hashand RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels.
It is capable of calculating efficient hashand RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels.
Power Management
ACPI 4.0
Temperature
Standard
Operating: 0 to +60°CStorage: -20 to +80°C
Operating: 0 to +60°CStorage: -20 to +80°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
3 x DisplayPort
Size
95 x 125 mm (3.74" x 4.92")
Documents
All documents found on this page are updated without notification. Always check this page forthe latestversion.
Data Sheet
15.06.2015
Manual
15.06.2015
15.06.2015
15.06.2015
15.06.2015
Application Note
15.06.2015
Software
[ DOS ] [ Linux ] [ Windows 10 ] [ Windows 10 IoT ] [ Windows 7 ] [ Windows 8 ] [ Windows 8 Embedded ] [ Windows Embedded Standard 7 ]
CGOS API programmers manual
Driver for modules with on-module UART, realized using the congatec board controller. V1.1
CGOS API programmers manual
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x).For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS direct driver for Linux. Please refer to readme.txt for supported functions.
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.Linux source version.
Use for BIOS update or customization and panel configuration.Linux source version.
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration.Linux source version.
Use for BIOS update or customization and panel configuration.Linux source version.
congatec System Utility Users Guide
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Driver for on-module UART realized using the congatec board controller.Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
CGOS API programmers manual
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS direct driver for Windows 10.Please refer to readme.txt for supported functions and boards.
congatec System Utility Users Guide
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
Use for BIOS update or customization and panel configuration.
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.0.25.
CP210x USB to UART Bridge Driver v6.6.1 (32/64bit) - for TS87
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TS87. Use for boards with Celeron CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TS87. Use for boards with i3, i5 and i7 CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TC87, conga-IC87. Use for boards with Celeron CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TC87, conga-IC87. Use for boards with i3, i5 or i7 CPUs.
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
Intel HD Graphics Driver for Windows 7 and Windows 8 64Bit Rev. win64 15.40.2.64.4240.
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
Use for BIOS update or customization and panel configuration.
Board Support Package for congatec CPU modules - Rev. 1.7. Contains 64bit Windows 10 IoT Enterprise LTSB driver files for video, SATA, sound, network.
Driver for on-module UART realized using the congatec board controller.Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOS API programmers manual
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
Use for BIOS update or customization and panel configuration.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.0.25.
CP210x USB to UART Bridge Driver v6.6.1 (32/64bit) - for TS87
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
Floppy Configuration Utility - Intel Rapid Storage Technology - used to preinstall RAID and AHCI drivers. Use for 64Bit system. Rev. 12.9.3.1000.
Floppy Configuration Utility - Intel Rapid Storage Technology - used to preinstall RAID and AHCI drivers. Use for 32Bit system. Rev. 12.9.3.1000.
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 9.4.0.1027.
Intel(R) USB 3.0 eXtensible Host Controller driver Rev. 3.0.3.60
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TS87. Use for boards with Celeron CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TS87. Use for boards with i3, i5 and i7 CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TC87, conga-IC87. Use for boards with Celeron CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TC87, conga-IC87. Use for boards with i3, i5 or i7 CPUs.
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 19.1.
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 19.1.
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
Intel(R) LAN Driver I218 ULP Enable Parameter Change Utility for WindowsVersion 1.0.0.0
Intel HD Graphics Driver for Windows 7 and Windows 8 32Bit Rev. win32 15.36.12.4243.
Intel HD Graphics Driver for Windows 7 and Windows 8 64Bit Rev. win64 15.36.22.64.4243.
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 12.12.50.7205
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 12.12.50.7205
Driver for on-module UART realized using the congatec board controller.Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
CGOS API programmers manual
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
Use for BIOS update or customization and panel configuration.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.0.25.
CP210x USB to UART Bridge Driver v6.6.1 (32/64bit) - for TS87
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
High Definition Audio Codec driver for Realtek chips. For Windows 7, 8, 8.1 and 10 64Bit. Rev. 2.79.
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 9.4.0.1027.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TS87. Use for boards with Celeron CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TS87. Use for boards with i3, i5 and i7 CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TC87, conga-IC87. Use for boards with Celeron CPUs.
Intel(R) Management Engine Firmware for Windows 32/64 Bit for conga-TC87, conga-IC87. Use for boards with i3, i5 or i7 CPUs.
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 19.1.
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 19.1.
High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
Intel(R) LAN Driver I218 ULP Enable Parameter Change Utility for WindowsVersion 1.0.0.0
Intel HD Graphics Driver for Windows 7 and Windows 8 32Bit Rev. win32 15.36.12.4243.
Intel HD Graphics Driver for Windows 7 and Windows 8 64Bit Rev. win64 15.36.22.64.4243.
Intel Network Connections Software and Driver for Windows 8 64Bit. Rev. 12.12.50.7205
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Board Support Package for congatec CPU modules Rev. 1.7.1. Contains 64 Bit Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.
Board Support Package for congatec CPU modules Rev. 1.7.1. Contains 32 Bit Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
congatec System Utility Rev. 1.6.1
Use for BIOS update or customization and panel configuration.
Use for BIOS update or customization and panel configuration.
Board Support Package Update for congatec CPU modules. Update for WES7 SP1. Requires cgwes7.zip
Board Support Package Update for congatec CPU modules. Update for 64bit WES7 SP1. Requires cgwes7x64.zip
Board Support Package for congatec CPU modules Rev. 1.7. Contains 64bit Windows Embedded Standard 7 driver files for video, SATA, sound, network.
Board Support Package for congatec CPU modules Rev. 1.7. Contains 32 Bit Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.
