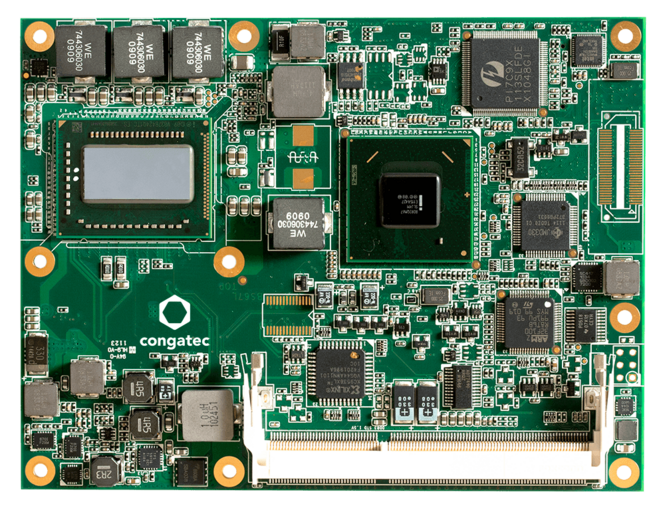

conga-BS67 (EOL) Preview image
  • conga-BS67 (EOL) Image 1
  • conga-BS67 (EOL) Image 2

conga-BS67 (EOL)

High Performance COM Express™ Basic Type2 Module with Soldered Low Power Intel® Core™ i7 Processors

  • High Performance COM Express Basic Type 2 Module
  • Up to Low Power Intel® Core™ i7 2.2GHz processor
  • Heat Pipe based cooling solutions
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Memory

Cooling solutions

Specification

Formfactor
COM Express Basic
CPU
Intel® Core™ i7-2655LE (2 GHz, 4)
Intel® Core™ i7-2610UE (2 GHz, 3)
Intel® Celeron® 847E (2 GHz, 2)
Intel® Celeron® 827E (1.4 GHz, 1.5)
Intel® Celeron® 807UE (1.0 GHz, 1MB)
Intel® Core™ i3-2340UE (2 GHz, 3)
DRAM
max. 16 GByte DDR3 1333 MHz
I/O Interfaces
4 x SATA
1 x EIDE (UDMA-66/100)
8 x USB 2.0
1 x PCI bus Rev. 2.3
1 x LPC bus
1 x I²C bus
6 x PCI Express™
Graphics
Intel® 6 Series HD graphics
Processor integrated Mobile Intel® 6 Series HD graphics, OpenGL 3.0 and DirectX 10.1 support, Two independent pipelines for full dual viewsupport,High performance hardware MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) support Blu-ray support @ 40 Mbit/s, hardware motion compensation, no PEG support
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features
AMI Aptio UEFI
8 MByte serial SPI firmware flash
Security
All congatec COM Express Basic boards can be optionally eqipped with a discrete "Trusted Platform Module" (TPM).
It is capable of calculating efficient hashand RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels.
Power Management
ACPI 3.0
ACPI 3.0 compliant, Smart Battery Management
Operating Systems
Microsoft® Windows® 7
Microsoft® Windows® XP
Microsoft® Windows® embedded Standard
Linux
Temperature
Standard
Operating: 0 to +60°CStorage: -20 to +80°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
3 x DisplayPort
3 x DDI
LVDS 2x24
1 x SDVO
Size
95 x 125 mm (3.74" x 4.92")

Documents

All documents found on this page are updated without notification. Always check this page forthe latestversion.

Data Sheet

conga-BS67
15.06.2015

Manual

User's Guide conga-BM67/BS67
15.06.2015
User's Guide CGOS API
15.06.2015
AMI Aptio 4.x Status Codes PUB 01
15.06.2015
User's Guide conga-HDMI/DisplayPort adapter
15.06.2015
User's Guide congatec System Utility
15.06.2015

Application Note

AN03 Watchdog
15.06.2015
AN8 Create OEM Default Map
02.03.2021
AN09 RTC Battery Lifetime
05.10.2022
AN11 Create And Add Bootlogo
15.06.2015
AN12 Modify EPI File
15.06.2015
AN13 Load BIOS Setup Defaults
15.06.2015
AN17 HDMI DP Implementation
15.06.2015
AN21 Add OEM ACPI SLIC Table
17.01.2017
AN22 Install Windows Without USB ROM Drive
15.06.2015


conga-BS67 rep
15.06.2015
conga-BS67 rear
15.06.2015
conga-BS67 press
15.06.2015
conga-BS67 per r
15.06.2015
conga-BS67 per l
15.06.2015

Software

[ DOS ]      [ Linux ]      [ Windows 7 ]      [ Windows 8 ]      [ Windows 8 Embedded ]      [ Windows Embedded Standard 7 ]      [ Windows XP ]      [ Windows XP embedded ]

DOS

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x32-1.03.022.tar.gz
12.09.2016 / 50.38 KB
CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x).For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.

Windows 7

Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
F6flpy32.zip
09.12.2011 / 282.64 KB
Floppy Configuration Utility - Intel Rapid Storage Technology - used to preinstall RAID and AHCI drivers (F6 during Windows setup). Use for 32Bit system. Rev. 10.8.
f6flpy64.zip
09.12.2011 / 317.54 KB
Floppy Configuration Utility - Intel Rapid Storage Technology - used to preinstall RAID and AHCI drivers (F6 during Windows setup). Use for 64Bit system. Rev. 10.8.
infinst_autol.exe
09.12.2011 / 2.75 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 9.2.0.1030.
PROWin_166.exe
09.12.2011 / 27.56 MB
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 16.6.
PROWin_64_166.exe
09.12.2011 / 29.60 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 16.6.
Win7Vista_152252.exe
09.12.2011 / 73.89 MB
Intel HD Graphics Driver for Windows 7 32Bit Rev. 15.22.52.
Win7Vista_64_152252.exe
09.12.2011 / 85.93 MB
Intel HD Graphics Driver for Windows 7 64Bit Rev. 15.22.52.

Windows 8

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cougme.zip
05.12.2012 / 7.06 KB
Device driver to remove driver warning
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
PROWin32.exe
05.12.2012 / 29.76 MB
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 17.4.
PROWinx64.exe
05.12.2012 / 34.18 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 17.4.
Win32.exe
05.12.2012 / 109.39 MB
Intel HD Graphics Driver for Windows 8 32Bit Rev. 15.28.8.2875
Win64.exe
05.12.2012 / 137.63 MB
Intel HD Graphics Driver for Windows 8 64Bit Rev. 15.28.8.64.2875

Windows 8 Embedded

CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes8.zip
31.03.2014 / 223.68 MB
Board Support Package for congatec CPU modules Rev. 1.5.1. Contains Windows Embedded Standard 8 driver files for video, SATA, sound, network and CGOS API.
cgwes8x64.zip
31.03.2014 / 385.37 MB
Board Support Package for congatec CPU modules Rev. 1.5.1. Contains 64bit Windows Embedded Standard 8 driver files for video, SATA, sound, network.

Windows Embedded Standard 7

CgosPy_1_2.zip
28.10.2021 / 360.10 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgwes7s1.zip
20.06.2011 / 16.53 KB
Board Support Package Update for congatec CPU modules. Update for WES7 SP1. Requires cgwes7.zip
cgwes7x64.zip
13.08.2014 / 378.03 MB
Board Support Package for congatec CPU modules Rev. 1.5.2. Contains 64bit Windows Embedded Standard 7 driver files for video, SATA, sound, network.
cgwes7x64S1.zip
15.12.2011 / 16.48 KB
Board Support Package Update for congatec CPU modules. Update for 64bit WES7 SP1. Requires cgwes7x64.zip
cgwes7x86.zip
17.04.2014 / 123.12 MB
Board Support Package for congatec CPU modules Rev. 1.3. Contains Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.
conga_DIG_WES7.pdf
05.11.2012 / 98.71 KB
Windows Embedded Standard 7Installation Guide Rev. 1.3 for congatec CPU modules

Windows XP

Cgos-x32-x64.zip
17.08.2018 / 384.88 KB
CGOS legacy driver 1.03.021 for 32bit and 64bit Windows.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
EapiCgos-x32-x64.zip
07.08.2013 / 71.75 KB
EAPI (Embedded Application Programming Interface) wrapper DLLs for 32bit and 64bit Windows.
F6flpy32.zip
09.12.2011 / 282.64 KB
Floppy Configuration Utility - Intel Rapid Storage Technology - used to preinstall RAID and AHCI drivers (F6 during Windows setup). Use for 32Bit system. Rev. 10.8.
f6flpy64.zip
09.12.2011 / 317.54 KB
Floppy Configuration Utility - Intel Rapid Storage Technology - used to preinstall RAID and AHCI drivers (F6 during Windows setup). Use for 64Bit system. Rev. 10.8.
infinst_autol.exe
09.12.2011 / 2.75 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 9.2.0.1030.
PROWin_166.exe
09.12.2011 / 27.56 MB
Intel Network Connections Software and Driver for Windows 32Bit. Rev. 16.6.
PROWin_64_166.exe
09.12.2011 / 29.60 MB
Intel Network Connections Software and Driver for Windows 64Bit. Rev. 16.6.
winxp_14468.exe
13.12.2011 / 22.40 MB
Intel HD Graphics Driver for Windows XP Rev. 14.46.8. NOTE: This driver requires the Microsoft .NET 3.0 (or higher) framework.

Windows XP embedded

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgxpe.zip
24.01.2013 / 73.20 MB
Board Support Package for congatec CPU modules Rev. 2.3.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API.
conga_DIG_WinXPE.pdf
14.05.2012 / 102.41 KB
Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

Product Variants

conga-BS67/807UE (P/N 046156)
COM Express Basic module with Intel® Celeron™ 807E single core processor 1.0GHz, TDP 10W, 1MByte L3 cache and 1333MT/s dual channel DDR3 memory interface.
conga-BS67/827E (P/N 046155)
COM Express Basic module with Intel® Celeron™ 827E single core processor 1.4GHz, TDP 17W, 1.5MByte L3 cache and 1333MT/s dual channel DDR3 memory interface.
conga-BS67/847E (P/N 046154)
COM Express Basic module with Intel® Celeron™ 847E dual core processor 1.1GHz, TDP 17W, 2MByte L2 cache and 1333MT/s dual channel DDR3 memory interface.
conga-BS67/i3-2340UE (P/N 046153)
COM Express Basic module with Intel® Core™ i3-2340UE dual core processor 1.3GHz, 3MByte L2 cache and 1333MT/s dual channel DDR3 memory interface.
conga-BS67/i7-2610UE (P/N 046152)
COM Express Basic module with Intel® Core™ i7-2610UE dual core processor 1.5GHz, 3MByte L2 cache and 1333MT/s dual channel DDR3 memory interface.
conga-BS67/i7-2655LE (P/N 046151)
COM Express Basic module with Intel® Core™ i7-2655LE dual core processor 2.2GHz, 4MByte L2 cache and 1600MT/s dual channel DDR3 memory interface.

Ecosystem Details

Memory

DDR3L-SODIMM-1600 (8GB) (P/N 068757)

DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 8GB RAM.

DDR3L-SODIMM-1600 (4GB) (P/N 068756)

DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 4GB RAM.

DDR3L-SODIMM-1600 (2GB) (P/N 068755)

DDR3L SODIMM memory module with 1600MT/s (PC3L-12800S) and 2GB RAM.

Cooling solutions

conga-BS67/HSP-HP-T (P/N 046171)

Standard heatspreader for high performance COM Express module conga-BS67, conga-BS77 and conga-BP77 with integrated heat pipes. All stand-offs are M2.5mm threaded.

conga-BS67/HSP-HP-B (P/N 046170)

Standard heatspreader for high performance COM Express module conga-BS67, conga-BS77 and conga-BP77 with integrated heat pipes. All stand-offs are with 2.7mm bore hole.

conga-BS67/CSP-HP-T (P/N 046173)

Standard passive cooling solution for high performance COM Express module conga-BS67, conga-BS77 and conga-BP77 with integrated heat pipes, 15mm silver fins and 20mm overall heat sink height. All stand-offs are M2.5mm threaded.

conga-BS67/CSP-HP-B (P/N 046172)

Standard passive cooling solution for high performance COM Express module conga-BS67, conga-BS77 and conga-BP77 with integrated heat pipes, 15mm silver fins and 20mm overall heat sink height. All stand-offs are with 2.7mm bore hole.

conga-BS67/CSA-HP-T (P/N 046175)

Standard active cooling solution for high performance COM Express module conga-BS67, conga-BS77 and conga-BP77 with integrated heat pipes, 15mm silver fins and 20mm overall heat sink height and integrated 12V fan. All stand-offs are M2.5mm threaded.

conga-BS67/CSA-HP-B (P/N 046174)

Standard active cooling solution for high performance COM Express module conga-BS67, conga-BS77 and conga-BP77 with integrated heat pipes, 15mm silver fins and 20mm overall heat sink height and integrated 12V fan. All stand-offs are with 2.7mm bore hole.

Accessories

More about conga-FPA2 (EOL)

conga-FPA2 (EOL)

Universal Flat Panel Adapter Board

More about conga-Cdebug

conga-Cdebug

COM Express® Debug Platform for Type 2 Modules and Carrier Boards

More about conga-CEVAL

conga-CEVAL

Evaluation Carrier Board for COM Express® modules based on Type 2 pinout definition

More about conga-CKIT (EOL)

conga-CKIT (EOL)

This complete kit provides the ability to start evaluating COM Express™ Type 2 modules immediately.

More about conga-LDVI

conga-LDVI

DVI Converter Module for LVDS
