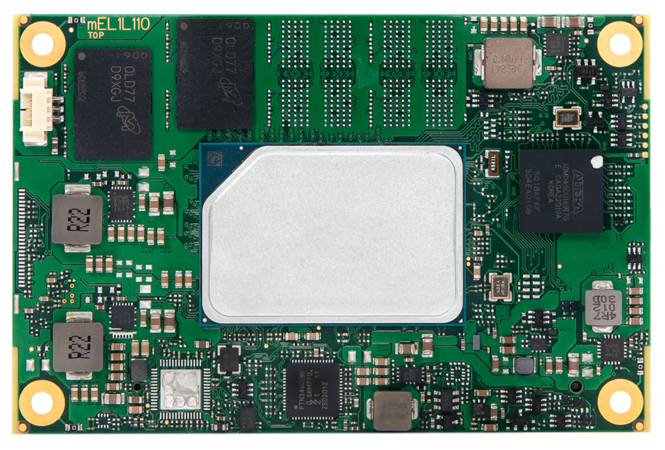

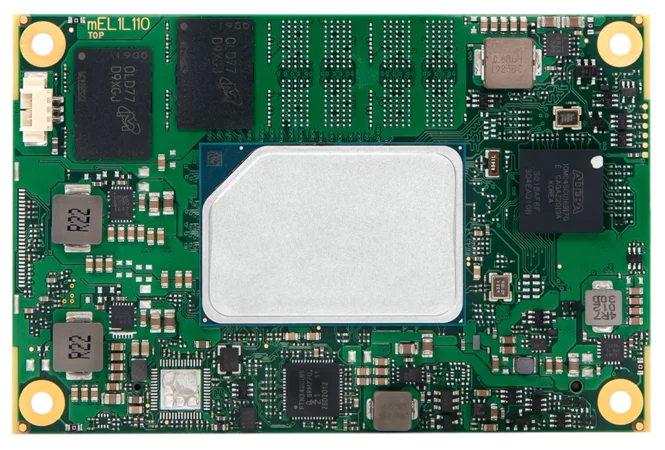

conga-mEL10 Preview image

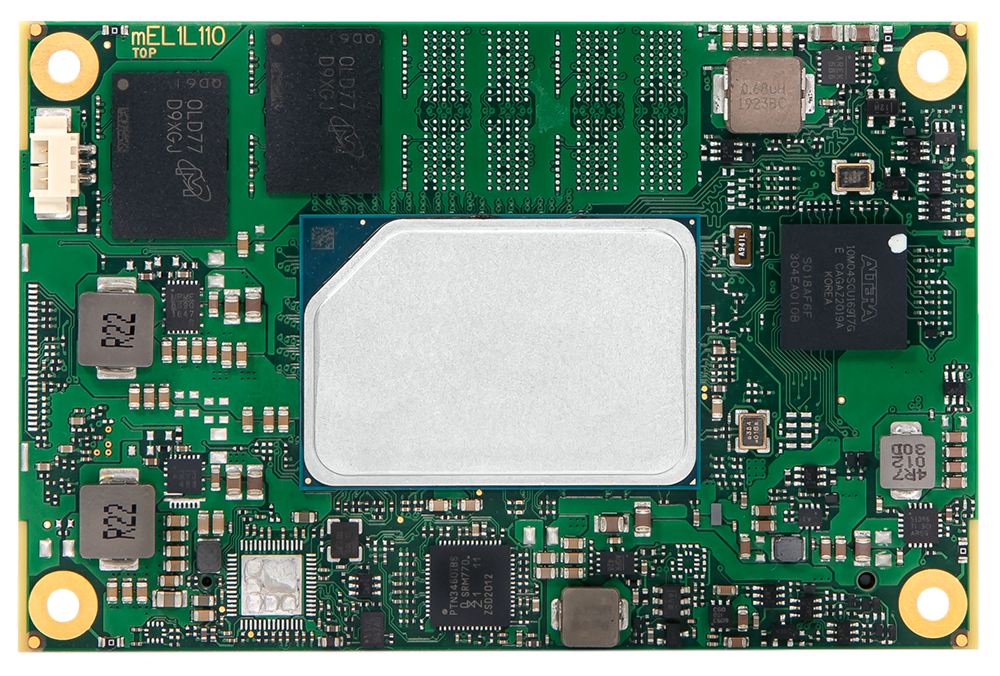

  • conga-mEL10 Image 1

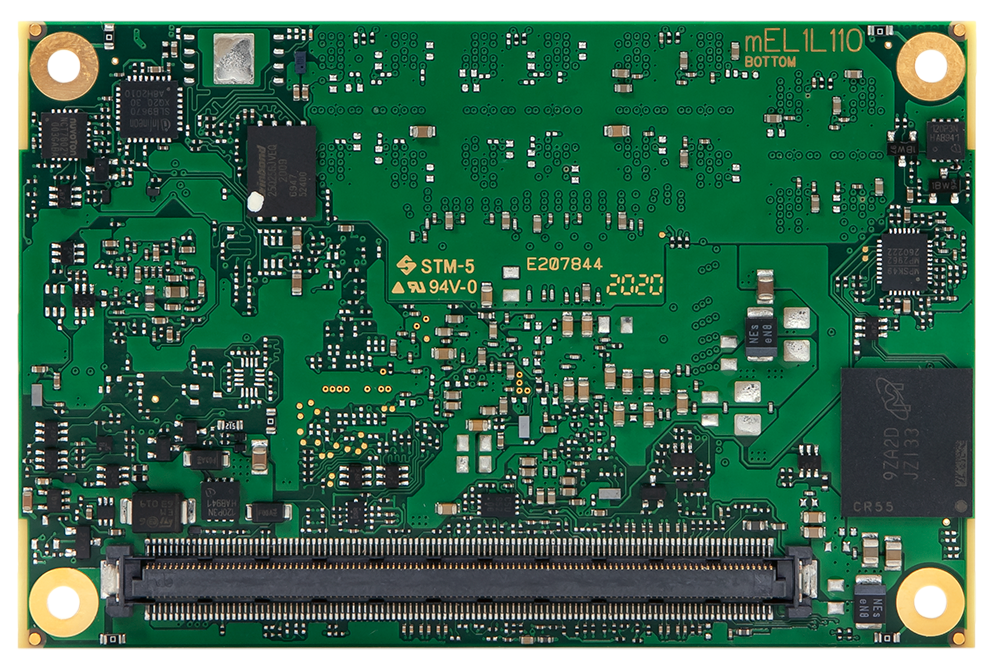

  • conga-mEL10 Image 2

Your item has been added to the inquiry

conga-mEL10 Image

conga-mEL10

COM Express® Mini Type 10 with Intel Atom® x6000E, Pentium® and Celeron® Series

Selected module variant

    Selected ecosystem parts

    Cooling Solutions

      Value adding ecosystem offerings


      Cooling Solutions

      Request quote + Add more articles

      conga-mEL10

      formerly JUMPtec COMe-mEL10
      COM Express® mini Type 10 with Intel Atom® x6000E, Pentium® and Celeron® Series


      Learn all about COMs - download the guide

      • Intel Atom® x6000E
      • Low-Power – Performance/Watt optimized form factor solution
      • Up to 16 GByte LPDDR4 memory down (In-Band ECC)
      • 1GbE (optional 2.5GbE) with TSN support
      • Industrial grade temperature
      Congatec Logo
      Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

      Value adding ecosystem offerings

      Cooling Solutions

      Specification

      Formfactor
      COM Express Mini
      CPU
      Intel® Celeron® N6211 (2 x 1.2 GHz, 1.5 MB Cache, 6.5W)
      Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
      Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
      Intel® Atom® x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W)
      Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
      DRAM
      Up to 16 GByte LPDDR4-4267 memory down (In-Band ECC)
      Ethernet
      1 GBit Ethernet (2.5 GBit on request with GPY215) + 2x optional 2.5 GBit
      I/O Interfaces
      2 x USB 3.1 (incl. USB 2.0)
      6 x USB 2.0
      Port 7 is dual role (Client/Host)
      PCIe Gen 3.0 - PCIe lane configurations:
      4 x1 2 x1 + 1 x2 2 x2
      SPI
      LPC
      SM-Bus
      Fast I²C
      RTC
      Mass storage
      2x SATA 6Gb/s, SDIO Interface (shared with GPIO)
      Graphics
      SOC: Intel® HD Gfx Gen11: 1x LVDS/eDP (3840 x 2160 @ 60 Hz) 2x DP (++) on DDI1/DDI2 up to 4K
      embedded BIOS Features
      AMI Aptio V
      Power Management
      ACPI 6.0
      Operating Systems
      Microsoft® Windows 11 IoT Enterprise LTSC
      Microsoft® Windows 10 IoT LTSC
      Linux
      VxWorks (project based)
      Temperature
      0 °C to +60 °C operating, -30 °C to +85 °C non-operating
      industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
      Humidity
      93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
      Video Interfaces
      DP++
      LVDS: Single Channel 18/24 bit or eDP
      Features
      Staged Watchdog
      Size
      55 x 84 mm (2.17" x 3.31")

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.

      Data Sheet

      conga-mEL10.pdf
      15.12.2025

      Manual

      User's Guide for conga-mEL10
      23.04.2026

      Whitepaper

      The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

      Product Variants

      Product Filter:

        Add Filter:

         -
         -
         -
         -
         -
         -
            There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
            If you don't find the configuration you require contact your congatec Sales representative for further assistance.
            conga-mEL10/N6211 (P/N 34012-0416-N1-2)

            COM Express® Type 10 module with Intel® Celeron® N6211 processor, 4 GB LPDDR4 memory, 16 GB eMMC flash, 1 GbE and operating temperature range from 0 °C to 60 °C.

            conga-mEL10/J6426 (P/N 34012-0432-J2-4)

            COM Express® Type 10 module with Intel® Pentium® J6426 processor, 4 GB LPDDR4 memory, 32 GB eMMC flash, 1 GbE and operating temperature range from 0 °C to 60 °C.

            conga-mEL10/x6212RE (P/N 34013-0416-R1-2)

            COM Express® Type 10 module with Intel® Atom® x6212RE processor, 4 GB LPDDR4 memory, 16 GB eMMC flash, 1 GbE and extended operating temperature range from −40 °C to 85 °C.

            conga-mEL10/x6414RE (P/N 34013-0432-R1-4)

            COM Express® Type 10 module with Intel® Atom® x6414RE processor, 4 GB LPDDR4 memory, 32 GB eMMC flash, 1 GbE and extended operating temperature range from −40 °C to 85 °C.

            conga-mEL10/x6425RE (P/N 34013-0832-R2-4)

            COM Express® Type 10 module with Intel® Atom® x6425RE processor, 8 GB LPDDR4 memory, 32 GB eMMC flash, 1 GbE and extended operating temperature range from −40 °C to 85 °C.

            Ecosystem Details

            Cooling Solutions

            HSP COMe-mEL10 (E2) THREAD (P/N 34013-0000-99-0)

            Heatspreader for COMe-mEL10 commercial and E2, threaded mounting holes

            HSP COMe-mEL10 (E2) THROUGH (P/N 34013-0000-99-1)

            Heatspreader for COMe-mEL10 commercial and E2, through holes

            HSP COMe-mEL10 (E2) SLIM THREAD (P/N 34013-0000-99-2)

            Heatspreader for Slimline 6.5 mm for COMe-mEL10 commercial and E2, threaded mounting holes

            HSP COMe-mEL10 (E2) SLIM THROUGH (P/N 34013-0000-99-3)

            Heatspreader for Slimline 6.5 mm for COMe-mEL10 commercial and E2, through holes

            COME MINI ACTIVE UNI COOLER (P/N 34099-0000-99-0 )

            COM Express® mini Universal Active Cooler for Heatspreader Mounting

            COME MINI PASSIVE UNI COOLER (P/N 34099-0000-99-1)

            COM Express® mini Universal Passive Cooler for Heatspreader Mounting

            COME MINI PASSIVE UNI COOLER SLIM TOP MOUNT (P/N 34099-0000-99-3)
