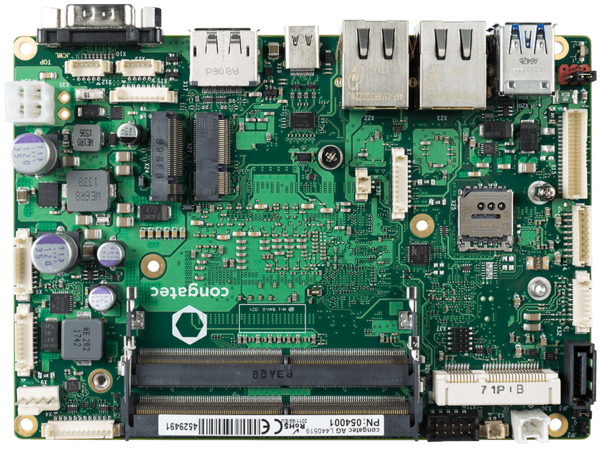

conga-JC370

Highest Performance 3.5'' Single Board Computer based on 8th Generation Intel® Core™ processor series called "Whiskey Lake"

  • Highest Performance 3.5'' Single Board Computer
  • 8th Generation Intel® Core™ Mobile Low Power UE-Processors with up to 4 cores
  • Gen 9 Intel Graphics, up to 24 Execution Units
  • Multiple Expansion card possibilities
  • Option for 2nd internal video interface
  • Product Video

Product Filter:

    Add Filter:

    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.

    Specification

    Formfactor
    3.5"
    CPU
    Intel® Core™ i7-8665UE (4 x 1.7 GHz, 8MB cache, 15W)
    Intel® Core™ i5-8365UE (4 x 1.6 GHz, 6MB cache, 15W)
    Intel® Core™ i3-8145UE (2 x 2.2 GHz, 4MB cache, 15W)
    Intel® Celeron® 4305UE (2 x 2.0 GHz, 2MB cache, 15W)
    DRAM
    Dual channel DDR4 up to 2400 MT/s | 2x SO-DIMM | up to 2x 32 Gbyte
    Ethernet
    Intel® 2.5GbE with TSN support under Linux Intel® 1GbE with AMT support (AMT with i7 or i5 only)
    I/O Interfaces
    DisplayPort++ | USB 3.1 Gen.2 Type C (PD and DP Alt. Mode) | Dual USB 3.1 Gen.2 Type A | Dual LAN RJ45 | COM DE9 RS232/422/485
    Graphics
    Intel Gen. 9 Graphics | 24 EU
    Internal Connectors
    LVDS 24bit Dual channel (or opt. eDP)
    opt. 2nd LVDS via external adapter
    1x Backlight (Power | Control)
    SATA/eSATA/SATADOM
    1x SATA Power
    2x USB 2.0 internally
    1x Front Panel HD Audio
    COM port (RS232/422/485)
    2 x 4 pin COM ports (RS232)
    opt. CAN
    8 bit general purpose I/O
    Management I/O (opt. 8 GPIOs)
    I²C/SM Bus
    Front panel (power switch, LEDs, reset)
    Power DC In (12-24 V)
    congatec Board Controller
    Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
    embedded BIOS Features
    AMI Aptio® 2.X (UEFI) firmware
    SM-BIOS
    BIOS Update
    Logo Boot
    Quiet Boot
    HDD Password
    Security
    Trusted Platform Module (TPM 2.0) | Secure Root of Trust | Secure Memory Encryption | Secure Encrypted Virtualization
    Operating Systems
    Microsoft® Windows® 10
    Microsoft® Windows 10 Enterprise
    Linux
    Temperature
    Operating: 0 to +60°C Storage: -20 to +70°C
    Size
    146 x 102 mm²

    Documents

    All documents found on this page are updated without notification. Always check this page for the latest version.

    Data Sheet

    Software

    CGOSAPIm14.pdf
    04.04.2017 / 1.07 MB
    CGOS API programmers manual
    cgoslx-x32-1.03.022.tar.gz
    12.09.2016 / 50.38 KB
    CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
    cgoslx-x64-1.03.032.tar.xz
    09.05.2022 / 52.03 KB
    CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x).For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
    CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
    CgosPy_1_2.zip
    28.10.2021 / 360.10 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    CGOS direct driver for Linux. Please refer to readme.txt for supported functions.
    cgutillx.tar
    01.12.2021 / 3.91 MB
    congatec System Utility Rev. 1.6.1
    Use for BIOS update or customization and panel configuration.Linux source version.
    CGUTILm16.pdf
    02.07.2020 / 2.67 MB
    congatec System Utility Users Guide
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 MB
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
    Realtek High Definition Audio Codec driver. Supports Windows 7 64Bit, Windows 8 64Bit, Windows 8.1 64Bit and Windows 10 64Bit
    CgMlfViewer_v100_bin.zip
    25.10.2019 / 7.99 MB
    The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based applicationmeant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
    Cgos-x64-Windows10.zip
    05.09.2021 / 225.62 KB
    CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
    CGOSAPIm14.pdf
    04.04.2017 / 1.07 MB
    CGOS API programmers manual
    CgosClr.zip
    22.02.2016 / 40.98 KB
    CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
    CgosPy_1_2.zip
    28.10.2021 / 360.10 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    CGOS direct driver for Windows 10.Please refer to readme.txt for supported functions and boards.
    CGUTILm16.pdf
    02.07.2020 / 2.67 MB
    congatec System Utility Users Guide
    cgutil_v161.zip
    01.12.2021 / 10.81 MB
    congatec System Utility Rev. 1.6.1
    Use for BIOS update or customization and panel configuration.
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 MB
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
    Intel® Chipset Device Software
    Intel® Ethernet Adapter Complete Driver Pack version 25.3, including Intel I219 driver version 12.19.00.13 and Intel I225 driver version 1.0.1.8.
    ME_SW_1909.12.0.1236.zip
    30.09.2020 / 291.23 MB
    Intel(R) Management Engine Firmware for Windows 10 - 64 Bit - Corporate & Consumer
    Intel(R) Serial IO Driver - Production Version Release Microsoft - Windows* 10 64 bit
    win64-27.20.100.8984.zip
    10.03.2021 / 420.38 MB
    Intel(R) Graphics Driver: 27.20.100.8984.Windows 10 64Bit (1709,1803,1809,1903,1909,2004)
    CgosPy_1_2.zip
    28.10.2021 / 360.10 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    cgutil_v161.zip
    01.12.2021 / 10.81 MB
    congatec System Utility Rev. 1.6.1
    Use for BIOS update or customization and panel configuration.
    cgw10lt-tsco_r01.zip
    21.10.2021 / 784.70 MB
    Board Support Package for TCTL, GATL, TCTO CPU modules - Rev. 01. Contains 64bit Windows 10 IoT Enterprise LTSB driver files for video, SATA, sound, network.
    README_Yocto-2-6-1-bsp.txt
    25.03.2019 / 15.84 KB
    Documentation for the congatec Yocto 2.6.1 (thud) BSP for x86 platforms.For sample images please contact congatec support.
    README_Yocto-2-7-1-bsp.txt
    05.07.2019 / 18.45 KB
    Documentation for the congatec Yocto 2.7.1 (warrior) BSP for x86 platforms.For sample images please contact congatec support.
    README_Yocto-3-0-1-bsp.txt
    03.03.2020 / 17.92 KB
    Documentation for the congatec Yocto 3.0.1 (zeus) BSP for x86 platforms.For sample images please contact congatec support.
    README_Yocto-3-1-1-bsp.txt
    04.01.2021 / 16.98 KB
    Documentation for the congatec Yocto 3.1.1 BSP for x86 platforms.For sample images please contact congatec support.
    README_Yocto-3-2-1-bsp.txt
    24.06.2021 / 17.99 KB
    Documentation for the congatec Yocto 3.2.1 BSP for x86 platforms.For sample images please contact congatec support.
    README_Yocto-3-3-1-bsp.txt
    20.10.2021 / 18.10 KB
    Documentation for the congatec Yocto 3.3.1 BSP for x86 platforms.For sample images please contact congatec support.
    README_Yocto-3-4-1-bsp.txt
    01.06.2022 / 19.52 KB
    Documentation for the congatec Yocto 3.4.1 BSP for x86 platforms.For sample images please contact congatec support.

    Part Number

    054001
    conga-JC370/i7-8665UE

    3.5'' SBC based on Intel® Core™ i7-8665UE quad core processor with 1.7GHz, 8MB Intel® Smart Cache, Intel® UHD Graphics 620 and 2400MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    054002
    conga-JC370/i5-8365UE

    3.5'' SBC based on Intel® Core™ i5-8365UE quad core processor with 1.6GHz, 6MB Intel® Smart Cache, Intel® UHD Graphics 620 and 2400MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    054003
    conga-JC370/i3-8145UE

    3.5'' SBC based on Intel® Core™ i3-8145UE dual core processor with 2.2GHz, 4MB Intel® Smart Cache, Intel® UHD Graphics 620 and 2400MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    054005
    conga-JC370/4305UE

    3.5'' SBC based on Intel® Celeron® 4305UE dual core processor with 2.0GHz, 2MB Intel® Smart Cache, Intel® UHD Graphics 610 and 2133MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    054050
    conga-JC370/CSA-B

    Standard active cooling solution and integrated 12V fan for conga-JC370 (borehole)

    054051
    conga-JC370/CSA-T

    Standard active cooling solution and integrated 12V fan for conga-JC370 (threaded)

    054052
    conga-JC370/CSP-B

    Standard passive cooling solution for conga-JC370 (borehole)

    054053
    conga-JC370/CSP-T

    Standard passive cooling solution for conga-JC370 (threaded)

    054054
    conga-JC370/HSP-B

    Standard heatspreader solution for conga-JC370 (borehole)

    054055
    conga-JC370/HSP-T

    Standard heatspreader solution for conga-JC370 (threaded)

    068790
    DDR4-SODIMM-2400 (4GB)

    DDR4 SODIMM memory module with 2400 MT/s and 4GB RAM

    068791
    DDR4-SODIMM-2400 (8GB)

    DDR4 SODIMM memory module with 2400 MT/s and 8GB RAM

    068792
    DDR4-SODIMM-2400 (16GB)

    DDR4 SODIMM memory module with 2400 MT/s and 16GB RAM

    068806
    DDR4-SODIMM-2666 (32GB)

    DDR4 SODIMM memory module with 2666 MT/s and 32GB RAM

    conga-JC370/4305UE
    P/N 054005

    3.5'' SBC based on Intel® Celeron® 4305UE dual core processor with 2.0GHz, 2MB Intel® Smart Cache, Intel® UHD Graphics 610 and 2133MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    conga-JC370/i3-8145UE
    P/N 054003

    3.5'' SBC based on Intel® Core™ i3-8145UE dual core processor with 2.2GHz, 4MB Intel® Smart Cache, Intel® UHD Graphics 620 and 2400MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    conga-JC370/i5-8365UE
    P/N 054002

    3.5'' SBC based on Intel® Core™ i5-8365UE quad core processor with 1.6GHz, 6MB Intel® Smart Cache, Intel® UHD Graphics 620 and 2400MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)

    conga-JC370/i7-8665UE
    P/N 054001

    3.5'' SBC based on Intel® Core™ i7-8665UE quad core processor with 1.7GHz, 8MB Intel® Smart Cache, Intel® UHD Graphics 620 and 2400MT/s dual channel DDR4 memory interface (Whiskey Lake-UE)
