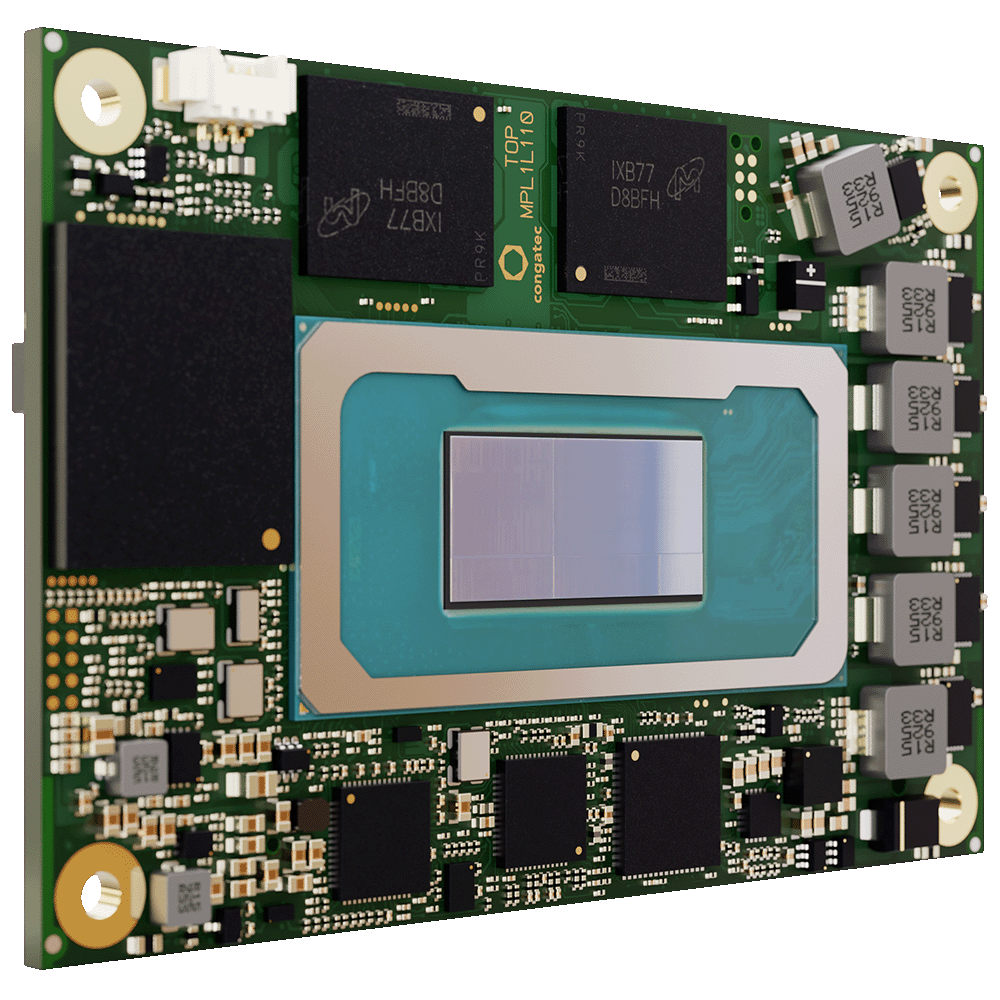

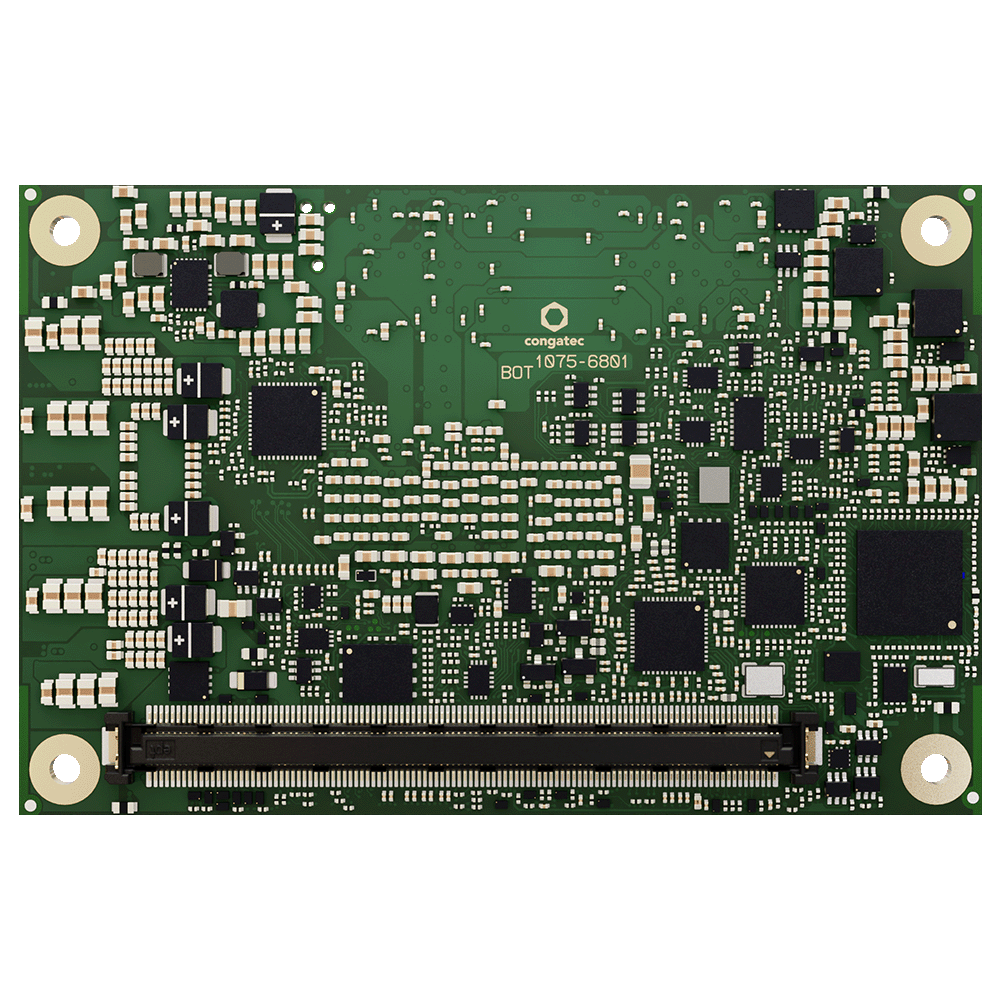

conga-MC1000

COM Express® Mini Type 10 module based on Intel® Core™ Ultra Processors Series 3 (Panther Lake)

Selected module variant

    Selected ecosystem parts

    Cooling Solutions

      Carrierboards

        Value adding ecosystem offerings


        Cooling Solutions

        Carrierboards

        Request quote + Add more articles

        conga-MC1000

        COM Express® Mini module based on Intel® Core™ Ultra Processors Series 3 (Panther Lake-H)

        Learn all about COMs - download the guide

        • Intel® performance hybrid architecture with up to 16 cores
        • Intel® Arc™ Graphics with up to 12 Xᵉ cores
        • Integrated NPU with up to 50 TOPS and up to 180 TOPS total platform performance
        • Up to 32GB LPDDR5x soldered down memory for maximum memory bandwidth
        Congatec Logo
        Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

        Value adding ecosystem offerings

        Cooling Solutions

        Carrierboards

        Specification

        Formfactor
        COM Express Mini
        CPU
        Intel® Core™ Ultra X9 388H (4 P-cores, 8 E-cores and 4 LPE Cores)
        Intel® Core™ Ultra 5 325 (4 P-cores and 4 LPE Cores )
        Intel® Core™ Ultra 7 356H (4 P-cores, 8 E-cores and 4 LPE-cores)
        Intel® Core™ Ultra 9 386H (4 P-cores, 8 E-cores and 4 LPE-Cores)
        DRAM
        Up to 32GB LPDDR5x soldered down with up 8533 MT/s | In-band ECC (only on selected product variants)
        Ethernet
        2.5 GbE via Intel® i226 Ethernet controller series | supporting TSN (only on selected product variants)
        I/O Interfaces
        4 x PCIe
        2 x USB 3.2
        8 x USB 2.0
        2 x SATA
        2 x UART (RX/TX only)
        GPIO
        GSPI
        LPC
        SM-Bus
        I²C
        Mass storage
        NVMe up to 1 TB capacity SSD
        Graphics
        Intel® Arc Graphics with up to 12 Xe cores or Intel Graphics with up to 4 Xe cores | Intel® Xe Matrix Extensions
        NPU/AI Acceleration
        Integrated NPU accelerator 50 TOPS | Up to 180 TOPS platform total
        congatec Board Controller
        Module Management Controller | Multistage Watchdog | Board Information | Board Statistics | I²C bus (fast mode) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection
        embedded BIOS Features
        AMI Aptio® UEFI firmware
        OEM Logo
        OEM CMOS Defaults
        LCD Control
        Display Auto Detection
        Backlight Control
        Security
        Trusted Platform Module (TPM 2.0)
        Power Management
        ACPI 6.0 | wide range power supply 8.5V – 20V | single supply power
        Operating Systems
        Microsoft® Windows 11 IoT Enterprise
        Microsoft® Windows 11
        Linux
        Hypervisor
        RTS Real-Time Hypervisor
        Temperature
        Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
        Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C
        Humidity
        Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
        Video Interfaces
        1 x DDI for DP++
        1 x single-channel LVDS or optional eDP
        2 x independent displays up to 4k
        Features
        Staged Watchdog
        Size
        55 x 84 mm (2.17" x 3.31")

        Documents

        All documents found on this page are updated without notification. Always check this page for the latest version.

        Data Sheet

        Data Sheet for conga-MC1000
        19.12.2025

        Whitepaper

        The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

        Product Variants

        Product Filter:

          Add Filter:

           -
           -
           -
           -
           -
           -
          There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
          If you don't find the configuration you require contact your congatec Sales representative for further assistance.
          conga-MC1000/ultraX9-388H-32G NVMe128 (P/N 049900)

          COM Express Mini module based on Intel® Core Ultra X9 388H processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel® Arc B390 Graphics with 12Xe cores | LPDDR5x memory module with up to 8533 MT/s and up to 32 GB system memory capacity | commercial grade temperature range from 0°C to 60°C.

          conga-MC1000/ultra9-386H-32G NVMe128 (P/N 049901)

          COM Express Mini module based on Intel® Core Ultra 9 386H processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe cores | LPDDR5x memory module with up to 8533 MT/s and up to 32 GB system memory capacity | commercial grade temperature range from 0°C to 60°C.

          conga-MC1000/ultra7-356H-32G NVMe128 (P/N 049903)

          COM Express Mini module based on Intel® Core Ultra 7 356H processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe cores | LPDDR5x memory module with up to 8533 MT/s and up to 32 GB system memory capacity | commercial grade temperature range from 0°C to 60°C.

          conga-MC1000/ultra5-325-32G NVMe128 (P/N 049906)

          COM Express Mini module based on Intel® Core Ultra 5 325 processor with 4 P-cores and 4 LPE-cores | Integrated NPU | 12MB Intel® Smart Cache LLC | Intel Graphics with 4Xe cores | LPDDR5x memory module with up to 8533 MT/s and up to 32 GB system memory capacity | commercial grade temperature range from 0°C to 60°C.

          Ecosystem Details

          Cooling Solutions

          conga-MC1000/HSP-B (P/N 049950)

          Standard heatspreader for high performance COM Express module conga-MC1000. All standoffs are with 2.7mm bore hole.

          conga-MC1000/HSP-T (P/N 049951)

          Standard heatspreader for high performance COM Express module conga-MC1000. All standoffs are M2.5mm threaded.

          Carrierboards

          conga TEVAL/ COMe 3.1 (P/N 065820)

          Evaluation carrier board for COM Express Type 6 revision 3.1 modules.
