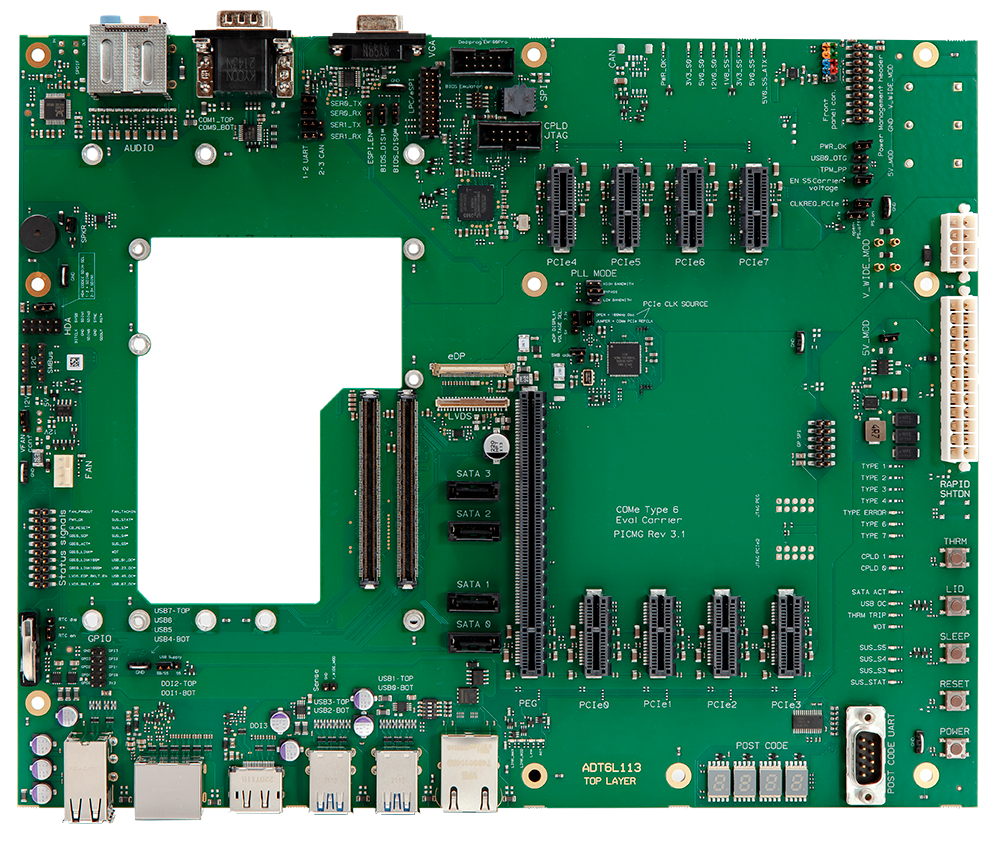

  • conga-Eval Carrier2 T6 Image 1

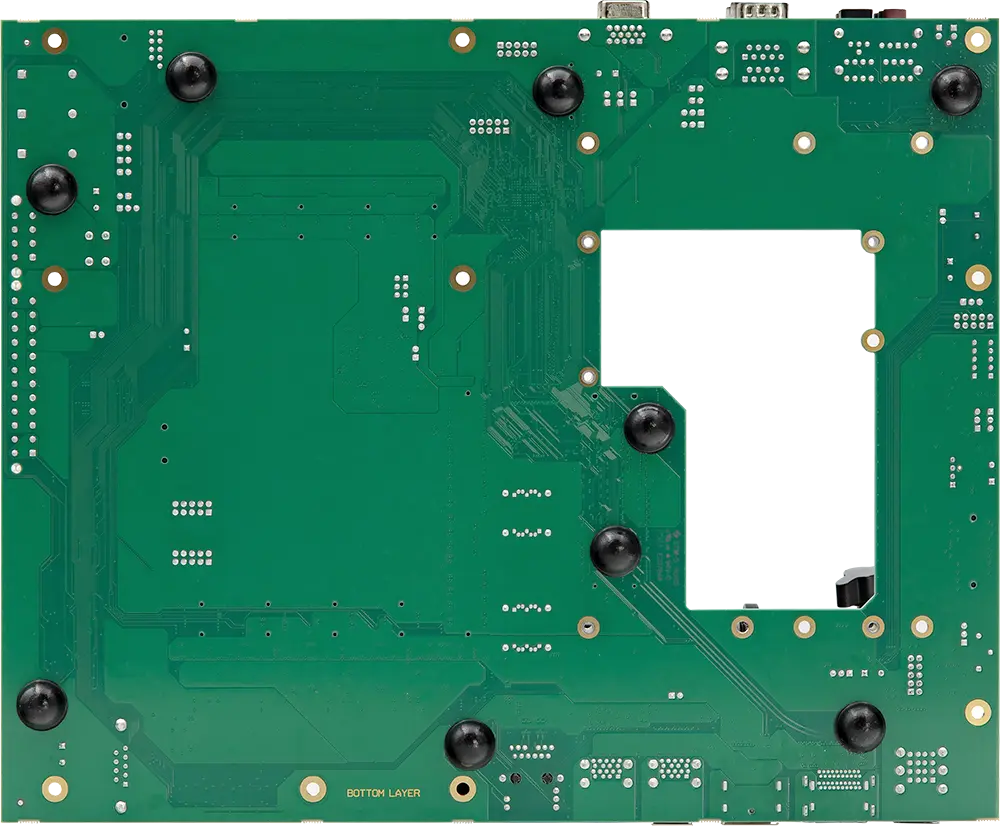

  • conga-Eval Carrier2 T6 Image 2

Your item has been added to the inquiry

conga-Eval Carrier2 T6 Image

conga-Eval Carrier2 T6

COM Express® Eval Carrier2 Type 6 with 5mm COMe connector

Selected module variant

    Selected ecosystem parts

    Carrierboards

      Value adding ecosystem offerings


      Carrierboards

      Request quote + Add more articles

      conga-Eval Carrier2 T6

      COM Express® Eval Carrier2 Type 6 with 5mm COMe connector
      • COM Express® Rev. 3.1, Pin-out Type 6
      • ATX Form Factor (305mm x 244mm)
      • 1x GbE support
      • 8x PCIe x1 + PEG x16
      • 4x USB 3.1, 4x SATA, 2x RS-232, GPIO
      • 3x DP, LVDS/eDP, VGA
      Congatec Logo
      Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

      Value adding ecosystem offerings

      Carrierboards

      Specification


      COMPLIANCE
      COM Express® Rev. 3.1, Pin-out Type 6

      DIMENSIONS
      305 mm x 244 mm (ATX)


      ETHERNET
      1x GbE RJ45


      HARD DISK
      4x SATA


      PCI EXPRESS®
      1x PEG x16
      8x PCIe x1


      PANEL SIGNAL
      3x DP
      1x LVDS/eDP (optional)
      1x VGA


      USB
      4x USB 3.1 (incl. USB 2.0) + 4x USB 2.0


      SERIAL
      2x COM ports (RX/TX only)


      AUDIO
      1x Audio Connector


      ONBOARD HEADER
      1x Feature Connector
      1x LPC/eSPI
      1x GPIO
      1x FAN

      POWER SUPPLY
      ATX (24 + 8 pin Connector)

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.

      Data Sheet

      conga-Eval_Carrier2_T6.pdf
      15.12.2025

      Whitepaper

      The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

      Ecosystem Details

      Carrierboards

      COMe Eval Carrier 2 T6 (P/N 38116-0000-00-0)

      COM Express® Eval Carrier 2 Type 6

      COMe Eval Carrier 2 T6 5 mm (P/N 38116-0000-00-5)

      COM Express® Eval Carrier 2 Type 6 with 5 mm COMe connector
