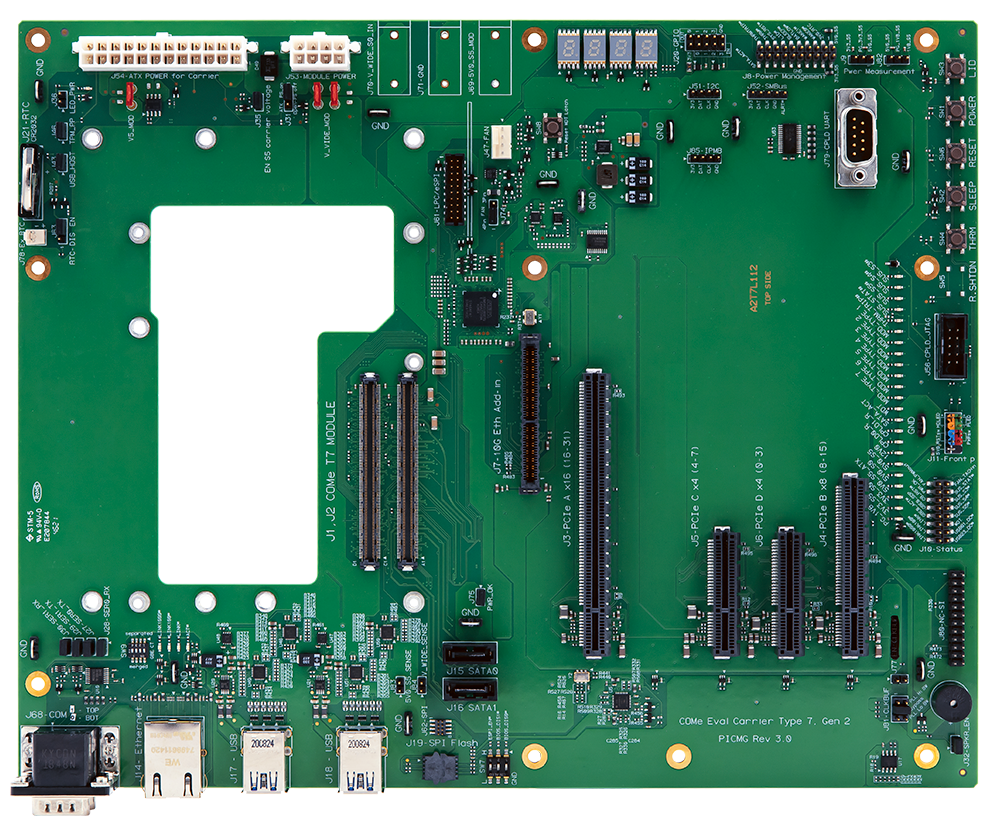

      conga-Eval Carrier T7 Gen2

      COMe Eval Carrier T7 Gen2

      • COM Express® Rev. 3.0 and 3.1 Pin-out Type 7
      • 4x 10GbE support
      • 32x PCIe lanes: 1x PCIe Gen4 x16, 1x PCIe Gen3 x8, 2x PCIe Gen3 x4
      • 4x USB 3.0, 2x SATA, 2x RS232, GPIO
      • SFP+, 10GBASE-KR or 10GBASE-T support via adapter cards
      Congatec Logo
      Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

      Value adding ecosystem offerings

      Carrierboards

      Specification


      COMPLIANCE
      COM Express® Rev. 3.0 or 3.1 Pin-out Type 7

      DIMENSIONS (H x W x D)
      305 mm x 244 mm (ATX)

      ETHERNET
      1x RJ45 – max 10G-BASE-T (depending on module support)
      4x 10GBASE-KR
      Via expansion cards support of different physical interfaces
      - 4x DAC: 10GBASE-KR signals directly routed from COMe connector to SFP+ cages
      - 2x SFP+: 10GBASE-KR-to-SFI via Inphi PHY CS4227
      - 4x SFP+: 10GBASE-KR-to-SFI via Inphi PHY CS4223
      - 4x SFP+: 10GBASE-KR-to-SFI via Intel PHY C827-IM1, CEI-Interface
      - 4x RJ45: 10GBASE-KR-to-10GBASE-T via Intel PHY X557

      PCI EXPRESS®
      1x PCIe Gen4 x16 1x PCIe Gen3 x8 2x PCIe Gen3 x4 USB 4x

      USB
      3.1 Gen2

      SERIAL
      2x DSUB9 -  COM ports (RX/TX)

      ONBOARD HEADER
       2x SATA 1x I2C 1x SMBus 1x GPIO 1x FAN 1x various: LEDs, Status signals

      VISUAL CONTROL
      BIOS POST-CODE: 4x 7 segment display Various LEDs

      POWER SUPPLY
      ATX power supply 24 + 8 pin
