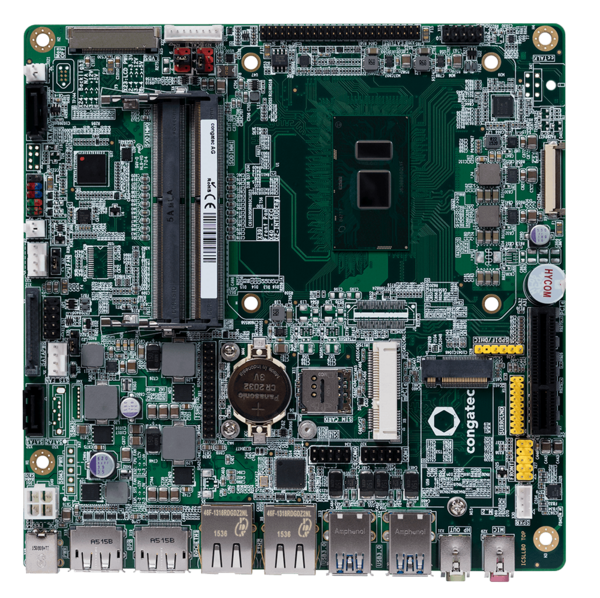

conga-IC175

Highest Performance Thin-Mini-ITX board based on 7th Generation Intel® Core™ Mobile SOC U-Processors

  • Highest Performance Thin Mini-ITX board
  • 7th Generation Intel® CoreTM Mobile SOC U-Processors
  • Improved Graphics Performance with HD600 Series
  • Ready for Intel® Optane™ memory technology on M.2
  • Wide Range Power Input 12-24 Volt
  • Whitepaper Download

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.

    Specification

    Formfactor
    Mini ITX
    CPU
    Intel® Core™ i7-7600U (2 x 2.8 GHz, 4MB cache, 15W)
    Intel® Core™ i5-7300U (2 x 2.6 GHz, 3MB cache, 15W)
    Intel® Core™ i3-7100U (2 x 2.4 GHz, 3MB cache, 15W)
    Intel® Celeron® 3965U (2 x 2.2 GHz, 2MB cache, 15W)
    DRAM
    Support for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s), max. 2x 16GB
    Ethernet
    Dual LAN Gbit / 100 Mbit / 10 Mbit; 1x Intel Gigabit Ethernet PHY i219LM (with AMT support); 1x Intel Gigabit Ethernet Controller i211 (i210 optional)
    I/O Interfaces
    1 x DC-In (external input) 12-24 V
    2 x DisplayPort
    1 x Audio In
    1 x Line Out
    2 x LAN RJ45
    4 x USB 3.0
    Internal Connectors
    1x PCIe x4 slot (gen3)
    1x Full/Half-size Mini PCIe slot
    M.2 key B 2242/3042 connector (2x PCIe lanes for Intel® Optane™ key)
    3x SATA (6G), one shared with M.2
    1x SATA Power
    4x USB 2.0
    1x LVDS (2x24 bit)
    1x Embedded DisplayPort (x4)
    1x Backlight (Power, control)
    1x Monitor OFF
    1x Surround
    1x Front Panel HD Audio
    1 x Digital MIC or S/PDIF
    1x Internal stereo speaker
    2x Serial Port COM2 (opt. as ccTALK)
    1x Feature connector - congatec custom (8 Bit General Purpose I/O)
    Connector for Integrated Sensor Hub
    1x Frontpanel (Power Switch, LEDs, Reset)
    1x Intrusion (Case Open),
    1x FAN CPU
    1x FAN System
    1x internal power header (12-24V)
    1x CEC
    1x microSIM card slot
    1x microSD card slot
    1x opt. battery header signal + power (SBM3)
    1x I²C Bus
    congatec Board Controller
    Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | LVDS backlight control I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control
    embedded BIOS Features
    AMI Aptio UEFI
    SM-BIOS
    BIOS Update
    Logo Boot
    Quiet Boot
    HDD Password
    Security
    Trusted Platform Module (TPM 2.0)
    Power Management
    Power Management | ACPI S3/S4 DeepSx | Wake on time from S5 | Power Supply 12-24 V | 2x fan (CPU / system) monitored & controlled
    Operating Systems
    Microsoft® Windows 10 (64bit only)
    Microsoft® Windows 10 IoT Enterprise (64bit only)
    Linux
    Temperature
    Operating: 0 to +60°C Storage: -20 to +70°C
    Humidity
    Operating: 10 - 90% r. H. non cond.
    Size
    170 x 170 mm (6.7” x 6.7”)

    Documents

    All documents found on this page are updated without notification. Always check this page for the latest version.

    Data Sheet

    conga-IC175.pdf
    26.03.2021

    Manual

    User's Guide for conga-IC175
    02.08.2021
    Post Code List
    15.06.2015

    Software

    [ Linux ]      [ Windows 10 ]

    Linux

    cgbcser.tar.gz
    17.01.2018 / 2.65 Ko
    Driver for modules with on-module UART, realized using the congatec board controller. V1.1
    CGOSAPIm14.pdf
    04.04.2017 / 1.07 Mo
    CGOS API programmers manual
    cgoslx-x32-1.03.022.tar.gz
    12.09.2016 / 50.38 Ko
    CGOS legacy driver 1.03.022 for 32bit Linux (Kernel version 2.6.x, 3.x and 4.x)
    cgoslx-x64-1.03.032.tar.xz
    09.05.2022 / 52.03 Ko
    CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x).For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
    cgoslx-x64-1.03.032_vmalloc.tar.xz
    09.05.2022 / 52.74 Ko
    CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
    CgosPy_1_2.zip
    28.10.2021 / 360.10 Ko
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    CGOS_DIRECT_Lx_common_R2.00.0025.zip
    15.05.2023 / 216.16 Ko
    CGOS direct driver for Linux. Please refer to readme.txt for supported functions.
    cgutillx.tar
    01.12.2021 / 3.91 Mo
    congatec System Utility Rev. 1.6.1
    Use for BIOS update or customization and panel configuration.Linux source version.
    CGUTILm16.pdf
    02.07.2020 / 2.67 Mo
    congatec System Utility Users Guide
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 Mo
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.

    Windows 10

    CgbcSer.zip
    13.09.2019 / 3.90 Mo
    Driver for on-module UART realized using the congatec board controller.Please make sure to use this driver together with congatec Board Controller firmware revision CGBCP426 or higher.
    CgMlfViewer_v100_bin.zip
    25.10.2019 / 7.99 Mo
    The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based applicationmeant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
    Cgos-x64-Windows10.zip
    05.09.2021 / 225.62 Ko
    CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
    CGOSAPIm14.pdf
    04.04.2017 / 1.07 Mo
    CGOS API programmers manual
    CgosClr.zip
    22.02.2016 / 40.98 Ko
    CGOS API Library for the .NET FrameworkThe CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
    CgosPy_1_2.zip
    28.10.2021 / 360.10 Ko
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    Cgos_direct_Windows_10_1.00.0024.zip
    03.11.2022 / 49.15 Mo
    CGOS direct driver for Windows 10.Please refer to readme.txt for supported functions and boards.
    CGUTILm16.pdf
    02.07.2020 / 2.67 Mo
    congatec System Utility Users Guide
    cgutil_v161.zip
    01.12.2021 / 10.81 Mo
    congatec System Utility Rev. 1.6.1
    Use for BIOS update or customization and panel configuration.
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 Mo
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0.Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
    chipset_10.1.1.38_public.zip
    28.02.2017 / 2.60 Mo
    Intel Chipset Software Installation Utility for installing the Windows INF files. Rev. 10.1.1.38
    graphics_driverx64_4599.zip
    23.05.2017 / 254.96 Mo
    Intel HD Graphics Driver for Windows 10 64 Bit on TS175
    intel(r)_me_11.6_corporate_11.6.25.1229.zip
    23.05.2017 / 276.15 Mo
    Intel(R) Management Engine Firmware for Windows 10 - 64 Bit
    ish_sw_drivers_1119_fw_3364_ww42.zip
    12.06.2017 / 17.47 Mo
    Intel Sensor HUB for Windows 10 - 64 Bit v.1119 fw. 3364
    Realtek-64bit_Win7_Win8_Win81_Win10_R281.exe
    23.05.2017 / 207.47 Mo
    High Definition Audio Codec driver for Realtek chips. Supports Windows 7 32Bit, Windows 8.1 32Bit and Windows 10 32Bit
    rel_22.2_pv_oemgen_455626.zip
    23.05.2017 / 323.75 Mo
    Intel Network Connections Software and Driver for Windows 64Bit. Rev. 22.2
    rst_15.5.0.1051.zip
    23.05.2017 / 72.74 Mo
    Intel(R) Rapid Storage Technology (Intel(R) RST) Version 15.5.0.1051. Executable File driver for SATA AHCI and SATA RAID controller support.
    serialio_30.100.1633.03_kabylake_pv_rs1.zip
    28.02.2017 / 3.03 Mo
    Intel IO Drivers for Kabylake platform.
