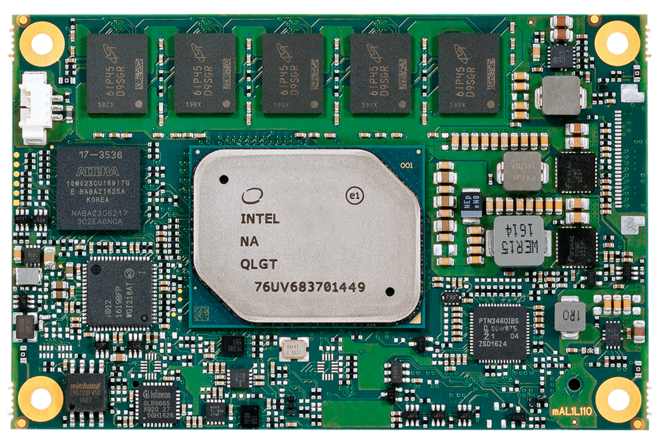

conga-mAL10/m4AL10 Preview image
  • conga-mAL10/m4AL10 Image 1

Your item has been added to the inquiry

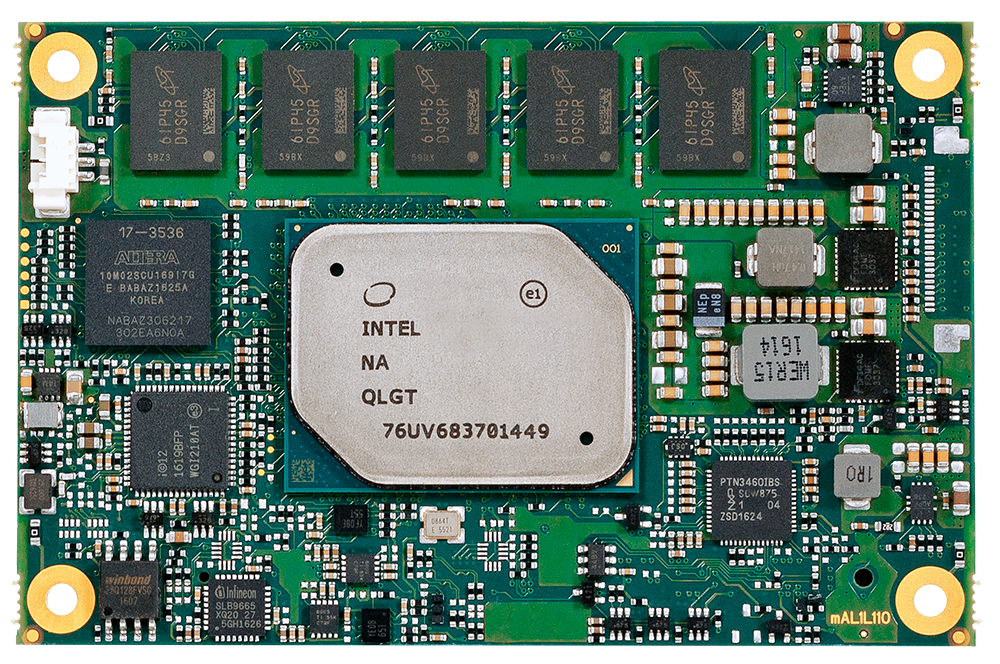

conga-mAL10/m4AL10 Image

conga-mAL10/m4AL10

COM Express® mini Type 10 with Intel® Atom® E3900, Pentium® and Celeron® Processor Series

Selected module variant

    Selected ecosystem parts

    Request quote + Add more articles

    conga-mAL10/m4AL10

    formerly JUMPtec COMe-mAL10/m4AL10
    COM Express® mini Type 10 with Intel® Atom® E3900, Pentium® and Celeron® Processor Series


    Learn all about COMs - download the guide

    • COM Express Mini Type 10 module family with Intel Atom E3900, Pentium N4200, Celeron N3350
    • Two variants: DDR3L + ECC or LPDDR4
    • Strong graphics and real-time performance
    • Compact, energy-efficient, long-term available
    Congatec Logo
    Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

    Specification

    Formfactor
    COM Express Mini
    CPU
    Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W)
    Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W)
    Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W)
    Intel® Celeron® N3350 (2 x 1.1 GHz, 2 MB L2 cache, 6W)
    Intel® Pentium® N4200 (4 x 1.1 GHz, 2 MB L2 cache, 6W)
    DRAM
    Up to 16 GByte LPDDR4
    Ethernet
    10/100/1000 MBit Ethernet
    I/O Interfaces
    2 x USB 3.0 (incl. USB 2.0)
    6 x USB 2.0
    Port 7 is dual role (Client / Host)
    PCIe lane configurations: 3 x1 / 2 x1 + 1 x2 / 2 x2
    serial interface (RX/TX only)
    SPI
    LPC
    SM-Bus
    Fast I²C
    RTC
    Mass storage
    2xSATA 6Gb/s
    Graphics
    Intel® HD Gfx Gen9
    embedded BIOS Features
    AMI Aptio V
    Security
    Trusted Platform Module (TPM 2.0)
    Power Management
    ACPI 4.0
    Operating Systems
    Microsoft® Windows 10 IoT Enterprise
    Microsoft® Windows 10 Enterprise
    Linux
    VxWorks (project based)
    Temperature
    0 °C to +60 °C operating, -30 °C to +85 °C non-operating
    industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
    Humidity
    93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78)
    Video Interfaces
    LVDS: Single Channel 18/24 bit or eDP
    DP++
    Features
    Staged Watchdog
    Size
    55 x 84 mm (2.17" x 3.31")

    Documents

    All documents found on this page are updated without notification. Always check this page for the latest version.

    Data Sheet

    Data Sheet for conga-mAL10
    15.12.2025

    Whitepaper

    The Computer-on-Modules Compendium Download for free and gain the ultimate reference guide to COM technology. From fundamentals to advanced use cases – this compendium helps you design faster, smarter, and more efficiently.

    Product Variants

    Product Filter:

      Add Filter:

       -
       -
       -
       -
       -
       -
        There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
        If you don't find the configuration you require contact your congatec Sales representative for further assistance.
        conga-mAL10/N3350 4GB 8GB eMMC (P/N 34008-0408-11-2)

        COM Express Mini Type 10 module with Intel® Celeron® N3350 dual-core processor, 4 GB DDR3L-1866 memory, 8 GB pSLC eMMC, commercial temperature range from 0 °C to +60 °C.

        conga-mAL10/N4200 8GB 32GB eMMC (P/N 34008-0800-11-4)

        COM Express Mini Type 10 module with Intel® Pentium® N4200 quad-core processor, 8 GB DDR3L-1866 memory, 32 GB pSLC eMMC, commercial temperature range from 0 °C to +60 °C.

        conga-mAL10/N3350 4GB (P/N 34008-0400-11-2)

        COM Express Mini Type 10 module with Intel® Celeron® N3350 dual-core processor, 4 GB DDR3L-1866 memory, no onboard eMMC, commercial temperature range from 0 °C to +60 °C.

        conga-mAL10/N4200 8GB 32GB eMMC (P/N 34008-0832-11-4)

        COM Express Mini Type 10 module with Intel® Pentium® N4200 quad-core processor, 8 GB DDR3L-1866 memory, 32 GB pSLC eMMC, commercial temperature range from 0 °C to +60 °C.

        conga-mAL10/E3930 4GB ECC (P/N 34009-0400-13-5)

        COM Express Mini Type 10 module with Intel® Atom™ x5-E3930 dual-core processor, 4 GB DDR3L-1600 ECC memory, no onboard eMMC, industrial temperature range from −40 °C to +85 °C.

        conga-mAL10/E3930 4GB ECC 8GB eMMC (P/N 34009-0408-13-5)

        COM Express Mini Type 10 module with Intel® Atom™ x5-E3930 dual-core processor, 4 GB DDR3L-1600 ECC memory, 8 GB pSLC eMMC, industrial temperature range from −40 °C to +85 °C.

        conga-mAL10/E3940 4GB ECC (P/N 34009-0400-16-5)

        COM Express Mini Type 10 module with Intel® Atom™ x5-E3940 quad-core processor, 4 GB DDR3L-1600 ECC memory, no onboard eMMC, industrial temperature range from −40 °C to +85 °C.

        conga-mAL10/E3940 8GB ECC 32GB eMMC (P/N 34009-0832-16-5)

        COM Express Mini Type 10 module with Intel® Atom™ x5-E3940 quad-core processor, 8 GB DDR3L-1600 ECC memory, 32 GB pSLC eMMC, industrial temperature range from −40 °C to +85 °C.

        conga-mAL10/E3950 8GB ECC (P/N 34009-0800-16-7)

        COM Express Mini Type 10 module with Intel® Atom™ x7-E3950 quad-core processor, 8 GB DDR3L-1600 ECC memory, no onboard eMMC, industrial temperature range from −40 °C to +85 °C.

        conga-mAL10/E3950 8GB ECC 32GB eMMC (P/N 34009-0832-16-7)

        COM Express Mini Type 10 module with Intel® Atom™ x7-E3950 quad-core processor, 8 GB DDR3L-1600 ECC memory, 32 GB pSLC eMMC, industrial temperature range from −40 °C to +85 °C.
