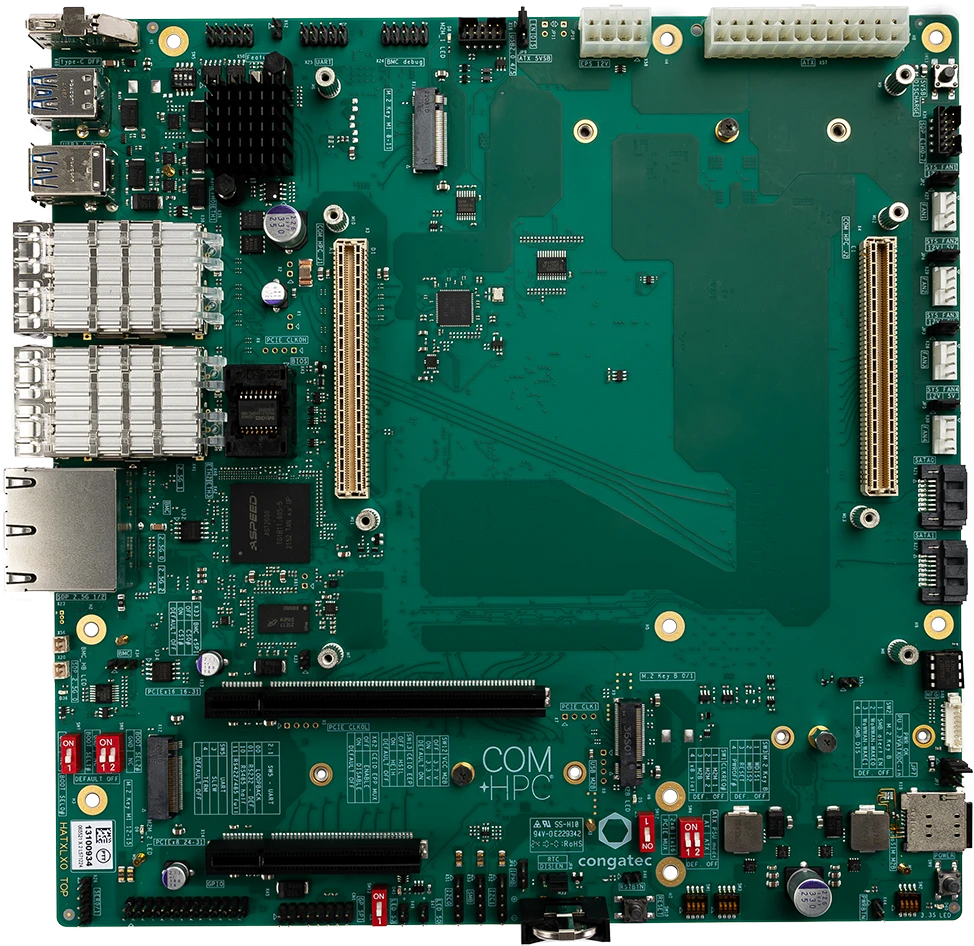

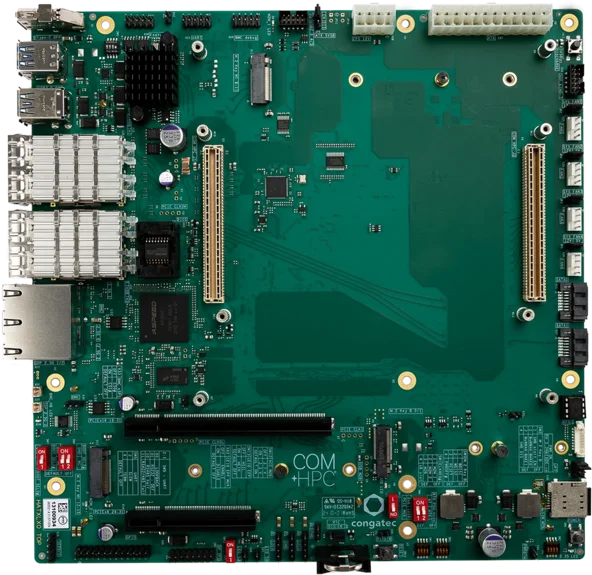

conga-HPC/uATX-Server
Application Carrier Board for COM-HPC Server Type Modules (Size D)
Learn all about COMs - download the guide
- Quick start for COM-HPC Server and Edge Computing
- Unparalleled feature density
- Industrial temperature support
- Scalable µATX carrier board
Specification
Formfactor
Standard Micro-ATX
Board Variant
Application Carrier Board for COM-HPC Server Type Modules (Size D)
Internal Connectors and Features
- 1x PCIe Gen4 x16
- 1x PCIe Gen4 x8 (capable of housing x16 cards)
- 1x M.2 Key B 2242/3042/3052/2280 (USB3.1 Gen1, PCIe, nano SIM) 2x M.2 Key M 2242/2280/22110 (PCIe x4 each)
- 1x RS232/RS485 (BMC, header)
- 2x SATA III
- 1x General Purpose I2C header | 12x GPIO header
- 4x 4-pin Fan connectors
- 1x RTC CMOS battery holder
- 1x SPI boot flash socket
- 1x Power button + header | 1x Reset button + header
- 1x ATX power connector 24-pin
- 1x EPS CPU power connector 8-pin
- 1x Power LED + header
External Connectors
- 4x SFP28/SFP+ cages for various transceiver technologies 1x 1GbE IPMI (BMC)
- 3x 2.5GbE RJ45 with IEEE1588 support
- 1x DP
- 3x USB 3.1 Gen1 (Type A)
- 1x USB 3.1 Gen1 (Type C)
Board Management Controller
- Aspeed AST2600
Power Management
ACPI 6.0
Temperature Range
Commercial: Operating Temperature: 0 to +60°C | Storage Temperature: -20 to +70°C
Industrial: Operating Temperature: -40 to 85°C | Storage Temperature: -40 to +85°C
Humidity
Operating: 10% … 85% r. H. non cond. | Storage: 5% … 85% r. H. non cond.
Size
244 x 244 mm²
Documents
All documents found on this page are updated without notification. Always check this page for
the latest
version.
Data Sheet
23.07.2025
Manual
03.12.2024
Ecosystem Details
Carrierboards
conga-HPC/uATX-Server (P/N 065520)
conga-HPC/i-uATX-Server (P/N 065521)
Industrial temperature COM-HPC Server µATX carrier board
conga-HPC/uATX-Server I/O Shield (P/N 065529)
I/O shield accessory for COM-HPC Server µATX carrier board
