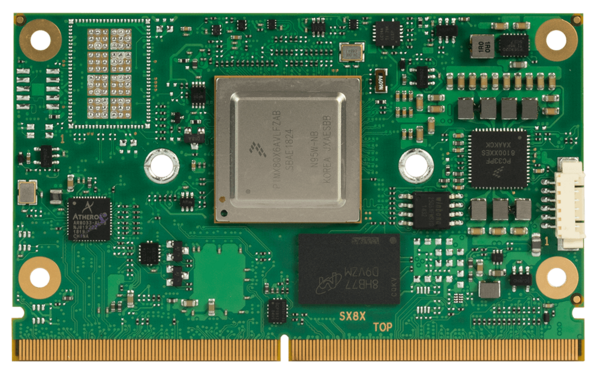

conga-SMX8X

SMARC 2.1 module based on Ultra Low Power NXP i.MX8-X series

  • NXP i.MX8-X ARM Cortex-A35 and Cortex-M4F
  • Ultra Low Power 2-5W
  • Industrial grade, improved Reliability and Virtualization
  • 3D Graphics up to two independent HD displays
  • MIPI CSI-2 camera interface

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
      There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
      If you don't find the configuration you require contact your congatec Sales representative for further assistance.

      Specification

      Formfactor
      SMARC
      CPU
      NXP i.MX8 QuadXPlus (4, ARM Cortex-A35, 1x ARM Cortex-M4F, 4W)
      DRAM
      Up to 4 GByte onboard LPDDR4 memory | 2400 MT/s
      Ethernet
      2 x Gigabit Ethernet
      I/O Interfaces
      5 x USB 2.0 (shared with 1x USB OTG client)
      1 x USB 3.0
      1 x SDIO 3.0
      1 x PCI Express™ 3.0 lanes
      I²C bus
      1 x SPI
      1 x eSPI
      USB 2.0
      up to 4x UART (2x with Handshake (1x shared with FlexCAN)
      2 x FlexCAN
      GPIOs
      optional M.2 1216 WiFi module (soldered down)
      Graphics
      Integrated in NXP i.MX8-X Series single GT7000Lite multimedia GPU
      VPU up to 4K h.265 dec / 1080p h.264 enc/dec) | 3D Graphics with up to 4 high performance vec4 shaders and 16 execution units up to 2 independent displays | OpenGL ES 3.1 | Vulcan VX extensions | OpenCL 1.2 EP | OpenVG 1.1i
      Security
      High Assurance Boot support | Inline Encryption Engine (AES-128) TNG, AES-128, AES-256, 3DES, ARC4, RSA4096, SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 4096
      Operating Systems
      Android
      Linux
      Yocto
      Video Interfaces
      1 x dual channel or 2x single channel LVDS 24 bit | 2x MIPI-DSI with 4-lanes shared with LVDS | 1x MIPI-CSI 4-lanes
      Size
      82 x 50 mm (3,23” x 1,97”)

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.

      Data Sheet

      conga-SMX8-X.pdf
      16.03.2022

      Manual

      User's Guide for conga-SMX8X
      09.01.2023
      conga-SMX8X Sample Distribution Set Quick Start Guide
      19.11.2019
      conga-SMX8X software Documentation

      Software

      [ Android ]      [ yocto ]

      Android

      Link
      In order to fetch and build the Yocto-/Android-BSP for conga-SMX8-X, please follow:
      https://wiki.congatec.com/display/IMX8DOC/BSPs+conga-SMX8-X

      yocto

      Link
      In order to fetch and build the Yocto-/Android-BSP for conga-SMX8-X, please follow:
      https://wiki.congatec.com/display/IMX8DOC/BSPs+conga-SMX8-X

      Accessories

      More about conga-SEVAL

      conga-SEVAL

      Evaluation Carrier Board compatible with SMARC modules

      More about conga-SMC1/SMARC-ARM

      conga-SMC1/SMARC-ARM

      Compact sized Carrier Board for ARM based SMARC 2.0 modules

      Part Number

      051110
      conga-SMX8-X/i-QXP-4G eMMC16

      SMARC 2.0 module ultra low power NXP i.MX8 QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

      051113
      conga-SMX8-X/i-QXP-2G eMMC16

      SMARC 2.0 module with ultra low-power NXP i.MX8-X QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

      051150
      conga-SMX8-X/i-CSP-B

      Passive cooling solution for SMARC module conga-SMX8-X with lidded NXP i.MX 8X ARM processor. All standoffs are with 2.7mm bore hole.

      051151
      conga-SMX8-X/i-HSP-B

      Heat spreader solution for SMARC module conga-SMX8-X with lidded NXP i.MX 8X ARM processor. All standoffs are with 2.7mm bore hole.

      007010
      conga-SEVAL

      Evaluation Carrier Board for SMARC 2.0 modules.

      020750
      conga-SMC1/SMARC-ARM

      Compact sized SMARC 2.0 Carrier Board for ARM based SMARC Modules

      conga-SMX8-X/i-QXP-2G eMMC16
      P/N 051113

      SMARC 2.0 module with ultra low-power NXP i.MX8-X QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

      conga-SMX8-X/i-QXP-4G eMMC16
      P/N 051110

      SMARC 2.0 module ultra low power NXP i.MX8 QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.
