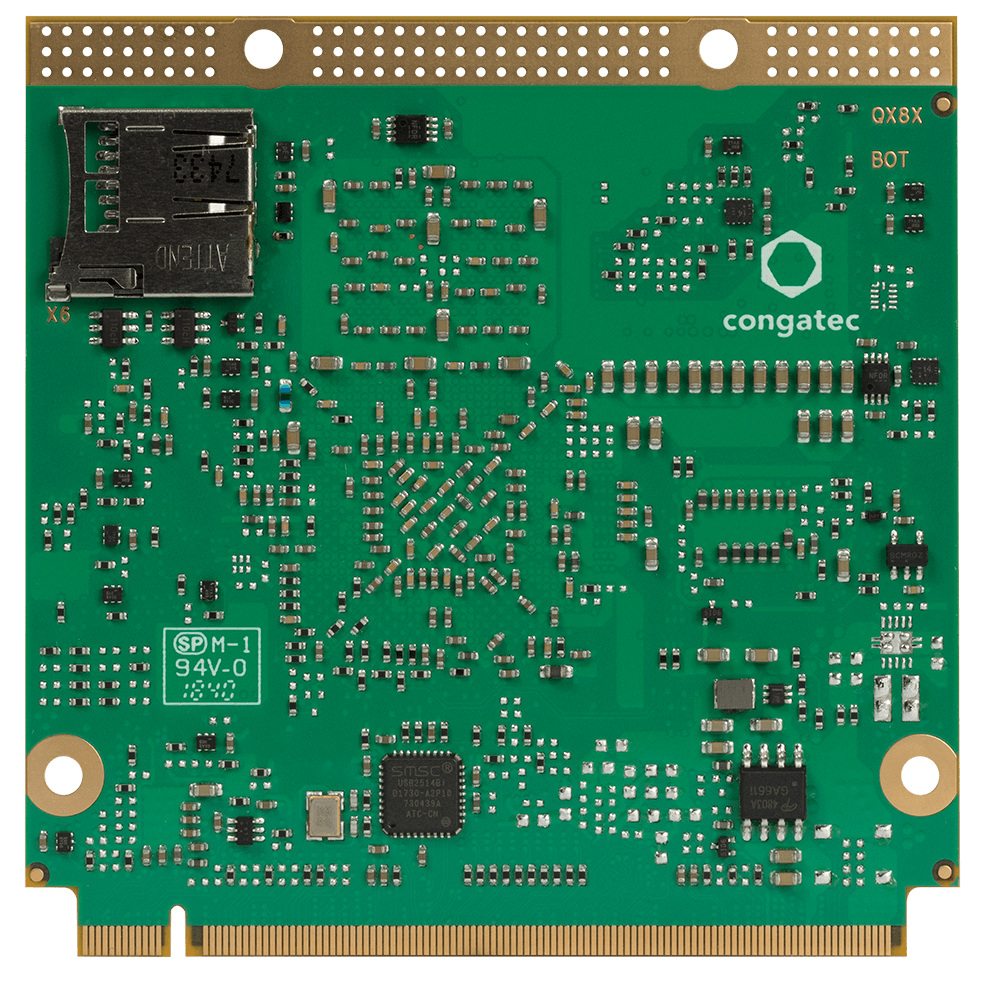

conga-QMX8X (discontinued)

Ultra Low Power Qseven module based on NXP i.MX8X processor series

Product status: Discontinued
NXP i.MX 8X processor series with ARM Cortex-A35 / M4F core complex
Ultra low power architecture with 2-5W
Highest reliability and improved virtualization
Support for two independent HD displays
Extended longevity up to 15 years

Technical Details
Show product variants

Value adding ecosystem offerings

Carrierboards

Specification

Formfactor

Qseven

CPU

NXP i.MX8 QuadXPlus (4, ARM Cortex-A35, 1x ARM Cortex-M4F, 4W)

NXP i.MX8 DualXPlus (2, ARM Cortex-A35, 1x Cortex-M4F)

DRAM

Up to 4 GByte onboard LPDDR4 memory | 2400 MT/s

Ethernet

1 x Gigabit Ethernet

I/O Interfaces

4 x USB 2.0 (shared with 1x USB OTG client)

1 x USB 3.0

1 x SDIO 3.0

1 x PCI Express™ 3.0 lanes

2 x I²C bus

2 x SPI

2 x UART

1 x 1 x UART offboard (with Handshake)

2 x FlexCAN

GPIOs

Graphics

Integrated in NXP i.MX8-X Series single GT7000Lite multimedia GPU
VPU up to 4K h.265 dec / 1080p h.264 enc/dec) | 3D Graphics with up to 4 high performance vec4 shaders and 16 execution units up to 2 independent displays | OpenGL ES 3.1 | Vulcan VX extensions | OpenCL 1.2 EP | OpenVG 1.1i

Operating Systems

Linux

Android

Yocto

Video Interfaces

dual channel or 2x single channel LVDS 24 bit | opt. HDMI 1.3 through bridge (shared with second LVDS channel) 2x MIPI-DSI with 4-lanes shared with LVDS | 1x MIPI-CSI 4-lanes

Documents

All documents found on this page are updated without notification. Always check this page forthe latestversion.

Data Sheet

conga-QMX8X.pdf

13.07.2020

Manual

conga-QMX8X Sample Distribution Set Quick Start Guide

03.12.2020

conga-QMX8X Software Documentation

Software

[ Android ] [ yocto ]

Android

Link

In order to fetch and build the Yocto-/Android-BSP for conga-QMX8-X, please follow
https://wiki.congatec.com/display/IMX8DOC/BSPs+conga+QMX8-X

yocto

Link

In order to fetch and build the Yocto-/Android-BSP for conga-QMX8-X, please follow
https://wiki.congatec.com/display/IMX8DOC/BSPs+conga+QMX8-X

Product Variants

conga-QMX8-X/DXP-2G eMMC16 (P/N 016501)

Qseven module with ultra low power NXP i.MX8 DualXPlus processor with 2x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

conga-QMX8-X/QXP-2G eMMC16 (P/N 016503)

Qseven module with ultra low-power NXP i.MX8-X QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

conga-QMX8-X/QXP-4G eMMC16 (P/N 016500)

Qseven module with ultra low power NXP i.MX8 QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

conga-QMX8-X/QXP-4G eMMC16/HDMI (P/N 016504)

Qseven module with ultra low power NXP i.MX 8QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Features HDMI bridge. Commercial temperature range.

conga-QMX8-X/i-DXP-2G eMMC16 (P/N 016511)

Qseven module with ultra low power NXP i.MX8 DualXPlus processor with 2x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

conga-QMX8-X/i-QXP-2G eMMC16 (P/N 016513)

Qseven module with ultra low-power NXP i.MX8-X QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

conga-QMX8-X/i-QXP-4G eMMC16 (P/N 016510)

Qseven module with ultra low power NXP i.MX8 QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

Ecosystem Details

Carrierboards

conga-QEVAL/Qseven 2.0 ARM (P/N 007005)

Evaluation carrier board for Qseven 2.0 modules based on ARM architecture.

Accessories

conga-MCB/Qseven-ARM

The conga-MCB/ARM is a full featured carrier board for Qseven ARM modules.

conga-QEVAL/Qseven 2.0

To achieve a quick start with Qseven congatec offers an evaluation carrier board, which routes all the Qseven® signals to standard interface connectors.
