conga-QKIT/x86 (EOL)

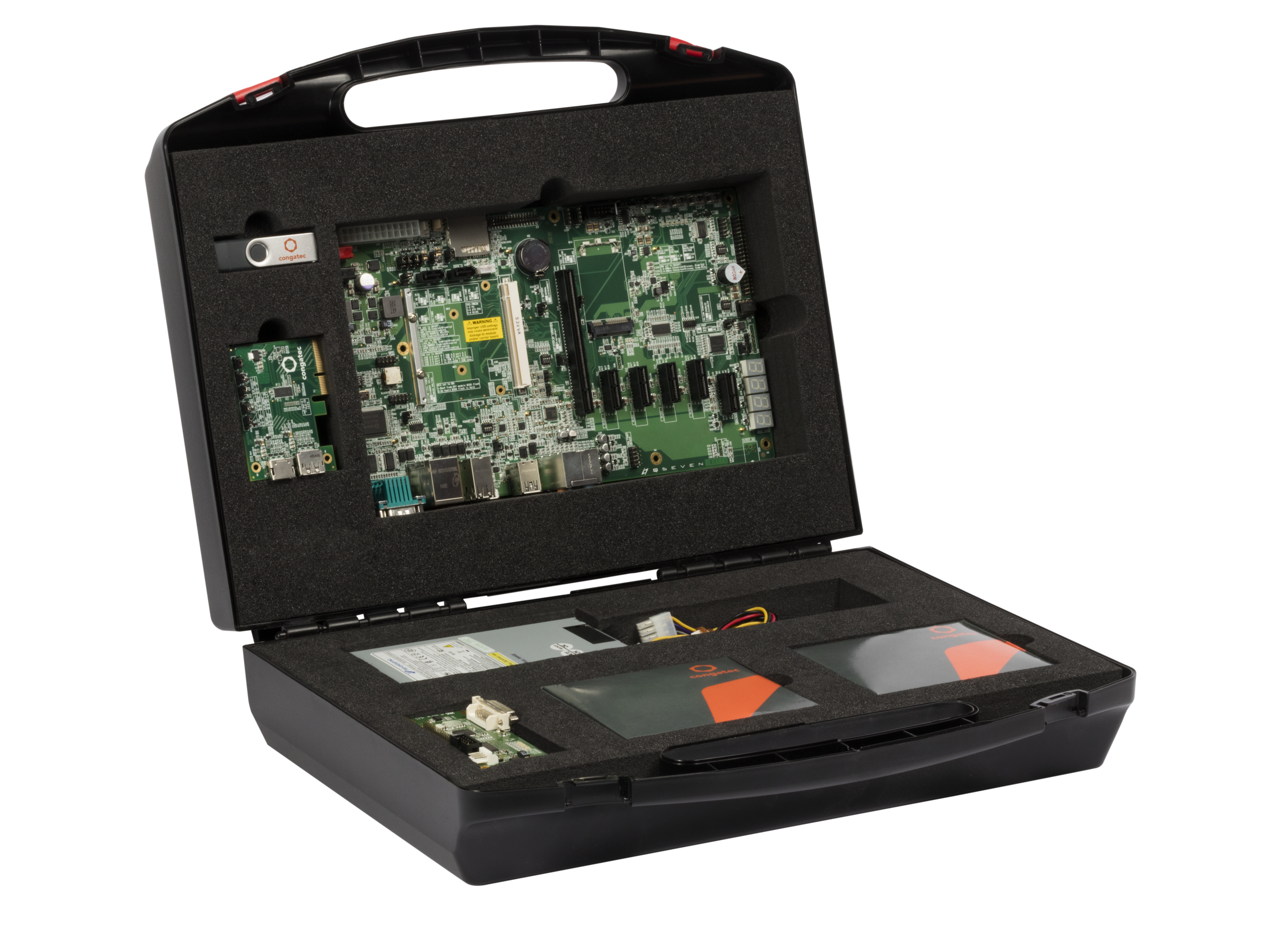

Questo kit completo offre la possibilità di iniziare a valutare immediatamente i moduli Qseven ®.

Selected module variant

Selected ecosystem parts

Request quote + Add more articles

conga-QKIT/x86 (EOL)

Questo kit completo offre la possibilità di iniziare a valutare immediatamente i moduli Qseven ®.

Starter Kit Qseven
Tutti gli accessori fuori dal box
Valutazione immediata per Qseven

Technical Details

Specification

Contents:

007003 conga-QEVAL/Qseven 2.0 Evaluation board for Qseven modules (rev. B.4)
011115 conga-LDVI/EPI LVDS to DVI converter board with EEPROM
033331 cab-LVDV-DAT-34-15 34-pin, 1mm pitch, 15cm ribbon cable for LVDS data
052147 cab-LVDV-PWR-10-15 10-pin, 15cm, RM 1,27mm ribbon cable for LVDS power (conga-LVDI/EPI)
2 x 48000029 SATA III cable Standard SATA-cable, 30cm, straight-straight
500016 ATX power supply FSP180-50LH, max 180 W (150 x 81.5 x 40.5 mm)
500030 conga-DP/HDMI adapter 4k adapter for HDMI
85500008 conga-Qkit/x86 QSG Quick Start Guide

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Manual

Schematics for conga-QEVAL Complete schematics and layout of the conga-QEVAL in PDF and Cadence/Allegro/Orcad format. Freely available schematics and board file. Can be used as an example design for custom carrier boards.

26.10.2020

Quick Start Guide for conga-QKIT/x86

04.12.2020

Data Sheet

conga-QKIT

15.06.2015
