conga-HPC/EVAL-Server

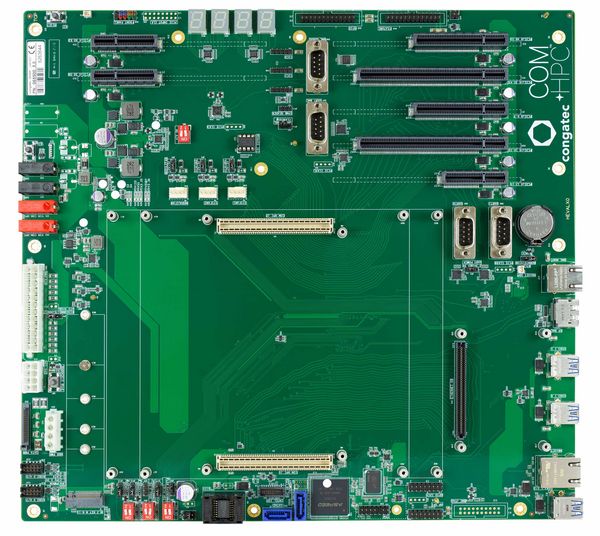

Evaluation Carrier Board for COM-HPC Server Type Modules
- Evaluation Carrier Board for COM HPC Server Type Modules
- Routing of the entire signals provided by COM HPC Module Base Specification R1.0 to standard interface connectors
Product Filter:
Add Filter:
There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
If you don't find the configuration you require contact your congatec Sales representative for further assistance.
If you don't find the configuration you require contact your congatec Sales representative for further assistance.
Specification
Formfactor
Extended ATX
Board Variant
Evaluation Carrier Board for COM-HPC Server Type Modules (Sizes D and E)
Internal Connectors and Features
- 2x PCIe x16 connector
- 2x PCIe x8 connector
- 3x PCIe x4 connector
- 2x dual USB 2.0 header
- M.2 Key M 2230 / 2242 / 2260 / 2280 / 22110 8x Ethernet KR interfaces connector
- 2x SATA
- SATA Power
- 2x UART DB9 from module
- 1x UART DB9 from BMC
- 1x UART DB9 for BMC console
- GP SPI header
- I2C header
- SMB header
- eSPI header
- SPI socket
- GPIO header
- Feature header
- 3x Fan
External Connectors
- 4x USB3.2 Gen 1 Type A
- DP through BMC
- 10GbE RJ45 through module
- GbE RJ45 through ASPEED AST2600
Postcode
4x 7-Segment Postcode LEDs connected to PD I2C
Power Input
- ATX connector, 12V/GND banana jacks
Operating Temperature
Operating Temp.: -40°C … +85°C | Storage Temp.: -40°C … +85°C
Humidity
Operating Hum.: 10% … 90% r. H. non cond. Storage Hum.: 5% … 95% r. H. non cond.
Size
304.8 x 330.2 mm (approx. 12 x 13 inches)
