conga-X915
- XTX Module
- Up to Intel® Pentium® M 1.8GHz processor
| Formfactor | XTX |
| CPU | Intel® Celeron® M 600 (600 MHz, 512 KB L2 Cache, 7 W) Intel® Celeron® M 373 (1.0 GHz, 512 KB L2 cache, 5.5 W) Intel® Pentium® M 738 (1.4 GHz, 2 MB L2 cache, 10 W) Intel® Pentium® M 745 (1.8 GHz, 2 MB L2 cache, 21 W) |
| DRAM | max. 2 GByte DDR2 400 MHz |
| Chipset | Intel® 915GME Graphics & Memory Controller Hub: Intel® 915GME I/O Controller Hub: Intel® 82801FBM (ICH6-M) I/O Controller: Winbond 83627HG Ethernet PHY: Intel® 82562 |
| Ethernet | IEEE 802.3u 100Base-Tx IEEE 802.3u 100Base-Tx , Fast Ethernet compatible |
| I/O Interfaces | 2 x SATA 6 x USB 2.0 1 x EIDE (UDMA-66/100) PCI bus Rev. 2.3 LPC bus I²C bus 2 x COM Port TTl Level 1 x IrDA Port 4 x PCI Express™ 2 x Express Card® |
| Sound | AC´97 digital audio interface |
| Graphics | Intel® GMA 900 Enhanced 256 Bit 3D Video Controller, Intel® Graphics Media Accelerator 900, 533 MHz Memory Clock,max. 128 MByte 64 Bit Video RAM (DVMT 3.0),Two independent pipelines for full dual view support |
| CRT Interface | Resolutions up to 2048x1536 CRT Interface 400 MHz RAMDAC Resolutions up to 2048x1536 @ 70Hz (QXGA) |
| congatec Board Controller | Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control |
| embedded BIOS Features | Serial Port Console Redirection Serial Port Console Redirection for Remote Setup and Installation OEM Logo OEM CMOS Defaults LCD Control Flash Update Display Auto Detection Backlight Control AMIBIOS8® |
| Security | This congatec XTX board can be optionally eqipped with a discrete "Trusted Platform Module" (TPM). It is capable of calculating efficient hashand RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels. |
| Power Management | ACPI 2.0 ACPI 2.0 with battery support |
| Operating Systems | Windows Embedded Compact 7 Microsoft® Windows® XP Microsoft® Windows® CE 6.0 Linux Microsoft® Windows® embedded Standard |
| Temperature | Standard Operating: 0 to +60°CStorage: -20 to +80°C |
| Humidity | Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond. |
| Video Interfaces | 1 x VGA LVDS 2x24 2 x SDVO |
Data Sheet
|
conga-X915
18.01.2013
|
 conga-X915.pdf |
Manual
|
User's Guide congatec System Utility
13.04.2012
|
CGUTILm14.pdf |
|
User's Guide CGOS API
13.04.2012
|
CGOSAPIm13.pdf |
|
List of AMI postcodes
25.07.2012
|
AMIBIOS8_Checkpoint_and_Beep_Code_List_PUB.pdf |
|
Design Guide SDVO
19.06.2012
|
DG_SDVO_11.pdf |
|
Design Guide XTX
19.06.2012
|
DG_XTX_12.pdf |
|
User's Guide conga-X915
12.08.2011
|
P915m15.pdf |
|

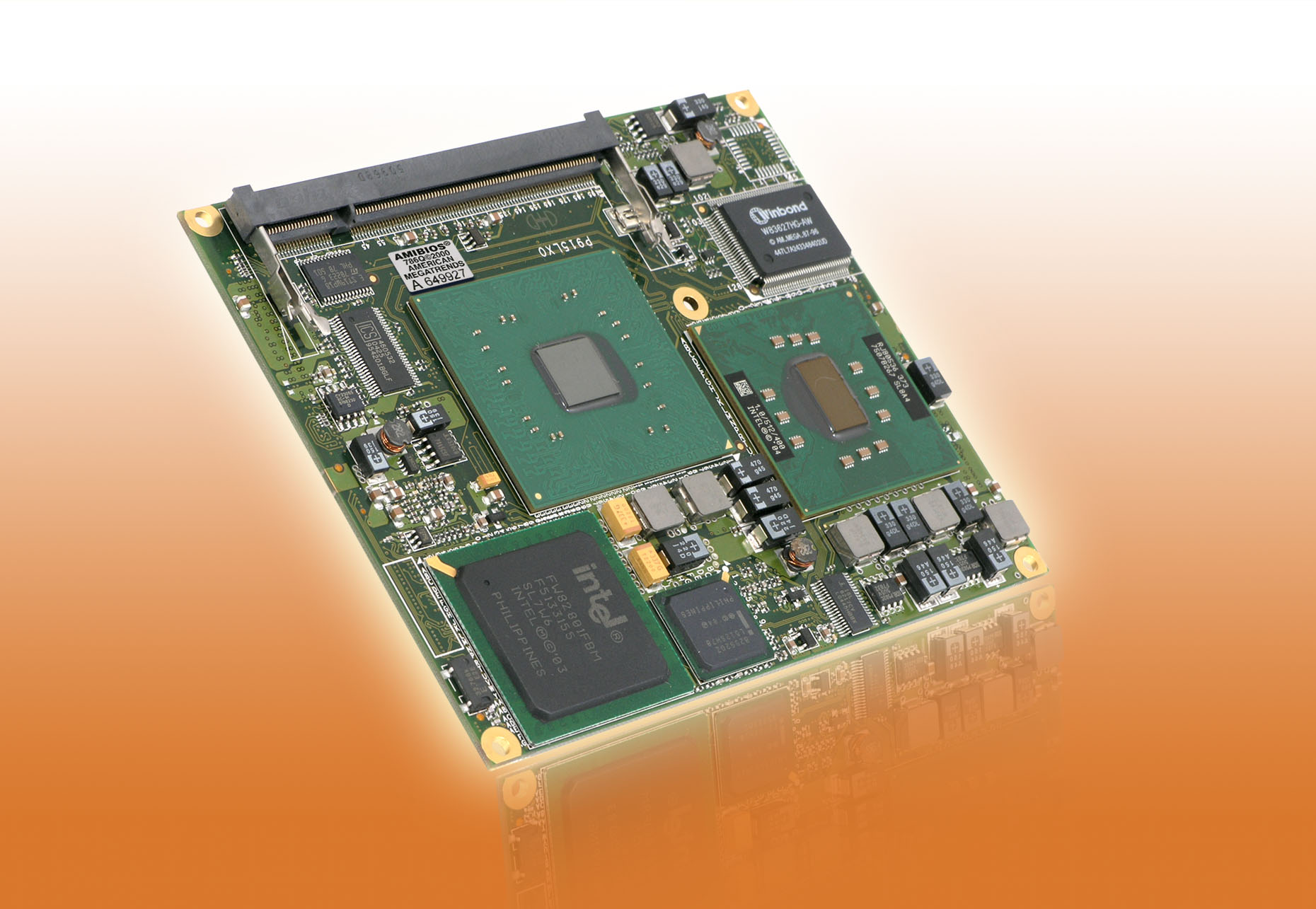

conga-X915 press
11.08.2011
|
 conga-X915_press.jpg |
|

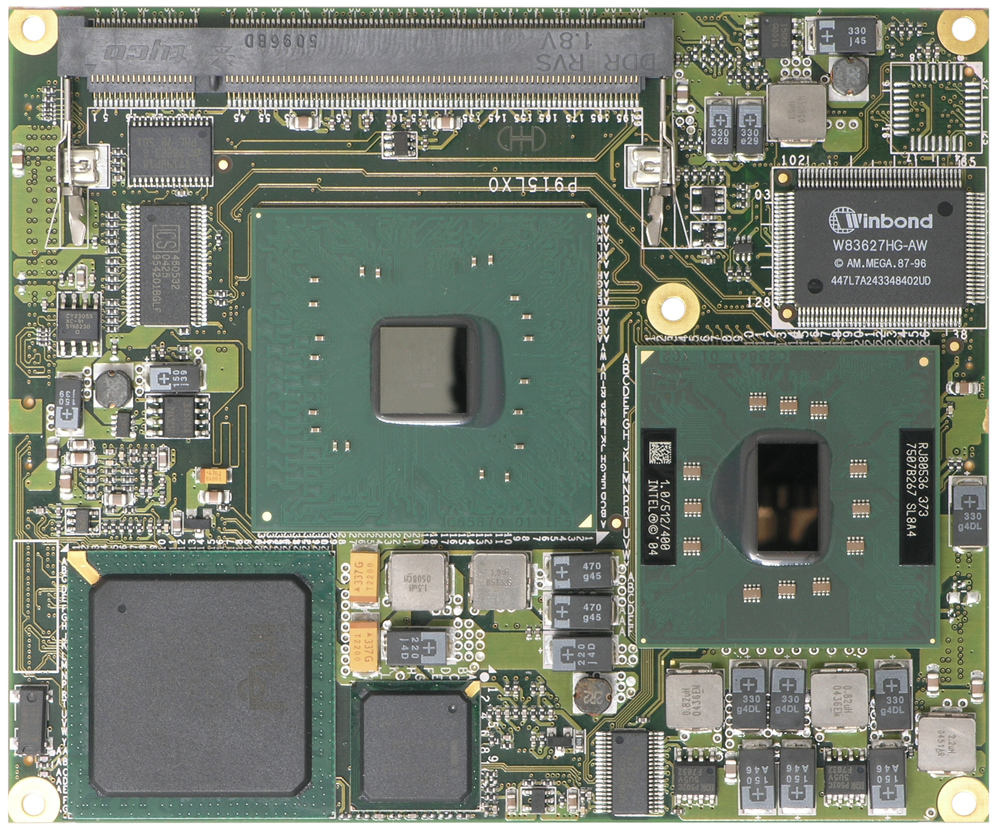

conga-X915-top
09.05.2012
|
 conga-X915-top.png |
|

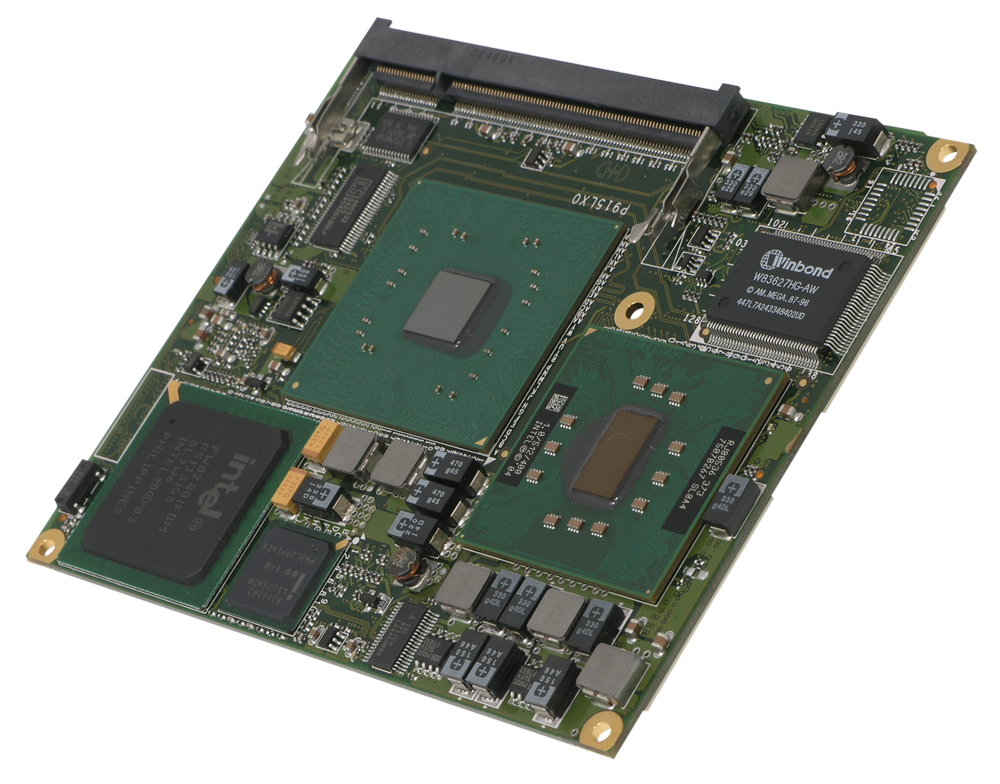

conga-X915-per-left
09.05.2012
|
conga-X915-per-left.png |
|
conga-X915-pe-right
09.05.2012
|
conga-X915-pe-right.png |
Application Note
|
AN02 Remote Control
31.03.2012
|
AN2_Remote_Control.pdf |
|
AN03 Watchdog
31.03.2012
|
AN3_Watchdog.pdf |
|
AN05 BIOS Update And Write Protection
31.03.2012
|
AN5_BIOS_Update_And_Write_Protection.pdf |
|
AN06 BIOS Recovery
31.03.2012
|
AN6_BIOS_Recovery.pdf |
|
AN7 External BIOS Update
26.02.2013
|
AN7_External_BIOS_Update.pdf |
|
AN8 Create OEM Default Map
02.04.2013
|
AN8_Create_OEM_Default_Map.pdf |
|
AN09 RTC Battery Lifetime
31.03.2012
|
AN9_RTC_Battery_Lifetime.pdf |
|
AN10 BIOS Setup Configuration
31.03.2012
|
AN10_BIOS_Setup_Configuration.pdf |
|
AN11 Create And Add Bootlogo
31.03.2012
|
AN11_Create_And_Add_Bootlogo.pdf |
|
AN12 Modify EPI File
31.03.2012
|
AN12_Modify_EPI_File.pdf |
|
AN13 Load BIOS Setup Defaults
31.03.2012
|
AN13_Load_BIOS_Setup_Defaults.pdf |
|
AN14 ETX XTX Mounting Solutions
31.03.2012
|
AN14_ETX_XTX_Mounting__Solutions.pdf |
|
AN21 Add OEM ACPI SLIC Table
31.03.2012
|
AN21_Add_OEM_ACPI_SLIC_Table.pdf |
|
AN22 Install Windows Without USB ROM Drive
31.03.2012
|
AN22_Install_Windows_Without_USB_ROM_Drive.pdf |
- [DOS]
- [Linux]
- [QNX]
- [Windows 2000]
- [Windows 7]
- [Windows 7 Embedded]
- [Windows CE]
- [Windows XP]
- [Windows XP embedded]
|
2008-03-10 / 253709 Bytes
|
Public CGOS API Rev. 1.03.018 |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2013-04-24 / 1601442 Bytes
|
congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration. |
|
2009-06-22 / 1101393 Bytes
|
congatec System Utility Users Guide |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2012-01-24 / 49998 Bytes
|
Public CGOS API Rev. 1.03.020 for 32bit Linux (Kernel version 2.4, 2.6 and 3.0) |
|
2012-06-01 / 1986560 Bytes
|
congatec System Utility Rev. 1.4.9 Use for BIOS update or customization and panel configuration.Linux source version. |
|
2009-06-22 / 1101393 Bytes
|
congatec System Utility Users Guide |
|
2006-08-01 / 90276 Bytes
|
Linux Driver Installation Guide for congatec CPU modules |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2012-08-10 / 55214 Bytes
|
Public CGOS API Rev. 1.03.020 for QNX 6.x |
|
2005-10-10 / 122880 Bytes
|
Intel Chipset Identification Utility |
|
2006-07-06 / 967571 Bytes
|
Intel Chipset Software Installation Utility for installing the Windows* INF files. |
|
2005-10-10 / 4458360 Bytes
|
Intel Chipset Ethernet Driver for i845, i852, i915 |
|
2005-10-10 / 17791122 Bytes
|
Realtek AC97 Audio Driver for Windows 98Gold/98se/Me/2000/XP/2003(32/64 bits) |
|
2005-10-10 / 5182211 Bytes
|
Intel Chipset Graphics Driver for i852 and i915 |
|
2008-03-10 / 253709 Bytes
|
Public CGOS API Rev. 1.03.018 |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2013-04-24 / 1601442 Bytes
|
congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration. |
|
2009-06-22 / 1101393 Bytes
|
congatec System Utility Users Guide |
|
2013-04-24 / 1601442 Bytes
|
congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration. |
|
2007-06-04 / 2300416 Bytes
|
Board Support Package Rev. 2.1 for congatec CPU modules. Contains WindowsCE 5.0 driver files for video, sound and network. |
|
2013-03-15 / 10285578 Bytes
|
Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network. |
|
2013-01-23 / 8122085 Bytes
|
Board Support Package Rev. 2.6.5 for congatec CPU modules. Contains Windows Embedded Compact 7 driver files for video, sound and network. |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2013-02-01 / 106375 Bytes
|
Windows CE 7.0 Driver Installation Guide Rev. 1.0 for congatec CPU modules |
|
2007-06-04 / 123765 Bytes
|
Windows CE 5.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules |
|
2012-08-10 / 87262 Bytes
|
Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules |
|
2008-03-10 / 253709 Bytes
|
Public CGOS API Rev. 1.03.018 |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2013-04-24 / 1601442 Bytes
|
congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration. |
|
2009-06-22 / 1101393 Bytes
|
congatec System Utility Users Guide |
|
2005-10-10 / 122880 Bytes
|
Intel Chipset Identification Utility |
|
2008-09-16 / 135074 Bytes
|
Windows XP Driver Installation Guide for all congatec CPU modules |
|
2006-07-06 / 967571 Bytes
|
Intel Chipset Software Installation Utility for installing the Windows* INF files. |
|
2005-10-10 / 4458360 Bytes
|
Intel Chipset Ethernet Driver for i845, i852, i915 |
|
2005-10-10 / 17791122 Bytes
|
Realtek AC97 Audio Driver for Windows 98Gold/98se/Me/2000/XP/2003(32/64 bits) |
|
2005-10-10 / 5182211 Bytes
|
Intel Chipset Graphics Driver for i852 and i915 |
|
2008-03-10 / 703288 Bytes
|
CGOS API programmers manual |
|
2013-04-24 / 1601442 Bytes
|
congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration. |
|
2009-06-22 / 1101393 Bytes
|
congatec System Utility Users Guide |
|
2012-05-14 / 51113668 Bytes
|
Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API. |
|
2012-05-14 / 104867 Bytes
|
Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules |
| P/N | Title | Description |
| 013410 | conga-X915/CM600-512 eco | XTX module with Intel 910GMLE and Intel Celeron M ULV-Processor 600MHz, 512kByteL2-Cache and 400MHz FSB |
| 023557 | conga-X915/CM1000-0 eco | XTX module with Intel 910GMLE and Intel Celeron M ULV-Processor 1.0 GHz, 0kByteL2-Cache and 400MHz FSB |
| 098634 | conga-X915/373 | XTX module with Intel 915GME and Intel Celeron M 373 ULV-Processor 1.0 GHz, 512kByteL2-Cache and 400MHz FSB |
| 075643 | conga-X915/738 | XTX module with Intel 915GME and Intel Pentium M 738 LV-Processor 1.4 GHz, 2 MByte L2-Cache and 400MHz FSB |
| 012041 | conga-X915/745 | XTX module with Intel 915GME chipset and Intel Pentium M 745 Processor 1.8 GHz, 2 MByte L2-Cache and 400MHz FSB |
| 062579 | conga-X915+X945/HSP-B | Heatspreader for XTX module conga-X915 and conga-X945. Standoff with 2.7mm bore hole. |
| 011278 | conga-X915+X945/HSP-T | Heatspreader for XTX module conga-X915 and conga-X945. Standoff with M2.5mm thread. |
| 024873 | conga-X915+X945/CSP-B | Standard passive cooling solution for XTX module conga-X915 and conga-X945 black surface with 10mm fins, bore hole standoffs |
| 073258 | conga-X915+X945/CSP-T | Standard passive cooling solution for XTX module conga-X915 and conga-X945 black surface with 10mm fins, thread standoffs |
| 088114 | conga-X915+X945/CSP-B-V | Standard passive cooling solution for XTX-Module conga-X915 and conga-X945 black surface with 10mm vertical fins, bore hole standoffs |
| 012345 | conga-X915+X945/CSP-T-V | Standard passive cooling solution for XTX-Module conga-X915 and conga-X945 black surface with 10mm vertical fins, thread standoffs |
| 088741 | conga-X915+X945/CSA-B | Standard active cooling solution for XTX modules conga-X915/X945 black surface with 10mm fins, integrated 12V fan 5500rpm, cable length 200mm, w/3 pin, 2.54 pitch connector, bore hole standoffs |
| 036198 | conga-X915+X945/CSA-T | Standard active cooling solution for XTX module conga-X915 and conga-X945 black surface with 10mm fins, integrated 12V fan 5500rpm, cable length 200mm, w/3 pin, 2.54 pitch connector, thread standoffs |
 |
