conga-XLX

conga-XLX

Low Power XTX Module
AMD® Geode™ LX800 processor 500MHz

Formfactor	XTX
CPU	AMD Geode™ LX 800 (500 MHz, 128 KB L2 cache, 3.6 W)
DRAM	max. 1 GByte DDR333
Chipset	AMD® Geode™ CS5536 Companion Device: AMD Geode™ CS5536 Ethernet: Realtec RTL8100C I/O Controller: Winbond 83627HG Audio Codec: ALC658
Ethernet	IEEE 802.3u 100Base-Tx IEEE 802.3u 100Base-Tx , Fast Ethernet compatible
I/O Interfaces	2 x SATA 4 x USB 2.0 2 x EIDE (UDMA-66/100) I²C bus LPC bus 2 x COM Port TTl Level 1 x IrDA Port PCI bus Rev. 2.3
Sound	AC´97 digital audio interface
Graphics	Integrated in chipset UMA, up to 254 MByte graphic memory space
CRT Interface	Resolutions up to 1920x1440 CRT Interface 350 MHz RAMDAC Resolutions up to 1920x1440 @ 85Hz
congatec Board Controller	Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features	Display Auto Detection OEM Logo OEM CMOS Defaults LCD Control Flash Update Backlight Control AMIBIOS8® Insyde XpressROM
Security	This congatec XTX board can be optionally eqipped with a discrete "Trusted Platform Module" (TPM). It is capable of calculating efficient hashand RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels.
Power Management	ACPI 2.0 ACPI 2.0 with battery support
Operating Systems	Microsoft® Windows® XP Microsoft® Windows® CE 6.0 Linux Microsoft® Windows® embedded Standard
Temperature	Standard Operating: 0 to +60°CStorage: -20 to +80°C
Humidity	Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces	1 x VGA 1 x LVDS 1x18

Data Sheet

conga-XLX

18.01.2013

Manual

User's Guide congatec System Utility 13.04.2012	CGUTILm14.pdf
User's Guide CGOS API 13.04.2012	CGOSAPIm13.pdf
Design Guide XTX 19.06.2012	DG_XTX_12.pdf
User´s Guide conga-XLX 12.08.2011	X800m13.pdf

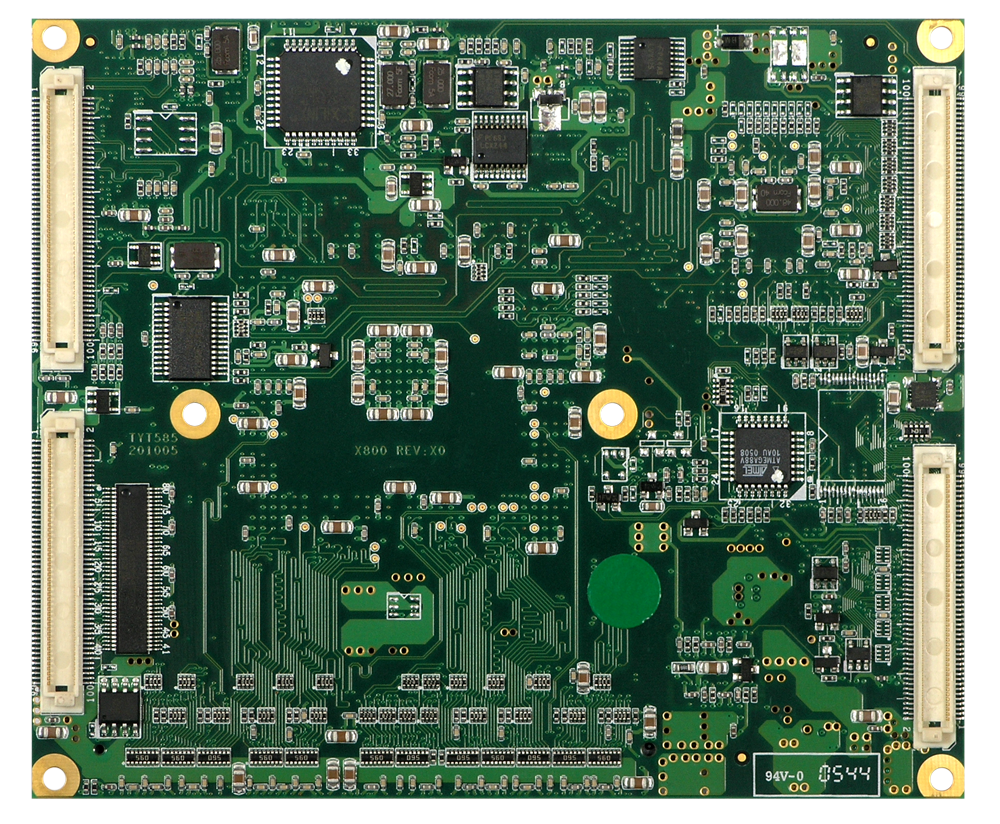

conga-XLX rep rear 08.05.2012	conga-XLX_rep_rear.png

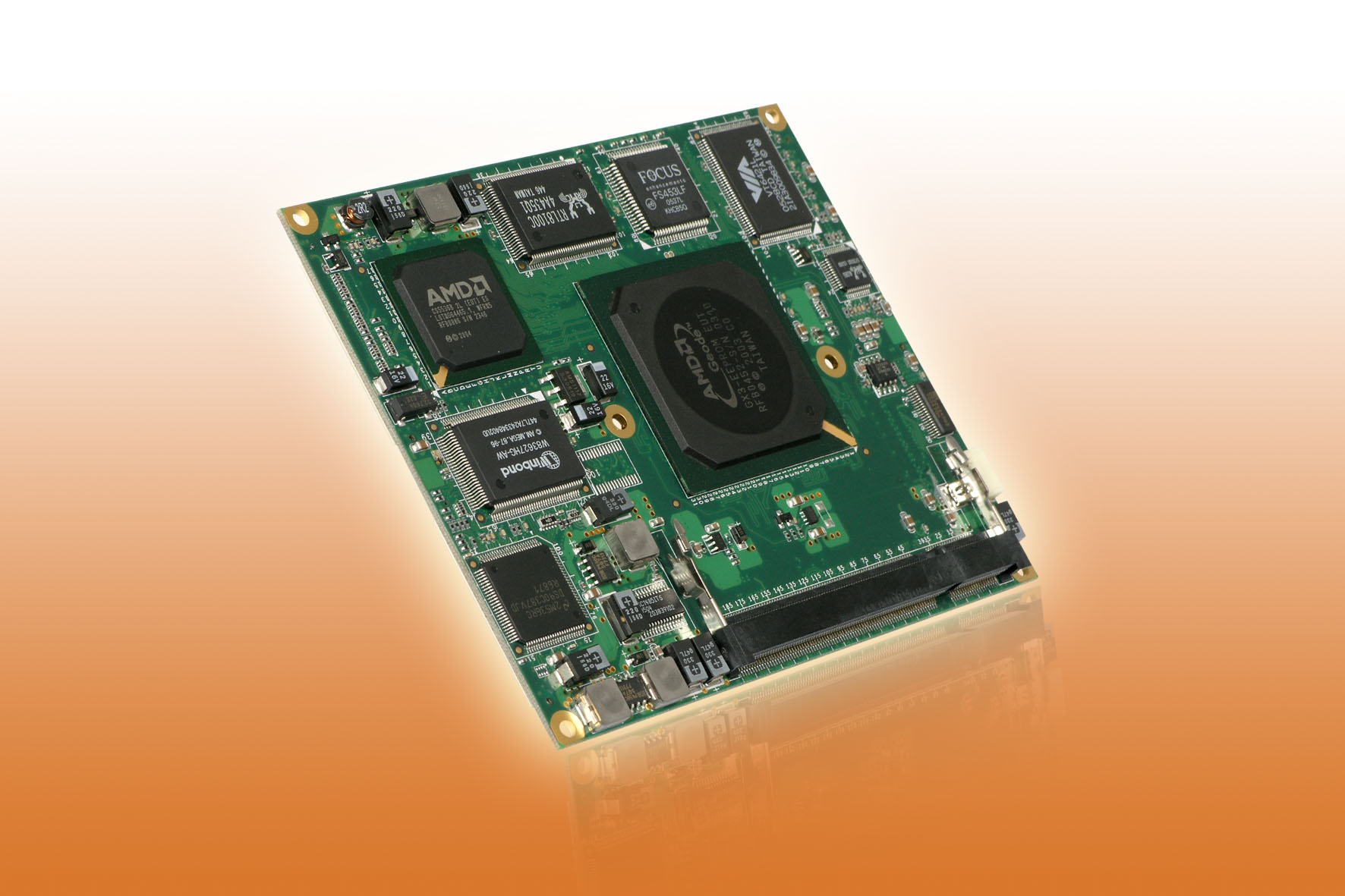

conga-XLX press 11.08.2011	conga-XLX_press.jpg

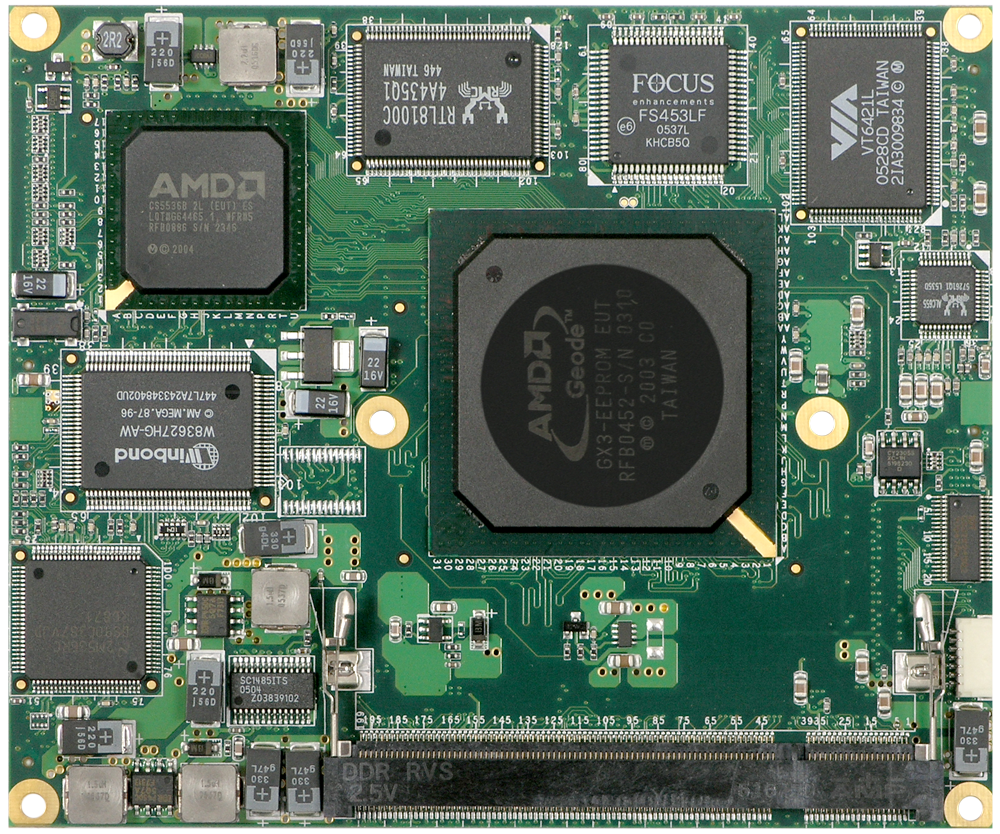

conga-XLX rep top 08.05.2012	conga-XLX_rep_top.png

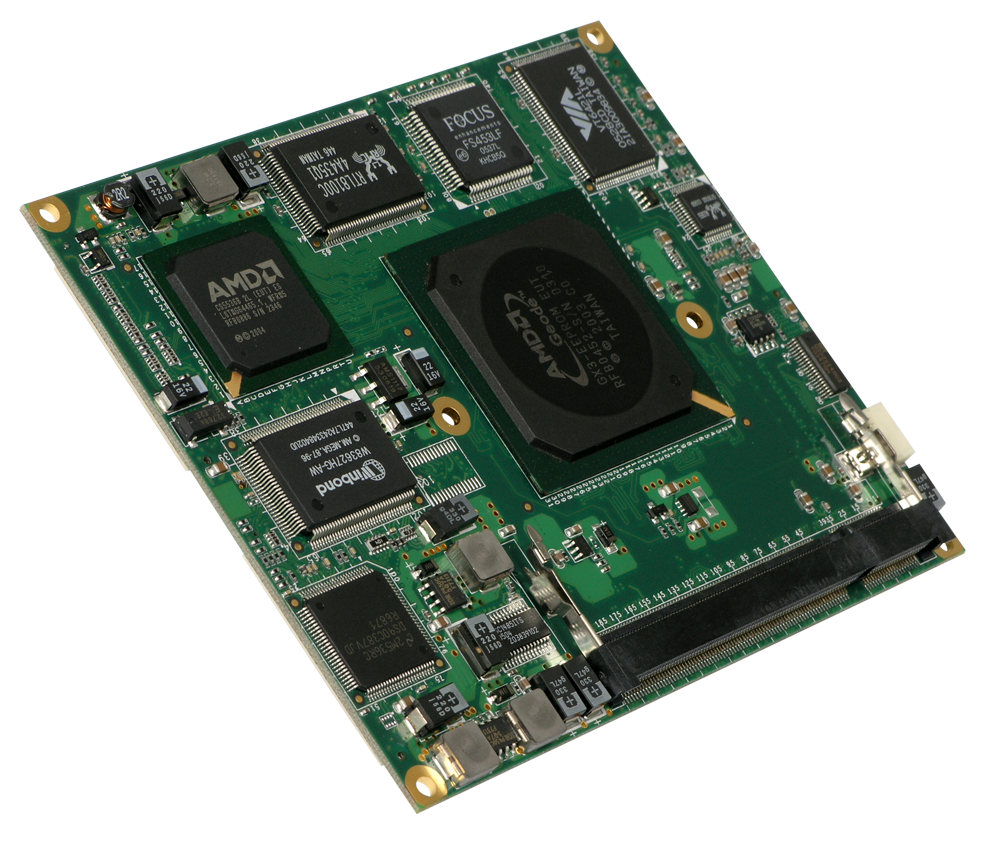

conga-XLX per right 08.05.2012	conga-XLX_per_right.png
conga-XLX per left 08.05.2012	conga-XLX_per_left.png

Application Note

AN03 Watchdog 31.03.2012	AN3_Watchdog.pdf
AN06 BIOS Recovery 31.03.2012	AN6_BIOS_Recovery.pdf
AN7 External BIOS Update 26.02.2013	AN7_External_BIOS_Update.pdf
AN8 Create OEM Default Map 02.04.2013	AN8_Create_OEM_Default_Map.pdf
AN09 RTC Battery Lifetime 31.03.2012	AN9_RTC_Battery_Lifetime.pdf
AN11 Create And Add Bootlogo 31.03.2012	AN11_Create_And_Add_Bootlogo.pdf
AN12 Modify EPI File 31.03.2012	AN12_Modify_EPI_File.pdf
AN13 Load BIOS Setup Defaults 31.03.2012	AN13_Load_BIOS_Setup_Defaults.pdf
AN14 ETX XTX Mounting Solutions 31.03.2012	AN14_ETX_XTX_Mounting__Solutions.pdf
AN15 Configure RAID System 31.03.2012	AN15_Configure_RAID_System.pdf
AN21 Add OEM ACPI SLIC Table 31.03.2012	AN21_Add_OEM_ACPI_SLIC_Table.pdf
AN22 Install Windows Without USB ROM Drive 31.03.2012	AN22_Install_Windows_Without_USB_ROM_Drive.pdf

DOS

Cgos.zip 2008-03-10 / 253709 Bytes	Public CGOS API Rev. 1.03.018
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide
LX800_Bootlogo.zip 2006-12-07 / 157740 Bytes	This installation guide is designed to help you create and install an OEM Boot Logo BIOS Module using the congatec System Utility tool on CPU modules equipped with AMD LX800 CPUs

Linux

CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgoslx.tar.gz 2012-01-24 / 49998 Bytes	Public CGOS API Rev. 1.03.020 for 32bit Linux (Kernel version 2.4, 2.6 and 3.0)
cgutillx.tar 2012-06-01 / 1986560 Bytes	congatec System Utility Rev. 1.4.9 Use for BIOS update or customization and panel configuration.Linux source version.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide
conga_DIG_Linux.pdf 2006-08-01 / 90276 Bytes	Linux Driver Installation Guide for congatec CPU modules
Linux-2.6.11-lx800.zip 2005-12-19 / 911611 Bytes	Linux Board Support Package for conga-CLX and conga-XLX

QNX

CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgosqx.tar.gz 2012-08-10 / 55214 Bytes	Public CGOS API Rev. 1.03.020 for QNX 6.x

Windows 2000

Castle_AES_W2k_1.0.zip 2006-03-10 / 750 Bytes	Dummy Win2k AES .inf File for AMD Geode(TM) LX800 to fix device manager dependencies.
Castle_XP_XPe_WDM_Audio_v2.01.04.zip 2005-12-14 / 235175 Bytes	AMD Geode(TM) LX Processor/CS5535 Companion Device WindowsXP/2K WDM Audio Driver, Ver.2.01.04, May 17, 2005
Norwich_Win2k_Graphics_v3.01.00.zip 2006-03-09 / 102610 Bytes	AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) 2K Display Driver, Version 3.1.0.0, Feb 02, 2006
RTL8139.zip 2006-02-01 / 68090 Bytes	The Realtek Ethernet Driver for RTL8139 based ethernet chips.
vt6421_win2kxp.zip 2006-02-23 / 65391 Bytes	Driver for VIA Discrete Serial ATA RAID controller VT6420/1
X800_DIG_Win2k.pdf 2006-10-06 / 94524 Bytes	conga-XLX Driver Installation Guide for Windows 2000

Windows 7

Cgos.zip 2008-03-10 / 253709 Bytes	Public CGOS API Rev. 1.03.018
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide

Windows 7 Embedded

2013-04-24 / 1601442 Bytes

congatec System Utility Rev. 1.5.0
Use for BIOS update or customization and panel configuration.

Windows CE

cgce.msi 2007-06-04 / 2300416 Bytes	Board Support Package Rev. 2.1 for congatec CPU modules. Contains WindowsCE 5.0 driver files for video, sound and network.
cgce6.zip 2013-03-15 / 10285578 Bytes	Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
conga_DIG_WinCE.pdf 2007-06-04 / 123765 Bytes	Windows CE 5.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules
conga_DIG_WinCE6.pdf 2012-08-10 / 87262 Bytes	Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules

Windows XP

Castle_XP_WDM_AES_v2.00.03.zip 2005-12-14 / 22143 Bytes	AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) XP AES Driver, Version 2.00.03, May 17, 2005
Castle_XP_XPe_WDM_Audio_v2.01.04.zip 2005-12-14 / 235175 Bytes	AMD Geode(TM) LX Processor/CS5535 Companion Device WindowsXP/2K WDM Audio Driver, Ver.2.01.04, May 17, 2005
Cgos.zip 2008-03-10 / 253709 Bytes	Public CGOS API Rev. 1.03.018
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide
conga_DIG_WinXP.pdf 2008-09-16 / 135074 Bytes	Windows XP Driver Installation Guide for all congatec CPU modules
LX800_Bootlogo.zip 2006-12-07 / 157740 Bytes	This installation guide is designed to help you create and install an OEM Boot Logo BIOS Module using the congatec System Utility tool on CPU modules equipped with AMD LX800 CPUs
Norwich_Win2k_Graphics_v3.01.00.zip 2006-03-09 / 102610 Bytes	AMD Geode(TM) LX Processor/CS5535 Companion Device Windows(R) 2K Display Driver, Version 3.1.0.0, Feb 02, 2006
RTL8139.zip 2006-02-01 / 68090 Bytes	The Realtek Ethernet Driver for RTL8139 based ethernet chips.
vt6421_win2kxp.zip 2006-02-23 / 65391 Bytes	Driver for VIA Discrete Serial ATA RAID controller VT6420/1

Windows XP embedded

CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide
cgxpe.zip 2012-05-14 / 51113668 Bytes	Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API.
conga_DIG_WinXPE.pdf 2012-05-14 / 104867 Bytes	Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

P/N	Title	Description
057824	conga-XLX/800-LVDS	XTX module with AMD Geode LX800 and AMD companion chip CS5536 500MHz, LVDS graphics-interface
084267	conga-XLX/800-TTL	XTX module with AMD Geode LX800 and AMD companion chip CS5536 500MHz, TTL graphics-interface
074215	conga-XLX/HSP-B	Heatspreader for conga-XLX. Standoff with 2.7mm bore hole.
057821	conga-XLX/HSP-T	Heatspreader for conga-XLX. Standoff with M2.5mm thread.

	conga-XKIT Starterkit for XTX™ modules All data
	conga-XEVAL Evaluation Board for XTX™ modules All data
	conga-Xdebug XTX™ Debug Platform All data
	conga-FPA2 Universal Flat Panel Adapter Board All data
	conga-LDVI DVI Converter Module for LVDS All data
