conga-XA945

conga-XA945

Low Power XTX Module
Intel® Atom™ 1.6GHz processor

Formfactor	XTX
CPU	Intel® Atom™ N270 (1.6 GHz, 512 KB L2 cache, 2.5 W)
DRAM	max. 2 GByte DDR2 667 MHz
Chipset	Intel® 945GME Graphics & Memory Controller Hub: Intel® 945GME I/O Controller Hub: Intel® 82801GBM (ICH7-M) I/O Controller: Winbond 83627HG Ethernet PHY: Intel® 82562
Ethernet	IEEE 802.3u 100Base-Tx IEEE 802.3u 100Base-Tx , Fast Ethernet compatible
I/O Interfaces	2 x SATA 4 x PCI Express™ 6 x USB 2.0 2 x Express Card® 1 x EIDE (UDMA-66/100) LPC bus I²C bus LPT PCI bus Rev. 2.3 2 x COM Port TTl Level 1 x IrDA Port
Sound	AC´97 digital audio interface, Line In, Line Out
Graphics	Intel® GMA 950 Enhanced 256 Bit 3D Video Controller, Intel® Graphics Media Accelerator 950, Up to 10.6 GB/sec memory bandwidth, 256-bit graphics core,max. 224 MByte 64 Bit Video RAM (DVMT 3.0), Dynamic Display Modes for flat-panel, wide-screenand Digital TV support, Two independent pipelines for full dual view support
Motion Video Support	High Definition Hardware Motion Compensation to support high definition hi-bitrate MPEG2 media playback.
CRT Interface	Resolutions up to 2048x1536 CRT Interface 400 MHz RAMDAC Resolutions up to 2048x1536 @ 70Hz (QXGA) including 1920x1080 @ 85Hz (HDTV)
congatec Board Controller	Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board information, Board Statistics, BIOS Setup, Data Backup, I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
embedded BIOS Features	Serial Port Console Redirection Serial Port Console Redirection for Remote Setup and Installation OEM Logo OEM CMOS Defaults LCD Control Display Auto Detection Backlight Control AMIBIOS8® Flash Update
Security	This congatec XTX board can be optionally eqipped with a discrete "Trusted Platform Module" (TPM). It is capable of calculating efficient hashand RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and e commerce will benefit also with improved authentication, integrity and confidence levels.
Power Management	ACPI 2.0 ACPI 2.0 with battery support
Operating Systems	Windows Embedded Compact 7 Microsoft® Windows® 7 Microsoft® Windows® XP Microsoft® Windows® embedded Standard Microsoft® Windows® CE 6.0 Linux
Temperature	Standard Operating: 0 to +60°CStorage: -20 to +80°C
Humidity	Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces	VGA LVDS 2x24 2 x SDVO

Data Sheet

conga-XA945

26.03.2013

conga-XA945.pdf

Manual

List of AMI postcodes 25.07.2012	AMIBIOS8_Checkpoint_and_Beep_Code_List_PUB.pdf
Design Guide XTX 19.06.2012	DG_XTX_12.pdf
User's Guide congatec System Utility 13.04.2012	CGUTILm14.pdf
User's Guide CGOS API 13.04.2012	CGOSAPIm13.pdf
User's Guide conga-X945 12.08.2011	X945m13.pdf

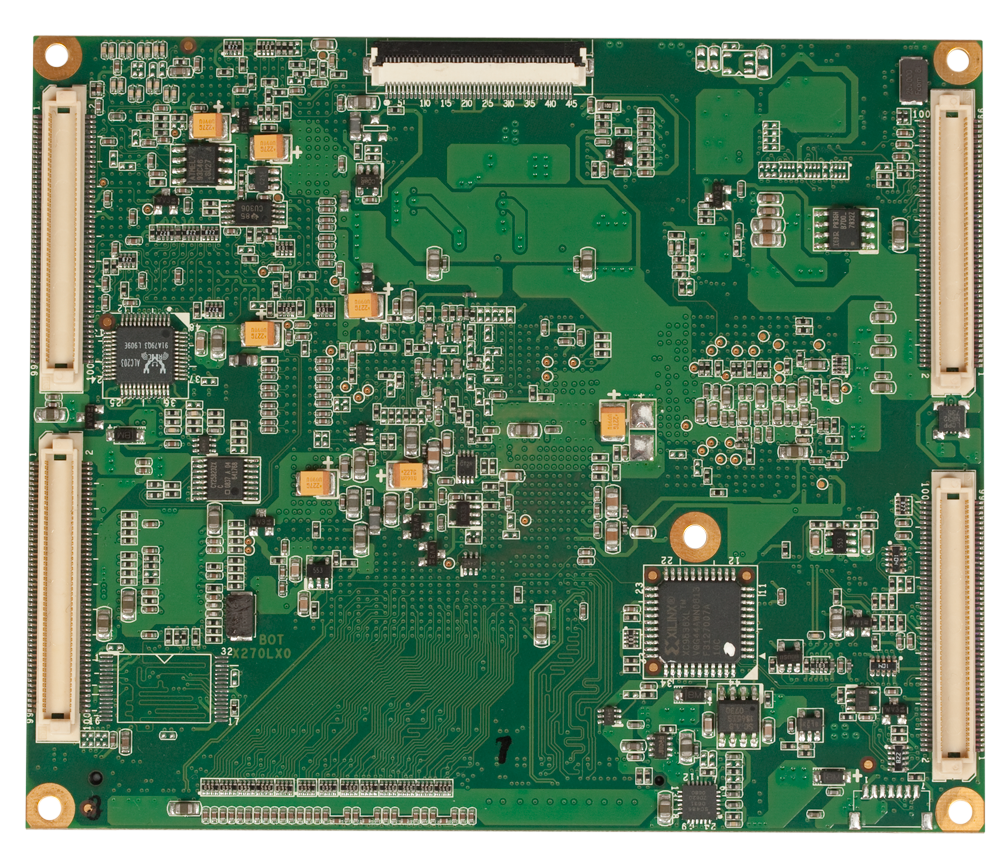

conga-XA945 rear 09.05.2012	conga-XA945_rear.png

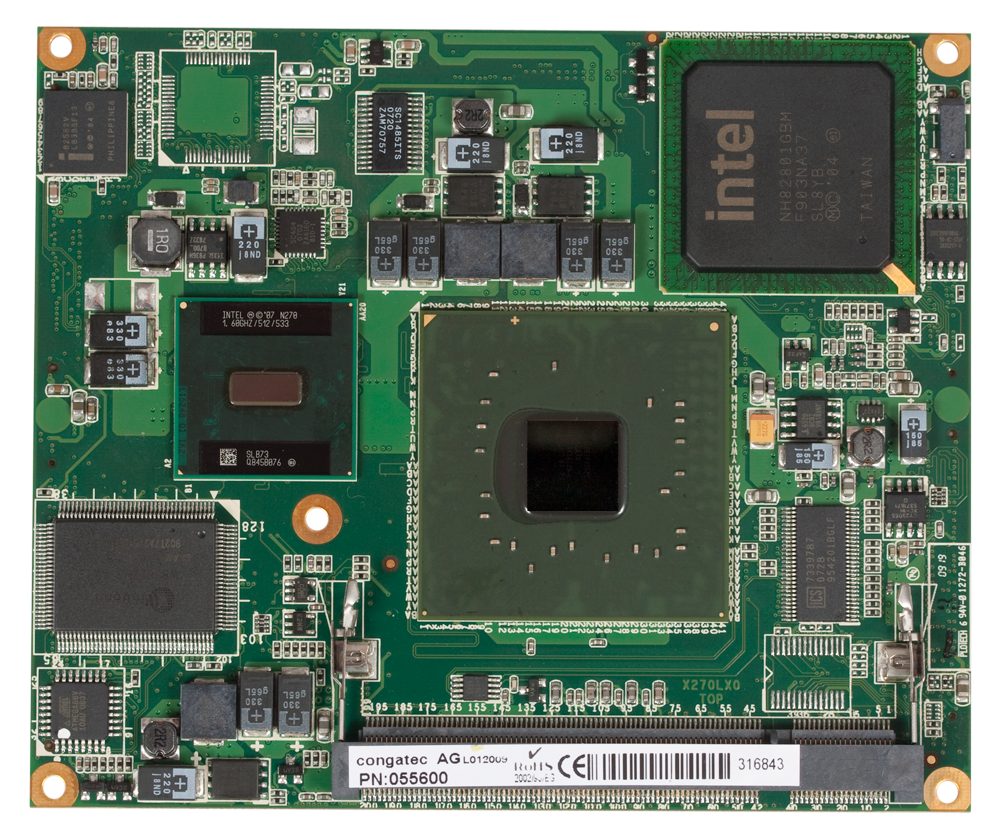

conga-XA945 rep 09.05.2012	conga-XA945_rep.png
conga-XA945 per l 09.05.2012	conga-XA945_per_l.png

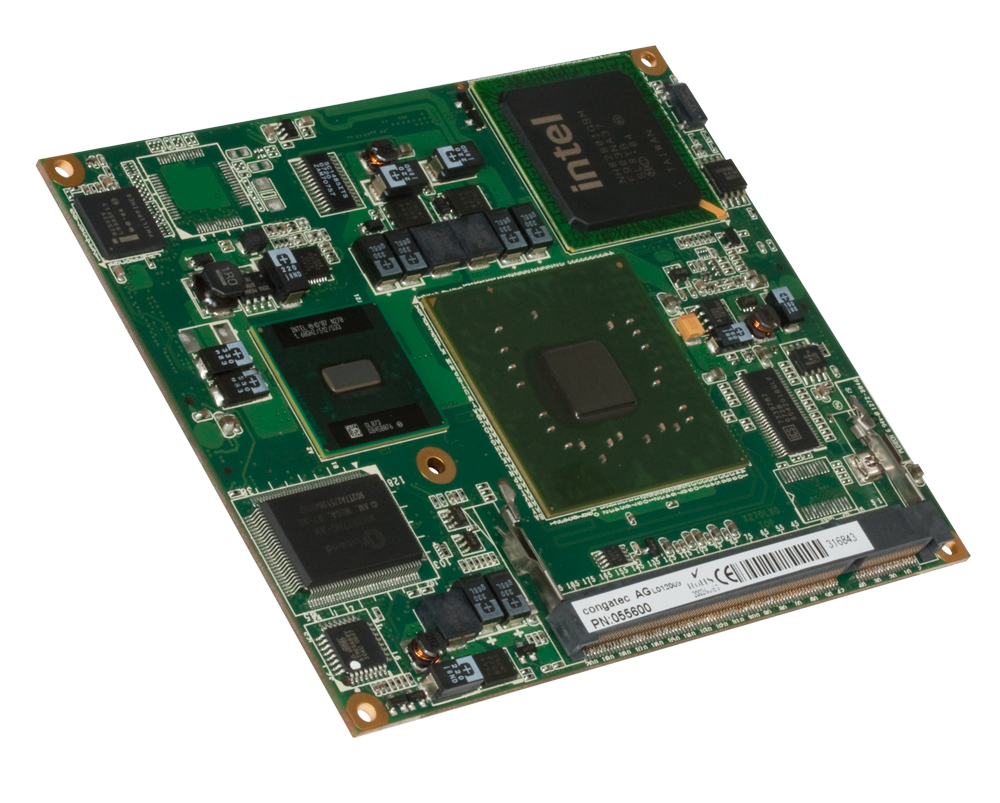

conga-XA945 per r 09.05.2012	conga-XA945_per_r.png

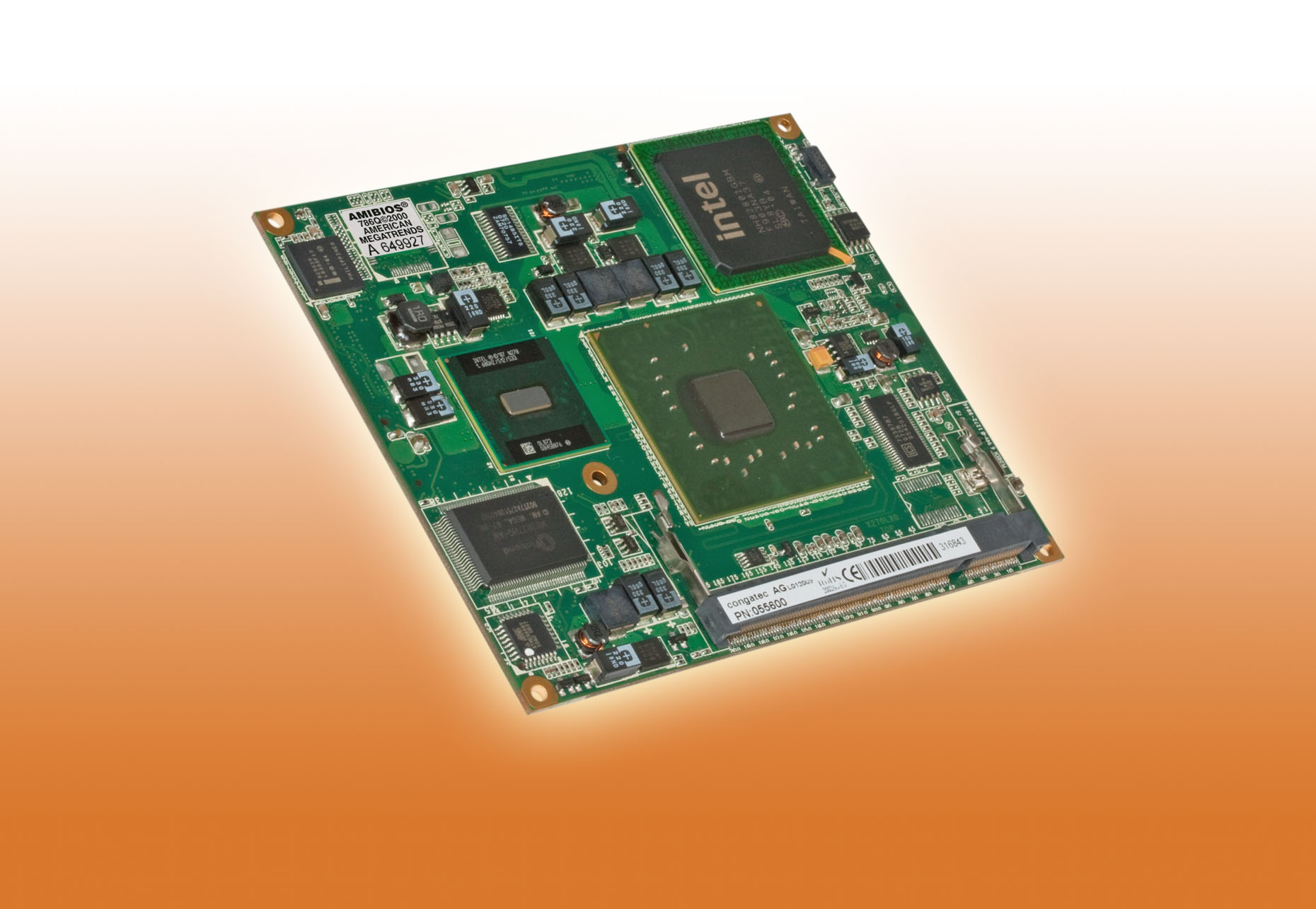

conga-XA945 press 11.08.2011	conga-XA945_press.jpg

Application Note

AN02 Remote Control 31.03.2012	AN2_Remote_Control.pdf
AN03 Watchdog 31.03.2012	AN3_Watchdog.pdf
AN05 BIOS Update And Write Protection 31.03.2012	AN5_BIOS_Update_And_Write_Protection.pdf
AN06 BIOS Recovery 31.03.2012	AN6_BIOS_Recovery.pdf
AN7 External BIOS Update 26.02.2013	AN7_External_BIOS_Update.pdf
AN8 Create OEM Default Map 02.04.2013	AN8_Create_OEM_Default_Map.pdf
AN09 RTC Battery Lifetime 31.03.2012	AN9_RTC_Battery_Lifetime.pdf
AN10 BIOS Setup Configuration 31.03.2012	AN10_BIOS_Setup_Configuration.pdf
AN11 Create And Add Bootlogo 31.03.2012	AN11_Create_And_Add_Bootlogo.pdf
AN12 Modify EPI File 31.03.2012	AN12_Modify_EPI_File.pdf
AN13 Load BIOS Setup Defaults 31.03.2012	AN13_Load_BIOS_Setup_Defaults.pdf
AN14 ETX XTX Mounting Solutions 31.03.2012	AN14_ETX_XTX_Mounting__Solutions.pdf
AN21 Add OEM ACPI SLIC Table 31.03.2012	AN21_Add_OEM_ACPI_SLIC_Table.pdf
AN22 Install Windows Without USB ROM Drive 31.03.2012	AN22_Install_Windows_Without_USB_ROM_Drive.pdf

DOS

Cgos.zip 2008-03-10 / 253709 Bytes	Public CGOS API Rev. 1.03.018
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide

Linux

CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgoslx.tar.gz 2012-01-24 / 49998 Bytes	Public CGOS API Rev. 1.03.020 for 32bit Linux (Kernel version 2.4, 2.6 and 3.0)
cgutillx.tar 2012-06-01 / 1986560 Bytes	congatec System Utility Rev. 1.4.9 Use for BIOS update or customization and panel configuration.Linux source version.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide

QNX

CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgosqx.tar.gz 2012-08-10 / 55214 Bytes	Public CGOS API Rev. 1.03.020 for QNX 6.x

Windows 2000

infinst_autol.exe 2007-08-24 / 2403096 Bytes	Intel Chipset Software Installation Utility for installing the Windows* INF files.
PRO2KXP.exe 2006-07-06 / 5494448 Bytes	Intel Chipset Ethernet Driver for i845, i852, i915, i945
WDM_A377.exe 2005-10-10 / 17791122 Bytes	Realtek AC97 Audio Driver for Windows 98Gold/98se/Me/2000/XP/2003(32/64 bits)
win2k_xp1431.exe 2007-08-24 / 17848432 Bytes	Intel Graphics Media Accelerator Driver for Windows XP Rev. 14.31

Windows 7

Cgos.zip 2008-03-10 / 253709 Bytes	Public CGOS API Rev. 1.03.018
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide

Windows 7 Embedded

cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
cgwes7.zip 2012-10-30 / 129103800 Bytes	Board Support Package for congatec CPU modules Rev. 1.3. Contains Windows Embedded Standard 7 driver files for video, SATA, sound, network and CGOS API.
cgwes7s1.zip 2011-06-20 / 16930 Bytes	Board Support Package Update for congatec CPU modules Rev. 1.3. Update for WES7 SP1. Requires cgwes7.zip
conga_DIG_WES7.pdf 2012-11-05 / 101083 Bytes	Windows Embedded Standard 7Installation Guide Rev. 1.3 for congatec CPU modules

Windows CE

cgce.msi 2007-06-04 / 2300416 Bytes	Board Support Package Rev. 2.1 for congatec CPU modules. Contains WindowsCE 5.0 driver files for video, sound and network.
cgce6.zip 2013-03-15 / 10285578 Bytes	Board Support Package Rev. 2.6.6 for congatec CPU modules. Contains WindowsCE 6.0 driver files for video, sound and network.
cgce7.zip 2013-01-23 / 8122085 Bytes	Board Support Package Rev. 2.6.5 for congatec CPU modules. Contains Windows Embedded Compact 7 driver files for video, sound and network.
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
conga_DIG_WEC7.pdf 2013-02-01 / 106375 Bytes	Windows CE 7.0 Driver Installation Guide Rev. 1.0 for congatec CPU modules
conga_DIG_WinCE.pdf 2007-06-04 / 123765 Bytes	Windows CE 5.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules
conga_DIG_WinCE6.pdf 2012-08-10 / 87262 Bytes	Windows CE 6.0 Driver Installation Guide Rev. 1.4 for congatec CPU modules

Windows Vista

6285_Vista_APO_PG536.zip 2008-06-18 / 31221153 Bytes	Realtek AC97 Audio Driver for Windows Vista
conga_DIG_WinVista.pdf 2007-11-23 / 105992 Bytes	Windows Vista Driver Installation Guide for all congatec CPU modules
infinst_autol.exe 2007-08-24 / 2403096 Bytes	Intel Chipset Software Installation Utility for installing the Windows* INF files.
winvista_1544.exe 2007-08-24 / 15731688 Bytes	Intel Graphics Media Accelerator Driver for Windows Vista 32 Rev. 15.4.4

Windows XP

Cgos.zip 2008-03-10 / 253709 Bytes	Public CGOS API Rev. 1.03.018
CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide
conga_DIG_WinXP.pdf 2008-09-16 / 135074 Bytes	Windows XP Driver Installation Guide for all congatec CPU modules
iegd10win32.zip 2010-10-11 / 7897260 Bytes	Intel Embedded Grahics Driver Ver. 10.3.1.1550 for Windows.
infinst_autol.exe 2007-08-24 / 2403096 Bytes	Intel Chipset Software Installation Utility for installing the Windows* INF files.
PRO2KXP.exe 2006-07-06 / 5494448 Bytes	Intel Chipset Ethernet Driver for i845, i852, i915, i945
WDM_A377.exe 2005-10-10 / 17791122 Bytes	Realtek AC97 Audio Driver for Windows 98Gold/98se/Me/2000/XP/2003(32/64 bits)
win2k_xp1431.exe 2007-08-24 / 17848432 Bytes	Intel Graphics Media Accelerator Driver for Windows XP Rev. 14.31

Windows XP embedded

CGOSAPIm13.pdf 2008-03-10 / 703288 Bytes	CGOS API programmers manual
cgutil.zip 2013-04-24 / 1601442 Bytes	congatec System Utility Rev. 1.5.0 Use for BIOS update or customization and panel configuration.
CGUTILm14.pdf 2009-06-22 / 1101393 Bytes	congatec System Utility Users Guide
cgxpe.zip 2012-05-14 / 51113668 Bytes	Board Support Package for congatec CPU modules Rev. 2.2. Contains WindowsXP embedded driver files forvideo, SATA, sound, network and CGOS API.
conga_DIG_WinXPE.pdf 2012-05-14 / 104867 Bytes	Windows XP embedded Driver Installation Guide Rev. 2.0 for congatec CPU modules

P/N	Title	Description
055600	conga-XA945/N270	XTX module with Intel 945GME and Intel Atom N270 Processor 1.6 GHz, 512kByteL2-Cache and 533MHz FSB
055605	conga-XA945/HSP-B	Heatspreader for XTX module conga-XA945. Standoff with 2.7mm bore hole.
055610	conga-XA945/HSP-T	Heatspreader for XTX module conga-XA945. Standoff with M2.5mm thread.
